TCR10G-RRMEK (1992)
Toyota Estima Emina/Lucida

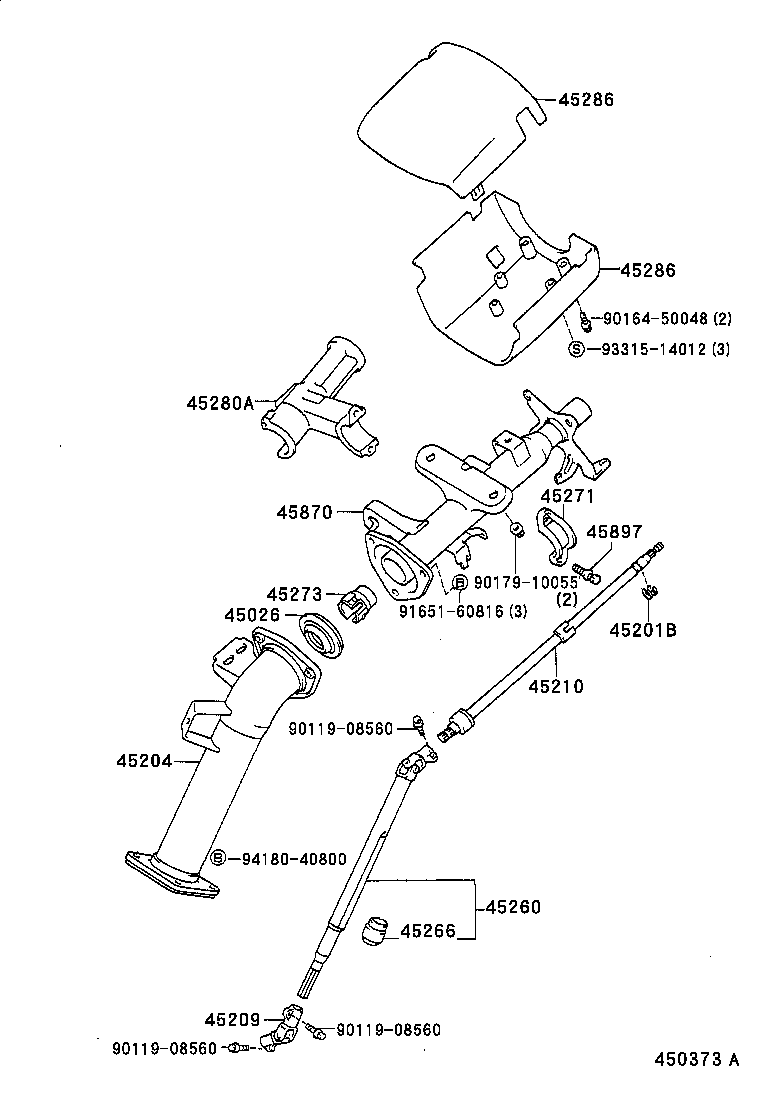

(9308-9501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CXR10,20..TD;CXR11,21,TCR1#,2#;CXR10,20..(AERAS,ELU,X,XLUX)..TDEFI 厚さ=1.20 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-28060 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28080 |
CXR10,20,TCR10..D,F |
1 | ||
| 45210-28090 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX |
1 | ||
| 45210-28090 |
CXR10,20,TCR10..D,F ｱﾘ(*80) |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28200 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2818003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2817003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,下側 |
1 | ||
| 45286-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,下側 |
1 | ||
| 45287-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,下側 |
1 | ||
| 45286-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,上側 |
1 | ||
| 45286-28220E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD) ｱﾘ(*80),GREIGE,TRIM4#,上側 |
1 | ||
| 45287-28260E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X) ｱﾘ(*80),GREIGE,TRIM4#,下側 |
1 | ||
| 45286-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,上側 |
1 | ||
| 45286-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,上側 |
1 | ||
| 45287-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 45286-28220B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,上側 |
1 | ||
| 45287-28260B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,下側 |
1 | ||
| 45287-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2818003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2817003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,下側 |
1 | ||
| 45286-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,下側 |
1 | ||
| 45287-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,下側 |
1 | ||
| 45286-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,上側 |
1 | ||
| 45286-28220E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD) ｱﾘ(*80),GREIGE,TRIM4#,上側 |
1 | ||
| 45287-28260E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X) ｱﾘ(*80),GREIGE,TRIM4#,下側 |
1 | ||
| 45286-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,上側 |
1 | ||
| 45286-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,上側 |
1 | ||
| 45287-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 45286-28220B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,上側 |
1 | ||
| 45287-28260B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,下側 |
1 | ||
| 45287-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,下側 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-28010 |
CXR10,20,TCR10..MTM..(D,F) ｱﾘ(*80) |
1 | ||
| 45870-28040 |
CXR10,20,TCR10..MTM..(D,F) |
1 | ||
| 45870-28010 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 91651-60816 | ||||
| 93315-14012 | ||||
| 94180-40800 | ||||

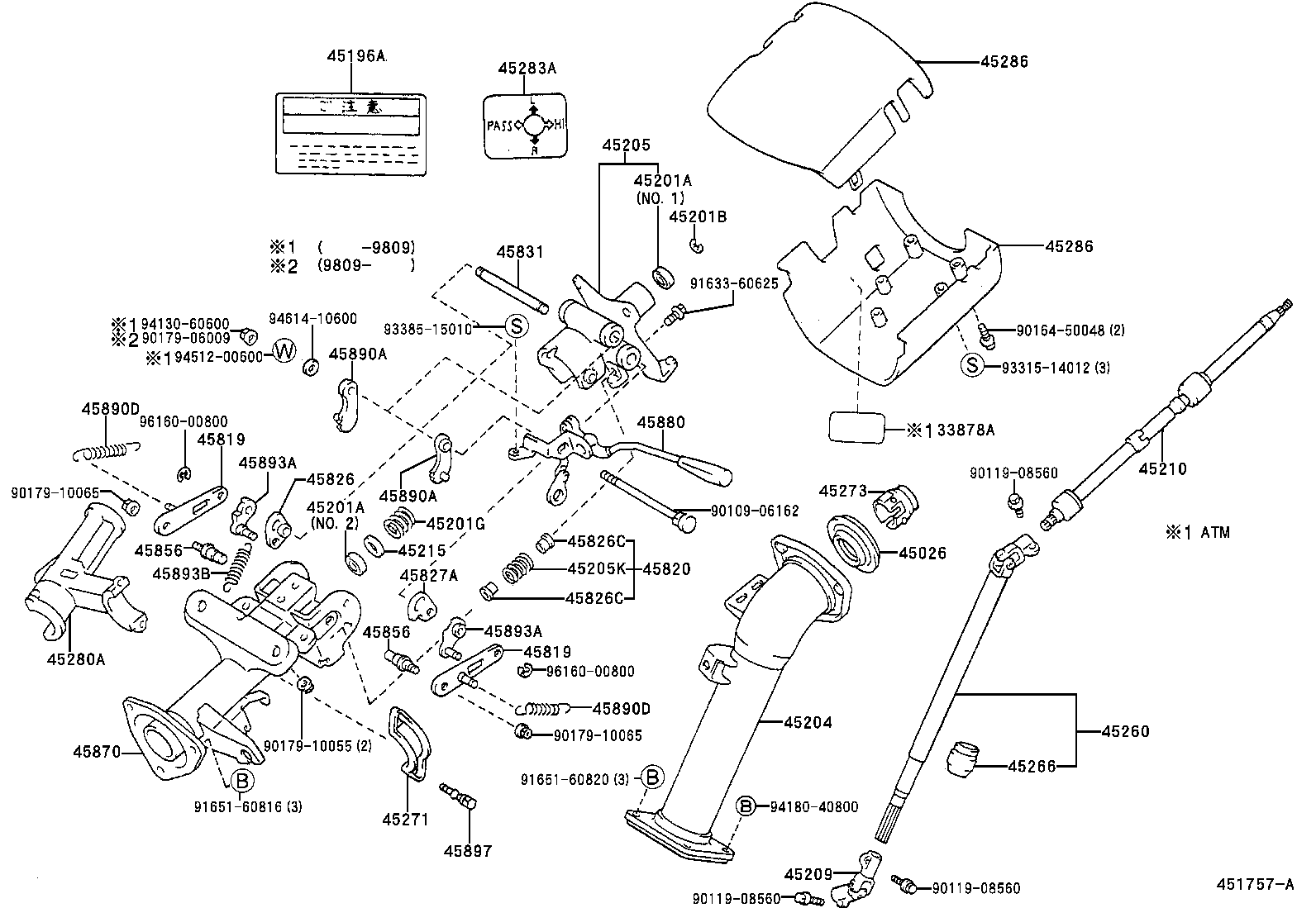

(9201-9308)F ; (9201- )
ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45196A - LABEL, STEERING SHAFT INSTAL CAUTION | ||||
| 45196-30010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CXR10,20..TD;CXR11,21,TCR1#,2#;CXR10,20..(AERAS,ELU,X,XLUX)..TDEFI 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-28060 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28110 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX |
1 | ||
| 45205-28120 |
CXR10,20,TCR10..D,F |
1 | ||
| 45205-28120 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX ｱﾘ(*80) |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28080 |
CXR10,20,TCR10..D,F |
1 | ||
| 45210-28090 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX |
1 | ||
| 45210-28090 |
CXR10,20,TCR10..D,F ｱﾘ(*80) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28200 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2818003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2817003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,下側 |
1 | ||
| 45286-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,下側 |
1 | ||
| 45287-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,下側 |
1 | ||
| 45286-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,上側 |
1 | ||
| 45286-28220E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD) ｱﾘ(*80),GREIGE,TRIM4#,上側 |
1 | ||
| 45287-28260E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X) ｱﾘ(*80),GREIGE,TRIM4#,下側 |
1 | ||
| 45286-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,上側 |
1 | ||
| 45286-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,上側 |
1 | ||
| 45287-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 45286-28220B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,上側 |
1 | ||
| 45287-28260B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,下側 |
1 | ||
| 45287-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,下側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2818003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2817003 |
CXR10,20,TCR10..MTM..(D,F) GRAY,TRIM1#,下側 |
1 | ||
| 45286-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,上側 |
1 | ||
| 45287-2819003 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) GRAY,TRIM1#,下側 |
1 | ||
| 45287-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,下側 |
1 | ||
| 45286-2819005 |
CXR1#,2#,TCR10,2#..MTM..(G,X) GREIGE,TRIM4#,上側 |
1 | ||
| 45286-28220E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD) ｱﾘ(*80),GREIGE,TRIM4#,上側 |
1 | ||
| 45287-28260E1 |
CXR1#,2#,TCR10,2#..MTM..(G,X) ｱﾘ(*80),GREIGE,TRIM4#,下側 |
1 | ||
| 45286-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,上側 |
1 | ||
| 45286-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,上側 |
1 | ||
| 45287-28190B0 |
CXR10,20,TCR10,20..MTM..X BLUISH GRAY,TRIM1#,下側 |
1 | ||
| 45286-28220B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,上側 |
1 | ||
| 45287-28260B0 |
CXR1#,2#,TCR10,2#..MTM ｱﾘ(*80),GRAY,TRIM1#,下側 |
1 | ||
| 45287-28190E2 |
CXR10,20,TCR10,20..MTM..X MI.GRAIGE,TRIM4#,下側 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-35010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06043 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06043 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
CXR1#,2#,TCR1#,2# 外径=9.989−9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
CXR1#,2#,TCR1#,2# 外径=9.989−9.998 |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-28010 |
CXR10,20,TCR10..MTM..(D,F) ｱﾘ(*80) |
1 | ||
| 45870-28040 |
CXR10,20,TCR10..MTM..(D,F) |
1 | ||
| 45870-28010 |
CXR1#,2#,TCR10,2#..MTM..(G,S,X) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-28011 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 45890-20110 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 45890-20110 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-08010 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 90507-12035 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-08010 |
CXR1#,2#,TCR1#,2# 左側 |
1 | ||
| 90507-12035 |
CXR1#,2#,TCR1#,2# 右側 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22070 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 5 |
1 | ||
| 45893-22080 |
CXR1#,2#,TCR1#,2# ﾏｰｸ A |
1 | ||
| 45893-22110 |
CXR1#,2#,TCR1#,2# ﾏｰｸ D |
1 | ||
| 45893-22050 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 3 |
1 | ||
| 45893-22030 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 1 |
1 | ||
| 45893-22120 |
CXR1#,2#,TCR1#,2# ﾏｰｸ E |
1 | ||
| 45893-22040 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 2 |
1 | ||
| 45893-22090 |
CXR1#,2#,TCR1#,2# ﾏｰｸ B |
1 | ||
| 45893-22060 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 4 |
1 | ||
| 45893-22100 |
CXR1#,2#,TCR1#,2# ﾏｰｸ C |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22070 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 5 |
1 | ||
| 45893-22080 |
CXR1#,2#,TCR1#,2# ﾏｰｸ A |
1 | ||
| 45893-22110 |
CXR1#,2#,TCR1#,2# ﾏｰｸ D |
1 | ||
| 45893-22050 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 3 |
1 | ||
| 45893-22030 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 1 |
1 | ||
| 45893-22120 |
CXR1#,2#,TCR1#,2# ﾏｰｸ E |
1 | ||
| 45893-22040 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 2 |
1 | ||
| 45893-22090 |
CXR1#,2#,TCR1#,2# ﾏｰｸ B |
1 | ||
| 45893-22060 |
CXR1#,2#,TCR1#,2# ﾏｰｸ 4 |
1 | ||
| 45893-22100 |
CXR1#,2#,TCR1#,2# ﾏｰｸ C |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-07003 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 90109-06162 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 91633-60625 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| 93385-15010 | ||||
| 94130-60600 | ||||
| 94180-40800 | ||||
| 94512-00600 | ||||
| 94614-10600 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
