CXR21G-RFSGX (1992)
Toyota Estima Emina/Lucida

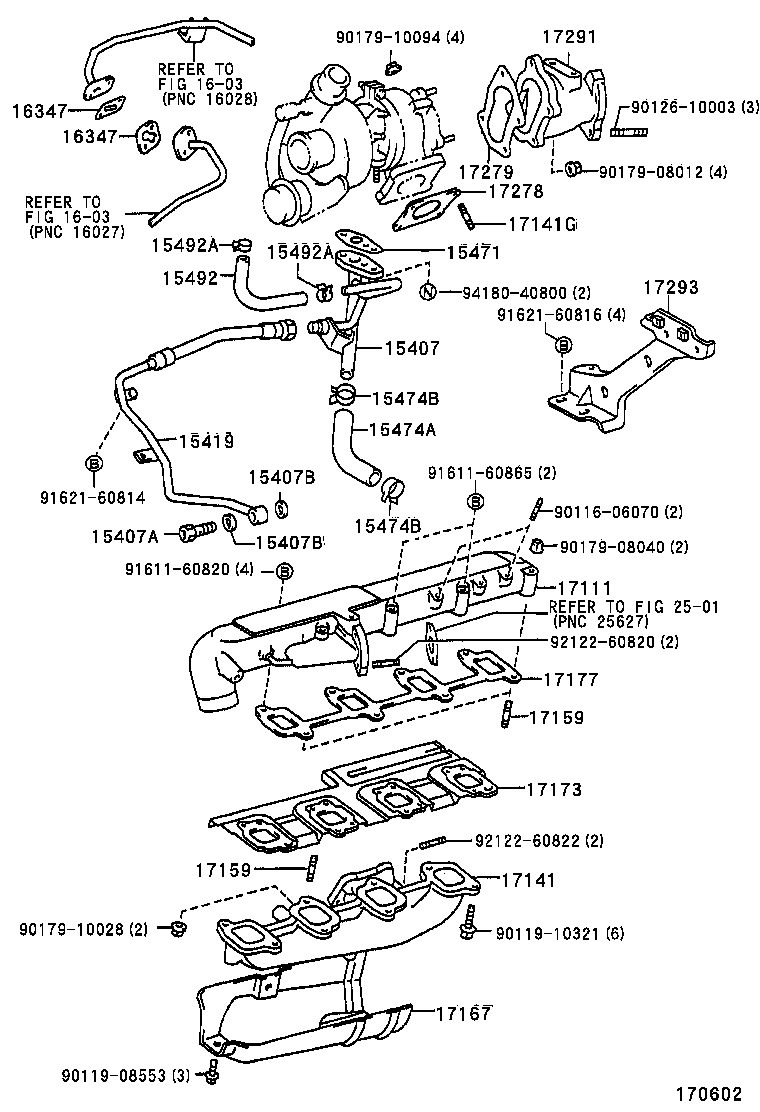

ILLUST NO. 1 OF 2(9201-9308)3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-64050 |
3CT#..CXR1#,2# |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-14014 |
3CT#..CXR1#,2# |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-14235 |
3CT#..CXR1#,2# |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-14235 |
3CT#..CXR1#,2# |
2 | ||
| 15419 - HOSE, OIL FILTER OUTLET | ||||
| 15419-64010 |
3CT#..CXR1#,2# |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
3CT#..CXR1#,2# |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-64010 |
3CT#..CXR1#,2# |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-28003 |
3CT#..CXR1#,2# |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-28003 |
3CT#..CXR1#,2# |
2 | ||
| 15492 - HOSE, TURBO OIL OUTLET, NO.2 | ||||
| 15492-64010 |
3CT..CXR1#,2# |
1 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-16003 |
3CT#..CXR1#,2# |
2 | ||
| 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) | ||||
| 90467-16003 |
3CT#..CXR1#,2# |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
3CT#..CXR1#,2# |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
3CT#..CXR1#,2# |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-64130 |
3CT..CXR1#,2# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-64190 |
3CT#..CXR1#,2# |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10148 |
3CT#..CXR1#,2# |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10095 |
3CT#..CXR1#,2# EXHAUST MANIFOLD |
2 | ||
| 92122-60865 |
3CT#..CXR1#,2# INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10095 |
3CT#..CXR1#,2# EXHAUST MANIFOLD |
2 | ||
| 92122-60865 |
3CT#..CXR1#,2# INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-64080 |
3CT#..CXR1#,2# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-64070 |
3CT#..CXR1#,2# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-64020 |
3CT#..CXR1#,2# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-64030 |
3CT#..CXR1#,2# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11010 |
3CT..CXR1#,2# |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-64060 |
3CT#..CXR1#,2# |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-64040 |
3CT#..CXR1#,2# |
1 | ||
| Common parts | ||||
| 90116-06070 | ||||
| 90119-08553 | ||||
| 90119-10321 | ||||
| 90126-10003 | ||||
| 90179-08012 | ||||
| 90179-08040 | ||||
| 90179-10028 | ||||
| 90179-10094 | ||||
| 91611-60820 | ||||
| 91611-60865 | ||||
| 91621-60814 | ||||
| 91621-60816 | ||||
| 92122-60820 | ||||
| 92122-60822 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2501 | ||||
ILLUST NO. 2 OF 2(9201- )3CT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-64040 |
3CT#..CXR1#,2# |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-11010 |
3CT#..CXR1#,2# |
1 | ||
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-64060 |
3CT#..CXR1#,2# |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
3CT#..CXR1#,2# |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
3CT#..CXR1#,2# |
4 | ||
| 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) | ||||
| 90521-99035 |
3CT#..CXR1#,2# |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
3CT#..CXR1#,2# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-64070 |
3CT..CXR1#,2# |
1 | ||
| 17224 - HOUSING, COMPRESSOR | ||||
| 17224-64030 |
3CT..CXR1#,2# |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
3CT..CXR1#,2# |
1 | ||
| 17229 - BAND, V | ||||
| 17229-70010 |
3CT#..CXR1#,2# |
1 | ||
| 17229 - BAND, V | ||||
| 17229-70010 |
3CT#..CXR1#,2# |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-69025 |
3CT#..CXR1#,2# |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08087 |
3CT#..CXR1#,2# 厚さ=3.0 |
2 | ||
| 90201-08081 |
3CT#..CXR1#,2# 厚さ=0.5 |
2 | ||
| 90201-08082 |
3CT#..CXR1#,2# 厚さ=1.0 |
2 | ||
| 90201-08086 |
3CT#..CXR1#,2# 厚さ=2.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08087 |
3CT#..CXR1#,2# 厚さ=3.0 |
2 | ||
| 90201-08081 |
3CT#..CXR1#,2# 厚さ=0.5 |
2 | ||
| 90201-08082 |
3CT#..CXR1#,2# 厚さ=1.0 |
2 | ||
| 90201-08086 |
3CT#..CXR1#,2# 厚さ=2.0 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60822 |
3CT#..CXR1#,2# |
2 | ||
| 17239 - CLAMP, V, NO.2 | ||||
| 17239-70010 |
3CT#..CXR1#,2# |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
3CT..CXR1#,2# |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
3CT#..CXR1#,2# |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
3CT#..CXR1#,2# |
2 | ||
| Common parts | ||||
| 90112-06003 | ||||
| 90179-06018 | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
