CXR21G-RFMGX (1992)
Toyota Estima Emina/Lucida
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPEC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 9(9201- )
COWL WIRE SPRC LIST
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 5 OF 9(9201- )
COWL WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28170 | ||||
| 82711-28430 | ||||
| 82711-28480 | ||||
| 82711-2A710 | ||||
| 82711-95015 | ||||
| 82715-28080 | ||||
| 82715-28100 | ||||
| 82715-28150 | ||||
| 82715-28270 | ||||
| 82715-28310 | ||||
| 82715-28530 | ||||
| 82715-95D27 | ||||
| 82715-95D28 | ||||
| 91651-40620 | ||||
| 91661-40614 | ||||
ILLUST NO. 2 OF 9(9201- )
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28060 |
TCR1#,2# |
1 | ||
| 82122-28080 |
CXR1#,2# |
1 | ||
| 82122-28070 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-28190 |
TCR1#,2# |
1 | ||
| 82124-28060 |
CXR1#,2# |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-28050 |
TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82261-28020 |
TCR1#,2# |
1 | ||
| 82261-28050 |
CXR1#,2# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-95D01 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-28030 |
TCR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28050 |
CXR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28060 |
CXR1#,2#,TCR1#,2# BATTERY |
1 | ||
| 82621-28020 |
TCR11,21 ｱﾘ(*66),DASH SIDE,UPPER |
1 | ||
| 82621-28030 |
TCR11,21..G EMINA & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DASH SIDE,UPPER |
1 | ||
| 82621-28010 |
CXR1#,2#,TCR1#,2# DASH SIDE,LOWER |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-28110 |
CXR1#,2# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 82711-95D07 | ||||
| 82715-28240 | ||||
| 82715-28291 | ||||
| 82715-28550 | ||||
| 82715-95D04 | ||||
| 82715-95D05 | ||||
| 82715-95D06 | ||||
| 82715-95D07 | ||||
| 82715-95D08 | ||||
| 82715-95D26 | ||||
| 90119-08103 | ||||
| 90179-08025 | ||||
| 91651-40816 | ||||
| 91651-41016 | ||||
| 94180-40800 | ||||
ILLUST NO. 3 OF 9(9201- )
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28460 |
TCR1#,2# EMINA |
1 | ||
| 82111-28480 |
CXR1#,2# |
1 | ||
| 82111-28500 |
CXR1#,2# EMINA |
1 | ||
| 82111-28510 |
CXR11,21 EMINA & ｱﾘ(*66) OR EMINA & ｱﾘ(*66) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82111-28450 |
TCR11,21 ｱﾘ(*66) |
1 | ||
| 82111-28440 |
TCR1#,2#..F,S,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82111-28470 |
TCR11,21 EMINA & ｱﾘ(*66) OR EMINA & ｱﾘ(*66) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82111-28440 |
TCR11,21..G |
1 | ||
| 82111-28430 |
TCR1#,2#..F,S,X |
1 | ||
| 82111-28490 |
CXR11,21 ｱﾘ(*66) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-28020 |
TCR1#,2# ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82112-28060 |
CXR1#,2# LUCIDA |
1 | ||
| 82112-28070 |
CXR1#,2# EMINA |
1 | ||
| 82112-28040 |
TCR1#,2# EMINA |
1 | ||
| 82112-28050 |
TCR11,21 EMINA & ｱﾘ(*66) OR EMINA & ｱﾘ(*66) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
CXR1#,2#,TCR1#,2# 50A,ﾒｽ端子,赤 |
2 | ||
| 90982-08202 |
CXR1#,2# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08190 |
CXR11,21,TCR11,21 60A,ﾒｽ端子,黄,ｱﾘ(*66) |
1 | ||
| 90982-08246 |
CXR1#,2#,TCR1#,2# 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
CXR1#,2#,TCR1#,2# 50A,ﾒｽ端子,赤 |
2 | ||
| 90982-08202 |
CXR1#,2# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08190 |
CXR11,21,TCR11,21 60A,ﾒｽ端子,黄,ｱﾘ(*66) |
1 | ||
| 90982-08246 |
CXR1#,2#,TCR1#,2# 100A,ｵｽ端子,青 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28060 |
CXR1#,2# BATTERY |
1 | ||
| 82620-28050 |
CXR1#,2#,TCR1#,2# DASH SIDE |
1 | ||
| 82620-28110 |
TCR1#,2# BATTERY |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28060 |
CXR1#,2# BATTERY |
1 | ||
| 82620-28050 |
CXR1#,2#,TCR1#,2# DASH SIDE |
1 | ||
| 82620-28110 |
TCR1#,2# BATTERY |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-28030 |
TCR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28050 |
CXR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28060 |
CXR1#,2#,TCR1#,2# BATTERY |
1 | ||
| 82621-28020 |
TCR11,21 ｱﾘ(*66),DASH SIDE,UPPER |
1 | ||
| 82621-28030 |
TCR11,21..G EMINA & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DASH SIDE,UPPER |
1 | ||
| 82621-28010 |
CXR1#,2#,TCR1#,2# DASH SIDE,LOWER |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-28030 |
TCR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28050 |
CXR1#,2# DASH SIDE,UPPER |
1 | ||
| 82621-28060 |
CXR1#,2#,TCR1#,2# BATTERY |
1 | ||
| 82621-28020 |
TCR11,21 ｱﾘ(*66),DASH SIDE,UPPER |
1 | ||
| 82621-28030 |
TCR11,21..G EMINA & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DASH SIDE,UPPER |
1 | ||
| 82621-28010 |
CXR1#,2#,TCR1#,2# DASH SIDE,LOWER |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16140 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 82715-28440 | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 90119-08632 | ||||
| 90119-08778 | ||||
| 90119-08953 | ||||
| 90179-08041 | ||||
| 90179-08107 | ||||
| 90179-08123 | ||||
| 91655-40820 | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(9201- )
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-28290 |
CXR11,21..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.17 |
1 | ||
| 82135-28280 |
CXR11,21..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.16 |
1 | ||
| 82135-28260 |
CXR11,21..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.14 |
1 | ||
| 82135-28360 |
TCR10,2#..MTM..(S,X) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
1 | ||
| 82135-28270 |
CXR11,21..MTM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.15 |
1 | ||
| 82135-28340 |
TCR10,2#..MTM..(S,X) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,NO.26 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28230 |
CXR11,21,TCR11,21..G ｱﾘ(9 SPEAKER) OR ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 82132-28360 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 82132-28230 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(9 SPEAKER) |
1 | ||
| 82132-28230 |
CXR11,21,TCR11,21..G |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 82715-28250 | ||||
| 82715-28540 | ||||
| 82817-87013 | ||||
| 82819-28331 | ||||
| 82819-28341 | ||||
| 90109-08168 | ||||
| 90119-06029 | ||||
| 90119-08103 | ||||
| 90119-08198 | ||||
| 90159-60081 | ||||
| 90189-05055 | ||||
| 91651-40612 | ||||
| 91655-40820 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
ILLUST NO. 7 OF 9(9201- )
ROOF & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28060 |
CXR11,21,TCR11,21..G |
1 | ||
| 82171-28070 |
CXR11,21,TCR11,21..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-28130 |
CXR11,21,TCR11,21..G ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-28140 |
TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-);ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & TV) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82171-28090 |
CXR10,20,TCR1#,2#..S,X |
1 | ||
| 82171-28370 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ *SNR) |
1 | ||
| 82171-28360 |
TCR11,21..G ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82171-28360 |
TCR1#,2#..S,X ｱﾘ(TV) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82171-28080 |
CXR11,21,TCR11,21..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82171-28380 |
CXR10,20,TCR11,21..S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-28030 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 82174-28010 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾃﾚﾋﾞ) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28100 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82184-28110 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & 9 ｽﾋﾟ-ｶ) OR ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 82185-28040 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82185-28050 |
CXR11,21,TCR11,21 ｱﾘ(1DIN---9 ｽﾋﾟ-ｶ) OR ﾅｼ(ﾗｼﾞｵ) |
1 | ||
| 82185-28030 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82185-28070 |
CXR11,21,TCR11,21 ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & 1DIN---9 ｽﾋﾟ-ｶ) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) & ﾅｼ(ﾗｼﾞｵ) |
1 | ||
| 82185-28090 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & 1DIN---9 ｽﾋﾟ-ｶ) |
1 | ||
| 82185-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ-) |
1 | ||
| 82185-28090 |
CXR11,21,TCR11,21 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ- ) & ﾅｼ(ﾗｼﾞｵ) |
1 | ||
| 82185-28080 |
CXR11,21,TCR11,21 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & 1DIN---9 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) & ﾅｼ(ﾗｼﾞｵ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 82781 - WIRE, AUTO CURTAIN, NO.1 | ||||
| 82781-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| Common parts | ||||
| 82711-95D37 | ||||
| 82811-28010 | ||||
| 90119-06122 | ||||
| 90119-06390 | ||||
| 93540-54516 | ||||

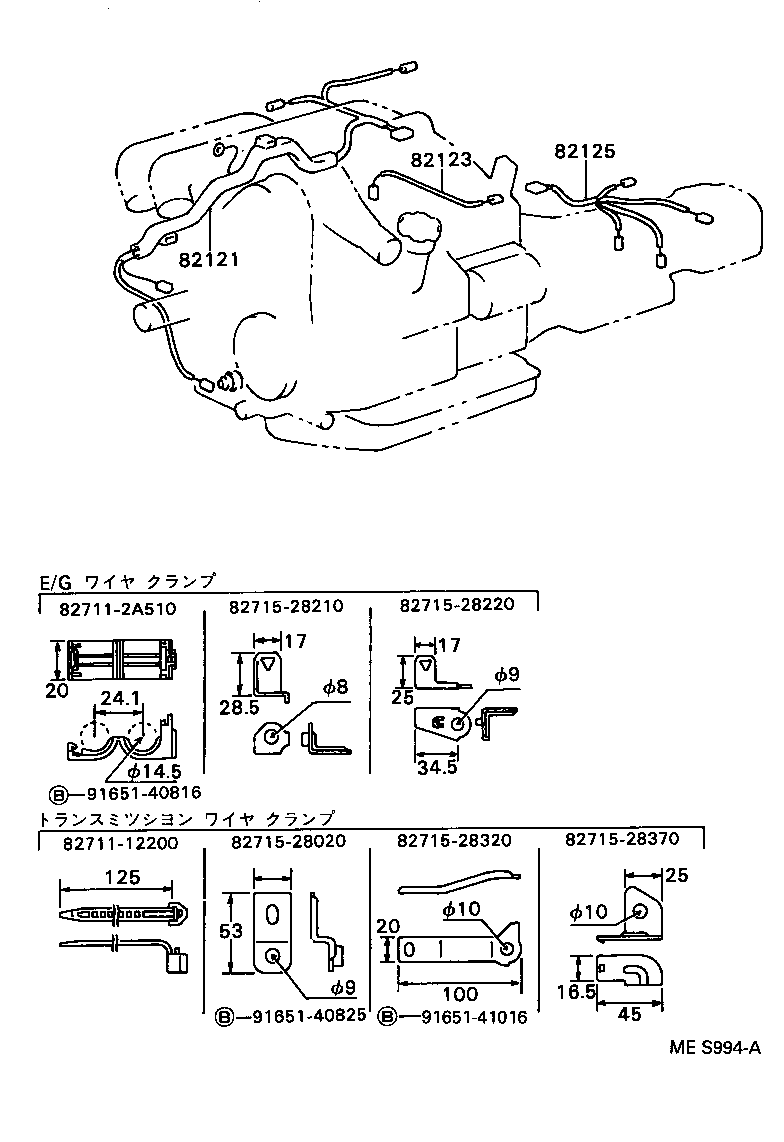

ILLUST NO. 1 OF 9(9201- )TCR1#,2#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28080 |
TCR1#,2# |
1 | ||
| 82121-28100 |
CXR1#,2# |
1 | ||
| 82121-28100 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82121-28250 |
CXR1#,2# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-28070 |
CXR2#..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2A710 | ||||
| 82715-28010 | ||||
| 82715-28020 | ||||
| 82715-28040 | ||||
| 82715-28320 | ||||
| 82715-28370 | ||||
| 82715-95D12 | ||||
| 82715-95D17 | ||||
| 82715-95D18 | ||||
| 90159-50001 | ||||
| 91621-40812 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 91651-41060 | ||||
| 91651-60816 | ||||
| 91655-40820 | ||||
| 93381-16012 | ||||
ILLUST NO. 6 OF 9(9201- )
FR DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28170 |
CXR11,21,TCR11,21..G |
1 | ||
| 82151-28160 |
CXR11,21,TCR11,21..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28160 |
CXR11,21,TCR11,21..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 82152-28170 |
CXR11,21,TCR11,21..G |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28070 |
CXR1#,2#,TCR1#,21..D,F,G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-28090 |
TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) OR ｱﾘ(TV) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82163-28100 |
TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV) |
1 | ||
| 82163-28080 |
TCR1#,2#..S,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾃﾚﾋﾞ) |
1 | ||
| 82163-28100 |
CXR10,20..X..TD;CXR11,21,TCR11,21..G ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV) |
1 | ||
| 82163-28080 |
CXR1#,2#,TCR11,21..G,X ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-28070 |
TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｸﾘｱﾗﾝｽ ｿﾅ-) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163-28090 |
CXR1#,2#,TCR1#,2#..G,XLUX |
1 | ||
| 82163-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-28070 |
CXR11,21,TCR11,21..G ｱﾘ(*66) |
1 | ||
| 82181-28130 |
TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) OR ｱﾘ(TV) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82181-28330 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 82181-28130 |
CXR11,21,TCR11,21..G |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-28040 |
CXR11,21,TCR11,21..G |
1 | ||
| 82182-28050 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞ) OR ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾃﾚﾋﾞ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82182-28090 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV) |
1 | ||
| 82182-28070 |
CXR11,21,TCR11,21..G ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82182-28050 |
CXR11,21,TCR11,21..G ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 82182-28040 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82182-28080 |
CXR11,21 ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 82182-28110 |
CXR1#,2#..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & TV) |
1 | ||
| 82182-28070 |
CXR10,20,TCR1#,2#..S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) OR ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ- & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82182-28060 |
CXR11,21 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82182-28100 |
CXR1#,2#..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-28010 |
CXR1#,2# |
1 | ||
| Common parts | ||||
| 82817-12400 | ||||
| 82817-95708 | ||||
| 90119-06122 | ||||
| 90119-06348 | ||||
| 90119-06390 | ||||
| 90159-60081 | ||||
| 90189-05055 | ||||
| 90333-20001 | ||||
| 90950-01574 | ||||
| 91621-40814 | ||||
| 91651-60816 | ||||
| 91655-40616 | ||||
| 91655-60816 | ||||
ILLUST NO. 9 OF 9(9201- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-32020 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
CXR1#,2#,TCR1#,2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
CXR1#,2#,TCR1#,2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CXR1#,2#,TCR1#,2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-12050 |
CXR1#,2#,TCR1#,2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345-22051 |
CXR1#,2#,TCR1#,2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
ILLUST NO. 1 OF 9(9201-9308)CXR1#,2#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28080 |
TCR1#,2# |
1 | ||
| 82121-28100 |
CXR1#,2# |
1 | ||
| 82121-28100 |
CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82121-28250 |
CXR1#,2# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28040 |
CXR1#,2# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-28070 |
CXR2#..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2A510 | ||||
| 82715-28020 | ||||
| 82715-28210 | ||||
| 82715-28220 | ||||
| 82715-28320 | ||||
| 82715-28370 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 91651-41016 | ||||
ILLUST NO. 8 OF 9(9201- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
CXR1#,2# |
1 | ||
| 90980-07328 |
TCR1#,2# TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# ENGINE |
1 | ||
| 90980-07310 |
TCR1#,2# IG COIL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
CXR1#,2# |
1 | ||
| 90980-07328 |
TCR1#,2# TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# ENGINE |
1 | ||
| 90980-07310 |
TCR1#,2# IG COIL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07328 |
CXR1#,2# |
1 | ||
| 90980-07328 |
TCR1#,2# TRANSMISSION |
1 | ||
| 90980-07331 |
TCR1#,2# ENGINE |
1 | ||
| 90980-07310 |
TCR1#,2# IG COIL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-08063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
