CXR21G-RFMGX (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Aug 1993
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

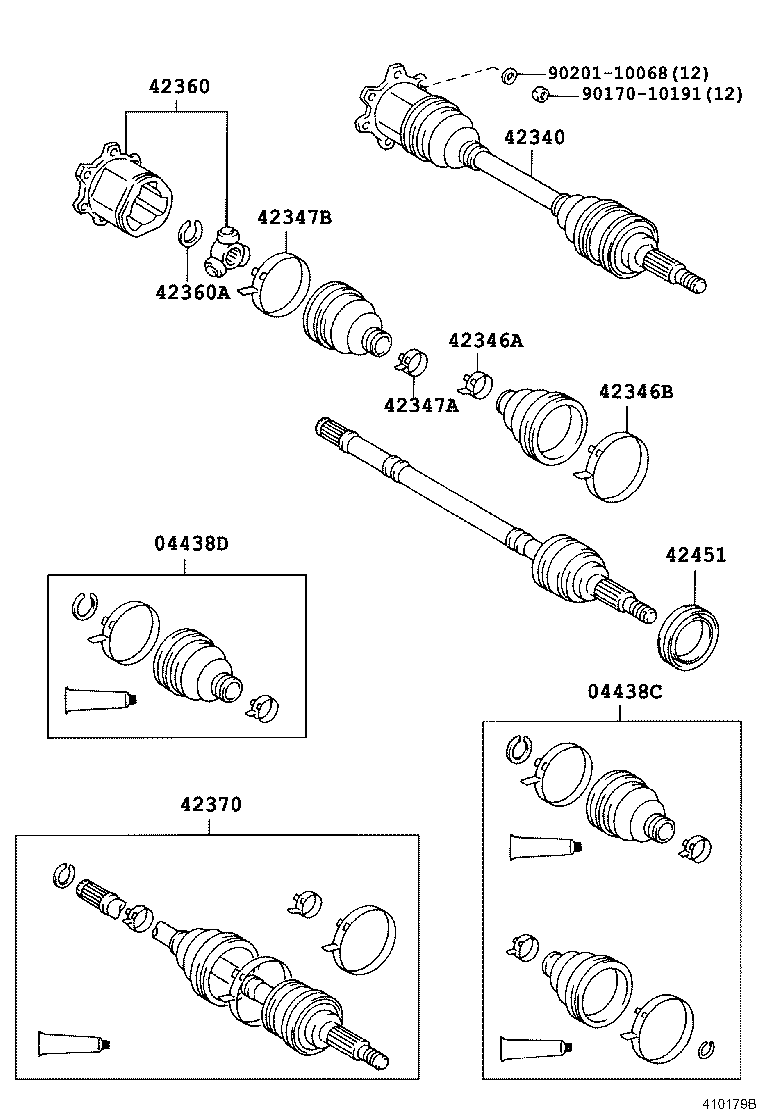

ILLUST NO. 1 OF 2(9201- )CXR11,21,TCR11,21

Click highlighted areas on diagram

diagram 04438C 04438D 42340 42346A 42346B 42347A 42347B 42360 42360A 42370 42451 9017010191 9020110068
Part # Description Qty Price
04438C - BOOT KIT, REAR DRIVE SHAFT
04437-28030

CXR11,21,TCR11,21

 2
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04437-28020

CXR11,21,TCR11,21

 2
42340 - SHAFT ASSY, REAR DRIVE
42340-28050

CXR11,21,TCR11,21..G

ｱｳﾄﾎﾞｰﾄﾞ:OD=24

 2
42340-28061

CXR11,21,TCR11,21..G

ｱﾘ(ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),ｱｳﾄﾎﾞｰﾄﾞ:OD=26

 2
42340-28060

CXR11,21,TCR11,21..G

ｱﾘ(ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ),ｱｳﾄﾎﾞｰﾄﾞ:OD=24

 2
42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-14010

CXR11,21,TCR11,21

内径=35.75

 2
90949-01473

CXR11,21,TCR11,21

内径=96.5

 2
42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01473

CXR11,21,TCR11,21

 2
42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-14010

CXR11,21,TCR11,21

内径=35.75

 2
42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-30010

CXR11,21,TCR11,21

 2
42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD
43403-28020

CXR11,21,TCR11,21

 2
42360A - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)
90520-26028

CXR11,21,TCR11,21

 2
42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT
42370-29125

CXR11,21,TCR11,21..G

 2
42370-29135

CXR11,21,TCR11,21..G

ｱﾘ(15ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ)

 2
42370-29136

CXR11,21,TCR11,21..G

ｱﾘ(15ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ)

 2
42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1
42452-28020

CXR11,21,TCR11,21..G,GLUX

 2
42452-28010

CXR11,21,TCR11,21..G..(EFI,TD)

ｱﾘ(*66 & ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ)

 2
Common parts
90170-10191
90201-10068

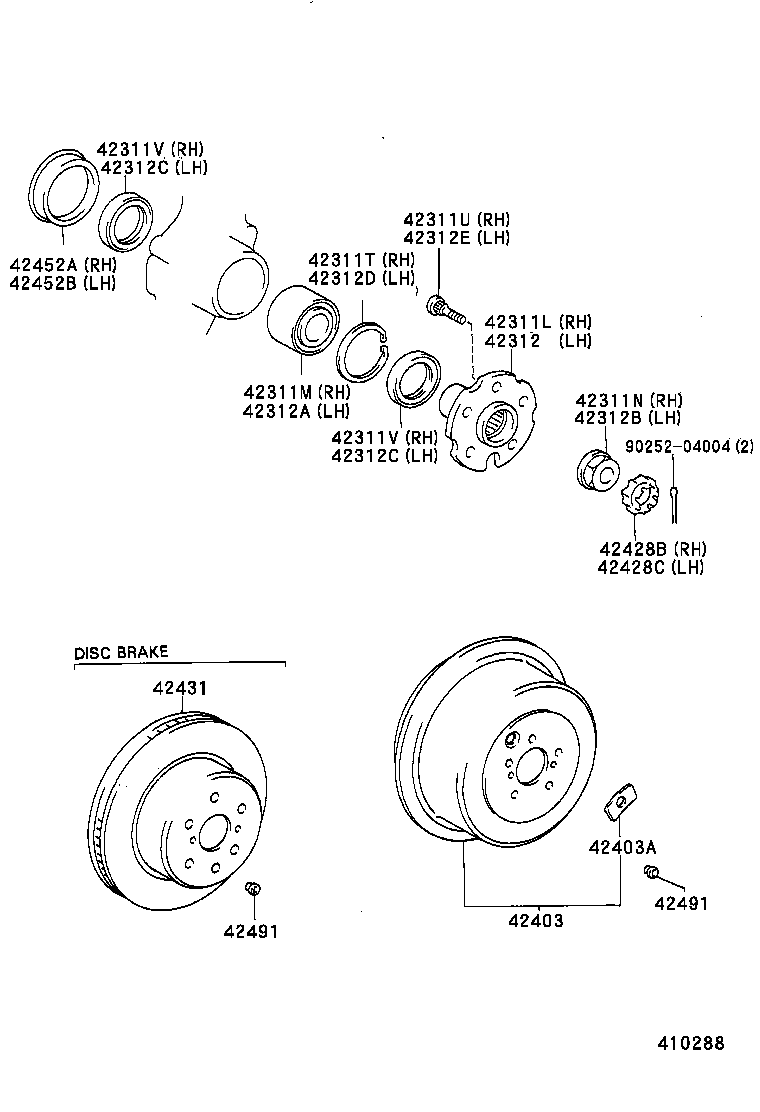

ILLUST NO. 2 OF 2(9201- )CXR11,21,TCR11,21

Click highlighted areas on diagram

diagram 42311L 42311M 42311N 42311T 42311U 42311V 42311V 42312 42312A 42312B 42312C 42312C 42312D 42312E 42403 42403A 42428B 42428C 42431 42452A 42452B 42491 42491 9025204004
Part # Description Qty Price
42311L - SHAFT, REAR AXLE, RH
42311-28040

CXR11,21,TCR11,21

 1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90369-45002

CXR11,21,TCR11,21

 1
42311N - NUT (FOR REAR AXLE SHAFT RH)
90179-24007

CXR11,21,TCR11,21

内径=24

 1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90521-82002

CXR11,21,TCR11,21

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

CXR11,21,TCR11,21

 5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-59002

CXR11,21,TCR11,21

外側

 1
90311-63001

CXR11,21,TCR11,21

内側

 1
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-59002

CXR11,21,TCR11,21

外側

 1
90311-63001

CXR11,21,TCR11,21

内側

 1
42312 - SHAFT, REAR AXLE, LH
42311-28040

CXR11,21,TCR11,21

 1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90369-45002

CXR11,21,TCR11,21

 1
42312B - NUT (FOR REAR AXLE SHAFT LH)
90179-24007

CXR11,21,TCR11,21

内径=24

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-63001

CXR11,21,TCR11,21

内側

 1
90311-59002

CXR11,21,TCR11,21

外側

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-63001

CXR11,21,TCR11,21

内側

 1
90311-59002

CXR11,21,TCR11,21

外側

 1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90521-82002

CXR11,21,TCR11,21

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

CXR11,21,TCR11,21

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28050

CXR11,21,TCR11,21..G,GLUX

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01289

CXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX

30G

 1
90937-01288

CXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX

20G

 1
90937-01287

CXR1#,2#,TCR1#,2#..D,F,G,GLUX,X,XLUX

10G

 1
42428B - PLATE, REAR AXLE LOCK NUT, RH
42428-22010

CXR11,21,TCR11,21

内径=25

 1
42428C - PLATE, REAR AXLE LOCK NUT, LH
42428-22010

CXR11,21,TCR11,21

内径=25

 1
42431 - DISC, REAR
42431-14120

CXR11,21,TCR11,21

 2
42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH
42451-14010

CXR11,21,TCR11,21..G,GLUX

 1
42451-28010

CXR11,21,TCR11,21..G..(EFI,TD)

ｱﾘ(*66 & ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ)

 1
42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH
42451-28010

CXR11,21,TCR11,21..G..(EFI,TD)

ｱﾘ(*66 & ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ)

 1
42451-14010

CXR11,21,TCR11,21..G,GLUX

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

CXR11,21,TCR11,21..G,GLUX

 2
47491-22020

CXR11,21,TCR11,21..G

ｱﾘ(ABS & ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ)

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

CXR11,21,TCR11,21..G,GLUX

 2
47491-22020

CXR11,21,TCR11,21..G

ｱﾘ(ABS & ﾘﾔ ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ)

 2
Common parts
90252-04004
