CXR21G-RFMGX (1992)
Toyota Estima Emina/Lucida

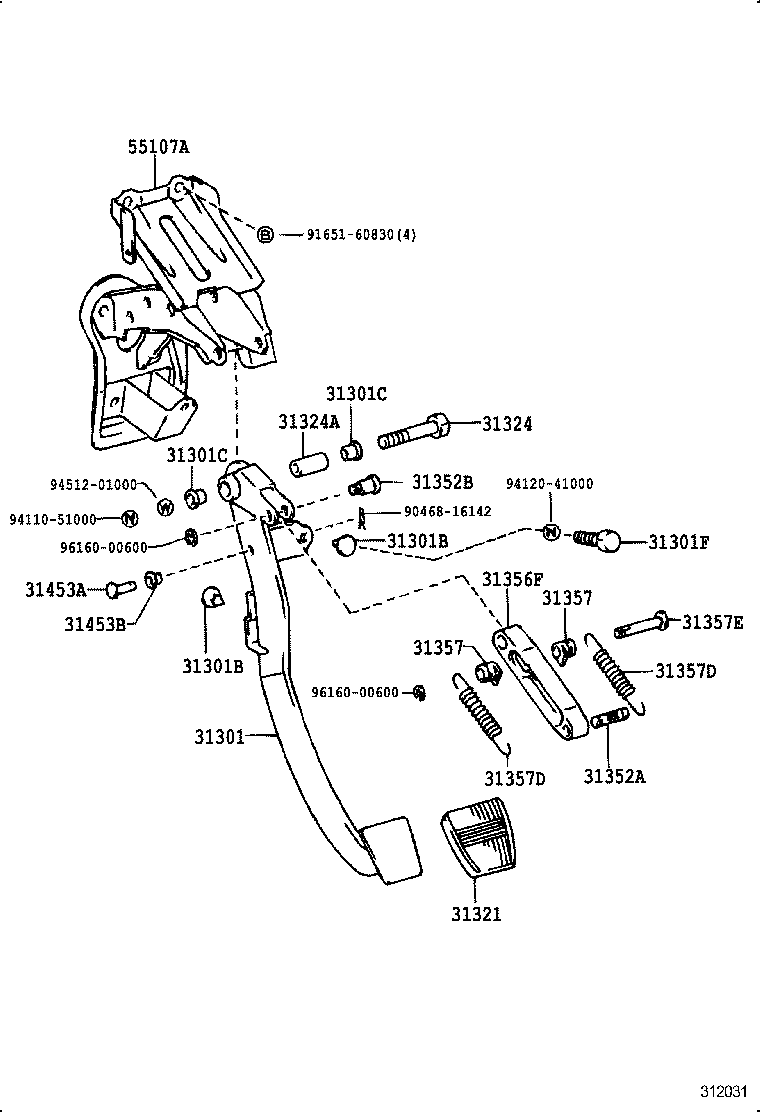

ILLUST NO. 1 OF 2(9201- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-28111 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31352A - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1 | ||||
| 31352-17010 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31352B - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2 | ||||
| 31352-20020 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 | ||||
| 31356-17010 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 | ||||
| 31357-20020 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 | ||||
| 31357-20020 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-26007 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90507-26007 |
CXR1#,2#,TCR10,2#..MTM |
2 | ||
| 31357E - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3 | ||||
| 90249-08214 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-28020 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60830 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||

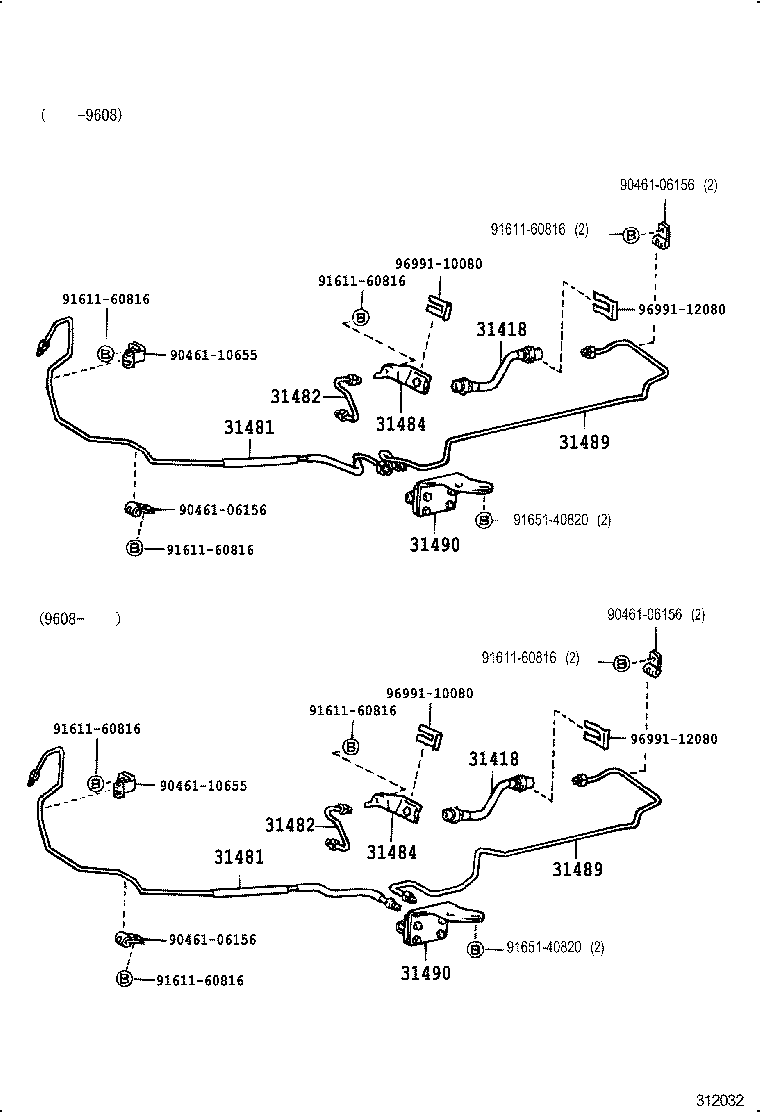

ILLUST NO. 2 OF 2(9201- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01096 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90931-01096 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-28150 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-28150 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-28090 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-28090 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-28070 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-28070 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-28170 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-28170 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-28060 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-28060 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| Common parts | ||||
| 90461-06156 | ||||
| 90461-10655 | ||||
| 91611-60816 | ||||
| 91651-40820 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
