CXR20G-RRSET (1993)
Toyota Estima Emina/Lucida

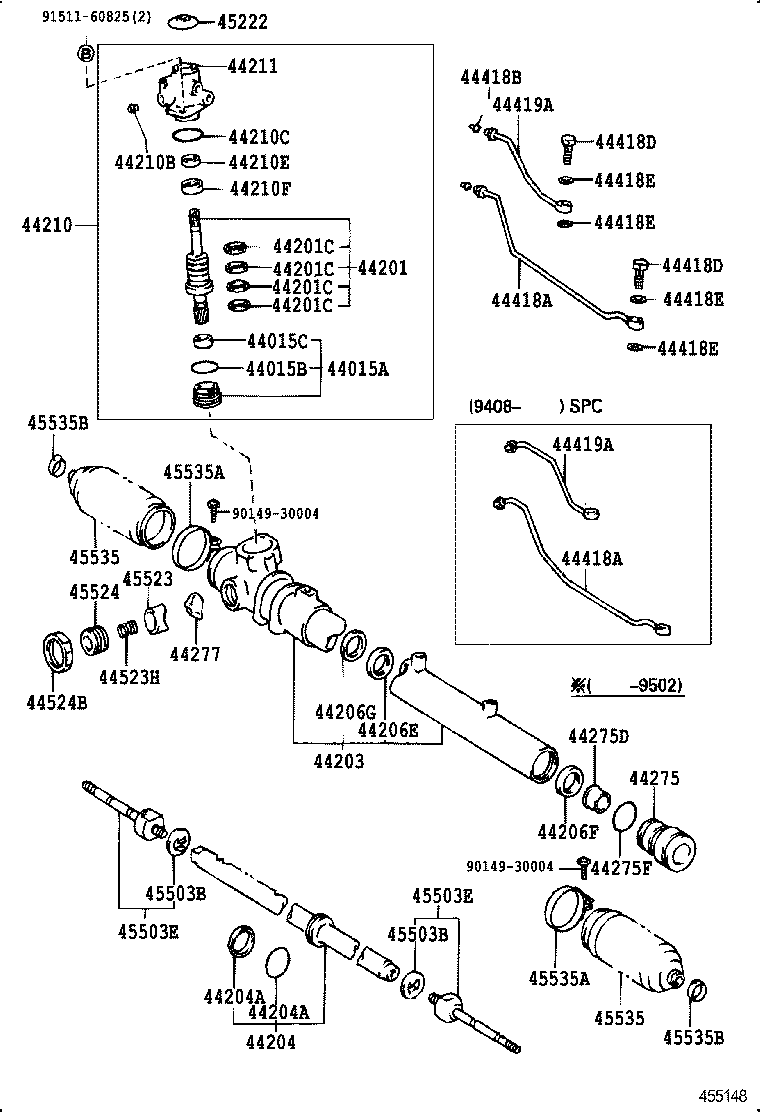

ILLUST NO. 2 OF 2(9201-9501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-28180 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201-28181 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201-28180 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-28261 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44203-28260 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44203-28261 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44203-28262 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-39003 |
CXR1#,2#,TCR1#,2# 内側 |
1 | ||
| 90562-43001 |
CXR1#,2#,TCR1#,2# 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
CXR1#,2#,TCR1#,2# 外側 |
1 | ||
| 90301-39003 |
CXR1#,2#,TCR1#,2# 内側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30011 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30011 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-30007 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-28190 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210-28180 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44210-28182 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210-28180 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-06005 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44211-22020 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44211-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28090 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418-28091 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28090 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418-28091 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-04001 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
4 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28071 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44419-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44419-28071 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28071 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44419-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44419-28071 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 90501-23024 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CXR1#,2#,TCR1#,2# 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CXR1#,2#,TCR1#,2# 外径=41 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29295 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29295 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90460-55016 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90460-55016 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 2 OF 2(9501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-28180 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201-28181 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44201-28180 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-28261 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44203-28260 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44203-28261 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44203-28262 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
CXR1#,2#,TCR1#,2# 外側 |
1 | ||
| 90301-39003 |
CXR1#,2#,TCR1#,2# 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
CXR1#,2#,TCR1#,2# 外側 |
1 | ||
| 90301-39003 |
CXR1#,2#,TCR1#,2# 内側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30011 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30011 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-30007 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-28190 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210-28180 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44210-28182 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210-28180 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-06005 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44211-22020 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44211-22020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-30001 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28090 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418-28091 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-04001 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-04001 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 90410-04001 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90410-04001 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28071 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 44419-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44419-28071 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
TCR10..ATM;CXR1#,2#,TCR11,2# |
1 | ||
| 90501-23024 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CXR1#,2#,TCR1#,2# 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
CXR1#,2#,TCR1#,2# 外径=41 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29295 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29295 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-28020 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90460-55016 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 90460-55016 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CXR1#,2#,TCR1#,2# |
2 | ||
| Common parts | ||||
| 91511-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
