CXR20G-RRSET (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )3CTE

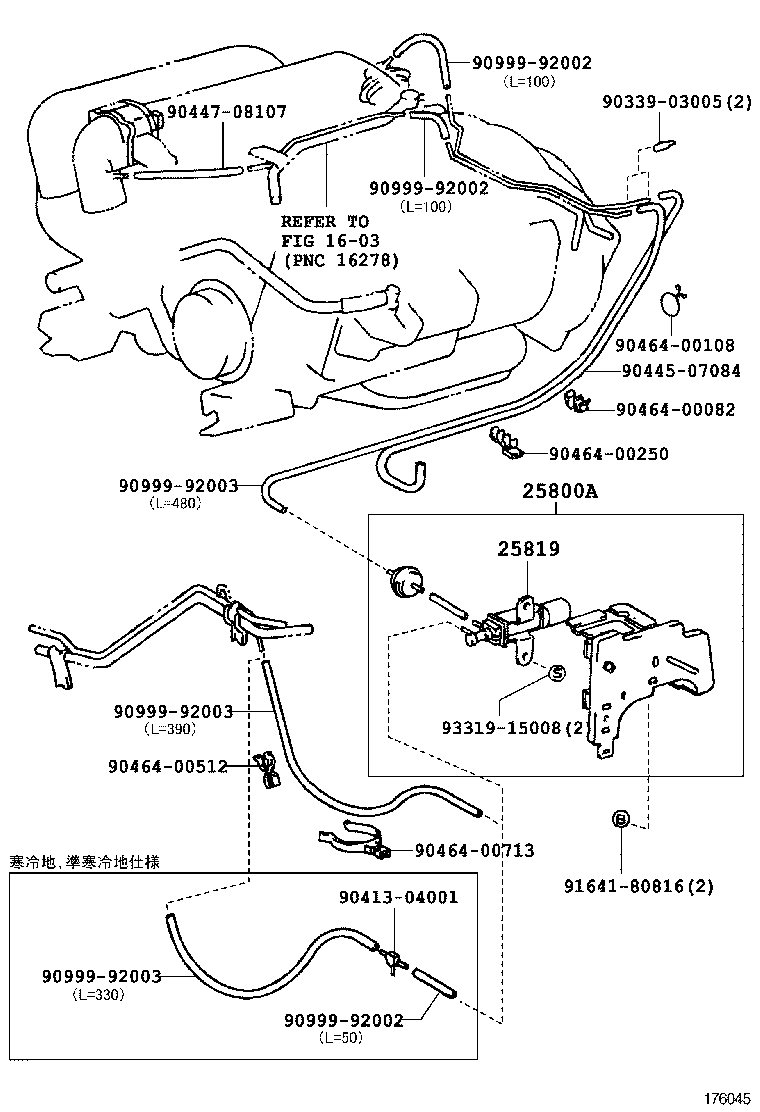

Click highlighted areas on diagram

diagram 1603 25800A 25819 9033903005 9041304001 9044507084 9044708107 9046400082 9046400108 9046400250 9046400512 9046400713 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9164180816 9331915008
Part # Description Qty Price
25800A - VALVE ASSY, ELECTRIC EGR CONTROL
25800-64110

3CTE..CXR1#,2#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64060

3CT#..CXR1#,2#

 1
Common parts
90339-03005
90413-04001
90445-07084
90447-08107
90464-00082
90464-00108
90464-00250
90464-00512
90464-00713
90999-92002
90999-92003
91641-80816
93319-15008
Linked diagrams
1603
