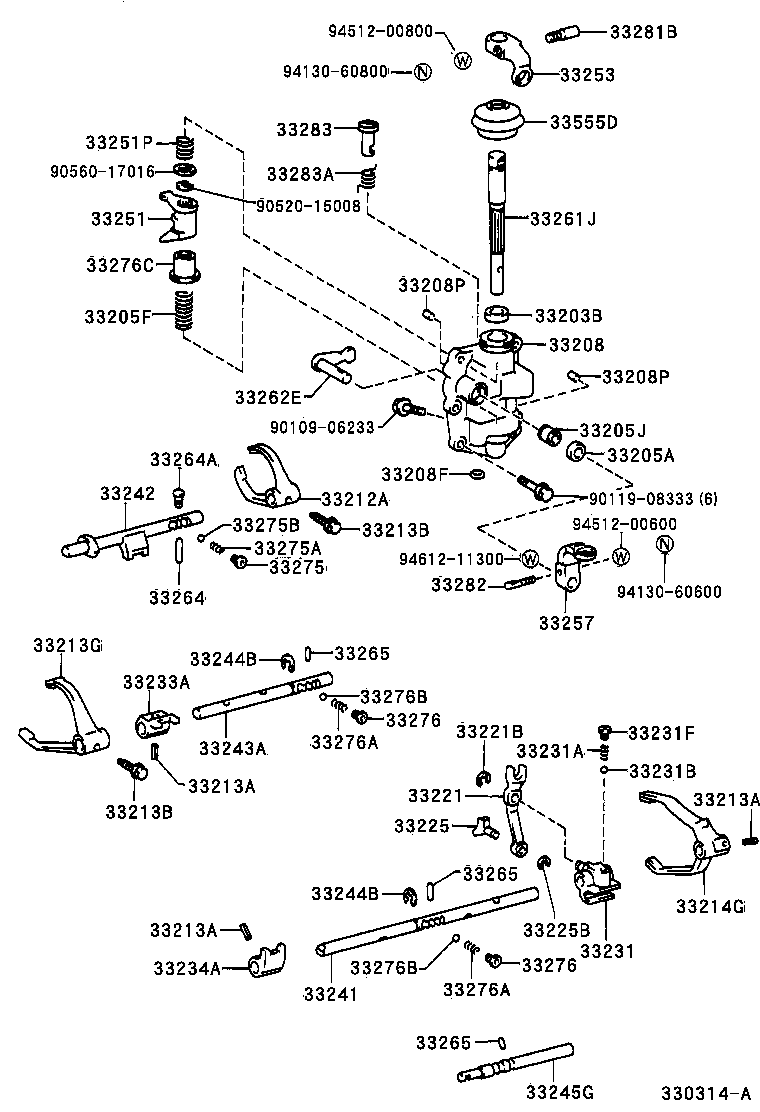

CXR20G-RRMEX (1992)
Toyota Estima Emina/Lucida
(9201- )CXR1#,2#..MTM
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
TCR10,2#..MTM |
1 | ||
| 90311-20006 |
CXR1#,2#..MTM |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-20125 |
CXR1#,2#..MTM |
1 | ||
| 90501-18094 |
TCR10,2#..MTM |
1 | ||
| 33205J - BEARING, NEEDLE ROLLER(FOR GEAR SHIFT FORK SHAFT NO.1) | ||||
| 90364-13006 |
CXR1#,2#..MTM |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-28020 |
CXR1#,2#..MTM |
1 | ||
| 33271-28010 |
TCR10,2#..MTM |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33208P - PIN, RING(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90250-10214 |
CXR1#,2#..MTM |
2 | ||
| 33208P - PIN, RING(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90250-10214 |
CXR1#,2#..MTM |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-30050 |
CXR1#,2#..MTM |
1 | ||
| 33212-26030 |
TCR10,2#..MTM |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
CXR1#,2#..MTM |
2 | ||
| 90105-06143 |
TCR10,2#..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
CXR1#,2#..MTM |
2 | ||
| 90105-06143 |
TCR10,2#..MTM |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-30060 |
CXR1#,2#..MTM |
1 | ||
| 33213-28011 |
TCR10,2#..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-30010 |
CXR1#,2#..MTM |
1 | ||
| 33214-28010 |
TCR10,2#..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22020 |
CXR1#,2#..MTM |
1 | ||
| 33221-28010 |
TCR10,2#..MTM |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-00800 |
CXR1#,2#..MTM |
1 | ||
| 96160-01000 |
TCR10,2#..MTM |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
TCR10,2#..MTM |
1 | ||
| 33225-22020 |
CXR1#,2#..MTM |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00600 |
CXR1#,2#..MTM |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22040 |
CXR1#,2#..MTM |
1 | ||
| 33231-28010 |
TCR10,2#..MTM |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-10052 |
CXR1#,2#..MTM |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
TCR10,2#..MTM |
1 | ||
| 90360-08009 |
CXR1#,2#..MTM |
1 | ||
| 33231F - PLUG(FOR REVERSE SHIFT HEAD) | ||||
| 90341-10016 |
CXR1#,2#..MTM |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-28020 |
CXR1#,2#..MTM |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-28010 |
CXR1#,2#..MTM |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
TCR10,2#..MTM |
1 | ||
| 33244-28020 |
CXR1#,2#..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33230-28010 |
CXR1#,2#..MTM |
1 | ||
| 33242-26020 |
TCR10,2#..MTM |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35051 |
TCR10,2#..MTM |
1 | ||
| 33243-28030 |
CXR1#,2#..MTM |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
CXR1#,2#..MTM |
2 | ||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
CXR1#,2#..MTM |
2 | ||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-28011 |
TCR10,2#..MTM |
1 | ||
| 33245-22011 |
CXR1#,2#..MTM |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28020 |
CXR1#,2#..MTM |
1 | ||
| 33251-28012 |
TCR10,2#..MTM |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-14140 |
CXR1#,2#..MTM |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-28071 |
TCR10,2#..MTM |
1 | ||
| 33253-28080 |
CXR1#,2#..MTM |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-28061 |
TCR10,2#..MTM |
1 | ||
| 33257-28070 |
CXR1#,2#..MTM |
1 | ||
| 33261J - SHAFT, SHIFT LEVER | ||||
| 33261-28020 |
CXR1#,2#..MTM |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| 33262-28030 |
CXR1#,2#..MTM |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-22010 |
CXR1#,2#..MTM |
1 | ||
| 90360-10003 |
TCR10,2#..MTM 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 33264A - PLUG, INTER LOCK HOLE | ||||
| 90341-10065 |
CXR1#,2#..MTM |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
CXR1#,2#..MTM 長さ=13.6,外径=6 |
1 | ||
| 90250-05020 |
TCR10,2#..MTM 長さ=11.1,外径=4.8 |
2 | ||
| 90250-06007 |
CXR1#,2#..MTM 長さ=8.6,外径=6 |
1 | ||
| 33265-22010 |
CXR1#,2#..MTM 長さ=11.2,外径=4 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
CXR1#,2#..MTM 長さ=13.6,外径=6 |
1 | ||
| 90250-05020 |
TCR10,2#..MTM 長さ=11.1,外径=4.8 |
2 | ||
| 90250-06007 |
CXR1#,2#..MTM 長さ=8.6,外径=6 |
1 | ||
| 33265-22010 |
CXR1#,2#..MTM 長さ=11.2,外径=4 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
CXR1#,2#..MTM 長さ=13.6,外径=6 |
1 | ||
| 90250-05020 |
TCR10,2#..MTM 長さ=11.1,外径=4.8 |
2 | ||
| 90250-06007 |
CXR1#,2#..MTM 長さ=8.6,外径=6 |
1 | ||
| 33265-22010 |
CXR1#,2#..MTM 長さ=11.2,外径=4 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
CXR1#,2#..MTM 外径=17 |
1 | ||
| 90341-12014 |
TCR10,2#..MTM 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
TCR10,2#..MTM 長さ=31 |
3 | ||
| 90501-14123 |
CXR1#,2#,TCR10,2#..MTM 長さ=20.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TCR10,2#..MTM |
4 | ||
| 90360-10003 |
CXR1#,2#..MTM |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12018 |
CXR1#,2#..MTM |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12018 |
CXR1#,2#..MTM |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14123 |
CXR1#,2#..MTM |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14123 |
CXR1#,2#..MTM |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
CXR1#,2#..MTM |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
CXR1#,2#..MTM |
2 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-28020 |
CXR1#,2#..MTM |
1 | ||
| 33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
CXR1#,2#..MTM |
1 | ||
| 33281-16020 |
TCR10,2#..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
TCR10,2#..MTM |
1 | ||
| 33283-28020 |
CXR1#,2#..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10071 |
CXR1#,2#..MTM |
1 | ||
| 90504-10008 |
TCR10,2#..MTM |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
TCR10,2#..MTM |
1 | ||
| 33555-25020 |
CXR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90109-06233 | ||||
| 90119-08333 | ||||
| 90520-15008 | ||||
| 90560-17016 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94612-11300 | ||||
(9201-9608)TCR10,2#..MTM
G53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
TCR10,2#..MTM |
1 | ||
| 90311-20006 |
CXR1#,2#..MTM |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-28020 |
TCR10,2#..MTM |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-20125 |
CXR1#,2#..MTM |
1 | ||
| 90501-18094 |
TCR10,2#..MTM |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-28020 |
CXR1#,2#..MTM |
1 | ||
| 33271-28010 |
TCR10,2#..MTM |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
TCR10,2#..MTM |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-30050 |
CXR1#,2#..MTM |
1 | ||
| 33212-26030 |
TCR10,2#..MTM |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
TCR10,2#..MTM |
4 | ||
| 90254-05016 |
CXR1#,2#..MTM |
1 | ||
| 90254-05001 |
CXR1#,2#..MTM L=22.0 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
CXR1#,2#..MTM |
2 | ||
| 90105-06143 |
TCR10,2#..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
CXR1#,2#..MTM |
2 | ||
| 90105-06143 |
TCR10,2#..MTM |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-30060 |
CXR1#,2#..MTM |
1 | ||
| 33213-28011 |
TCR10,2#..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-30010 |
CXR1#,2#..MTM |
1 | ||
| 33214-28010 |
TCR10,2#..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-30010 |
CXR1#,2#..MTM |
1 | ||
| 33214-28010 |
TCR10,2#..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22020 |
CXR1#,2#..MTM |
1 | ||
| 33221-28010 |
TCR10,2#..MTM |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-00800 |
CXR1#,2#..MTM |
1 | ||
| 96160-01000 |
TCR10,2#..MTM |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
TCR10,2#..MTM |
1 | ||
| 33225-22020 |
CXR1#,2#..MTM |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
TCR10,2#..MTM |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
TCR10,2#..MTM |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
TCR10,2#..MTM |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22040 |
CXR1#,2#..MTM |
1 | ||
| 33231-28010 |
TCR10,2#..MTM |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
TCR10,2#..MTM |
1 | ||
| 90360-08009 |
CXR1#,2#..MTM |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-28010 |
TCR10,2#..MTM |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-28011 |
TCR10,2#..MTM |
1 | ||
| 33244-28020 |
CXR1#,2#..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33230-28010 |
CXR1#,2#..MTM |
1 | ||
| 33242-26020 |
TCR10,2#..MTM |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35051 |
TCR10,2#..MTM |
1 | ||
| 33243-28030 |
CXR1#,2#..MTM |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
CXR1#,2#..MTM |
2 | ||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
CXR1#,2#..MTM |
2 | ||
| 90520-12006 |
TCR10,2#..MTM |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-28011 |
TCR10,2#..MTM |
1 | ||
| 33245-22011 |
CXR1#,2#..MTM |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-28020 |
CXR1#,2#..MTM |
1 | ||
| 33251-28012 |
TCR10,2#..MTM |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-14140 |
CXR1#,2#..MTM |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-28071 |
TCR10,2#..MTM |
1 | ||
| 33253-28080 |
CXR1#,2#..MTM |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-28061 |
TCR10,2#..MTM |
1 | ||
| 33257-28070 |
CXR1#,2#..MTM |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-28011 |
TCR10,2#..MTM |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-22010 |
CXR1#,2#..MTM |
1 | ||
| 90360-10003 |
TCR10,2#..MTM 外径=9.52,ｽﾁｰﾙ |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10002 |
TCR10,2#..MTM 長さ=21.6,PIN |
1 | ||
| 90361-10003 |
TCR10,2#..MTM 長さ=13.6,外径=9.5 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10002 |
TCR10,2#..MTM 長さ=21.6,PIN |
1 | ||
| 90361-10003 |
TCR10,2#..MTM 長さ=13.6,外径=9.5 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
CXR1#,2#..MTM 長さ=13.6,外径=6 |
1 | ||
| 90250-05020 |
TCR10,2#..MTM 長さ=11.1,外径=4.8 |
2 | ||
| 90250-06007 |
CXR1#,2#..MTM 長さ=8.6,外径=6 |
1 | ||
| 33265-22010 |
CXR1#,2#..MTM 長さ=11.2,外径=4 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
CXR1#,2#..MTM 長さ=13.6,外径=6 |
1 | ||
| 90250-05020 |
TCR10,2#..MTM 長さ=11.1,外径=4.8 |
2 | ||
| 90250-06007 |
CXR1#,2#..MTM 長さ=8.6,外径=6 |
1 | ||
| 33265-22010 |
CXR1#,2#..MTM 長さ=11.2,外径=4 |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-28010 |
TCR10,2#..MTM |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
CXR1#,2#..MTM 外径=17 |
1 | ||
| 90341-12014 |
TCR10,2#..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
CXR1#,2#..MTM 外径=17 |
1 | ||
| 90341-12014 |
TCR10,2#..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
CXR1#,2#..MTM 外径=17 |
1 | ||
| 90341-12014 |
TCR10,2#..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
CXR1#,2#..MTM 外径=17 |
1 | ||
| 90341-12014 |
TCR10,2#..MTM 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
TCR10,2#..MTM 長さ=31 |
3 | ||
| 90501-14123 |
CXR1#,2#,TCR10,2#..MTM 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
TCR10,2#..MTM 長さ=31 |
3 | ||
| 90501-14123 |
CXR1#,2#,TCR10,2#..MTM 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
TCR10,2#..MTM 長さ=31 |
3 | ||
| 90501-14123 |
CXR1#,2#,TCR10,2#..MTM 長さ=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
TCR10,2#..MTM 長さ=31 |
3 | ||
| 90501-14123 |
CXR1#,2#,TCR10,2#..MTM 長さ=20.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TCR10,2#..MTM |
4 | ||
| 90360-10003 |
CXR1#,2#..MTM |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TCR10,2#..MTM |
4 | ||
| 90360-10003 |
CXR1#,2#..MTM |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TCR10,2#..MTM |
4 | ||
| 90360-10003 |
CXR1#,2#..MTM |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
TCR10,2#..MTM |
4 | ||
| 90360-10003 |
CXR1#,2#..MTM |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-28011 |
TCR10,2#..MTM |
1 | ||
| 33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
CXR1#,2#..MTM |
1 | ||
| 33281-16020 |
TCR10,2#..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-35010 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-27010 |
TCR10,2#..MTM |
1 | ||
| 33283-28020 |
CXR1#,2#..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10071 |
CXR1#,2#..MTM |
1 | ||
| 90504-10008 |
TCR10,2#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
TCR10,2#..MTM |
1 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-28010 |
TCR10,2#..MTM |
1 | ||
| 33555-25020 |
CXR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-08597 | ||||
| 90201-15023 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94612-11300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
