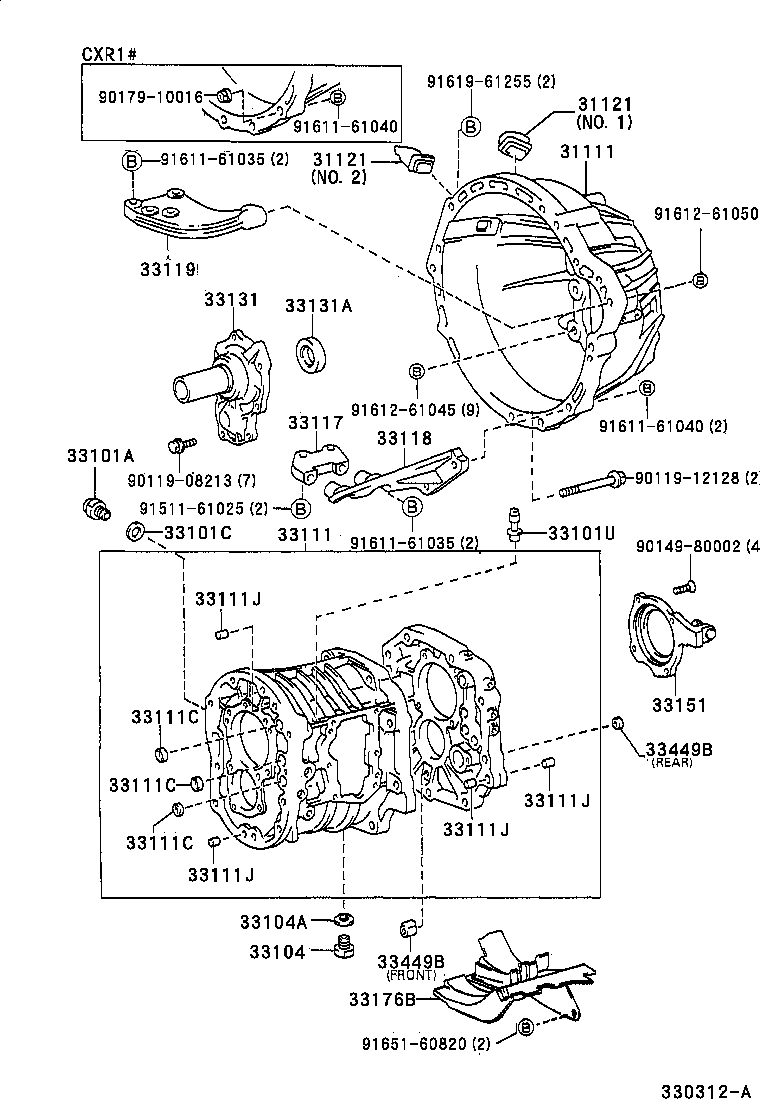

CXR20G-RRMDX (1992)
Toyota Estima Emina/Lucida
(9201- )CXR1#,2#..MTM
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28041 |
TCR10,2#..MTM |
1 | ||
| 31111-28050 |
CXR1#,2#..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
CXR1#,2#..MTM NO.1 |
1 | ||
| 31121-28040 |
TCR10,2#..MTM |
2 | ||
| 31121-28030 |
CXR1#,2#..MTM NO.2 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
CXR1#,2#..MTM NO.1 |
1 | ||
| 31121-28040 |
TCR10,2#..MTM |
2 | ||
| 31121-28030 |
CXR1#,2#..MTM NO.2 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TCR10,2#..MTM |
1 | ||
| 90341-18002 |
CXR1#,2#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03085 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 90930-03075 |
CXR1#,2#..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28030 |
CXR1#,2#..MTM |
1 | ||
| 33101-28020 |
TCR10,2#..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
CXR1#,2#..MTM 外径=18 |
2 | ||
| 90331-14004 |
CXR1#,2#..MTM 外径=14 |
1 | ||
| 90331-14004 |
TCR10,2#..MTM 外径=14 |
4 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
CXR1#,2#..MTM 外径=18 |
2 | ||
| 90331-14004 |
CXR1#,2#..MTM 外径=14 |
1 | ||
| 90331-14004 |
TCR10,2#..MTM 外径=14 |
4 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
CXR1#,2#..MTM 外径=18 |
2 | ||
| 90331-14004 |
CXR1#,2#..MTM 外径=14 |
1 | ||
| 90331-14004 |
TCR10,2#..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-28010 |
CXR1#,2#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28030 |
TCR10,2#..MTM |
1 | ||
| 33119-28040 |
CXR1#,2#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
TCR10,2#..MTM |
1 | ||
| 33131-30080 |
CXR1#,2#..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
TCR10,2#..MTM |
1 | ||
| 33107-30020 |
CXR1#,2#..MTM |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-30020 |
CXR1#,2#..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-30010 |
CXR1#,2#..MTM REAR |
1 | ||
| 33449-30020 |
CXR1#,2#..MTM FRONT |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-30010 |
CXR1#,2#..MTM REAR |
1 | ||
| 33449-30020 |
CXR1#,2#..MTM FRONT |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-12128 | ||||
| 90149-80002 | ||||
| 90179-10016 | ||||
| 91511-61025 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91612-61045 | ||||
| 91612-61050 | ||||
| 91619-61255 | ||||
| 91651-60820 | ||||
(9201-9608)MTM
G53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28041 |
TCR10,2#..MTM |
1 | ||
| 31111-28050 |
CXR1#,2#..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
CXR1#,2#..MTM NO.1 |
1 | ||
| 31121-28040 |
TCR10,2#..MTM |
2 | ||
| 31121-28030 |
CXR1#,2#..MTM NO.2 |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31121-28020 |
TCR10,2#..MTM |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TCR10,2#..MTM |
1 | ||
| 90341-18002 |
CXR1#,2#..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03085 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 90930-03075 |
CXR1#,2#..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28030 |
CXR1#,2#..MTM |
1 | ||
| 33101-28020 |
TCR10,2#..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
CXR1#,2#..MTM 外径=18 |
2 | ||
| 90331-14004 |
CXR1#,2#..MTM 外径=14 |
1 | ||
| 90331-14004 |
TCR10,2#..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,2#..MTM 長さ=12,外径=10 |
2 | ||
| 90250-12002 |
TCR10,2#..MTM 長さ=16,外径=12 |
4 | ||
| 90250-12002 |
CXR1#,2#..MTM 長さ=16,外径=12 |
6 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
TCR10,2#..MTM 長さ=14,外径=15 |
2 | ||
| 90253-11001 |
TCR10,2#..MTM 長さ=11,外径=11 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
TCR10,2#..MTM 長さ=14,外径=15 |
2 | ||
| 90253-11001 |
TCR10,2#..MTM 長さ=11,外径=11 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
TCR10,2#..MTM 長さ=14,外径=15 |
2 | ||
| 90253-11001 |
TCR10,2#..MTM 長さ=11,外径=11 |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28030 |
TCR10,2#..MTM |
1 | ||
| 33119-28040 |
CXR1#,2#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
TCR10,2#..MTM |
1 | ||
| 33131-30080 |
CXR1#,2#..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
CXR1#,2#,TCR10,2#..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
TCR10,2#..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
TCR10,2#..MTM |
1 | ||
| 33107-30020 |
CXR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 90179-10016 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91612-61050 | ||||
| 91619-61255 | ||||
