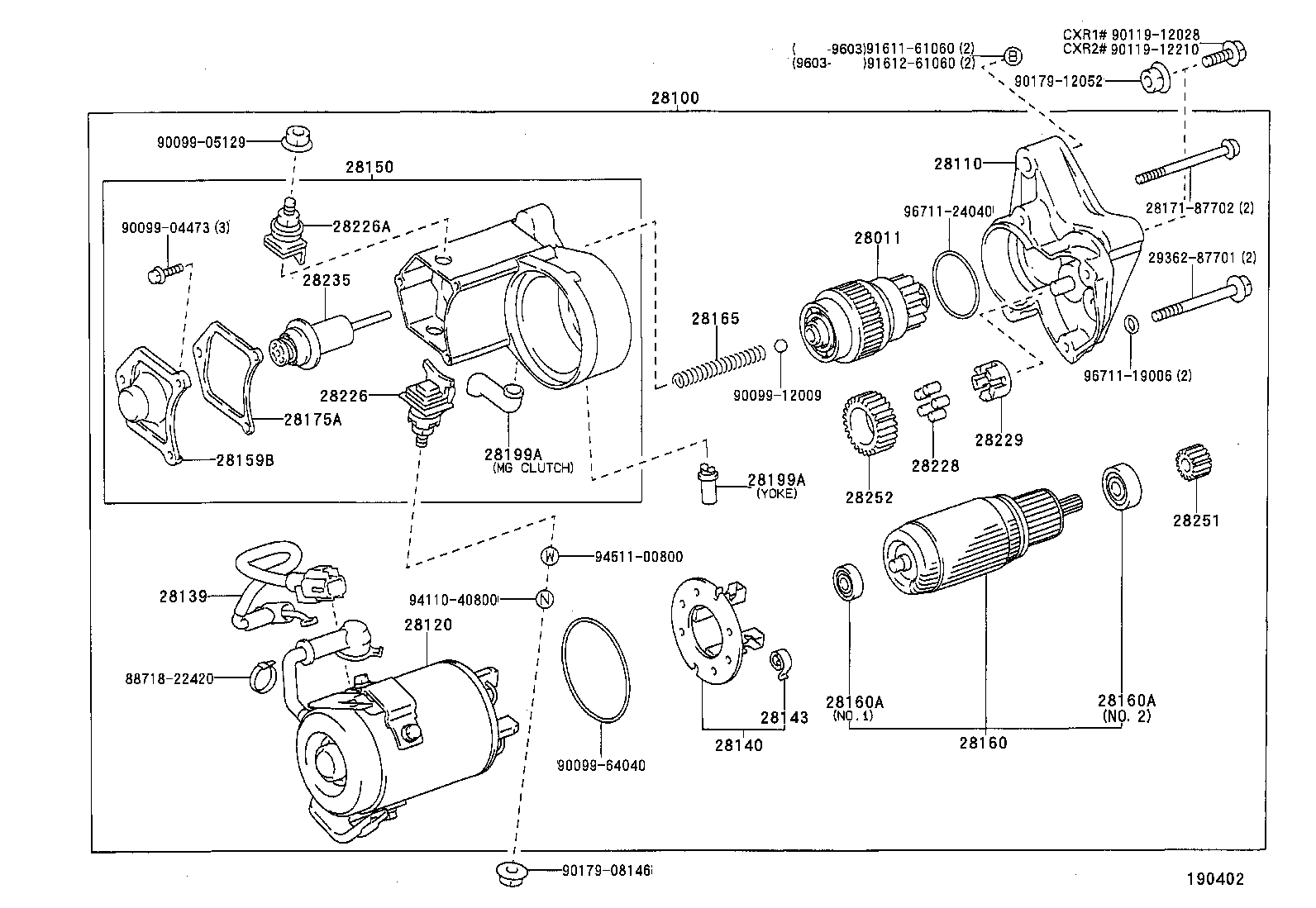

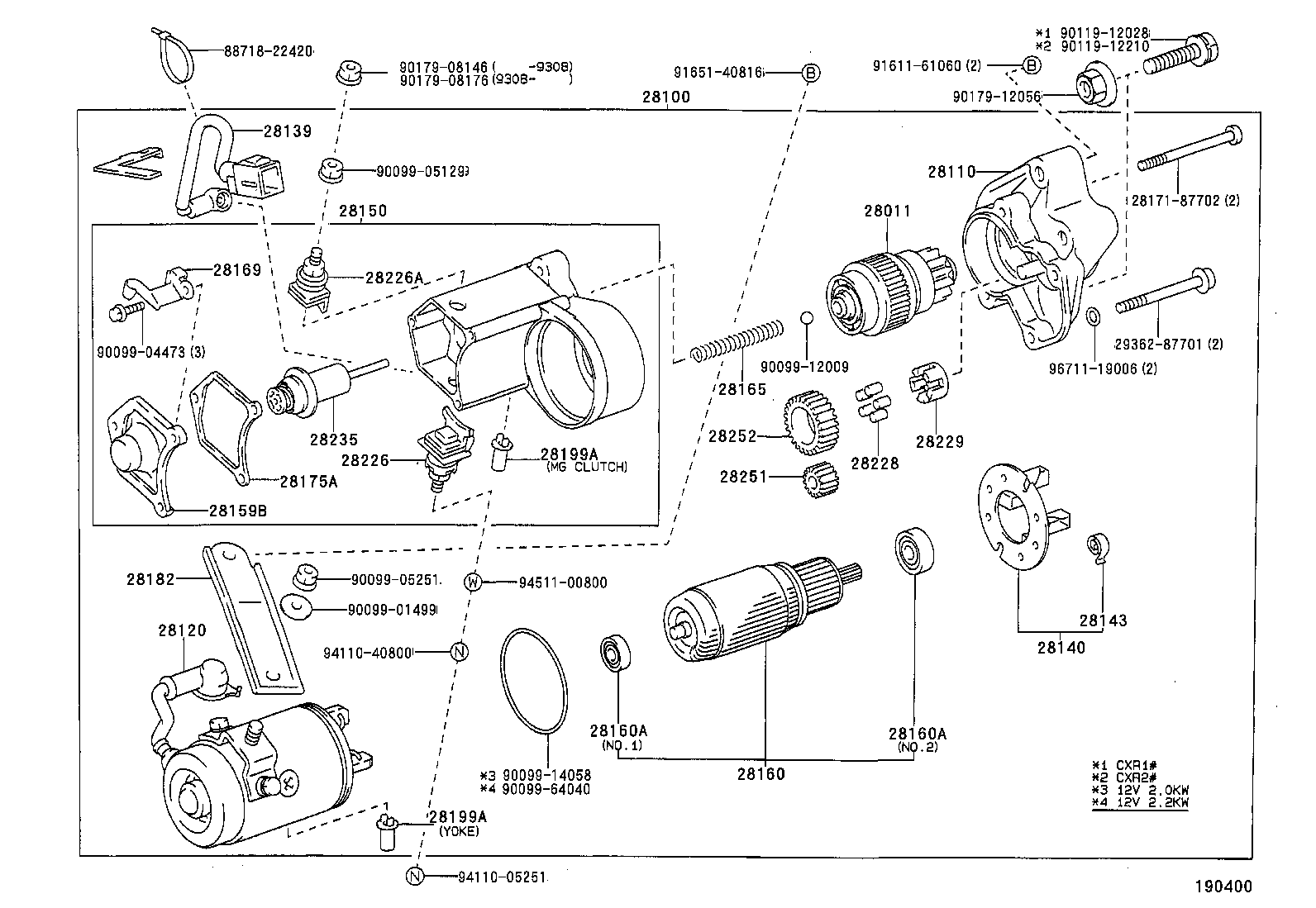

CXR11G-RFSGT (1993)
Toyota Estima Emina/Lucida
(9201-9501)3CT#
12V 2.0KW,2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
3CT..CXR1#,2# |
1 | ||
| 28011-64280 |
3CTE..CXR1#,2# |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64160 |
3CT#..CXR1#,2# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64150 |
3CT#..CXR1#,2# 12V 2.0KW |
1 | ||
| 28100-64160 |
3CTE..CXR1#,2#..AERAS,G,GLUX,X,XLUX 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-64360 |
3CTE..CXR1#,2# 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28115-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28115-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28115-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28120-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28120-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28139-67031 |
3CTE..CXR1#,2# |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28139-67030 |
3CTE..CXR1#,2# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28140-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28140-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
3CT..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28143-54380 |
3CTE..CXR1#,2# |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# |
1 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28150-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28159-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54071 |
3CT#..CXR1#,2# |
1 | ||
| 28160-64041 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28160-64041 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28175-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-64360 |
3CTE..CXR1#,2# NO.1 |
1 | ||
| 28182-67020 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 28182-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64160 |
3CTE..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-46080 |
3CT#..CXR1#,2# YOKE |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-46080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,YOKE |
1 | ||
| 28199-74110 |
3CTE,2TZFE..CXR1#,2#,TCR1#,2# |
1 | ||
| 28199-64150 |
3CT..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64160 |
3CTE..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-46080 |
3CT#..CXR1#,2# YOKE |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-46080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,YOKE |
1 | ||
| 28199-74110 |
3CTE,2TZFE..CXR1#,2#,TCR1#,2# |
1 | ||
| 28199-64150 |
3CT..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-64361 |
3CTE..CXR1#,2# |
1 | ||
| 28226-64020 |
3CT#..CXR1#,2# |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3CT#..CXR1#,2# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3CT#,2TZFE..CXR1#,2#,TCR1#,2# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3CT#..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28254-64130 |
3CTE..CXR1#,2# |
1 | ||
| 28254-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 88718-22420 | ||||
| 90099-01499 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90099-64040 | ||||
| 90119-12028 | ||||
| 90119-12210 | ||||
| 90179-08146 | ||||
| 90179-08176 | ||||
| 90179-12056 | ||||
| 91611-61060 | ||||
| 91651-40816 | ||||
| 94110-05251 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||

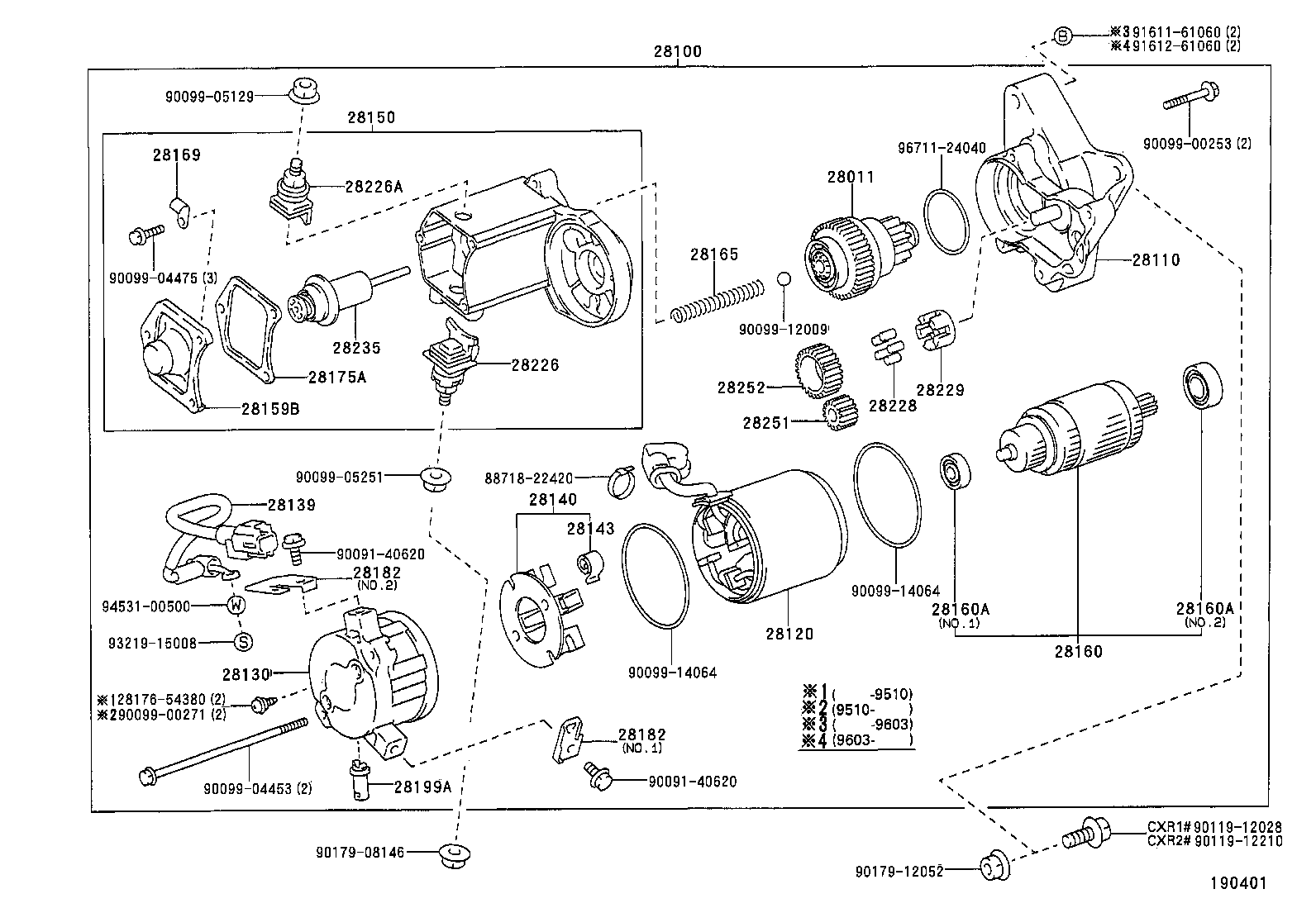

(9501- )3CTE
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
3CT..CXR1#,2# |
1 | ||
| 28011-64280 |
3CTE..CXR1#,2# |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64160 |
3CT#..CXR1#,2# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64150 |
3CT#..CXR1#,2# 12V 2.0KW |
1 | ||
| 28100-64160 |
3CTE..CXR1#,2#..AERAS,G,GLUX,X,XLUX 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-64360 |
3CTE..CXR1#,2# 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28110-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28115-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28115-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28120-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28120-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28139-67031 |
3CTE..CXR1#,2# |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28139-67030 |
3CTE..CXR1#,2# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28140-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28140-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
3CT..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28143-54380 |
3CTE..CXR1#,2# |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# |
1 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28150-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28159-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54071 |
3CT#..CXR1#,2# |
1 | ||
| 28160-64041 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28160-64041 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28175-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-64360 |
3CTE..CXR1#,2# NO.1 |
1 | ||
| 28182-67020 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 28182-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-64360 |
3CTE..CXR1#,2# NO.1 |
1 | ||
| 28182-67020 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 28182-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64160 |
3CTE..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-46080 |
3CT#..CXR1#,2# YOKE |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-46080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,YOKE |
1 | ||
| 28199-74110 |
3CTE,2TZFE..CXR1#,2#,TCR1#,2# |
1 | ||
| 28199-64150 |
3CT..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-64361 |
3CTE..CXR1#,2# |
1 | ||
| 28226-64020 |
3CT#..CXR1#,2# |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3CT#..CXR1#,2# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3CT#,2TZFE..CXR1#,2#,TCR1#,2# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3CT#..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28254-64130 |
3CTE..CXR1#,2# |
1 | ||
| 28254-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 88718-22420 | ||||
| 90091-40620 | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12028 | ||||
| 90119-12210 | ||||
| 90179-08146 | ||||
| 90179-12052 | ||||
| 91611-61060 | ||||
| 91612-61060 | ||||
| 93219-15008 | ||||
| 94531-00500 | ||||
| 96711-24040 | ||||
(9501- )3CTE
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
3CT..CXR1#,2# |
1 | ||
| 28011-64280 |
3CTE..CXR1#,2# |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28011-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64160 |
3CT#..CXR1#,2# 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-64150 |
3CT#..CXR1#,2# 12V 2.0KW |
1 | ||
| 28100-64160 |
3CTE..CXR1#,2#..AERAS,G,GLUX,X,XLUX 12V 2.2KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-64360 |
3CTE..CXR1#,2# 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28110-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28115-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28115-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28120-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28120-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28139-67031 |
3CTE..CXR1#,2# |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28139-64150 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28139-67030 |
3CTE..CXR1#,2# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28140-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28140-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
3CT..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28143-54380 |
3CTE..CXR1#,2# |
4 | ||
| 90099-17115 |
3CTE..CXR1#,2# |
1 | ||
| 90099-17115 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28150-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-64160 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-64150 |
3CT#..CXR1#,2# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28159-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54071 |
3CT#..CXR1#,2# |
1 | ||
| 28160-64041 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28160-64041 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10131 |
3CT#..CXR1#,2# NO.2 |
1 | ||
| 28253-54070 |
3CT#..CXR1#,2# NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28253-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10208 |
3CTE..CXR1#,2# NO.2 |
1 | ||
| 90099-10143 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3CT#..CXR1#,2# |
1 | ||
| 28175-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-10040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64160 |
3CTE..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-46080 |
3CT#..CXR1#,2# YOKE |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-46080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,YOKE |
1 | ||
| 28199-74110 |
3CTE,2TZFE..CXR1#,2#,TCR1#,2# |
1 | ||
| 28199-64150 |
3CT..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-64160 |
3CTE..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-46080 |
3CT#..CXR1#,2# YOKE |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-46080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,YOKE |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28199-64360 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,YOKE |
1 | ||
| 28199-74110 |
3CTE,2TZFE..CXR1#,2#,TCR1#,2# |
1 | ||
| 28199-64150 |
3CT..CXR1#,2# MG CLUTCH |
1 | ||
| 28199-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ,MG CLUTCH |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64160 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-64361 |
3CTE..CXR1#,2# |
1 | ||
| 28226-64020 |
3CT#..CXR1#,2# |
1 | ||
| 28226-64020 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-64360 |
3CTE..CXR1#,2# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3CT#..CXR1#,2# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
3CT#,2TZFE..CXR1#,2#,TCR1#,2# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28229-26040 |
3CT#..CXR1#,2# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3CT#..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28235-35080 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-54380 |
3CTE..CXR1#,2# |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28251-54070 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
3CT#..CXR1#,2# |
1 | ||
| 28254-64040 |
3CTE..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28254-64130 |
3CTE..CXR1#,2# |
1 | ||
| 28254-64040 |
3CT#..CXR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 88718-22420 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-64040 | ||||
| 90119-12028 | ||||
| 90119-12210 | ||||
| 90179-08146 | ||||
| 90179-12052 | ||||
| 91611-61060 | ||||
| 91612-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
| 96711-24040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
