CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

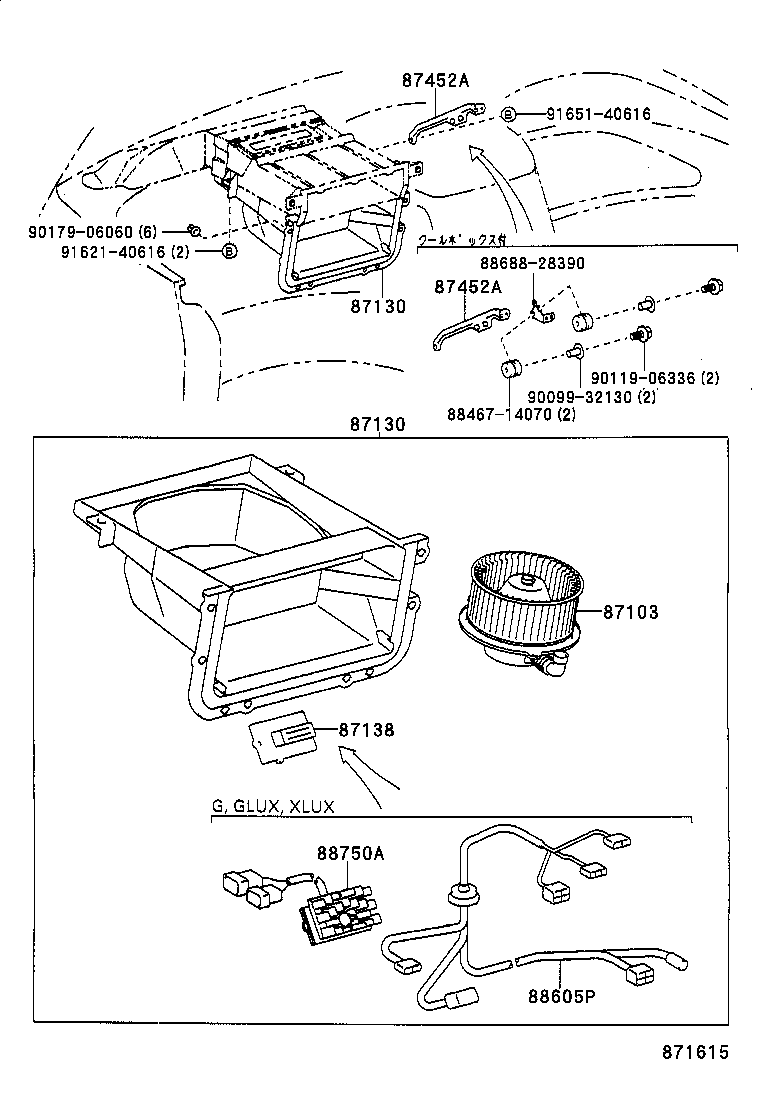

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

FRONT

diagram 87103 87130 87130 87138 87452A 87452A 8846714070 88605P 8868828390 88750A 9009932130 9011906336 9017906060 9162140616 9165140616
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-95D00

CXR1#,2#,TCR1#,2#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-28120

CXR10,20,TCR1#,2#..D,F,S,X

 1
87130-28140

CXR10,20,TCR10..D,F

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-28120

CXR10,20,TCR1#,2#..D,F,S,X

 1
87130-28140

CXR10,20,TCR10..D,F

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138 - RESISTOR, HEATER BLOWER
87138-28010

CXR1#,2#,TCR1#,2#..ELU,G,GLUX,XLUX

 1
87138-95D00

CXR10,20,TCR1#,2#..AERAS,D,F,S,X

 1
87452A - BRACKET, HEATER, FRONT
87452-28030

CXR1#,2#,TCR1#,2#..F,G,S,X

ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
87452-95D00

CXR1#,2#,TCR1#,2#

 1
87452A - BRACKET, HEATER, FRONT
87452-28030

CXR1#,2#,TCR1#,2#..F,G,S,X

ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
87452-95D00

CXR1#,2#,TCR1#,2#

 1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-28400

CXR10,20,TCR1#,2#..D,F,S,X

 1
88605-28680

CXR10,20,TCR10..D,F

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
Common parts
88467-14070
88688-28390
90099-32130
90119-06336
90179-06060
91621-40616
91651-40616

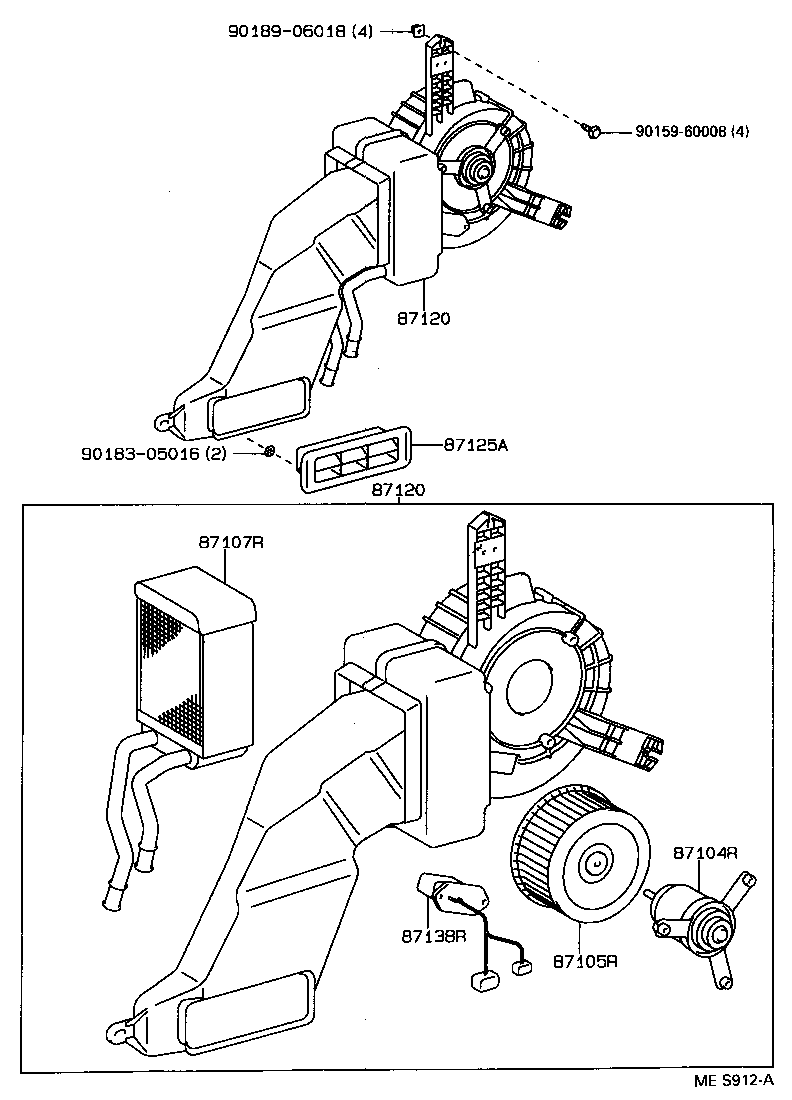

ILLUST NO. 2 OF 2(9201- )

Click highlighted areas on diagram

REAR

diagram 87104R 87105R 87107R 87120 87120 87125A 87138R 9015960008 9018305016 9018906018
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-28050

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-28030

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-28100

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-28060

CXR10,20..AERAS,X

 1
87120 - HEATER ASSY, REAR
87110-28010

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87120 - HEATER ASSY, REAR
87110-28010

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87125A - GRILLE, AIR OUTLET
87125-28010B0

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ,LIGHT GRAY,TRIM1#

 1
87125-28010E1

CXR1#,2#..G,GLUX,X,XLUX

ｶﾝﾚｲﾁ ｼﾖｳ,LIGHT GRAIGE,TRIM4#

 1
87138R - RESISTOR, REAR HEATER BLOWER
88635-28020

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90159-60008
90183-05016
90189-06018
