CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida
(9201- )

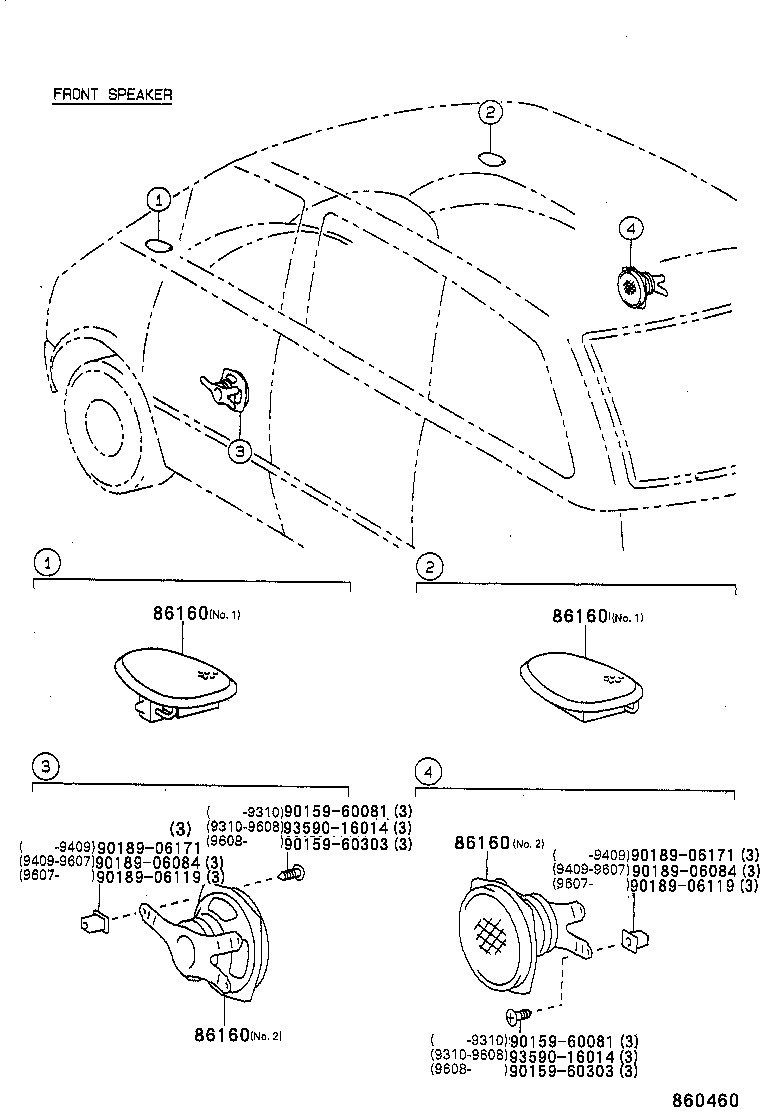

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28170B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 LH |
1 | ||
| 86160-28140 |
CXR1#,2#,TCR1#,2# NO.2 RH |
1 | ||
| 86160-28170E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 LH |
1 | ||
| 86160-28150 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX NO.2 LH |
1 | ||
| 86160-28160E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 RH |
1 | ||
| 86160-28160B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28170B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 LH |
1 | ||
| 86160-28140 |
CXR1#,2#,TCR1#,2# NO.2 RH |
1 | ||
| 86160-28170E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 LH |
1 | ||
| 86160-28150 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX NO.2 LH |
1 | ||
| 86160-28160E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 RH |
1 | ||
| 86160-28160B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28170B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 LH |
1 | ||
| 86160-28140 |
CXR1#,2#,TCR1#,2# NO.2 RH |
1 | ||
| 86160-28170E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 LH |
1 | ||
| 86160-28150 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX NO.2 LH |
1 | ||
| 86160-28160E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 RH |
1 | ||
| 86160-28160B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-28170B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 LH |
1 | ||
| 86160-28140 |
CXR1#,2#,TCR1#,2# NO.2 RH |
1 | ||
| 86160-28170E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 LH |
1 | ||
| 86160-28150 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,S,X,XLUX NO.2 LH |
1 | ||
| 86160-28160E1 |
CXR1#,2#,TCR1#,2#..(G,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4#,NO.1 RH |
1 | ||
| 86160-28160B0 |
CXR1#,2#,TCR1#,2#..(G,S,X)..(EFI,TD) ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1#,NO.1 RH |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60303 | ||||
| 90189-06084 | ||||
| 90189-06119 | ||||
| 90189-06171 | ||||
| 93590-16014 | ||||
(9201- )

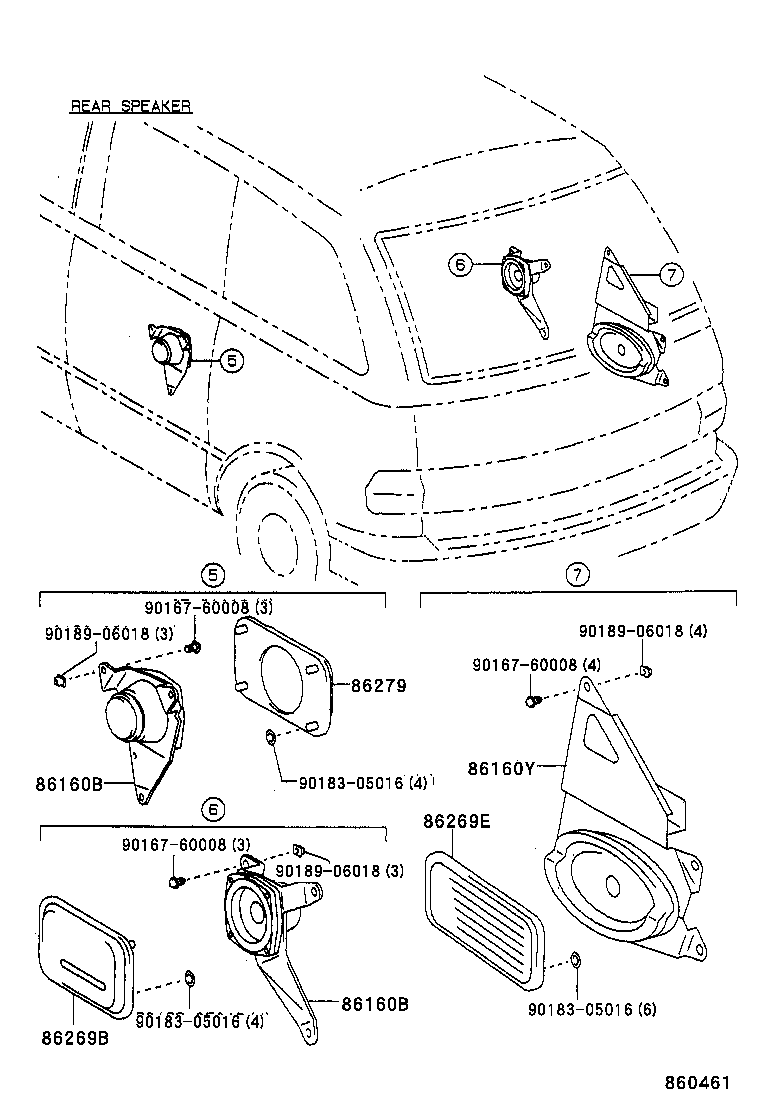

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28200 |
CXR1#,2#..G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ,右側 |
1 | ||
| 86160-28180 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
1 | ||
| 86160-28190 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28200 |
CXR1#,2#..G,GLUX,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ,右側 |
1 | ||
| 86160-28180 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
1 | ||
| 86160-28190 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-28320 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 86269B - GRILLE, SPEAKER | ||||
| 86269-28030E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM4# |
1 | ||
| 86269-28030B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM1# |
1 | ||
| 86269-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 86269-28010E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 86269E - GRILLE, SPEAKER | ||||
| 86269-28020B1 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 86269-28020E1 |
CXR1#,2#,TCR1#,2#..G,X RIGHT GREIGE,TRIM4# |
1 | ||
| 86279 - GRILLE, SPEAKER, LH | ||||
| 86279-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 86279-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(9 SPEAKER),LIGHT GREIGE,TRIM1# |
1 | ||
| 86279-28010E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 86279-28020B0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(9 SPEAKER),LIGHT GRAY,TRIM4# |
1 | ||
| Common parts | ||||
| 90167-60008 | ||||
| 90183-05016 | ||||
| 90189-06018 | ||||
(9201- )

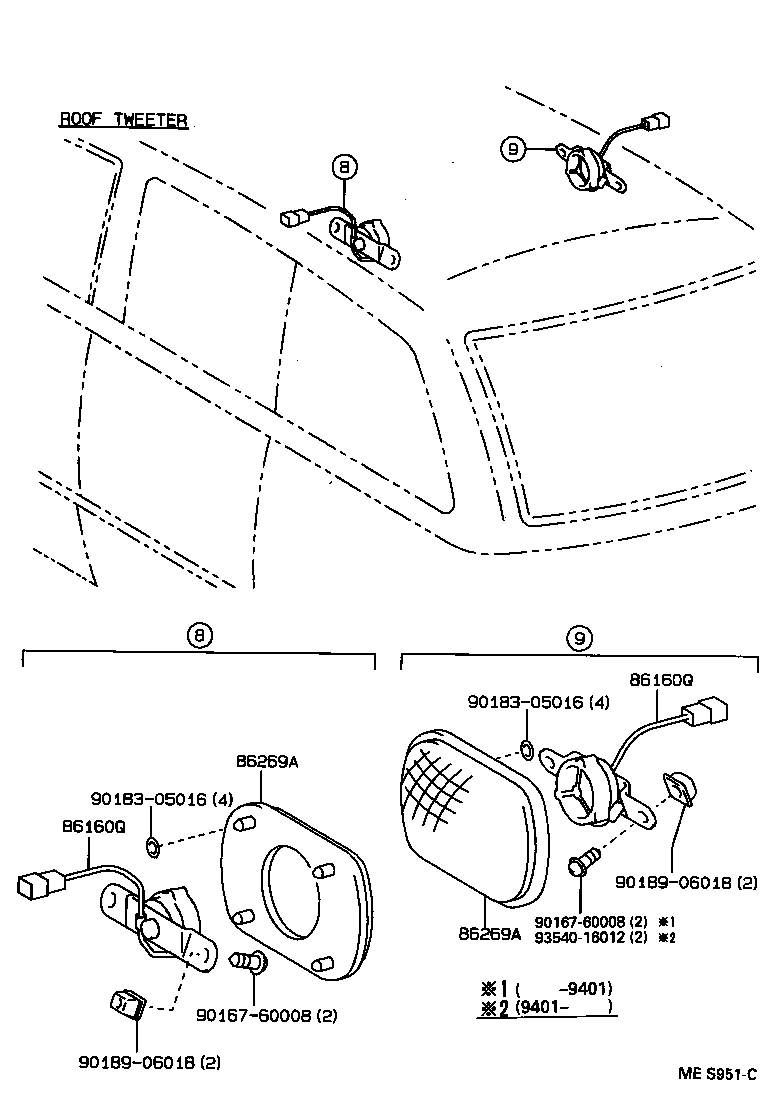

TWEETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95D04 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95D04 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-95D0005 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 86269-95D0003 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-95D0005 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 86269-95D0003 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90167-60008 | ||||
| 90183-05016 | ||||
| 90189-06018 | ||||
| 93540-16012 | ||||
