CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida
(9201- )

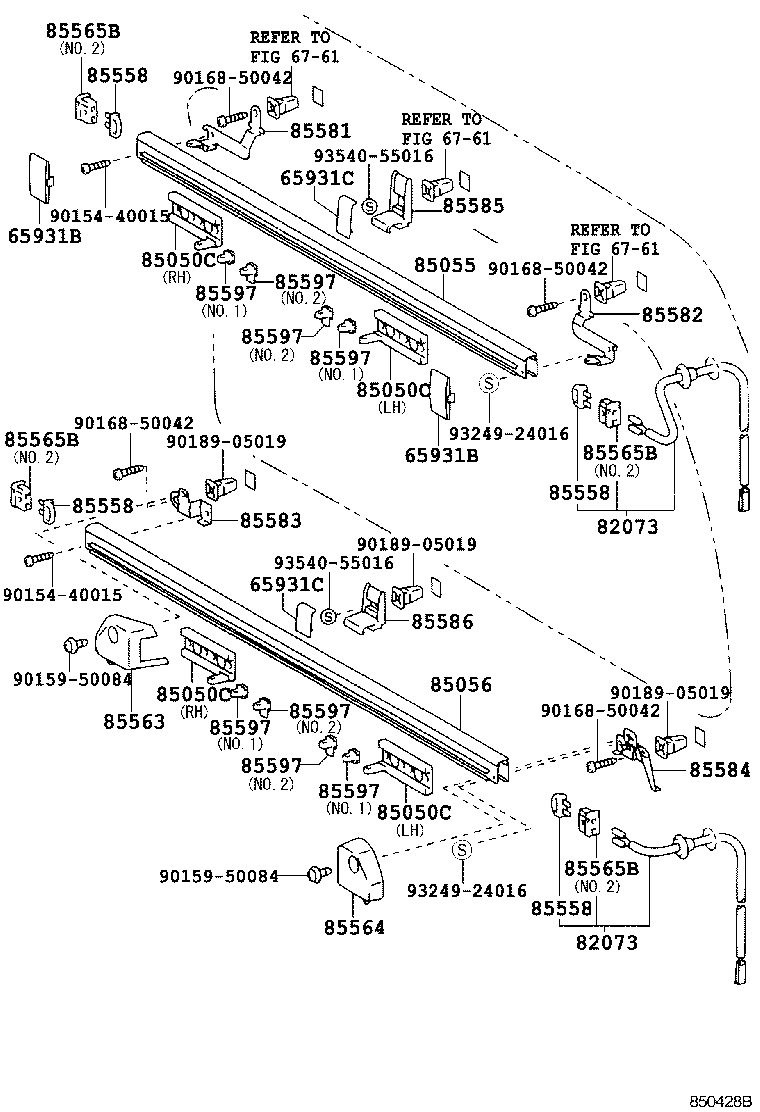

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65931B - COVER, CURTAIN RAIL, NO.1 | ||||
| 65931-28040E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
2 | ||
| 65931-28040B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
2 | ||
| 65931B - COVER, CURTAIN RAIL, NO.1 | ||||
| 65931-28040E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
2 | ||
| 65931-28040B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
2 | ||
| 65931C - COVER, CURTAIN RAIL, NO.2 | ||||
| 65931-28060E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4#,下側 |
1 | ||
| 65931-28050B1 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1#,上側 |
1 | ||
| 65931-28050E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4#,上側 |
1 | ||
| 65931-28060B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX GRAY,TRIM1#,下側 |
1 | ||
| 65931C - COVER, CURTAIN RAIL, NO.2 | ||||
| 65931-28060E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4#,下側 |
1 | ||
| 65931-28050B1 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1#,上側 |
1 | ||
| 65931-28050E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4#,上側 |
1 | ||
| 65931-28060B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX GRAY,TRIM1#,下側 |
1 | ||
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX UPPER |
1 | ||
| 82073-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX LOWER |
1 | ||
| 82073 - WIRE SUB-ASSY, AUTO CURTAIN, NO.3 | ||||
| 82073-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX UPPER |
1 | ||
| 82073-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX LOWER |
1 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
2 | ||
| 85050-28020 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
2 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
2 | ||
| 85050-28020 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
2 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
2 | ||
| 85050-28020 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
2 | ||
| 85050C - COIL ASSY, AUTO CURTAIN MOTOR, REAR, NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..G,S,X 左側 |
2 | ||
| 85050-28020 |
CXR1#,2#,TCR1#,2#..G,S,X 右側 |
2 | ||
| 85055 - RAIL SUB-ASSY, AUTO CURTAIN BACK, UPPER | ||||
| 85055-28020E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 85055-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 85056 - RAIL SUB-ASSY, AUTO CURTAIN BACK, LOWER | ||||
| 85056-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 85056-28020E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85563 - COVER, AUTO CURTAIN RAIL, RH | ||||
| 85563-28020E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
1 | ||
| 85563-28020B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 85564 - COVER, AUTO CURTAIN RAIL, LH | ||||
| 85564-28010E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
1 | ||
| 85564-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85581 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER RH | ||||
| 85581-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85582 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER LH | ||||
| 85582-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85583 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER RH | ||||
| 85583-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85584 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER LH | ||||
| 85584-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85585 - BRACKET, AUTO CURTAIN RAIL BACK, UPPER | ||||
| 85585-28010E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
1 | ||
| 85585-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 85586 - BRACKET, AUTO CURTAIN RAIL BACK, LOWER | ||||
| 85586-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 85586-28010E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX LIGHT GREIGE,TRIM4# |
1 | ||

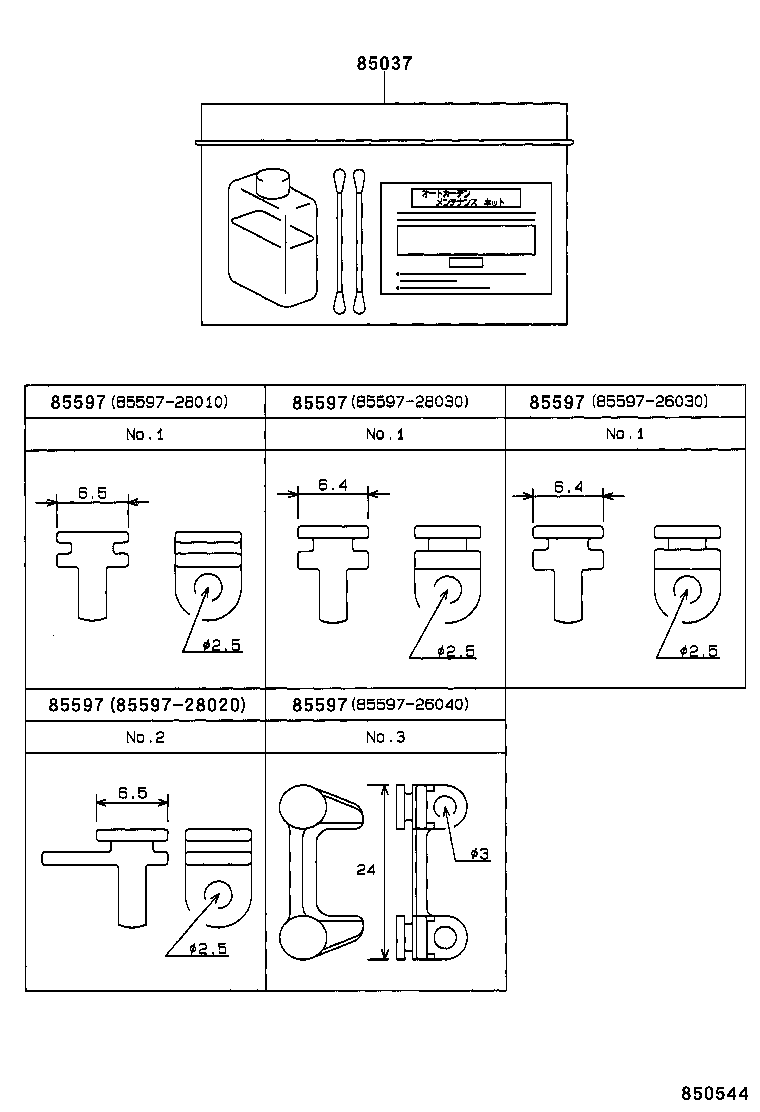

| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| Common parts | ||||
| 90154-40015 | ||||
| 90159-50084 | ||||
| 90168-50042 | ||||
| 90189-05019 | ||||
| 93249-24016 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 6761 | ||||
(9201- )

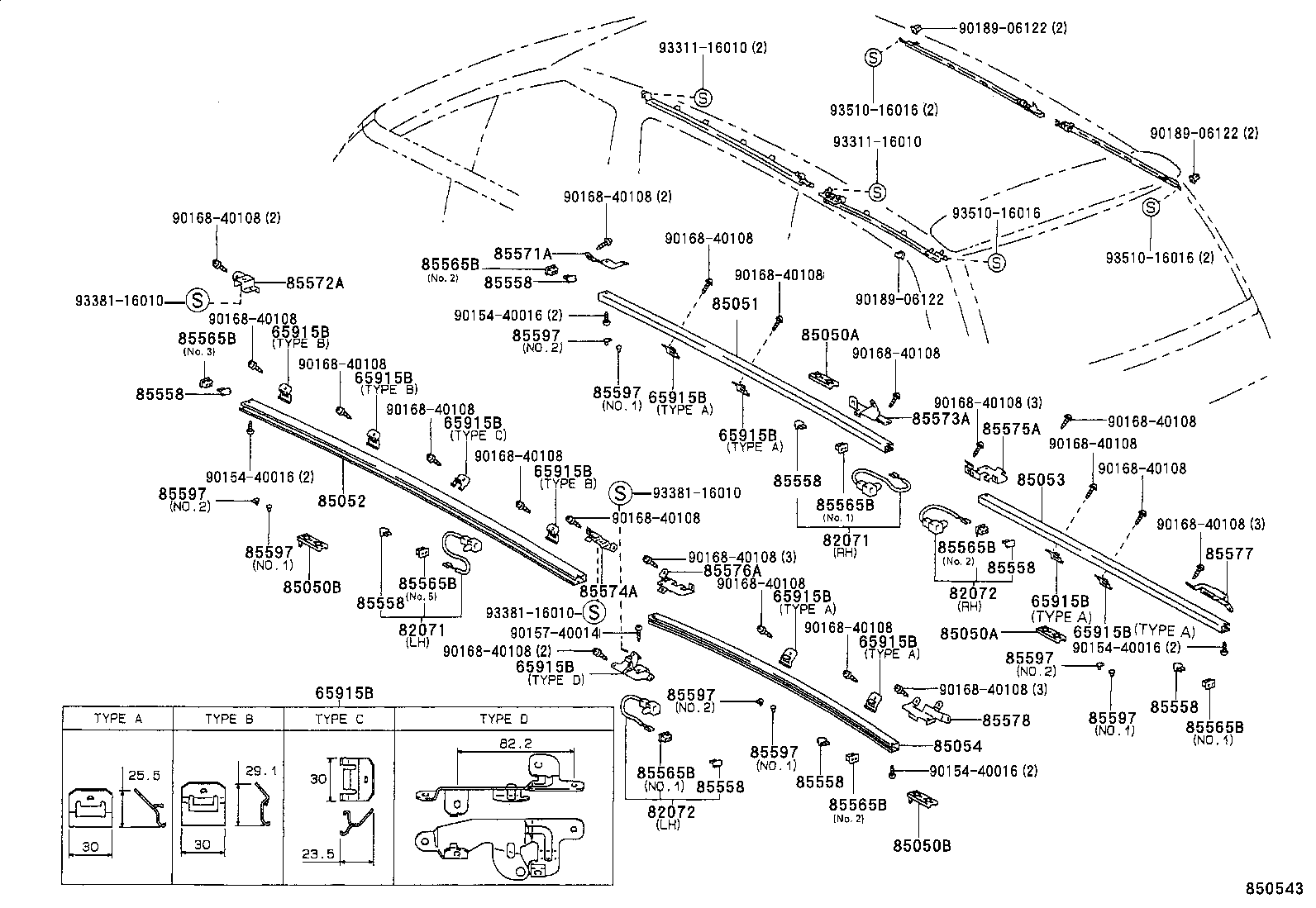

SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 65915B - BRACKET, CURTAIN RAIL | ||||
| 65915-28120 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
3 | ||
| 65915-28060 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
6 | ||
| 65915-28130 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ C |
1 | ||
| 65915-28150 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ D |
1 | ||
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 右側 |
1 | ||
| 82071-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX 左側 |
1 | ||
| 82071 - WIRE SUB-ASSY, AUTO CURTAIN, NO.1 | ||||
| 82071-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 右側 |
1 | ||
| 82071-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX 左側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 右側 |
1 | ||
| 82072-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 左側 |
1 | ||
| 82072 - WIRE SUB-ASSY, AUTO CURTAIN, NO.2 | ||||
| 82072-28010 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 右側 |
1 | ||
| 82072-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX 左側 |
1 | ||
| 85050A - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..D,G,S,X |
2 | ||
| 85050A - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.1 | ||||
| 85050-28010 |
CXR1#,2#,TCR1#,2#..D,G,S,X |
2 | ||
| 85050B - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2 | ||||
| 85050-95J0308 |
CXR1#,2#,TCR1#,2#..G,S,X IVORY,TRIM1#,4# |
1 | ||
| 85050B - COIL ASSY, AUTO CURTAIN MOTOR, FRONT NO.2 | ||||
| 85050-95J0308 |
CXR1#,2#,TCR1#,2#..G,S,X IVORY,TRIM1#,4# |
1 | ||
| 85051 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT RH | ||||
| 85051-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85052 - RAIL SUB-ASSY, AUTO CURTAIN, FRONT LH | ||||
| 85052-28020E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 85052-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 85053 - RAIL SUB-ASSY, AUTO CURTAIN, REAR RH | ||||
| 85053-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85054 - RAIL SUB-ASSY, AUTO CURTAIN, REAR LH | ||||
| 85054-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85558 - STOPPER, AUTO CURTAIN COIL | ||||
| 85558-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
12 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85565B - END, AUTO CURTAIN RAIL, BACK | ||||
| 85567-28010 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.5 |
1 | ||
| 85565-95J01 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.2 |
5 | ||
| 85565-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.4 |
2 | ||
| 85565-95J00 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX NO.1 |
3 | ||
| 85567-28020 |
CXR1#,2#,TCR1#,2#..G,GLUX,S,X,XLUX NO.3 |
1 | ||
| 85571A - BRACKET, AUTO CURTAIN RAIL, NO.1 RH | ||||
| 85571-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85572A - BRACKET, AUTO CURTAIN RAIL, NO.1 LH | ||||
| 85572-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85573A - BRACKET, AUTO CURTAIN RAIL, NO.2 RH | ||||
| 85573-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85574A - BRACKET,AUTO CURTAIN RAIL, NO.2 LH | ||||
| 85574-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85575A - BRACKET, AUTO CURTAIN RAIL, NO.3 RH | ||||
| 85575-28040 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85576A - BRACKET, AUTO CURTAIN RAIL, NO.3 LH | ||||
| 85576-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85577 - BRACKET, AUTO CURTAIN RAIL, NO.4 RH | ||||
| 85577-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85578 - BRACKET, AUTO CURTAIN RAIL, NO.4 LH | ||||
| 85578-28030 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
1 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| Common parts | ||||
| 90154-40016 | ||||
| 90157-40014 | ||||
| 90168-40108 | ||||
| 90189-06122 | ||||
| 93311-16010 | ||||
| 93381-16010 | ||||
| 93510-16016 | ||||
(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
| 85597 - RUNNER, AUTO CURTAIN | ||||
| 85597-95J03 |
CXR1#,2#,TCR1#,2#..G,S,X NO.2 |
10 | ||
| 85597-28010 |
CXR1#,2#,TCR1#,2#..G,S,X NO.1 |
75 | ||
| 85597-26030A0 |
CXR1#,2#,TCR1#,2# IVORY,TRIM1#,4#,NO.1 |
72 | ||
Part Price Details
Loading price information...
Part Number:
Price:
