CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

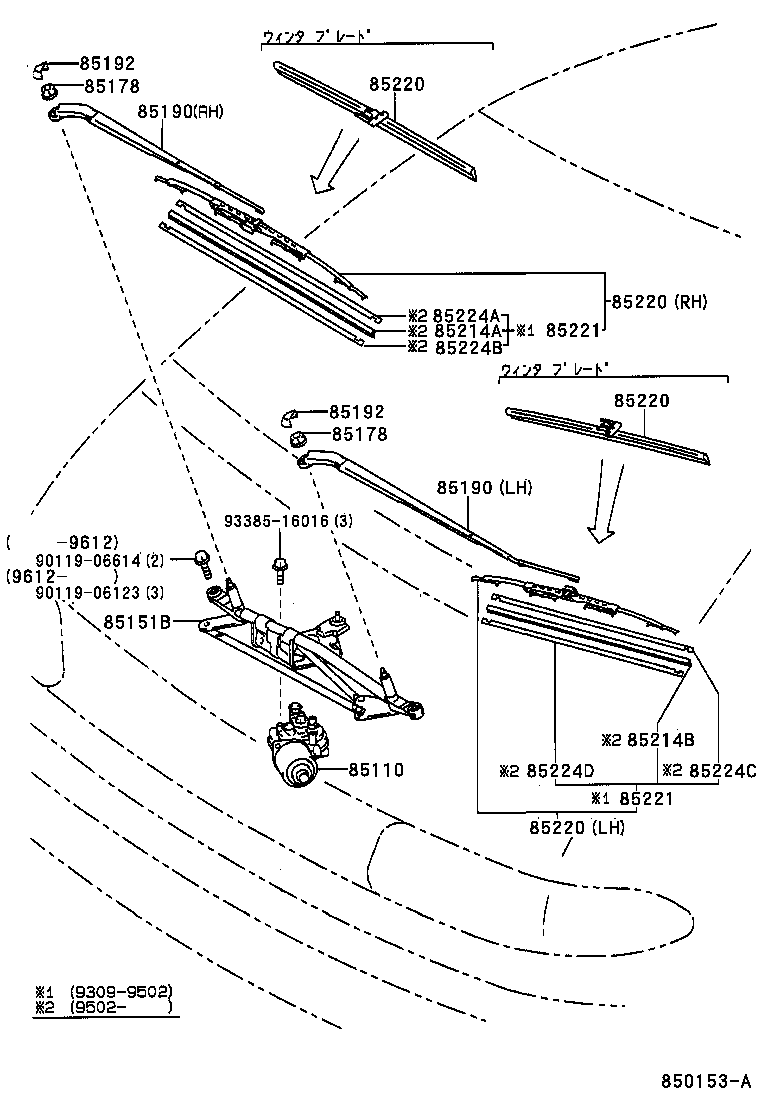

Click highlighted areas on diagram

diagram 85110 85151B 85178 85178 85190 85190 85192 85192 85214A 85214B 85220 85220 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9011906123 9011906614 9338516016
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-28080

CXR1#,2#,TCR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85110-28070

CXR1#,2#,TCR1#,2#

 1
85151B - FRAME, FRONT WIPER LINK
85151-28040

CXR1#,2#,TCR1#,2#

 1
85151-28050

CXR1#,2#,TCR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08209

CXR1#,2#,TCR1#,2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08209

CXR1#,2#,TCR1#,2#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85211-28030

CXR1#,2#,TCR1#,2#

右側

 1
85221-28010

CXR1#,2#,TCR1#,2#

左側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85211-28030

CXR1#,2#,TCR1#,2#

右側

 1
85221-28010

CXR1#,2#,TCR1#,2#

左側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-28010

CXR1#,2#,TCR1#,2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-28010

CXR1#,2#,TCR1#,2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-28030

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85291-28040

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-28030

CXR1#,2#,TCR1#,2#

右側

 1
85222-28020

CXR1#,2#,TCR1#,2#

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-28030

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85291-28040

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-28030

CXR1#,2#,TCR1#,2#

右側

 1
85222-28020

CXR1#,2#,TCR1#,2#

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-28030

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85291-28040

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-28030

CXR1#,2#,TCR1#,2#

右側

 1
85222-28020

CXR1#,2#,TCR1#,2#

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85291-28030

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85291-28040

CXR1#,2#,TCR1#,2#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-28030

CXR1#,2#,TCR1#,2#

右側

 1
85222-28020

CXR1#,2#,TCR1#,2#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85213-28030

CXR1#,2#,TCR1#,2#

右側

 1
85223-28020

CXR1#,2#,TCR1#,2#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85213-28030

CXR1#,2#,TCR1#,2#

右側

 1
85223-28020

CXR1#,2#,TCR1#,2#

左側

 1
Common parts
90119-06123
90119-06614
93385-16016
