CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida
Production
Aug 1996
-
Aug 1999
Engine
3CTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )

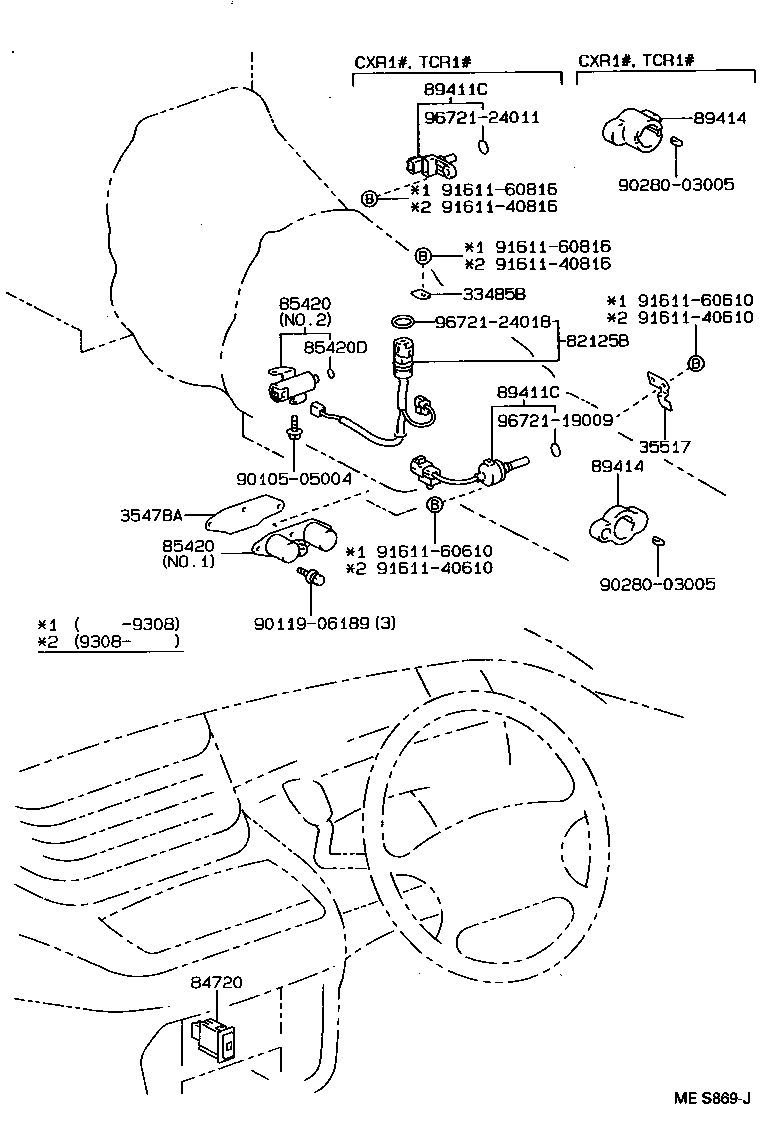

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33485B - PLATE, TRANSMISSION WIRE | ||||
| 33485-28010 |
CXR1#,2#,TCR1#,2#..ATM |
1 | ||
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
CXR1#,2#,TCR1#,2#..ATM |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
CXR1#,2#,TCR1#,2#..ATM |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-20100 |
CXR1#,2#,TCR1#,2#..ATM |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
CXR1#,2#,TCR1#,2#..ATM NO.1 |
1 | ||
| 85420-30070 |
CXR1#,2#,TCR1#,2#..ATM NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30050 |
CXR1#,2#,TCR1#,2#..ATM NO.1 |
1 | ||
| 85420-30070 |
CXR1#,2#,TCR1#,2#..ATM NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
CXR1#,2#,TCR1#,2#..ATM |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-28020 |
CXR1#,TCR1#..ATM |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-28020 |
CXR1#,TCR1#..ATM |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-30011 |
CXR1#,TCR1#..ATM |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-30011 |
CXR1#,TCR1#..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90280-03005 | ||||
| 91611-40610 | ||||
| 91611-40816 | ||||
| 91611-60610 | ||||
| 91611-60816 | ||||
| 96721-19009 | ||||
| 96721-24011 | ||||
| 96721-24018 | ||||
