CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

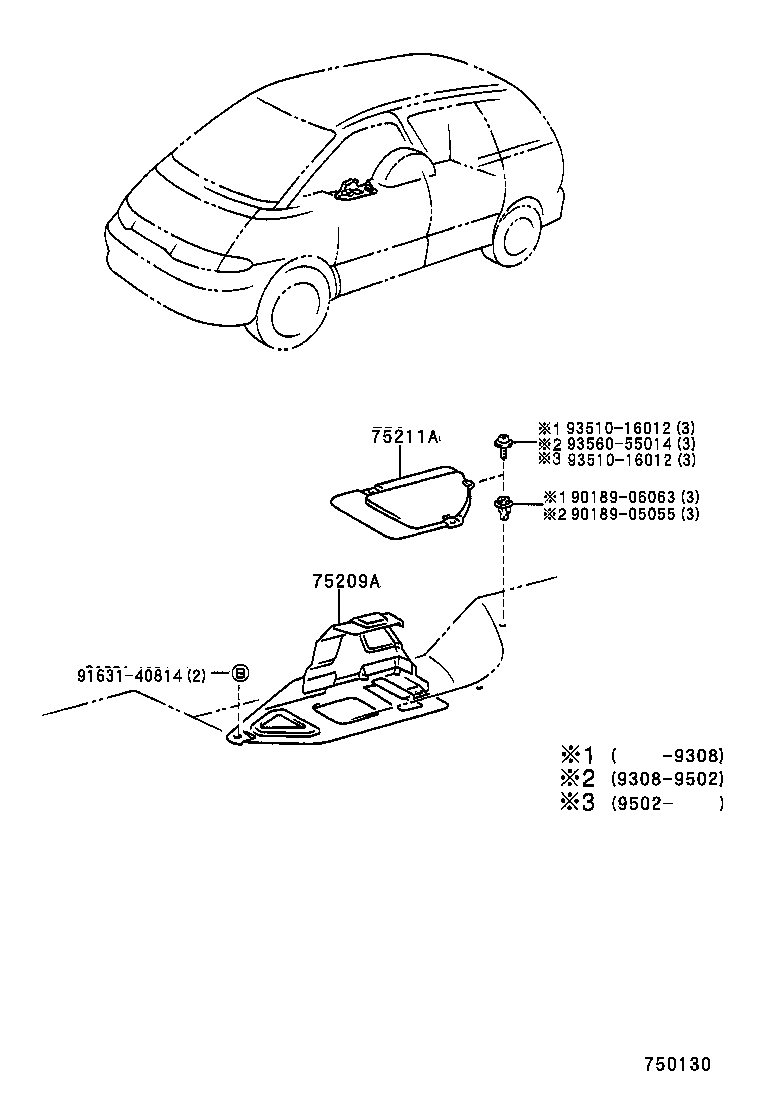

Click highlighted areas on diagram

diagram 75209A 75211A 9018905055 9018906063 9163140814 9351016012 9351016012 9356055014
Part # Description Qty Price
75209A - BASE SUB ASSY, JACK HOLDER
75209-28030

CXR1#,2#,TCR1#,2#

 1
75211A - PANEL, TOOL BOX, UPPER
75211-28030

CXR1#,2#,TCR1#,2#

 1
Common parts
90189-05055
90189-06063
91631-40814
93510-16012
93560-55014
