CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida

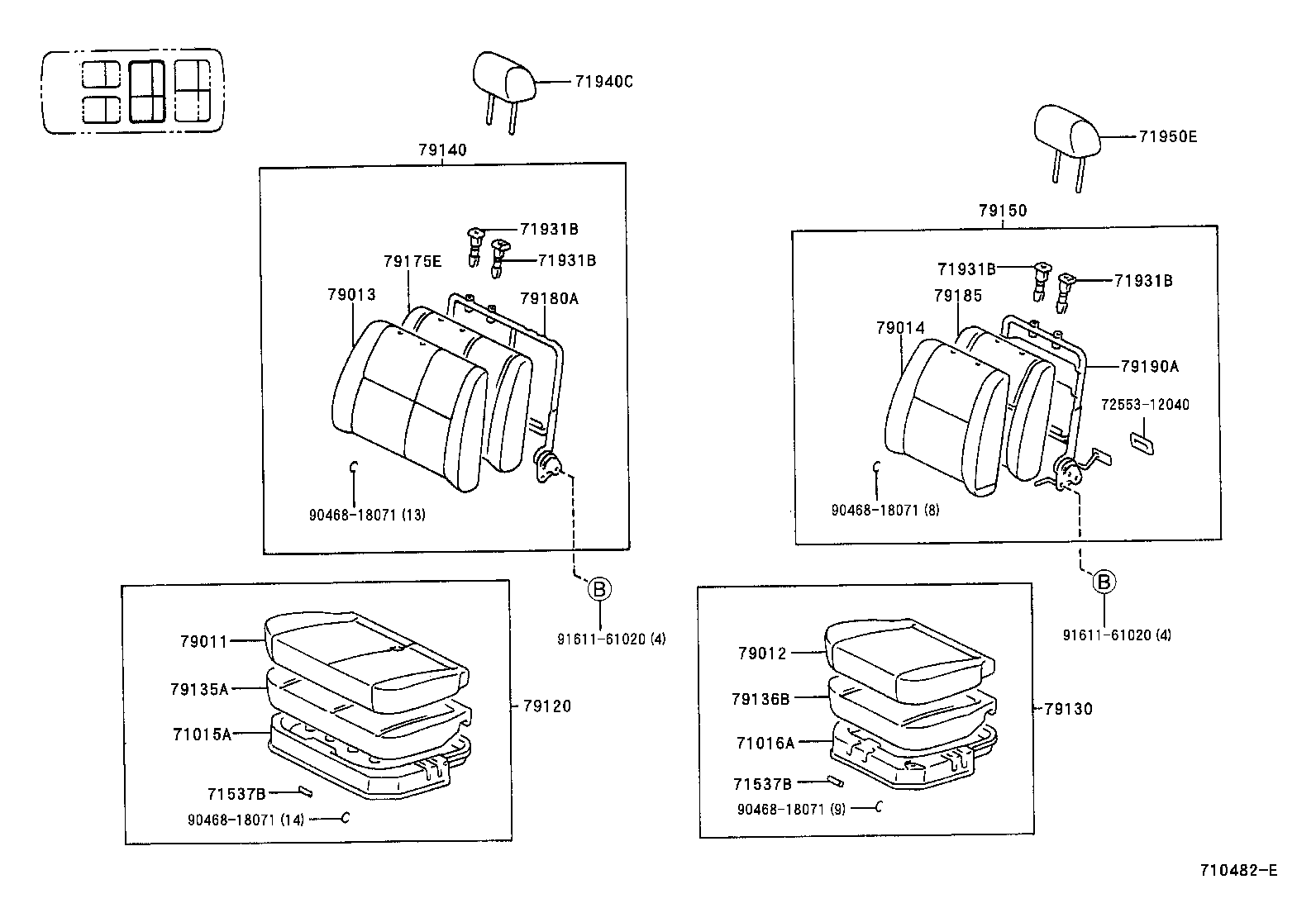

ILLUST NO. 2 OF 4(9608-9801)CXR10,20,TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 79160-28090 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 79170-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28710B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28260B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28450B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28551B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28550B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28540B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28490B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28040B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79012-28211B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28290B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28270B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79012-28210B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28230B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28100B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28570B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28610B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-28070B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28080B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28510B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28500B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28480B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28511B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28440B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28110B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28130B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28110E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79120-28880B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28890B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28891B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28800B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28810B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130-28070B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28501B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28570B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28580B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28500B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28170B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28190B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28170E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79140-28200B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J110B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J180B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28830B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J100B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28831B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J130B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28140E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79150-28140B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28170B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28160B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28850B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J031B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28870B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28840B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J020B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J030B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79175-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79175-28080 |
CXR10,20,TCR10,20 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28110 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79280-28120 |
CXR10,20,TCR10,20 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79185-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28100 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190-28390 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| Common parts | ||||
| 72553-12040 | ||||
| 90468-18071 | ||||
| 91611-61020 | ||||

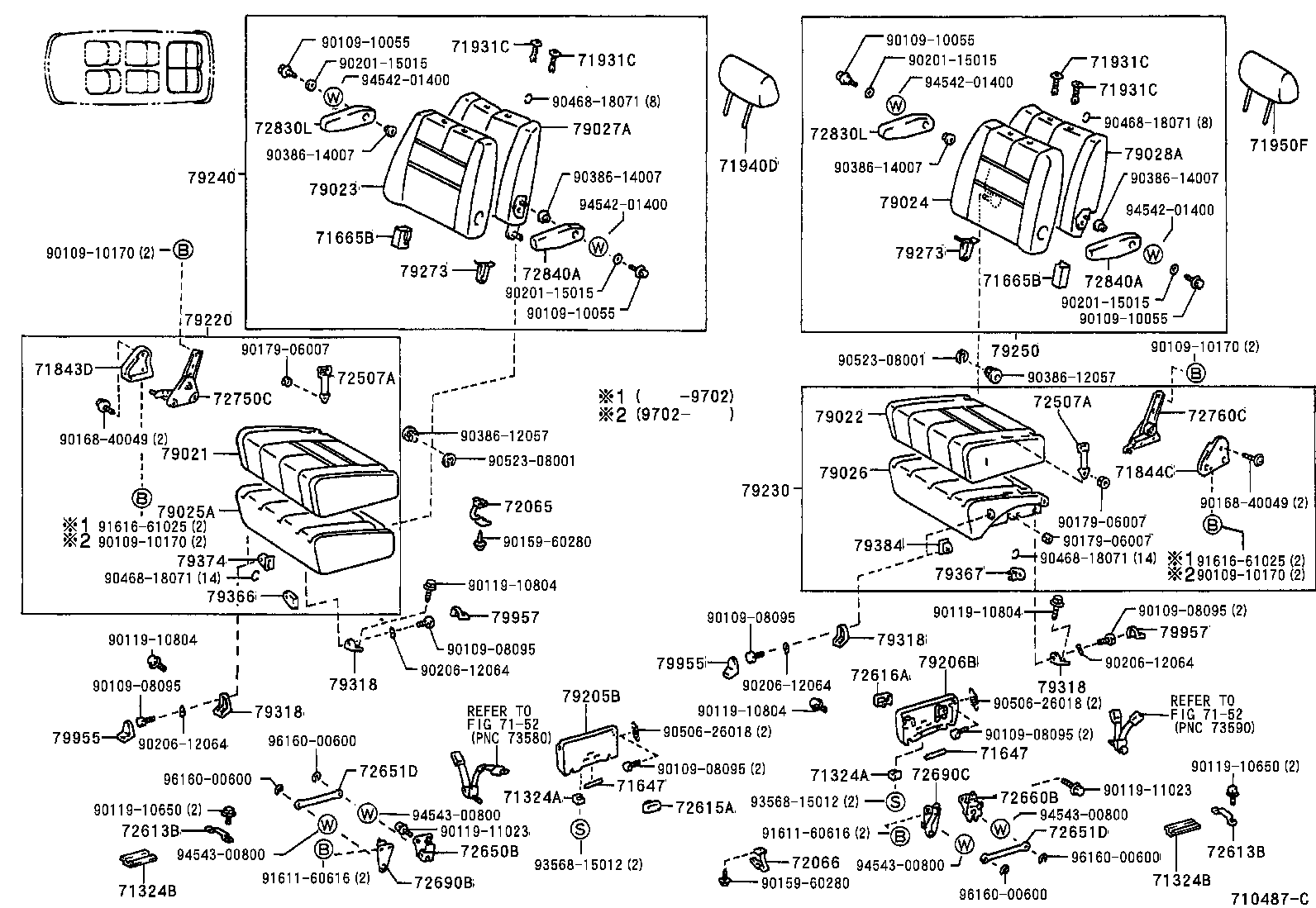

ILLUST NO. 4 OF 4(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
CXR1#,2#,TCR1#,2# |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0503 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAY,TRIM1#,4# |
1 | ||
| 71843-95D0503 |
CXR10,20,TCR1#,21..D,F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0503 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAY,TRIM1#,4# |
1 | ||
| 71844-95D0503 |
CXR10,20,TCR1#,21..D,F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28710B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28750B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28260B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28750B0 |
CXR1#,2#,TCR1#,2#..ATM..(G,X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-28050E1 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 72065-28050B1 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-28050B1 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX LIGHT GRAY,TRIM1# |
1 | ||
| 72065-28050E1 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28010E1 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72507-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28010E1 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72507-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72615-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
1 | ||
| 72615-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-95D01 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-28010 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-28030B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28040B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28030E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79021-28050B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28390B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28440B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28430B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28370B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28441B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28410B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-28010B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28020B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28030B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28010E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79022-28380B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79022-28360B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28411B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28410B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28400B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28340B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-28020B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28030B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28040B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28020E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79023-28330B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28390B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28401B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28400B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28350B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28370B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-28010E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79024-28020B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28030B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28010B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28380B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28370B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28310B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28350B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28381B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28330B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-28020 |
CXR10,20,TCR1#,2#..AERAS,D,ELU,F,S,X,XLUX |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79026-28020 |
CXR10,20,TCR1#,2#..AERAS,D,ELU,F,S,X,XLUX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-28080B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79220-28070B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28430B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-28400B3 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79220-28451B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-28370B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79220-28450B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79220-28380B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-28030B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28030E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79230-28040B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28050B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28390B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79230-28411B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79230-28360B3 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79230-28340B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79230-28410B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79230-28330B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-28110B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28090E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79240-28100B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28090B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28481B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28460B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28400B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28480B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28420B3 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28390B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-28070B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28070E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79250-28090B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28080B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28430B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79250-28360B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79250-28450B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79250-28451B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79250-28370B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79250-28390B3 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-28020B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
2 | ||
| 79273-28020E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-28020B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
2 | ||
| 79273-28020E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-28010 |
CXR1#,2#,TCR1#,2# FRONT |
2 | ||
| 79319-95D00 |
CXR1#,2#,TCR1#,2# REAR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-28010 |
CXR1#,2#,TCR1#,2# FRONT |
2 | ||
| 79319-95D00 |
CXR1#,2#,TCR1#,2# REAR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-28010 |
CXR1#,2#,TCR1#,2# FRONT |
2 | ||
| 79319-95D00 |
CXR1#,2#,TCR1#,2# REAR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-28010 |
CXR1#,2#,TCR1#,2# FRONT |
2 | ||
| 79319-95D00 |
CXR1#,2#,TCR1#,2# REAR |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79366-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 79955-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 79955-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 79957-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 79957-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90109-10055 | ||||
| 90109-10170 | ||||
| 90119-10650 | ||||
| 90119-10804 | ||||
| 90119-11023 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90201-15015 | ||||
| 90206-12064 | ||||
| 90386-12057 | ||||
| 90386-14007 | ||||
| 90468-18071 | ||||
| 90506-26018 | ||||
| 90523-08001 | ||||
| 91611-60616 | ||||
| 91616-61025 | ||||
| 93568-15012 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

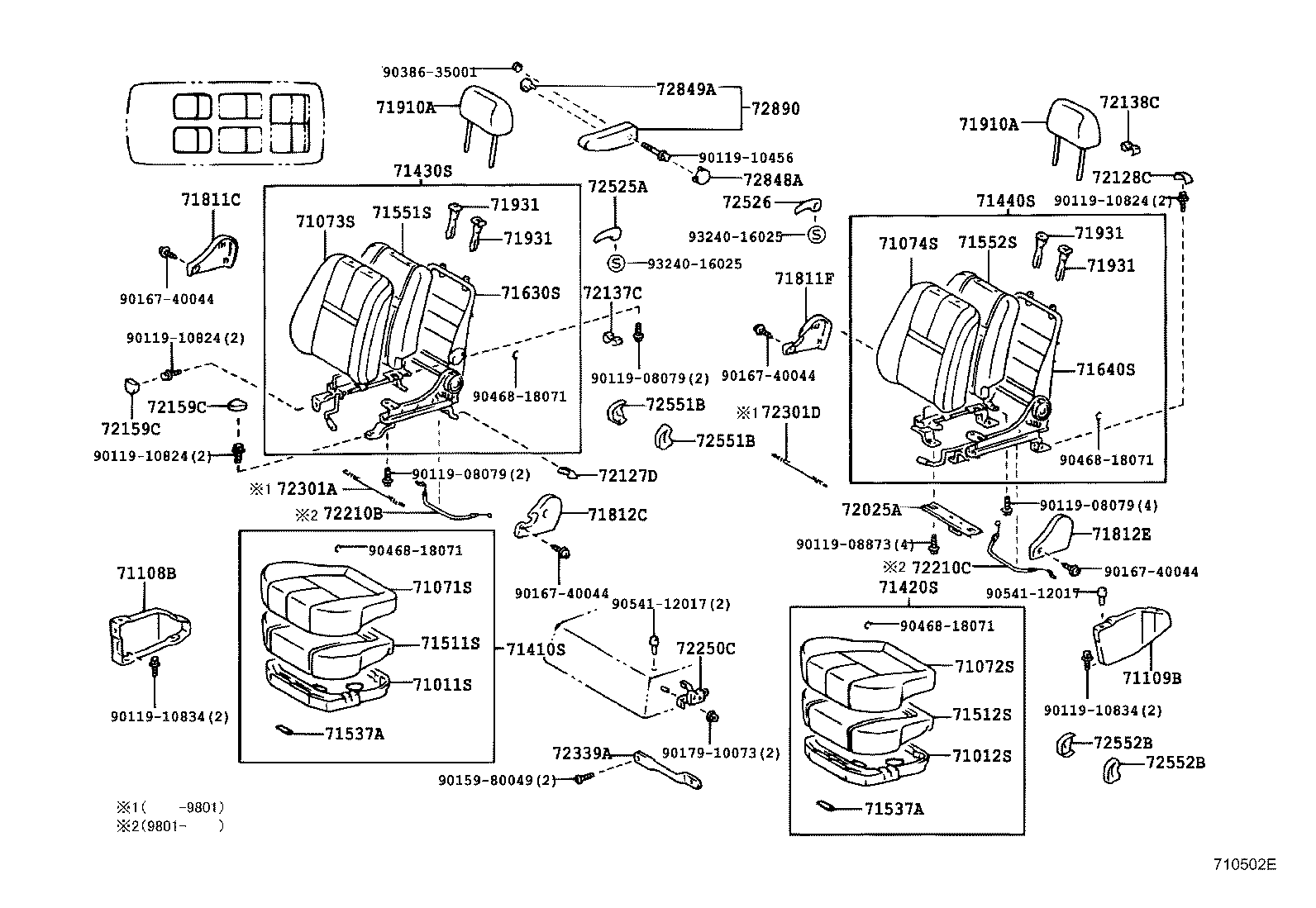

ILLUST NO. 1 OF 4(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28120B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28130B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28150E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71071-28150B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2J090B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J060B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J170B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 71071-2J061B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J070B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J190B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28120B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28130B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28150B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2J170B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-28150E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71072-2J060B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J181B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J040B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J180B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71072-2J150B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28210B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28180B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28190B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28210E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71073-2J231B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28590B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J080B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J100B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J230B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2J190B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28240E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71074-28240B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28200B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28210B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2J260B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28660B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-2J261B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-2J190B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-2J250B0 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71074-2J170B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-28010E0 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 71108-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109-28010E0 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28160B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28140B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28130B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28160E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71410-2J110B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J131B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J050B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J060B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J130B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-2J080B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28150E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71420-28120B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28130B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28150B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28880B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J080B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-28890B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J020B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J060B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-2J081B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-28230B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28250B0 |
CXR10,20..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28290B0 |
CXR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28290E0 |
CXR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71040-28031B1 |
CXR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71040-28030B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J560B0 |
CXR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J510B0 |
CXR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J500B0 |
CXR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71040-28150B0 |
CXR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J530B2 |
CXR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71040-28180B0 |
CXR10,20..ATM..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-2J531B4 |
CXR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-28210B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28220B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28250B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28250E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71440-2J360B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J400B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J330B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-28030B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-2J340B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-28031B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28040 |
CXR10,20,TCR1#,2#..D,F,S,X,XLUX |
1 | ||
| 71512-28130 |
CXR10,20,TCR10,20 |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28160 |
CXR10,20,TCR10,20..X,XLUX |
1 | ||
| 71506-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71551-28160 |
CXR10,20,TCR10,20..AERAS |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28380 |
CXR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(B),*(M),*(S),*(T) |
1 | ||
| 71630-28380 |
CXR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K) |
1 | ||
| 71630-28380 |
CXR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z) |
1 | ||
| 71630-28380 |
CXR1#,2#..G,GLUX,XLUX |
1 | ||
| 71630-28380 |
CXR10,20..ATM..X ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71630-28430 |
CXR1#,2#..ATM |
1 | ||
| 71630-28370 |
CXR10,20..AERAS,X |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28400 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28040E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71811-28040B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0305 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 71811-95D0303 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-28040B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28040E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0405 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 71812-95D0403 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28080E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
2 | ||
| 71910-28090B1 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28100B2 |
CXR10,20..D LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28080B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28580B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,右側 |
1 | ||
| 71920-28160B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 71910-28710B1 |
CXR10,20,TCR10,20..AERAS BLUISH. GRAY,TRIM1# |
2 | ||
| 71910-28800B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28531B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28600B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28530B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28080E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
2 | ||
| 71910-28090B1 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28100B2 |
CXR10,20..D LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28080B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28580B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,右側 |
1 | ||
| 71920-28160B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 71910-28710B1 |
CXR10,20,TCR10,20..AERAS BLUISH. GRAY,TRIM1# |
2 | ||
| 71910-28800B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28531B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28600B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28530B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72128-95D0003 |
CXR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0005 |
CXR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72128-28020B0 |
CXR1#,2#..AERAS,G,GLUX,X,XLUX BLUISH GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
CXR1#,2# 左側 |
1 | ||
| 72250-28020 |
CXR1#,2# 右側 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72301-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72301-28050 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72339A - FRAME, FRONT SEAT LEG SUPPORT | ||||
| 72339-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72880-28360B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28590B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28591B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 72880-28450B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10824 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90167-40044 | ||||
| 90179-10073 | ||||
| 90386-35001 | ||||
| 90468-18071 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||
ILLUST NO. 2 OF 4(9608- )
CXR10,20,TCR10,20(ﾊﾝﾃﾞｲｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 79160-28090 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 79170-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71843-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71843-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71843C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26080B0 |
CXR10,20,TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-28020E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28710B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28260B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-28240B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-28240B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-28200B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-28200B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28450B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28551B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28550B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28540B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28490B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28040B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79012-28211B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28290B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28270B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79012-28210B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28230B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28100B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28570B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28610B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-28070B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28080B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28510B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28500B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28480B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28511B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28440B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28110B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28130B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28110E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79120-28880B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28890B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28891B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28800B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28810B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130-28070B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28501B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28570B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28580B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28500B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28170B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28190B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28170E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79140-28200B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J110B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J180B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28830B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J100B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28831B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J130B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28140E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79150-28140B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28170B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28160B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28850B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J031B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28870B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28840B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J020B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J030B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79175-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79175-28080 |
CXR10,20,TCR10,20 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28110 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79280-28120 |
CXR10,20,TCR10,20 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79185-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28100 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190-28390 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| Common parts | ||||
| 90109-10089 | ||||
| 90119-08079 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 93240-16025 | ||||
| 93249-55010 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 4(9801- )CXR10,20,TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 79160-28090 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 79170-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28710B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28260B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28730B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J050B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J020B1 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-28240B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28450B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28551B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28550B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28540B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28490B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28040B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79012-28211B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28290B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28270B2 |
CXR10,20,TCR10,20..AERAS BL. GRAY,TRIM1# |
1 | ||
| 79012-28210B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28520B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28230B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28100B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28650B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28570B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28651B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28610B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-28070B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28080B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28510B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28500B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28480B2 |
CXR10,20,TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28511B1 |
CXR10,20,TCR10,20..ATM..X ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28440B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28590B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28110B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28130B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28110E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79120-28880B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28890B0 |
CXR10,20,TCR10,20..ATM..X X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28891B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28800B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28810B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130-28070B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28501B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28570B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28830B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28580B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28500B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28630B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71511-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 71512-28140 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28170B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28190B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28170E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79140-28200B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J110B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J180B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28830B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J100B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28831B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J130B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28140E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79150-28140B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28170B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28160B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28850B0 |
CXR10,20,TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J031B1 |
CXR10,20,TCR10,20..ATM..X ***,ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28870B2 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ***,ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28840B0 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J020B0 |
CXR10,20,TCR10,20..ATM..X Xﾘﾐﾃﾂﾄﾞ,*(B),*(M),*(S),*(T),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J030B0 |
CXR10,20,TCR10,20..ATM..X ***,X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),BLUISH GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79175-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79175-28080 |
CXR10,20,TCR10,20 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28110 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79280-28120 |
CXR10,20,TCR10,20 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79185-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28100 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79190-28390 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| Common parts | ||||
| 72553-12040 | ||||
| 90109-08271 | ||||
| 90109-10170 | ||||
| 90386-10036 | ||||
| 90468-18071 | ||||
ILLUST NO. 3 OF 4(9608-9801)CXR10,20,TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71843-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71843-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71843C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26080B0 |
CXR10,20,TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-28020E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-28010 |
CXR10,20,TCR10,20 |
1 | ||
| 72688A - CABLE, REAR TRACK & TURN CONTROL | ||||
| 72688-28010 |
CXR10,20,TCR10,20 |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28050 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72960-28160 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 72960-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28060 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28050 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| Common parts | ||||
| 72695-21030 | ||||
| 90119-08766 | ||||
| 90119-10650 | ||||
| 90167-40044 | ||||
| 90168-50038 | ||||
| 90905-07009 | ||||
| 93249-55010 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
| 94180-41000 | ||||
ILLUST NO. 3 OF 4(9608- )
CXR10,20,TCR10,20(ﾊﾝﾃﾞｲｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28050 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72960-28160 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 72960-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28060 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-28180B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,FRONT |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-28180B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,FRONT |
1 | ||
| 72974 - COVER, REAR SEAT TURN LOCK | ||||
| 72973-28180B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,FRONT |
1 | ||
| 72973-28160B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,REAR |
1 | ||
| 72974 - COVER, REAR SEAT TURN LOCK | ||||
| 72973-28180B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,FRONT |
1 | ||
| 72973-28160B0 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,GRAY,TRIM1#,REAR |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28050 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08766 | ||||
| 90119-10495 | ||||
| 90119-10650 | ||||
| 90149-40015 | ||||
| 90149-50058 | ||||
| 90167-40044 | ||||
| 93249-54008 | ||||
| 93315-16016 | ||||
| 93560-54012 | ||||
| 94180-41000 | ||||
| 94543-00800 | ||||
ILLUST NO. 3 OF 4(9801- )CXR10,20,TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71843-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71843-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71843C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26080B0 |
CXR10,20,TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-28020E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302-26040 |
CXR10,20,TCR10,20 |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-28010 |
CXR10,20,TCR10,20 |
1 | ||
| 72688A - CABLE, REAR TRACK & TURN CONTROL | ||||
| 72688-28010 |
CXR10,20,TCR10,20 |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28050 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72960-28160 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 72960-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28060 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970-28180C0 |
CXR10,20,TCR10,20 BLACK,TRIM1# |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28050 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| Common parts | ||||
| 72695-21030 | ||||
| 90119-08766 | ||||
| 90119-10650 | ||||
| 90167-40044 | ||||
| 90168-50038 | ||||
| 90463-13003 | ||||
| 90464-00799 | ||||
| 90905-07009 | ||||
| 93249-55010 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
| 94180-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
