CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

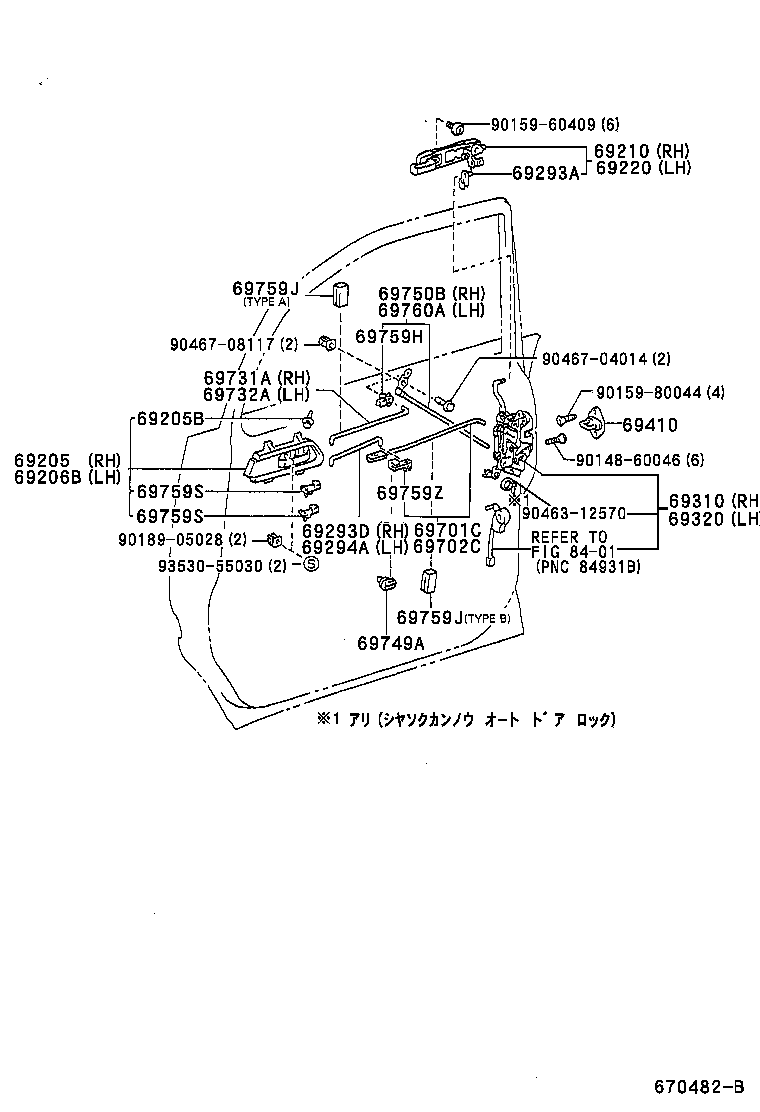

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69220 69293A 69293D 69294A 69310 69320 69410 69701C 69702C 69731A 69732A 69749A 69750B 69759H 69759J 69759J 69759S 69759S 69759Z 69760A 8401 9014860046 9015960409 9015980044 9018905028 9046312570 9046704014 9046708117 9353055030
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-95D00

CXR1#,2#,TCR1#,2#

 1
69205-28080

CXR1#,2#,TCR1#,2#

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

CXR1#,2#,TCR1#,2#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-95D00

CXR1#,2#,TCR1#,2#

 1
69206-28090

CXR1#,2#,TCR1#,2#

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ 2

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-28020A2

CXR10,20,TCR10,20..ATM..X

X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),WHITE PEARL MC.,042

 1
69210-28020A3

CXR10,20,TCR10,20..ATM..X

ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),WHITE,056

 1
69210-95D00

CXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX

 1
69210-28020B2

CXR1#,2#,TCR1#,2#..ELU,G,XLUX

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,DK.BLUISH GRAY MC,191

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-28020A2

CXR10,20,TCR10,20..ATM..X

X ﾘﾐﾃﾂﾄﾞ *(D),*(H),*(J),*(K),WHITE PEARL MC.,042

 1
69220-95D00

CXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX

 1
69220-28020A3

CXR10,20,TCR10,20..ATM..X

ﾘﾐﾃﾂﾄﾞ *(F), *(G), *(R), *(Z),WHITE,056

 1
69220-28020B2

CXR1#,2#,TCR1#,2#..ELU,G,XLUX

ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,DK.BLUISH GRAY MC,191

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12060

CXR1#,2#,TCR1#,2#

右側

 1
69293-12050

CXR1#,2#,TCR1#,2#

左側

 1
69293D - LINK, DOOR INSIDE HANDLE CONNECTING, RH
69293-95D00

CXR1#,2#,TCR1#,2#

 1
69294A - LINK, DOOR INSIDE HANDLE CONNECTING, LH
69294-95D00

CXR1#,2#,TCR1#,2#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-28010

CXR1#,2#,TCR1#,2#..G,S,X

 1
69310-28030

CXR10,20,TCR10..D,F

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-28010

CXR1#,2#,TCR1#,2#..G,S,X

 1
69320-28030

CXR10,20,TCR10..D,F

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-95D00

CXR1#,2#,TCR1#,2#

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-95D00

CXR1#,2#,TCR1#,2#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-95D00

CXR1#,2#,TCR1#,2#

 1
69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-95D00

CXR1#,2#,TCR1#,2#

 1
69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-95D00

CXR1#,2#,TCR1#,2#

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-50010

CXR1#,2#,TCR1#,2#

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-95D00

CXR1#,2#,TCR1#,2#

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20020

CXR1#,2#,TCR1#,2#

左側

 1
69759-20030

CXR1#,2#,TCR1#,2#

右側

 1
69759J - SILENCER, DOOR LOCK LINK
69759-28010

CXR1#,2#,TCR1#,2#

 4
69759J - SILENCER, DOOR LOCK LINK
69759-28010

CXR1#,2#,TCR1#,2#

 4
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

CXR1#,2#,TCR1#,2#

LH-HANDLE

 1
69759-24070

CXR1#,2#,TCR1#,2#

RH-HANDLE

 1
69759-20060

CXR1#,2#,TCR1#,2#

LH-KNOB

 1
69759-20070

CXR1#,2#,TCR1#,2#

RH-KNOB

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

CXR1#,2#,TCR1#,2#

LH-HANDLE

 1
69759-24070

CXR1#,2#,TCR1#,2#

RH-HANDLE

 1
69759-20060

CXR1#,2#,TCR1#,2#

LH-KNOB

 1
69759-20070

CXR1#,2#,TCR1#,2#

RH-KNOB

 1
69759Z - SNAP, DOOR LOCK CONTROL LINK
69759-24030

CXR1#,2#,TCR1#,2#

左側

 1
69759-24040

CXR1#,2#,TCR1#,2#

右側

 1
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-95D00

CXR1#,2#,TCR1#,2#

 1
Common parts
90148-60046
90159-60409
90159-80044
90189-05028
90463-12570
90467-04014
90467-08117
93530-55030
Linked diagrams
8401
