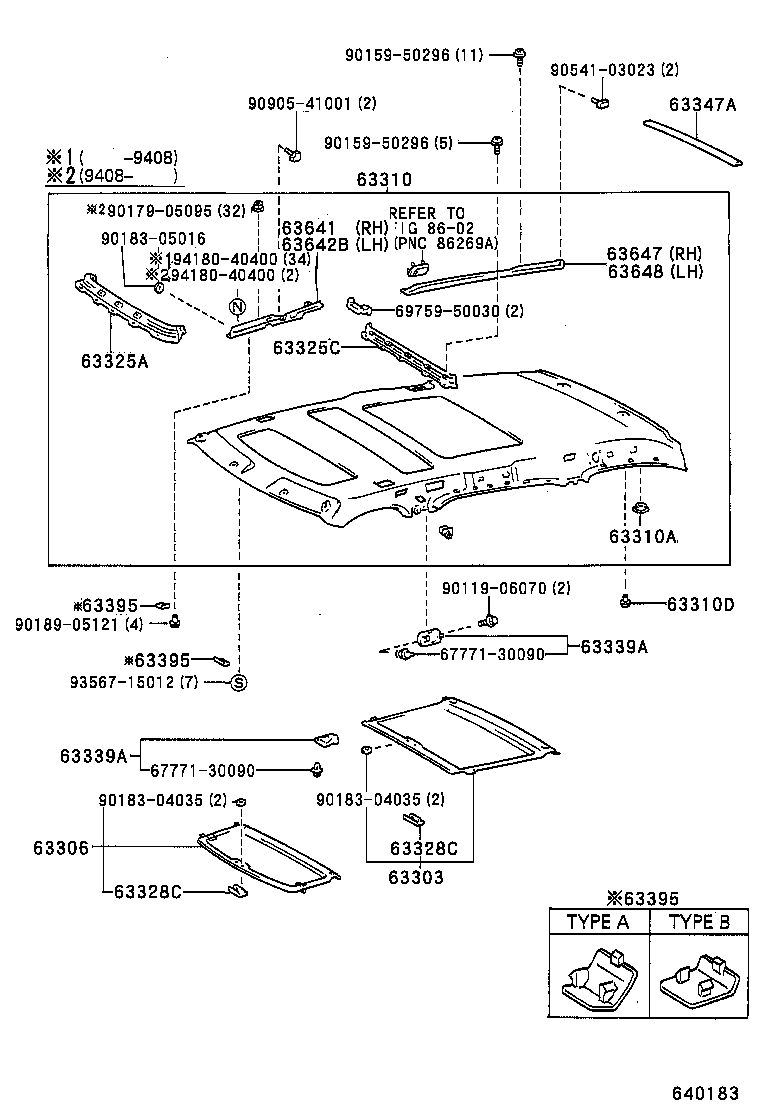

CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida
(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 63303-28010E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 63303-28011B1 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 63303-28051B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),LIGHT GRAY,TRIM1# |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-28011B1 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 63306-28010E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 63306-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 63306-28051B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),LIGHT GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28170B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28210B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28130B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28210E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28160B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28150B0 |
CXR10,20..D ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28180B0 |
CXR10,20..D ｱﾘ(ｸﾛﾂｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28200E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28170B0 |
CXR10,20..D ｱﾘ(ｸﾛﾂｸ) & ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28160B0 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28160E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28130E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28170E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28140E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28140B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28140E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28210B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28150E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28220E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28220B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28140B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28180E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28110B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28190E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28190B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28200B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28110E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28210E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28170B0 |
CXR10,20,TCR10..F ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28190E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28150B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28180B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28190B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28180B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28200E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28120E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28120B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28200B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28151B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28191B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28381B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28371B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28570B0 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 63310-28580B0 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 63311-28121B0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28201B0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-1106805 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 90467-1106803 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
2 | ||
| 63325A - PLATE, SUNSHADE TRIM SET, NO.1 | ||||
| 63325-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63325C - PLATE, SUNSHADE TRIM SET, NO.2 | ||||
| 63325-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-95D0005 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 63328-95D0003 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-95D0005 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 63328-95D0003 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| 63339-28020E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
2 | ||
| 63339-28020E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
3 | ||
| 63395-95D01 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
4 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
3 | ||
| 63395-95D01 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
4 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ A |
3 | ||
| 63395-95D01 |
CXR1#,2#,TCR1#,2#..G,S,X ﾀｲﾌﾟ B |
4 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-28021 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-28021 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63647 - RAIL, SUNSHADE, NO.2 REAR RH | ||||
| 63647-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63648 - RAIL, SUNSHADE, NO.2 REAR LH | ||||
| 63648-28021 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| Common parts | ||||
| 67771-30090 | ||||
| 69759-50030 | ||||
| 90119-06070 | ||||
| 90159-50296 | ||||
| 90179-05095 | ||||
| 90183-04035 | ||||
| 90183-05016 | ||||
| 90189-05121 | ||||
| 90541-03023 | ||||
| 90905-41001 | ||||
| 93567-15012 | ||||
| 94180-40400 | ||||
| Linked diagrams | ||||
| 8602 | ||||
(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28170B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28210B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28130B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28210E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28160B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28150B0 |
CXR10,20..D ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28180B0 |
CXR10,20..D ｱﾘ(ｸﾛﾂｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28200E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28170B0 |
CXR10,20..D ｱﾘ(ｸﾛﾂｸ) & ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28160B0 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28160E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28130E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28170E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28140E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28140B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28140E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28210B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28150E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28220E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28220B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28140B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28180E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28110B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28190E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28190B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28200B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28110E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28210E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28170B0 |
CXR10,20,TCR10..F ﾅｼ(ｴｱｺﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28190E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63310-28150B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28180B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28190B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28180B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ & ﾃﾚﾋﾞｼﾞﾖﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28200E0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28120E0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GREIGE,TRIM4# |
1 | ||
| 63311-28120B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28200B0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28151B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28191B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28381B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- & ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28371B0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-28570B0 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 63310-28580B0 |
CXR1#,2#,TCR1#,2# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ),BLUISH GRAY,TRIM1# |
1 | ||
| 63311-28121B0 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),LIGHT GRAY,TRIM1# |
1 | ||
| 63311-28201B0 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-1106805 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
2 | ||
| 90467-1106803 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-28020 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-28010 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63342-28020 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
