Toyota Estima emina/lucida CXR10 ROOF PANEL & BACK PANEL

CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999

Engine 3CTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9201- )

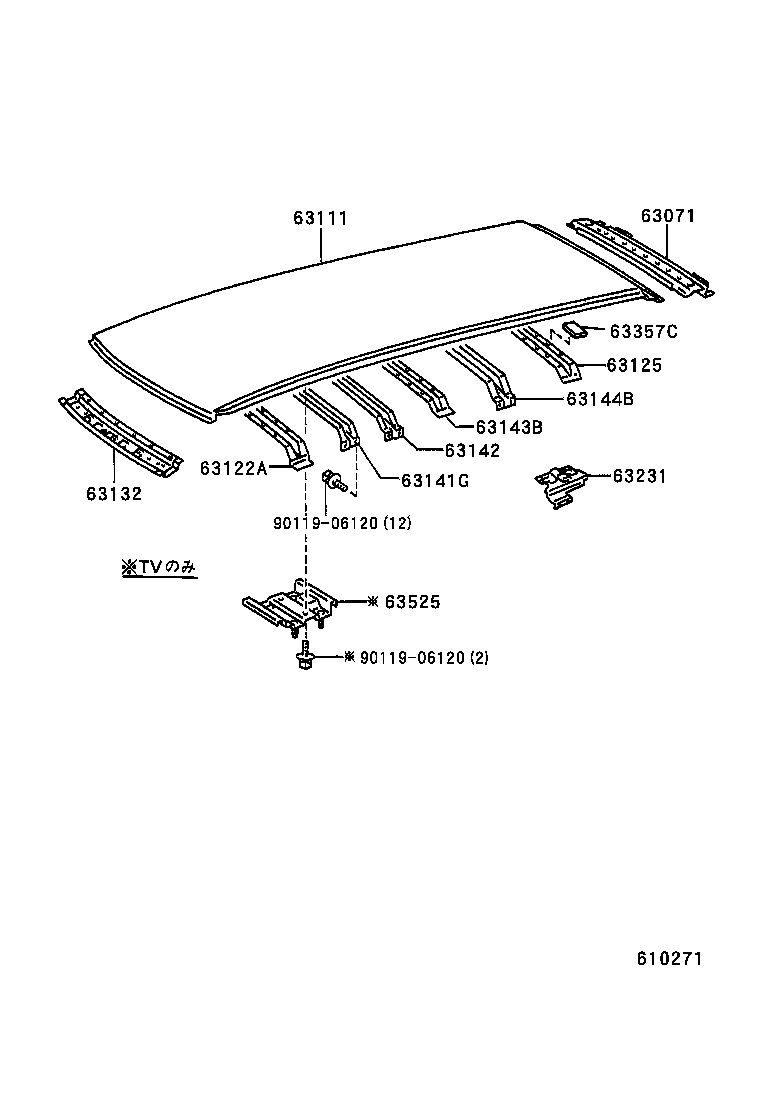

Click highlighted areas on diagram

Part #	Description	Period	Qty
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28010	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	1
63111 - PANEL, ROOF
63111-28030	CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/1992 - 01/1995	1
63111-28040	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 01/1998	1
63111-28031	CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	08/1996 - 01/1998	1
63111-28140	CXR1#,2#,TCR1#,2# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ)	08/1996 - 01/1998	1
63122A - REINFORCEMENT, ROOF PANEL, FRONT
63122-28010	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-28010	CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/1992 - 01/1995	1
63125-28020	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-28020	CXR1#,2#,TCR1#,2#	01/1992 - 01/1998	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-28030	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-28020	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28020	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-28020	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63231 - BRACKET, ROOM LAMP
63231-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 12/1999	1
63525 - BRACKET, TELEVISION RACK, NO.1
63525-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
Common parts
90119-06120

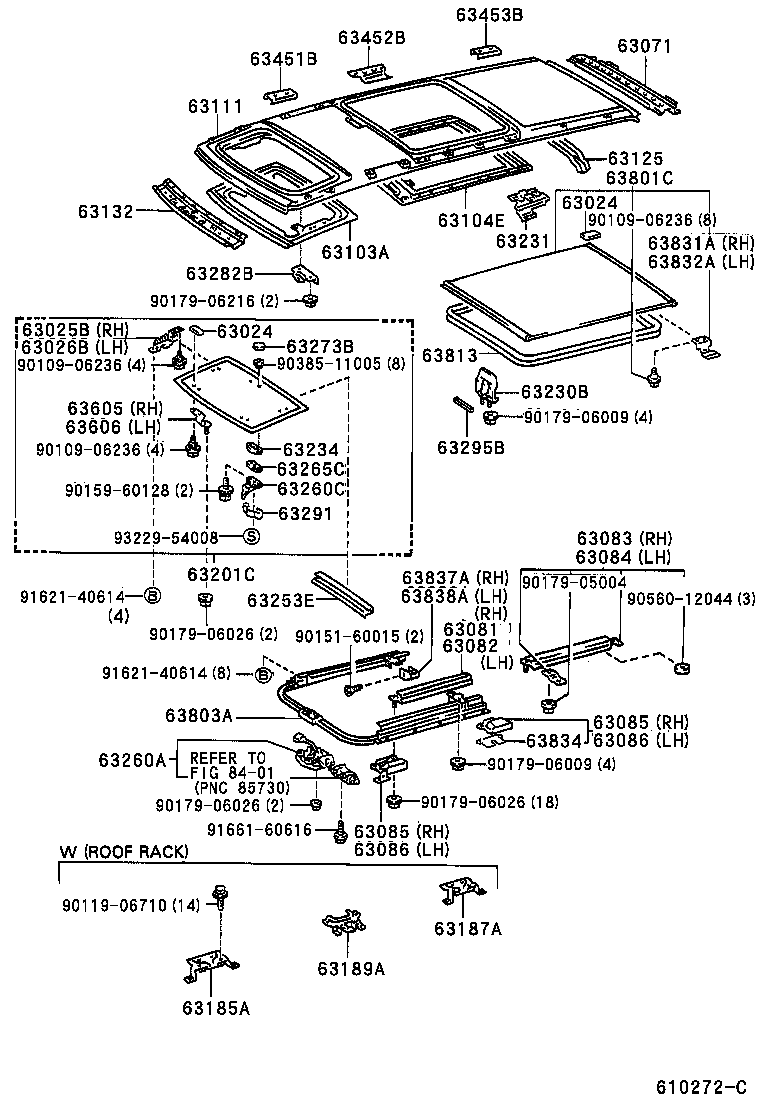

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

Part #	Description	Period	Qty
63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63024-95700	CXR1#,2#,TCR1#,2#..G,S,X TILT ROOF	01/1992 - 08/1993	4
63024-95700	CXR1#,2#,TCR1#,2#..G,S,X RR SLIDE ROOF	01/1992 - 08/1993	6
63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63024-95700	CXR1#,2#,TCR1#,2#..G,S,X TILT ROOF	01/1992 - 08/1993	4
63024-95700	CXR1#,2#,TCR1#,2#..G,S,X RR SLIDE ROOF	01/1992 - 08/1993	6
63025B - LINK SUB-ASSY, TILT ROOF, RH
63025-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63026B - LINK SUB-ASSY, TILT ROOF, LH
63026-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28010	CXR1#,2#,TCR1#,2#	01/1992 - 12/1999	1
63081 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH
63081-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63082 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH
63082-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH
63083-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH
63084-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH
63085-95D01	CXR1#,2#,TCR1#,2#..G,S,X REAR	01/1992 - 01/1995	1
63085-95D00	CXR1#,2#,TCR1#,2#..G,S,X FRONT	01/1992 - 01/1995	1
63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH
63085-95D01	CXR1#,2#,TCR1#,2#..G,S,X REAR	01/1992 - 01/1995	1
63085-95D00	CXR1#,2#,TCR1#,2#..G,S,X FRONT	01/1992 - 01/1995	1
63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH
63086-95D00	CXR1#,2#,TCR1#,2#..G,S,X FRONT	01/1992 - 01/1995	1
63086-95D01	CXR1#,2#,TCR1#,2#..G,S,X REAR	01/1992 - 01/1995	1
63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH
63086-95D00	CXR1#,2#,TCR1#,2#..G,S,X FRONT	01/1992 - 01/1995	1
63086-95D01	CXR1#,2#,TCR1#,2#..G,S,X REAR	01/1992 - 01/1995	1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63104-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63111 - PANEL, ROOF
63111-28030	CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/1992 - 01/1995	1
63111-28040	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 01/1998	1
63111-28031	CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ)	08/1996 - 01/1998	1
63111-28140	CXR1#,2#,TCR1#,2# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ)	08/1996 - 01/1998	1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-28010	CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	01/1992 - 01/1995	1
63125-28020	CXR1#,2#,TCR1#,2#..D,F,G,S,X	01/1992 - 12/1999	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-28020	CXR1#,2#,TCR1#,2#	01/1992 - 01/1998	1
63185A - BRACKET, ROOF RACK, FRONT RH
63185-28010	CXR1#,2#,TCR1#,2#..ELU,G,GLUX,S,X,XLUX	01/1992 - 12/1999	2
63187A - BRACKET, ROOF RACK, REAR
63187-28010	CXR1#,2#,TCR1#,2#..ELU,G,GLUX,S,X,XLUX	01/1992 - 12/1999	2
63189A - BRACKET, ROOF RACK, CENTER
63189-28010	CXR1#,2#,TCR1#,2#..ELU,G,GLUX,S,X,XLUX	01/1992 - 12/1999	2
63201C - GLASS SUB-ASSY, TILT ROOF
63201-28060	CXR1#,2#,TCR1#,2#..G,S,X *TT,厚さ=5.0	01/1992 - 08/1993	1
63230B - PANEL ASSY, ROOF WIND DEFLECTOR
63230-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	2
63231 - BRACKET, ROOM LAMP
63231-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 12/1999	1
63234 - PROTECTOR, SLIDE ROOF HOUSING
63234-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63253E - DAM, ROOF WINDOW, NO.3
63253-28020	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 05/1993	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-28030	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63260C - HANDLE ASSY, TILT ROOF LOCK
63260-95D02	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63265C - PLATE, TILT ROOF LOCK
63265-28020	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63273B - RETAINER, ROOF WINDOW HINGE
63273-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	2
63282B - STRIKER, TILT ROOF LOCK
63282-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63291 - GARNISH, ROOF WINDOW LOCK, OUTER
63291-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	1
63295B - PAD, ROOF WIND DEFLECTOR PANEL
63295-28020	CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX	01/1992 - 12/1999	2
63451B - REINFORCEMENT, ROOF RACK, NO.1
63451-28020	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	2
63452B - REINFORCEMENT, ROOF RACK, NO.2
63452-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	2
63453B - REINFORCEMENT, ROOF RACK, NO.3
63453-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 01/1995	2
63605 - HINGE SUB-ASSY, TILT ROOF, RH
63605-28020	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63606 - HINGE SUB-ASSY, TILT ROOF, LH
63606-28020	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63801C - GLASS SUB-ASSY, REAR SLIDE ROOF
63801-28030	CXR1#,2#,TCR1#,2#..G,S,X *TT,厚さ=5.0	01/1992 - 08/1993	1
63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE
63803-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63813 - WEATHERSTRIP, REAR SLIDE ROOF
63813-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63831A - SHOE, REAR SLIDE ROOF, RH
60383-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	2
63832A - SHOE, REAR SLIDE ROOF, LH
60384-28010	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	2
63837A - GARNISH, REAR SLIDE ROOF, RH
63837-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
63838A - GARNISH, REAR SLIDE ROOF, LH
63838-95D00	CXR1#,2#,TCR1#,2#..G,S,X	01/1992 - 08/1993	1
Common parts
90109-06236
90119-06710
90151-60015
90159-60128
90179-05004
90179-06009
90179-06026
90179-06216
90385-11005
90560-12044
91621-40614
91661-60616
93229-54008
Linked diagrams
8401

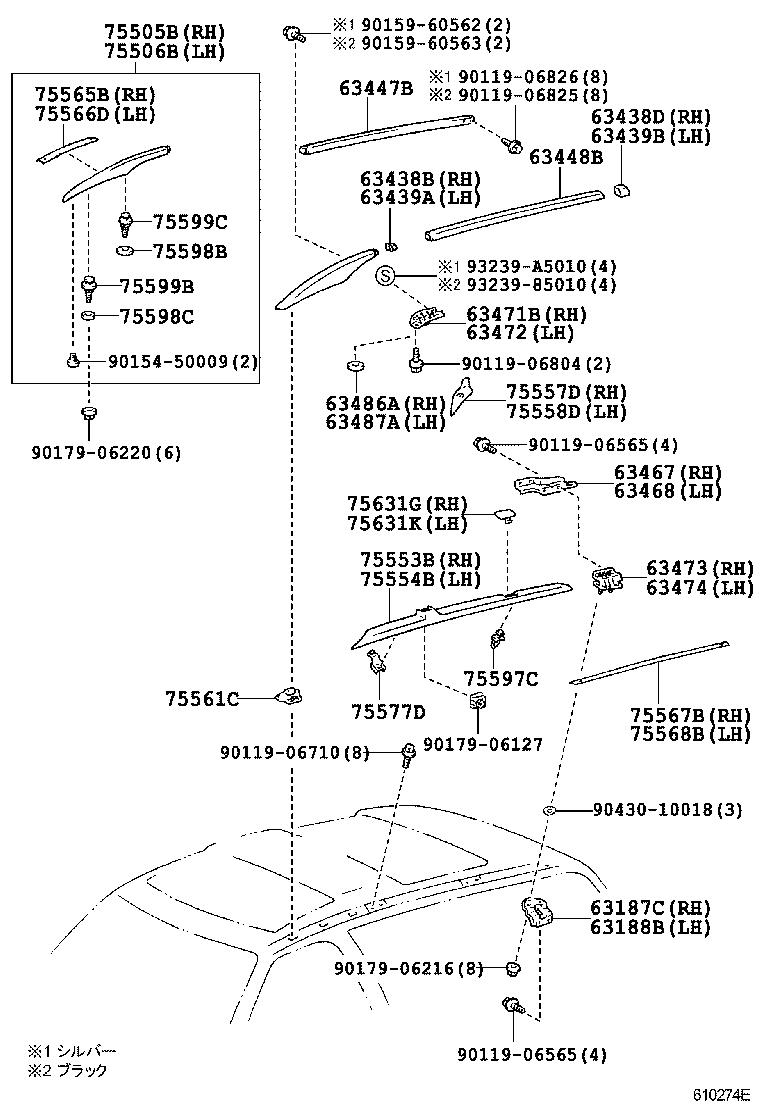

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06565
90119-06710
90119-06804
90119-06825
90119-06826
90154-50009
90159-60562
90159-60563
90179-06127
90179-06216
90179-06220
90430-10018
93239-85010
93239-A5010

CXR10G-RRSVT (1996)

(9201- )

ILLUST NO. 1 OF 2(9201- )

ILLUST NO. 2 OF 2(9608- )
