CXR10G-RRSVT (1996)
Toyota Estima Emina/Lucida
(9201- )

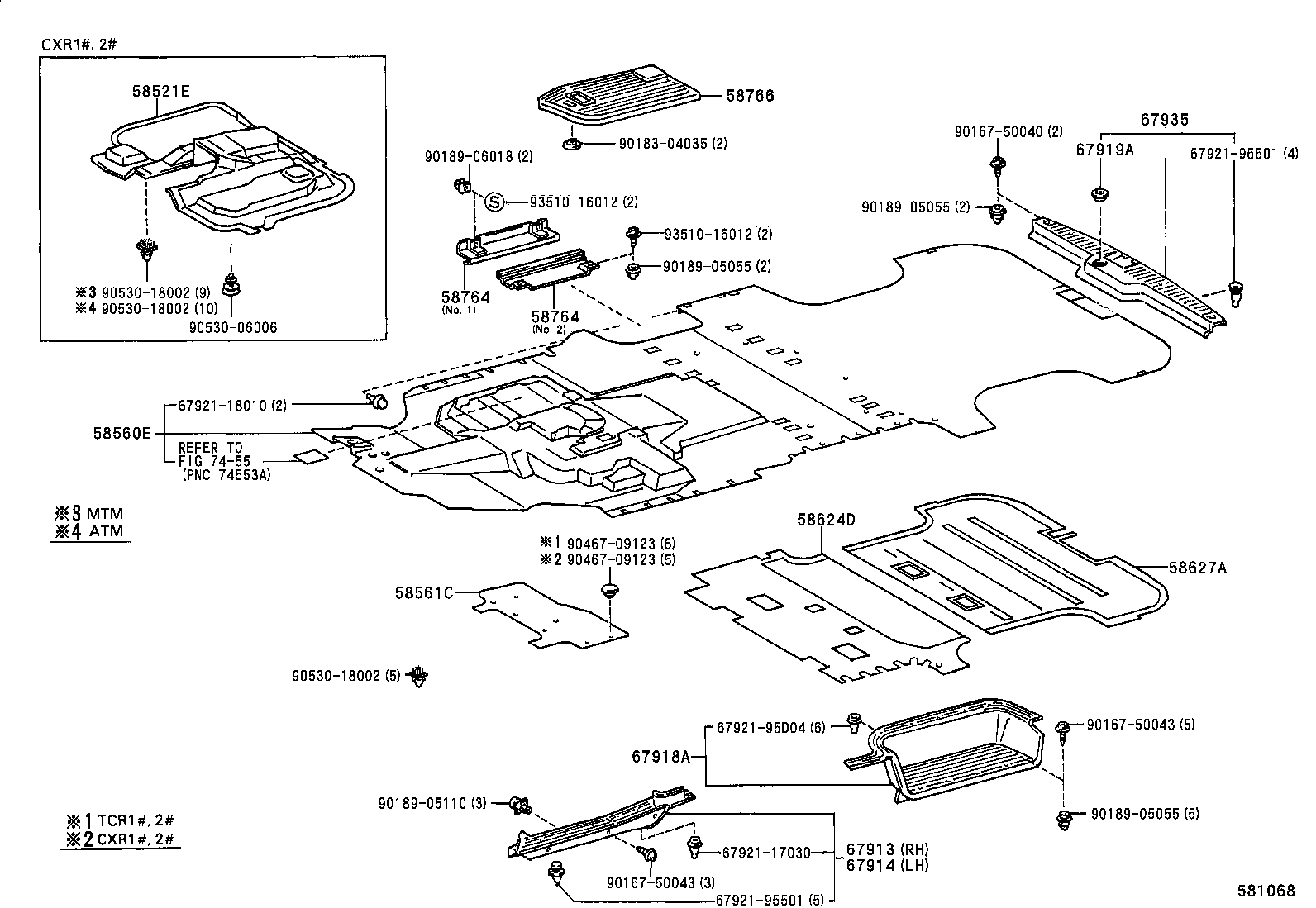

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58521E - CARPET, ENGINE SERVICE HOLE COVER | ||||
| 58521-28180E0 |
CXR10,20..ATM..X GREIGE,TRIM4# |
1 | ||
| 58521-28170B1 |
CXR10,20..ATM..(D,F) GRAY,TRIM1# |
1 | ||
| 58521-28180B0 |
CXR10,20..ATM..X GRAY,TRIM1# |
1 | ||
| 58521-28381B1 |
CXR1#,2#..ATM..(AERAS,G,GLUX,X,XLUX) BLUISH GRAY,TRIM1# |
1 | ||
| 58560E - CARPET ASSY, SEAT FLOOR | ||||
| 58560-28340B0 |
CXR10,20..F ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),GRAY,TRIM1# |
1 | ||
| 58560-28380B0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GRAY,TRIM1# |
1 | ||
| 58560-28400B0 |
CXR10,20..X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GRAY,TRIM1# |
1 | ||
| 58560-28400E0 |
CXR10,20..X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GREIGE,TRIM4# |
1 | ||
| 58560-28390B0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),GRAY,TRIM1# |
1 | ||
| 58560-28350B0 |
CXR10,20..D ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),GRAY,TRIM1# |
1 | ||
| 58560-28410E0 |
CXR10,20..X GREIGE,TRIM4# |
1 | ||
| 58560-28390E0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),GREIGE,TRIM4# |
1 | ||
| 58560-28410B0 |
CXR10,20..X GRAY,TRIM1# |
1 | ||
| 58560-28370B0 |
CXR10,20..D GRAY,TRIM1# |
1 | ||
| 58560-28380E0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GREIGE,TRIM4# |
1 | ||
| 58560-28360B0 |
CXR10,20..F GRAY,TRIM1# |
1 | ||
| 58560-2J080B0 |
CXR10,20..D ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) & ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J090B0 |
CXR10,20..F ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J120E0 |
CXR10,20..X ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GREIGE,TRIM4# |
1 | ||
| 58560-2J070B0 |
CXR10,20..F ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) & ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J110B0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) & ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J110E0 |
CXR10,20..X ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) & ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GREIGE,TRIM4# |
1 | ||
| 58560-2J100B0 |
CXR10,20..D ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J120B0 |
CXR10,20..X ｱﾘ(ﾃﾚﾋﾞ OR ｸﾘｱﾗﾝｽ ｿﾅ-),GRAY,TRIM1# |
1 | ||
| 58560-2J363B2 |
CXR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 58560-2J364B2 |
CXR10,20..AERAS,X,XLUX BLUISH GRAY,TRIM1# |
1 | ||
| 58560-2R012B1 |
CXR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 58560-2R013B1 |
CXR1#,2#..ATM..(G,X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ,BLUISH GRAY,TRIM1# |
1 | ||
| 58560-2R150B0 |
CXR10,20..ATM..(X,XLUX) ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
1 | ||
| 58560-2R151B0 |
CXR10,20..ATM..(X,XLUX) ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
1 | ||
| 58561C - SILENCER, FRONT FLOOR, NO.1 | ||||
| 58561-28030 |
CXR1#,2# |
1 | ||
| 58624D - PAD, CENTER FLOOR SILENCER | ||||
| 58624-28080 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 58624-28150 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ﾊﾝﾃﾞｲｷﾔﾌﾞ |
1 | ||
| 58624-28070 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 58624-28130 |
CXR10,20,TCR10,20 |
1 | ||
| 58627A - PAD, CENTER FLOOR SILENCER, REAR | ||||
| 58627-28060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 58627-28060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 58627-28090 |
CXR10,20,TCR10,20..ATM..(X,XLUX) ｼﾔﾙﾑ |
1 | ||
| 58764 - PLATE, JACK BOX HOLE COVER SET | ||||
| 58764-28020 |
CXR1#,2#,TCR1#,2# NO.2 |
1 | ||
| 58764-28010 |
CXR1#,2#,TCR1#,2# NO.1 |
1 | ||
| 58764 - PLATE, JACK BOX HOLE COVER SET | ||||
| 58764-28020 |
CXR1#,2#,TCR1#,2# NO.2 |
1 | ||
| 58764-28010 |
CXR1#,2#,TCR1#,2# NO.1 |
1 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 58766-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
1 | ||
| 58766-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-95D0105 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 67913-95D0103 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-95D0103 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 67914-95D0105 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-95D0105 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 67918-95D0103 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 67919A - ORNAMENT, BACK DOOR SCUFF | ||||
| 67919-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X GRAY,TRIM1# |
1 | ||
| 67919-28010E0 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-28020E1 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GREIGE,TRIM4# |
1 | ||
| 67935-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 67935-28010B0 |
CXR1#,2#,TCR1#,2#..AERAS,D,F,G,GLUX,S,X,XLUX GRAY,TRIM1# |
1 | ||
| 67935-28020B0 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ-),GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67921-17030 | ||||
| 67921-18010 | ||||
| 67921-95501 | ||||
| 67921-95D04 | ||||
| 90167-50040 | ||||
| 90167-50043 | ||||
| 90183-04035 | ||||
| 90189-05055 | ||||
| 90189-05110 | ||||
| 90189-06018 | ||||
| 90467-09123 | ||||
| 90530-06006 | ||||
| 90530-18002 | ||||
| 93510-16012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
