CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9608- )CXR10,20

Click highlighted areas on diagram

diagram 47311 47312 47312D 47312D 47313 47313A 47313A 47313B 47313J 47313J 47313P 47313P 47315 47316 47316A 47318 47318D 47318D 47318E 47318E 47318E 47318F 47319F 47321 47322B 47323 47324 47325 47326 47351B 47371A 47372 47373B 9046110764 9046808035 9046808035 9046808035 9046808035 9046808035 9094901536 9094901591 9094901670 9094901766 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28301

CXR1#,2#

 1
47311-28300

CXR11,21;CXR10,20..TDEFI

ｱﾘ(ABS)

 1
47311-28290

CXR1#,2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28182

CXR1#,2#

 1
47312-28170

CXR1#,2#,TCR1#,2#

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10006

CXR11,21;CXR10,20..TDEFI

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10006

CXR11,21;CXR10,20..TDEFI

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28160

CXR1#,2#,TCR1#,2#

 1
47313-28182

CXR1#,2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02604

CXR1#,2#,TCR1#,2#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02604

CXR1#,2#,TCR1#,2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CXR1#,2#,TCR1#,2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02720

CXR1#,2#,TCR1#,2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02720

CXR1#,2#,TCR1#,2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CXR1#,2#,TCR1#,2#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CXR1#,2#,TCR1#,2#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-28110

CXR1#,2#,TCR1#,2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28030

CXR1#,2#,TCR1#,2#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02617

CXR10,20,TCR10,20

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-28040

CXR11,21;CXR10,20..TDEFI

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02898

CXR10,20,TCR10,20

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02898

CXR10,20,TCR10,20

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28290

CXR1#,2#

 1
47321-28302

CXR1#,2#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10245

CXR10,20,TCR10,20

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28230

CXR10,20,TCR10,20

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28160

CXR10,20,TCR10,20

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-28162

CXR1#,2#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-28110

CXR10,20,TCR10,20

 1
47326-28240

CXR10,20

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-28060

CXR10,20,TCR10,20

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-28010

CXR1#,2#,TCR1#,2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

CXR1#,2#,TCR1#,2#

 3
47373B - CLAMP, BRAKE TUBE, NO.3
90461-06112

CXR1#,2#

 3
47373-25010

CXR1#,2#,TCR1#,2#

 2
Common parts
90461-10764
90468-08035
90949-01536
90949-01591
90949-01670
90949-01766
91611-60816
96221-30905

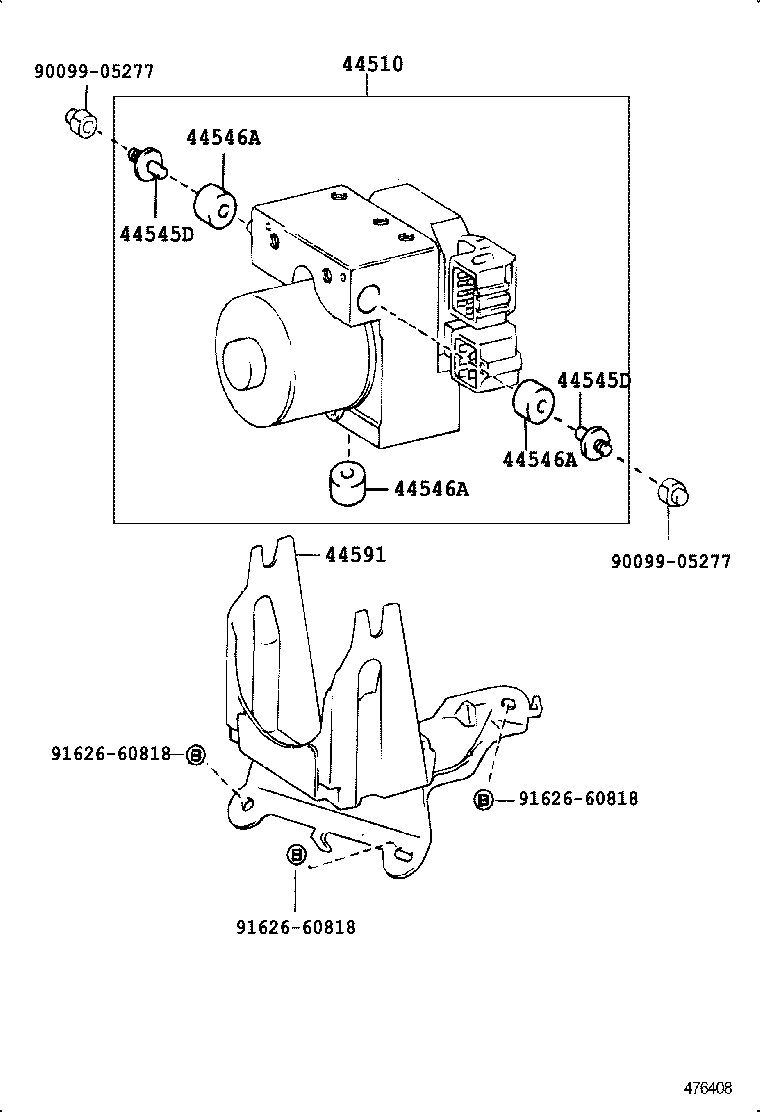

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44591 9009905277 9009905277 9162660818 9162660818 9162660818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-28060

CXR1#,2#,TCR1#,2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CXR1#,2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

CXR1#,2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

CXR1#,2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

CXR1#,2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

CXR1#,2#

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44590-28090

CXR1#,2#

 1
Common parts
90099-05277
91626-60818
