CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

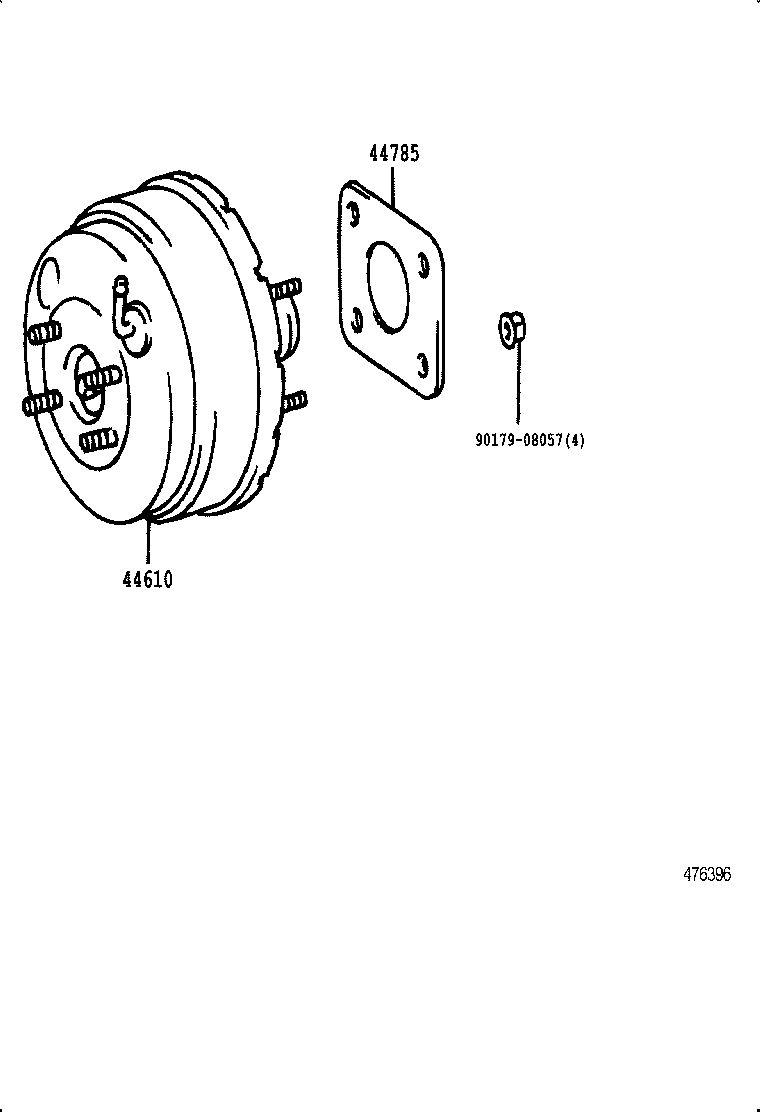

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 44610 44785 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28860

CXR1#,2#

 1
44610-28760

CXR1#,2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CXR1#,2#,TCR1#,2#

 1
Common parts
90179-08057
