CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

Click highlighted areas on diagram

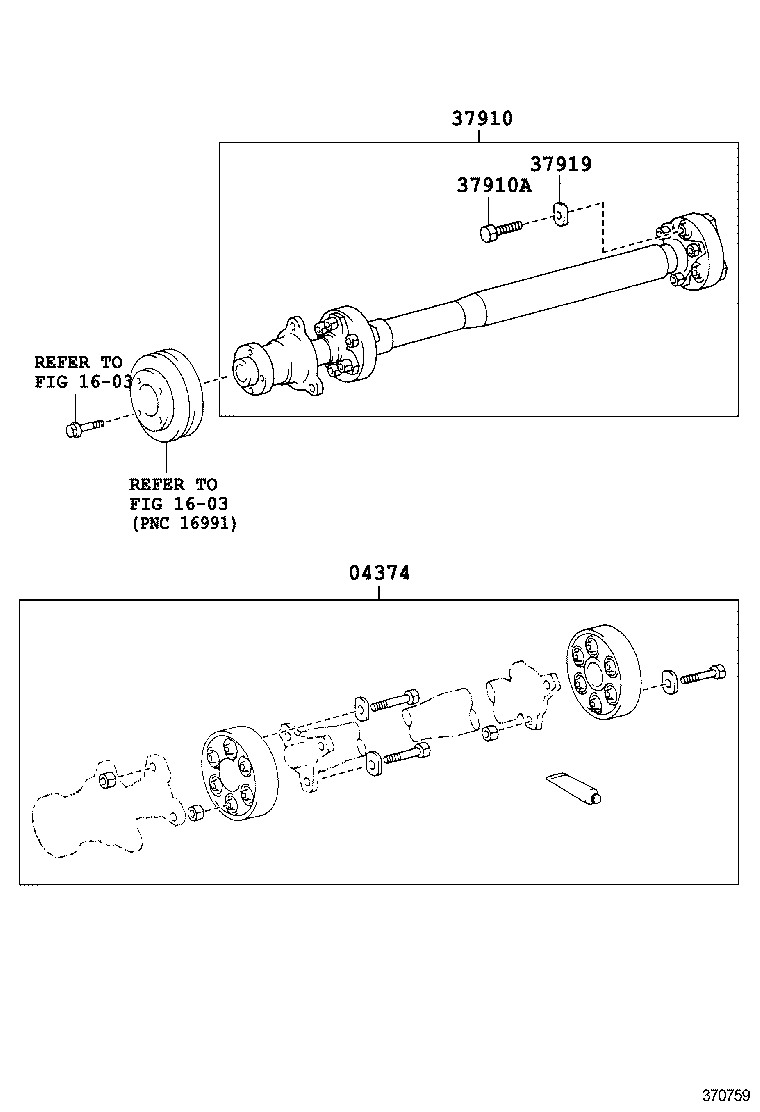

diagram 04374 1603 1603 37910 37910A 37919
Part # Description Qty Price
04374 - COUPLING KIT, EQUIPMENT DRIVE SHAFT
04374-28020

CXR1#,2#

 1
37910 - SHAFT ASSY, EQUIPMENT DRIVE
37910-28020

CXR1#,2#

 1
37910A - BOLT (FOR EQUIPMENT DRIVE SHAFT)
90101-08143

CXR1#,2#,TCR1#,2#

 3
37919 - WASHER, EQUIPMENT DRIVE SHAFT
37919-28020

CXR1#,2#

 3
Linked diagrams
1603
