CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

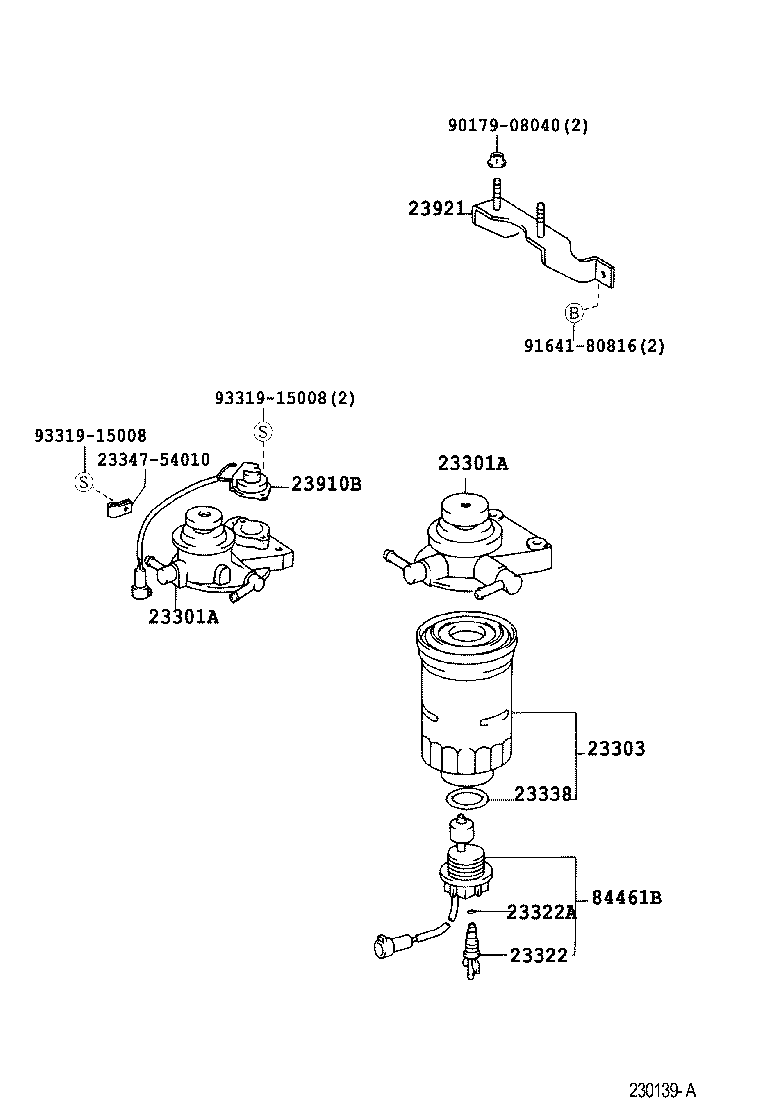

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 84461B 9017908040 9164180816 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-64320

3CT#..CXR1#,2#

 1
23301-64330

3CT#..CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23301A - CAP ASSY, FUEL FILTER
23301-64320

3CT#..CXR1#,2#

 1
23301-64330

3CT#..CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

3CT#..CXR1#,2#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

3CT#..CXR1#,2#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

3CT#..CXR1#,2#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

3CT#..CXR1#,2#

 1
23910B - HEATER ASSY, FUEL
23910-54050

3CT#..CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-64200

3CT#..CXR1#,2#

 1
84461B - SWITCH, LEVEL WARNING
84461-35030

CXR1#,2#

 1
Common parts
23347-54010
90179-08040
91641-80816
93319-15008
