CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

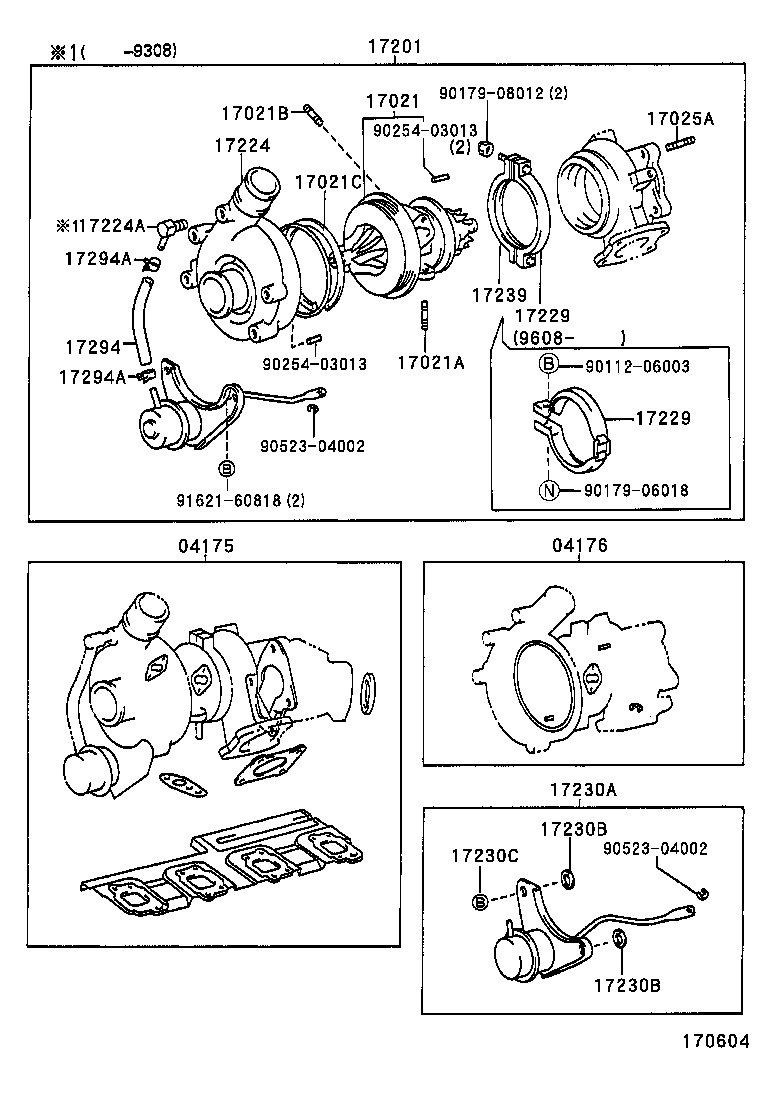

ILLUST NO. 2 OF 2(9201- )3CT#

Click highlighted areas on diagram

diagram 04175 04176 17021 17021A 17021B 17021C 17025A 17201 17224 17224A 17229 17229 17230A 17230B 17230B 17230C 17239 17294 17294A 17294A 9011206003 9017906018 9017908012 9025403013 9025403013 9052304002 9052304002 9162160818
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-64040

3CT#..CXR1#,2#

 1
04176 - SEAL KIT, TURBOCHARGER
04176-11010

3CT#..CXR1#,2#

 1
04176-54040

3CTE..CXR1#,2#

 1
17021 - HOUSING SUB-ASSY, BEARING
17021-64070

3CTE..CXR1#,2#

 1
17021-64060

3CT#..CXR1#,2#

 1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-08158

3CT#..CXR1#,2#

 2
17021B - BOLT, STUD
90116-06048

3CT#..CXR1#,2#

 4
17021C - RING, HOLE SNAP(FOR BEARING HOUSING)
90521-99035

3CT#..CXR1#,2#

 1
90521-99007

3CTE..CXR1#,2#

 1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08384

3CTE..CXR1#,2#

 4
90116-08200

3CT#..CXR1#,2#

 4
17201 - TURBOCHARGER SUB-ASSY
17201-64070

3CT..CXR1#,2#

 1
17201-64140

3CTE..CXR1#,2#

 1
17224 - HOUSING, COMPRESSOR
17024-64100

3CTE..CXR1#,2#

 1
17224-64030

3CT..CXR1#,2#

 1
17224A - UNION(FOR COMPRESSOR HOUSING)
90404-51040

3CT..CXR1#,2#

 1
17229 - BAND, V
17229-67010

3CTE..CXR1#,2#

 1
17229-70010

3CT#..CXR1#,2#

 1
17229 - BAND, V
17229-67010

3CTE..CXR1#,2#

 1
17229-70010

3CT#..CXR1#,2#

 1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-69025

3CT#..CXR1#,2#

 1
17230-69095

3CTE..CXR1#,2#

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08087

3CT#..CXR1#,2#

厚さ=3.0

 2
90201-08081

3CT#..CXR1#,2#

厚さ=0.5

 2
90201-08082

3CT#..CXR1#,2#

厚さ=1.0

 2
90201-08086

3CT#..CXR1#,2#

厚さ=2.0

 2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-08087

3CT#..CXR1#,2#

厚さ=3.0

 2
90201-08081

3CT#..CXR1#,2#

厚さ=0.5

 2
90201-08082

3CT#..CXR1#,2#

厚さ=1.0

 2
90201-08086

3CT#..CXR1#,2#

厚さ=2.0

 2
17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET)
91621-60822

3CT#..CXR1#,2#

 2
17239 - CLAMP, V, NO.2
17239-70010

3CT#..CXR1#,2#

 1
17294 - HOSE, ACTUATOR
17294-28010

3CT..CXR1#,2#

 1
90445-12151

3CTE..CXR1#,2#

 1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100

3CT#..CXR1#,2#

 2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-41100

3CT#..CXR1#,2#

 2
Common parts
90112-06003
90179-06018
90179-08012
90254-03013
90523-04002
91621-60818
