CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

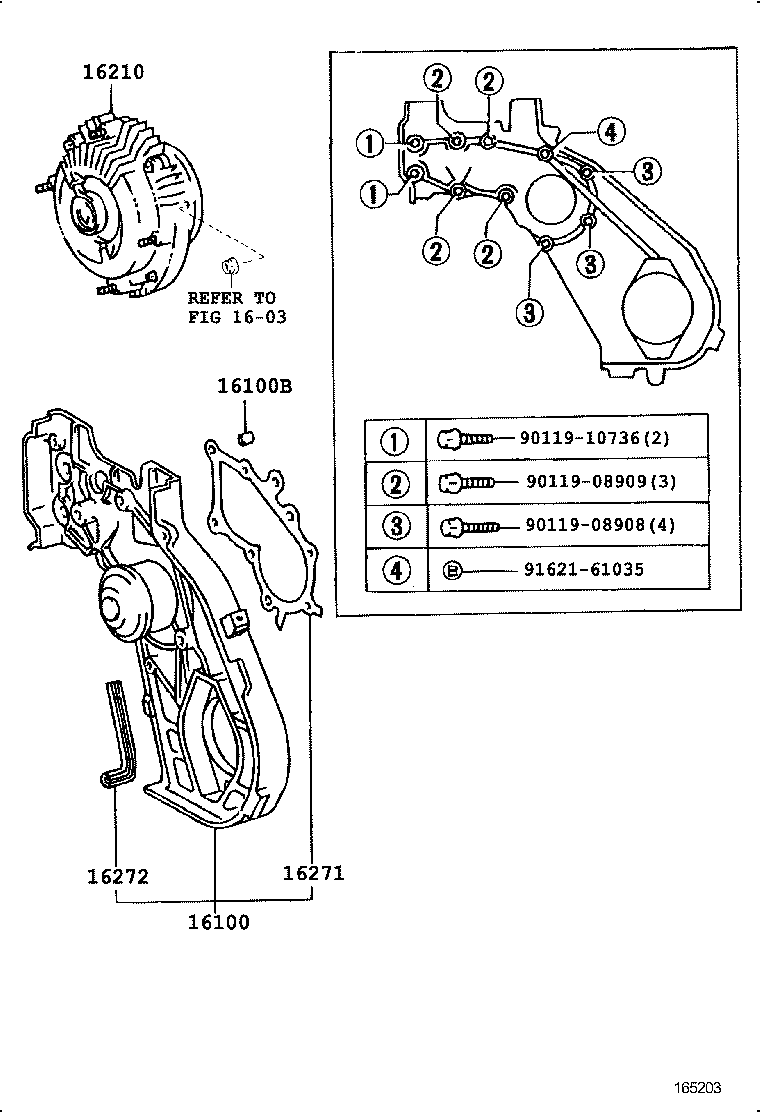

Click highlighted areas on diagram

diagram 1603 16100 16100B 16210 16271 16272 9011908908 9011908909 9011910736 9162161035
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69315

3CT..CXR1#,2#

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

3CT#..CXR1#,2#

 2
16210 - COUPLING ASSY, FLUID
16210-64030

3CT#..CXR1#,2#

 1
16271 - GASKET, WATER PUMP
16271-64040

3CT..CXR1#,2#

 1
16272 - GASKET, WATER PUMP, NO.2
16119-64020

3CT#..CXR1#,2#

 1
Common parts
90119-08908
90119-08909
90119-10736
91621-61035
Linked diagrams
1603
