CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

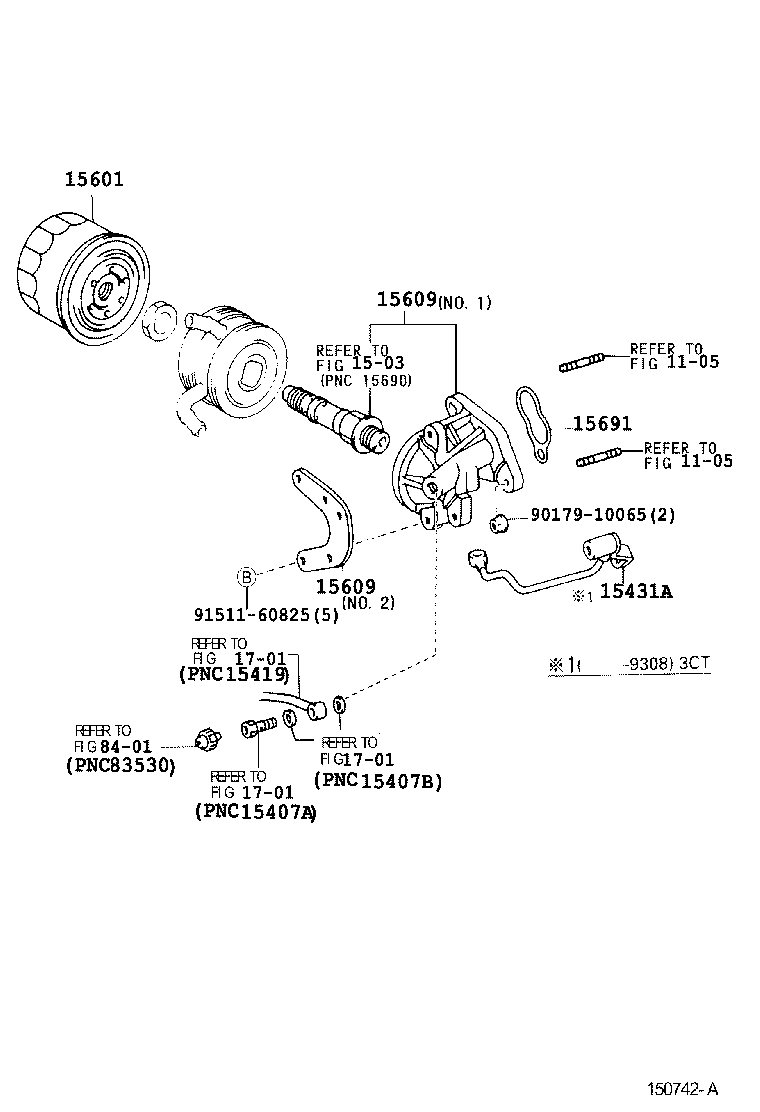

Click highlighted areas on diagram

diagram 1105 1105 1503 15431A 15601 15609 15609 15691 1701 1701 1701 8401 9017910065 9151160825
Part # Description Qty Price
15431A - PIPE, OIL FEED
15431-64050

3CT..CXR1#,2#

 1
15601 - FILTER SUB-ASSY, OIL
90915-30001

3CT#..CXR1#,2#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-64020

3CT..CXR1#,2#..ATM

NO.1

 1
15671-64010

3CT#..CXR1#,2#

NO.2

 1
15609-64041

3CTE..CXR1#,2#

NO.1

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-64020

3CT..CXR1#,2#..ATM

NO.1

 1
15671-64010

3CT#..CXR1#,2#

NO.2

 1
15609-64041

3CTE..CXR1#,2#

NO.1

 1
15691 - GASKET, OIL FILTER
15692-64010

3CT#..CXR1#,2#

 1
Common parts
90179-10065
91511-60825
Linked diagrams
1105
1503
1701
8401
