CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

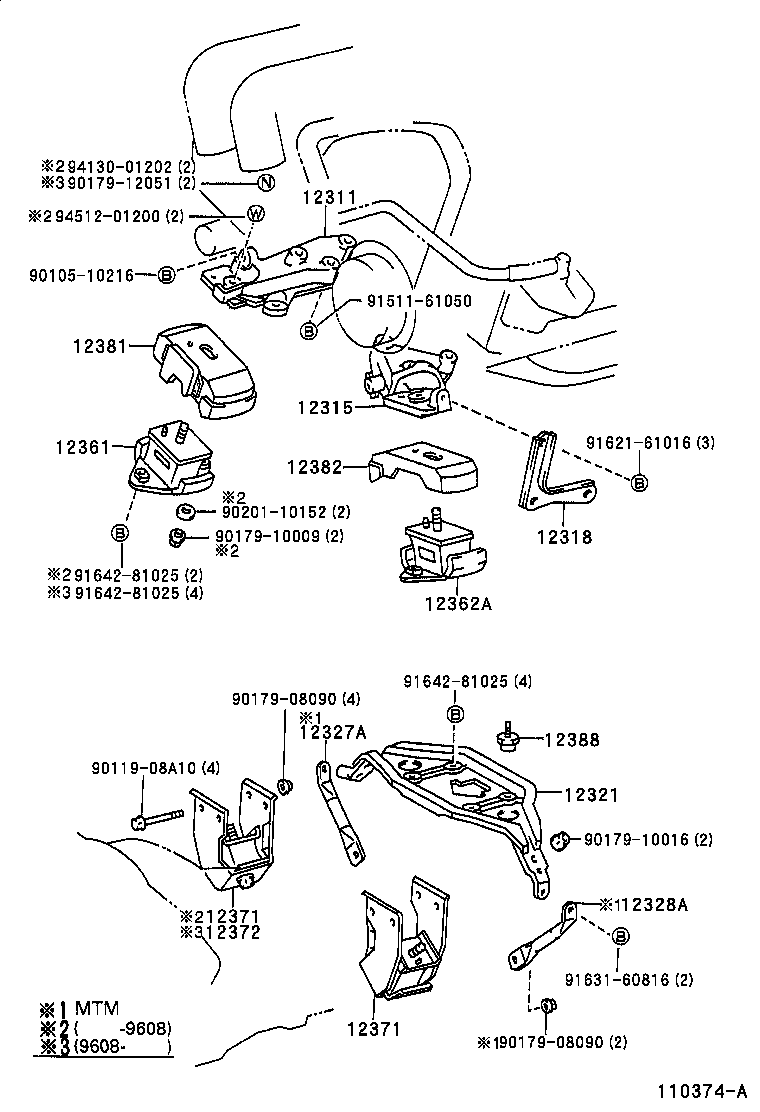

Click highlighted areas on diagram

diagram 12311 12315 12318 12321 12327A 12328A 12361 12362A 12371 12371 12372 12381 12382 12388 9010510216 9011908A10 9017908090 9017908090 9017910009 9017910016 9017912051 9020110152 9151161050 9162161016 9163160816 9164281025 9164281025 9164281025 9413001202 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64140

3CT#..CXR1#,2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64070

3CT#..CXR1#,2#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-64070

3CT#..CXR1#,2#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-76040

3CT#..CXR1#,2#..ATM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64230

3CT..CXR1#,2#

 1
12361-64310

3CTE..CXR1#,2#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-64160

3CT..CXR1#,2#

 1
12362-64250

3CTE..CXR1#,2#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-64260

3CT#..CXR1#,2#..ATM

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-64260

3CT#..CXR1#,2#..ATM

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64080

3CTE..CXR1#,2#

 1
12381-64050

3CT#..CXR1#,2#

 1
12381-76020

3CT#..CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-76010

3CT#..CXR1#,2#

 1
12381-76030

3CTE..CXR1#,2#

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-76010

3CT#..CXR1#,2#

 2
Common parts
90105-10216
90119-08A10
90179-08090
90179-10009
90179-10016
90179-12051
90201-10152
91511-61050
91621-61016
91631-60816
91642-81025
94130-01202
94512-01200
