CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

Click highlighted areas on diagram

diagram 11401 11401C 11401G 11402 11416 11417B 11431A 11431A 11431B 11431C 11431D 11431E 11431E 11431F 11432A 11432G 11432R 11432T 11432U 11432W 11434C 11434D 11434G 11434X 11448 11452 12101 12101A 12101B 12112 12151 12180B 12180C 12272A 12273A 12581A 1301 1301 1501 1501 15301 15605 15708 1601 1701 8401 8401 9010506190 9010508282 9010510343 9010510343 9011606132 9011908949 9011908951 9012610016 9017906036 9017906036 9017906036 9017908121 9017910016 9020114099 9020114099 9020114099 9033911002 9040114033 9040510039 9040520005 9043008033 9043010027 9043011001 9043011001 9043014235 9162160614 9164580620 9212260814 9212261025 9613231000 9674119010
Part # Description Qty Price

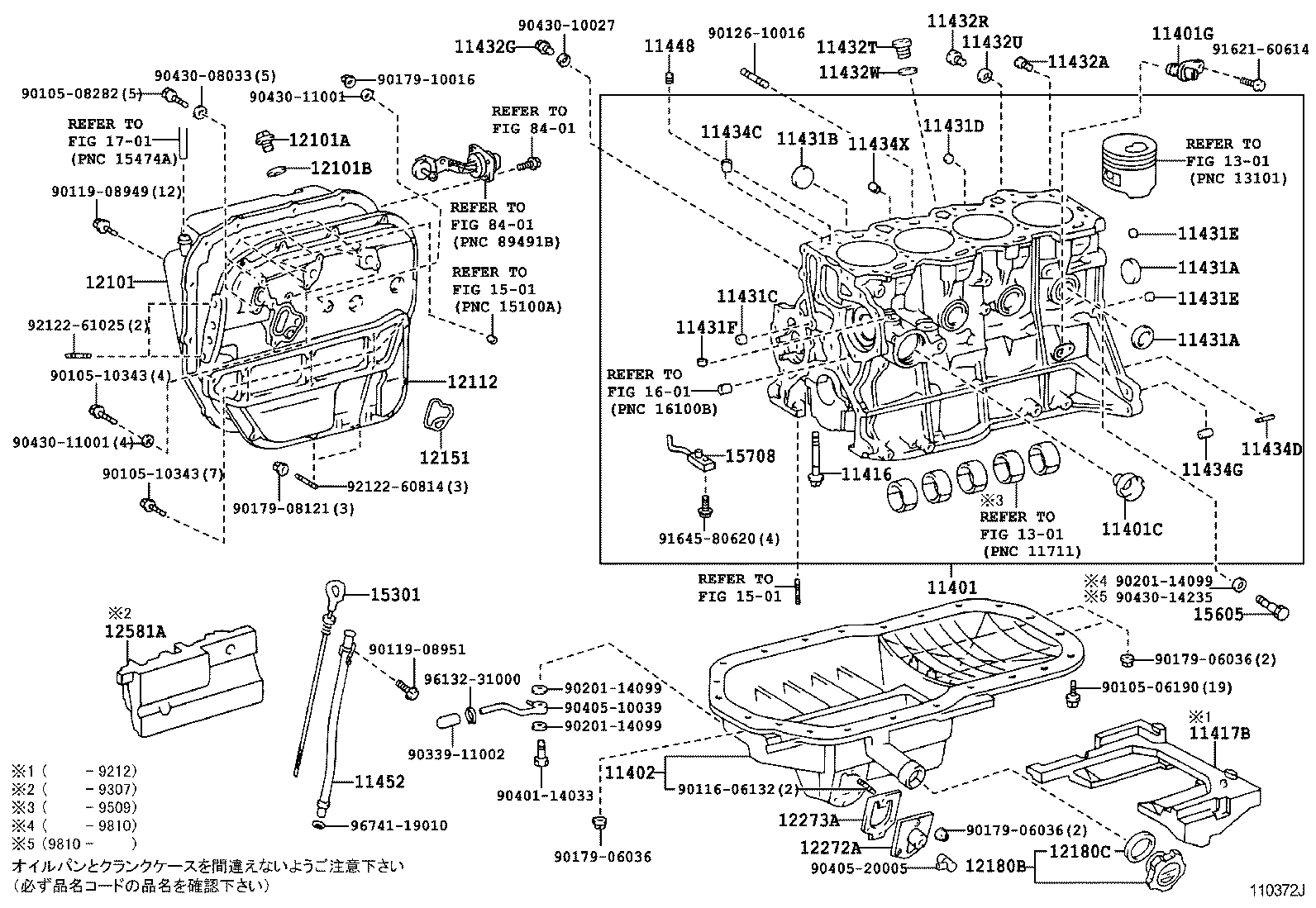

11401 - BLOCK SUB-ASSY, CYLINDER
11401-69495

3CT..CXR1#,2#

 1
11401-69648

3CTE..CXR1#,2#

 1
11401C - FLANGE(FOR WATER BY-PASS)
16353-64010

3CT..CXR1#,2#

 1
11402 - CRANKCASE SUB-ASSY
11402-64010

3CT..CXR1#,2#

 1
11402-64021

3CTE..CXR1#,2#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02061

3CT#..CXR1#,2#

 10
90910-02135

3CTE..CXR1#,2#

 10
11417B - INSULATOR, CRANKCASE
11417-64010

3CT..CXR1#,2#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3CT#..CXR1#,2#

 4
96411-63500

3CTE..CXR1#,2#

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3CT#..CXR1#,2#

 4
96411-63500

3CTE..CXR1#,2#

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

3CT#..CXR1#,2#

 4
96411-63000

3CTE..CXR1#,2#

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-41800

3CT#..CXR1#,2#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-41800

3CT#..CXR1#,2#

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41800

3CT#..CXR1#,2#

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41800

3CT#..CXR1#,2#

 3
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
90249-17002

3CT#..CXR1#,2#

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52001

3CT..CXR1#,2#

 1
11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5
90341-10002

3CT#..CXR1#,2#

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-18006

3CT#..CXR1#,2#

 2
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-22001

3CT#..CXR1#,2#

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-18001

3CT#..CXR1#,2#

 2
11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
90430-22003

3CT#..CXR1#,2#

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14004

3CTE..CXR1#,2#

長さ=20,外径=14

 2
90253-14001

3CT..CXR1#,2#

長さ=9,外径=14

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

3CT#..CXR1#,2#

長さ=11,外径=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

3CT#..CXR1#,2#

 2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021

3CT#..CXR1#,2#

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-64010

3CT#..CXR1#,2#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-64050

3CT#..CXR1#,2#

 1
12101 - PAN SUB-ASSY, OIL
12101-64120

3CT#..CXR1#,2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

3CT..CXR1#,2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

3CT..CXR1#,2#

 1
12112 - PAN, OIL NO.2
12112-64070

3CT#..CXR1#,2#

 1
12151 - GASKET, OIL PAN
15691-64041

3CTE..CXR1#,2#

 1
15691-64040

3CT#..CXR1#,2#

 1
12180B - CAP ASSY, OIL FILLER
12180-13030

3CT..CXR1#,2#

 1
12180C - GASKET, OIL FILLER CAP
90430-37140

3CT#..CXR1#,2#

 1
12272A - CAP, OIL SEPARATOR
12272-64010

3CT#..CXR1#,2#

 1
12273A - GASKET, OIL SEPARATOR
12273-64010

3CT#..CXR1#,2#

 1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-64020

3CT..CXR1#,2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-64060

3CT#..CXR1#,2#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-27010

3CTE..CXR1#,2#

 1
15605-64020

3CT#..CXR1#,2#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-64021

3CT#..CXR1#,2#

 4
Common parts
90105-06190
90105-08282
90105-10343
90116-06132
90119-08949
90119-08951
90126-10016
90179-06036
90179-08121
90179-10016
90201-14099
90339-11002
90401-14033
90405-10039
90405-20005
90430-08033
90430-10027
90430-11001
90430-14235
91621-60614
91645-80620
92122-60814
92122-61025
96132-31000
96741-19010
