CXR10G-RRSVT (1996)

Toyota Estima Emina/Lucida

Production Aug 1996 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9705- )3CTE

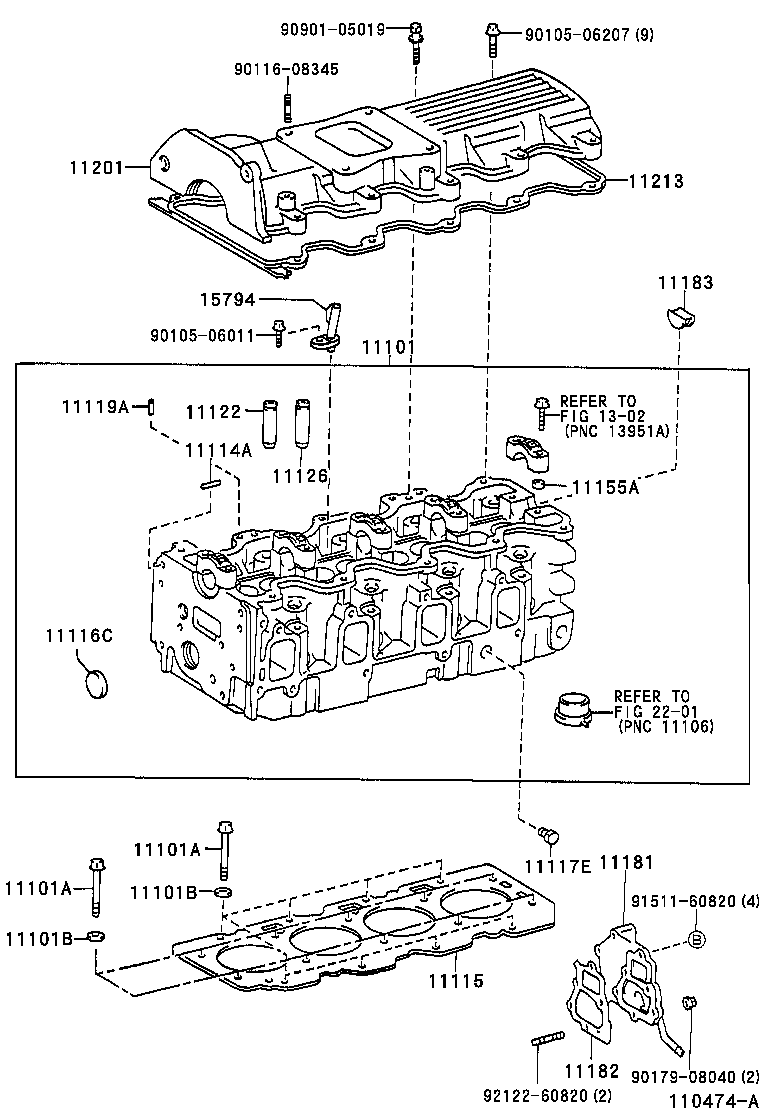

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11114A 11115 11116C 11117E 11119A 11122 11126 11155A 11181 11182 11183 11201 11213 1302 15794 2201 9010506011 9010506207 9011608345 9017908040 9090105019 9151160820 9212260820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64222

3CTE..CXR1#,2#

 1
11101-64224

3CTE..CXR1#,2#

 1
11101-64150

3CT..CXR1#,2#

 1
11101-64223

3CTE..CXR1#,2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02097

3CT..CXR1#,2#

*11-1.25PX130-50

 8
90910-02099

3CT..CXR1#,2#

*11-1.25PX152-50

 10
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02097

3CT..CXR1#,2#

*11-1.25PX130-50

 8
90910-02099

3CT..CXR1#,2#

*11-1.25PX152-50

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CT#..CXR1#,2#

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

3CT#..CXR1#,2#

 18
11114A - PIN, STRAIGHT
90250-06068

3CT#..CXR1#,2#

長さ=11,外径=6

 3
11115 - GASKET, CYLINDER HEAD
11115-6413101

3CTE..CXR1#,2#

MARK 1

 1
11115-6413002

3CTE..CXR1#,2#

MARK 2

 1
11115-6413102

3CTE..CXR1#,2#

MARK 2

 1
11115-6413001

3CTE..CXR1#,2#

MARK 1

 1
11115-6419003

3CTE..CXR1#,2#

MARK 3

 1
11115-6413003

3CTE..CXR1#,2#

MARK 3

 1
11115-6413103

3CTE..CXR1#,2#

MARK 3

 1
11115-64130

3CT#..CXR1#,2#

 1
11115-6419005

3CTE..CXR1#,2#

MARK 5

 1
11115-6419001

3CTE..CXR1#,2#

MARK 1

 1
11116C - PLUG, TIGHT, NO.3
96411-63000

3CTE..CXR1#,2#

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-16094

3CT#..CXR1#,2#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-64010

3CT#..CXR1#,2#

STD

 4
11123-64010

3CT#..CXR1#,2#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-64030

3CTE..CXR1#,2#

O/S 0.05

 4
11127-64010

3CT#..CXR1#,2#

O/S 0.05

 4
11126-64010

3CT#..CXR1#,2#

STD

 4
11126-64030

3CTE..CXR1#,2#

STD

 4
11155A - PIN, RING W/HEAD
90253-11021

3CT#..CXR1#,2#

 10
11181 - PLATE, CYLINDER HEAD, REAR
11181-64020

3CT..CXR1#,2#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-64030

3CT#..CXR1#,2#

 1
11183 - PLUG, SEMICIRCULAR
11183-64010

3CT#..CXR1#,2#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64100

3CT..CXR1#,2#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-64050

3CT..CXR1#,2#

 1
Common parts
90105-06011
90105-06207
90116-08345
90179-08040
90901-05019
91511-60820
92122-60820
