CXR10G-RRSNX (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Aug 1993
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

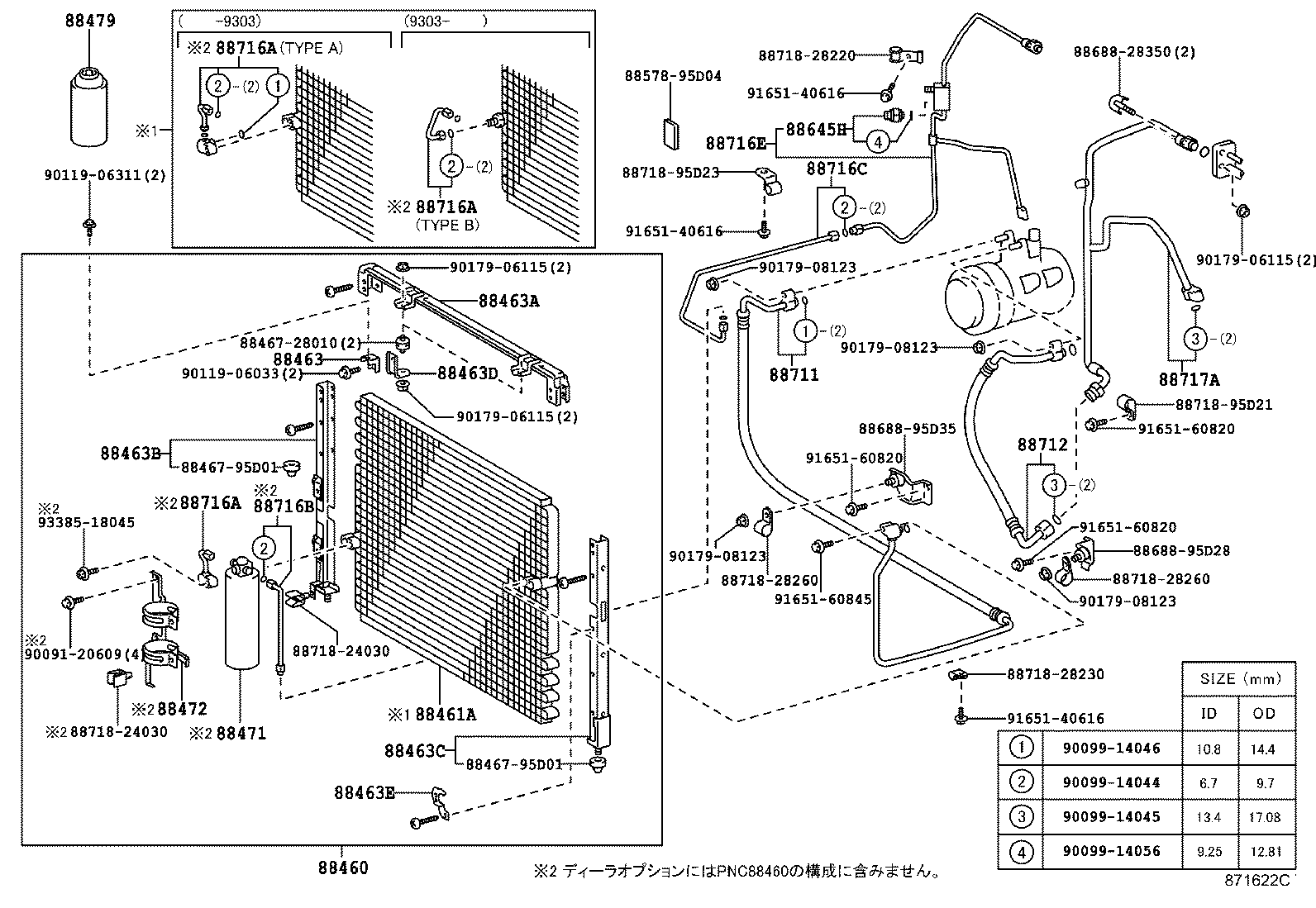

ILLUST NO. 1 OF 2(9201-9308)

Click highlighted areas on diagram

FRONT, W/O(COOL BOX)

diagram 88460 88461A 88463 88463A 88463B 88463C 88463D 88463E 8846728010 8846795D01 8846795D01 88471 88472 88479 8857895D04 88645H 8868828350 8868895D28 8868895D35 88711 88712 88716A 88716A 88716A 88716B 88716C 88716E 88717A 8871824030 8871824030 8871828220 8871828230 8871828260 8871828260 8871895D21 8871895D23 9009120609 9009914044 9009914045 9009914046 9009914056 9011906033 9011906311 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9017908123 9165140616 9165140616 9165140616 9165160820 9165160820 9165160820 9165160845 9338518045
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28100

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 1
88460-28250

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 1
88460-28050

CXR1#,2#,TCR1#,2#

 1
88461A - CORE, COOLER CONDENSER
88461-28030

CXR1#,2#,TCR1#,2#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88461-28070

CXR1#,2#,TCR1#,2#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-28070

CXR1#,2#,TCR1#,2#

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-28110

CXR1#,2#,TCR1#,2#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-28120

CXR1#,2#,TCR1#,2#

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-28130

CXR1#,2#,TCR1#,2#

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-28140

CXR1#,2#,TCR1#,2#

 2
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-28150

CXR1#,2#,TCR1#,2#

 1
88463-28150

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030

CXR1#,2#,TCR1#,2#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-28020

CXR1#,2#,TCR1#,2#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

CXR10,20,TCR10..D,F

250G

 4
88645H - SWITCH, PRESSURE NO.1
88645-30281

CXR1#,2#,TCR1#,2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-28070

CXR1#,2#,TCR1#,2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28040

CXR1#,2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28760

CXR1#,2#,TCR1#,2#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28460

CXR1#,2#,TCR1#,2#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-28240

CXR1#,2#..F,G,X

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88710-28230

CXR1#,2#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-28250

CXR1#,2#

 1
Common parts
88467-28010
88467-95D01
88578-95D04
88688-28350
88688-95D28
88688-95D35
88718-24030
88718-28220
88718-28230
88718-28260
88718-95D21
88718-95D23
90091-20609
90099-14044
90099-14045
90099-14046
90099-14056
90119-06033
90119-06311
90179-06115
90179-08123
91651-40616
91651-60820
91651-60845
93385-18045

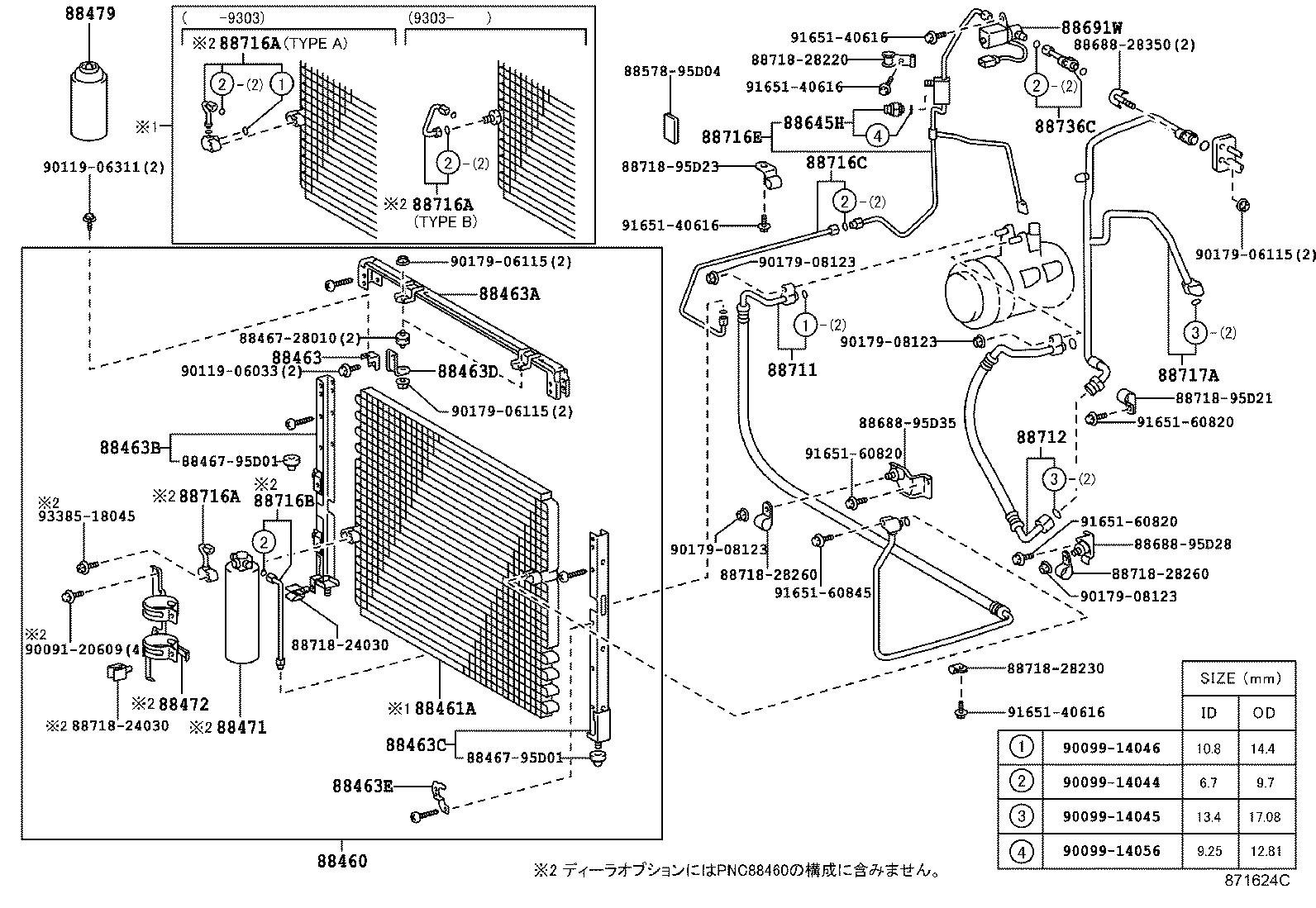

ILLUST NO. 1 OF 2(9201-9308)

Click highlighted areas on diagram

FRONT, W(COOL BOX)

diagram 88460 88461A 88463 88463A 88463B 88463C 88463D 88463E 8846728010 8846795D01 8846795D01 88471 88472 88479 8857895D04 88645H 8868828350 8868895D28 8868895D35 88691W 88711 88712 88716A 88716A 88716A 88716B 88716C 88716E 88717A 8871824030 8871824030 8871828220 8871828230 8871828260 8871828260 8871895D21 8871895D23 88736C 9009120609 9009914044 9009914045 9009914046 9009914056 9011906033 9011906311 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9017908123 9165140616 9165140616 9165140616 9165140616 9165160820 9165160820 9165160820 9165160845 9338518045
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28100

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 1
88460-28250

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 1
88460-28050

CXR1#,2#,TCR1#,2#

 1
88461A - CORE, COOLER CONDENSER
88461-28030

CXR1#,2#,TCR1#,2#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88461-28070

CXR1#,2#,TCR1#,2#

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-28070

CXR1#,2#,TCR1#,2#

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-28110

CXR1#,2#,TCR1#,2#

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-28120

CXR1#,2#,TCR1#,2#

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-28130

CXR1#,2#,TCR1#,2#

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88463-28140

CXR1#,2#,TCR1#,2#

 2
88463E - BRACKET, COOLER CONDENSER, NO.6
88463-28150

CXR1#,2#,TCR1#,2#

 1
88463-28150

CXR10,20,TCR10..D,F

ﾃﾞｲﾗ ｵﾌﾟｼﾖﾝ

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28030

CXR1#,2#,TCR1#,2#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-28020

CXR1#,2#,TCR1#,2#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

CXR10,20,TCR10..D,F

250G

 4
88645H - SWITCH, PRESSURE NO.1
88645-30281

CXR1#,2#,TCR1#,2#

 1
88691W - VALVE, MAGNET
88690-28100

CXR1#,2#,TCR1#,2#..F,G,S,X

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-28070

CXR1#,2#,TCR1#,2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28040

CXR1#,2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28470

CXR1#,2#,TCR1#,2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716-2J510

CXR1#,2#,TCR1#,2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ﾒ-ｶ-ｵﾌﾟｼﾖﾝ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28760

CXR1#,2#,TCR1#,2#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28460

CXR1#,2#,TCR1#,2#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-28240

CXR1#,2#..F,G,X

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88710-28230

CXR1#,2#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-28250

CXR1#,2#

 1
88736C - TUBE, LIQUID, C(FOR COOL BOX)
88716-28450

CXR1#,2#,TCR1#,2#..F,G,S,X

 1
Common parts
88467-28010
88467-95D01
88578-95D04
88688-28350
88688-95D28
88688-95D35
88718-24030
88718-28220
88718-28230
88718-28260
88718-95D21
88718-95D23
90091-20609
90099-14044
90099-14045
90099-14046
90099-14056
90119-06033
90119-06311
90179-06115
90179-08123
91651-40616
91651-60820
91651-60845
93385-18045

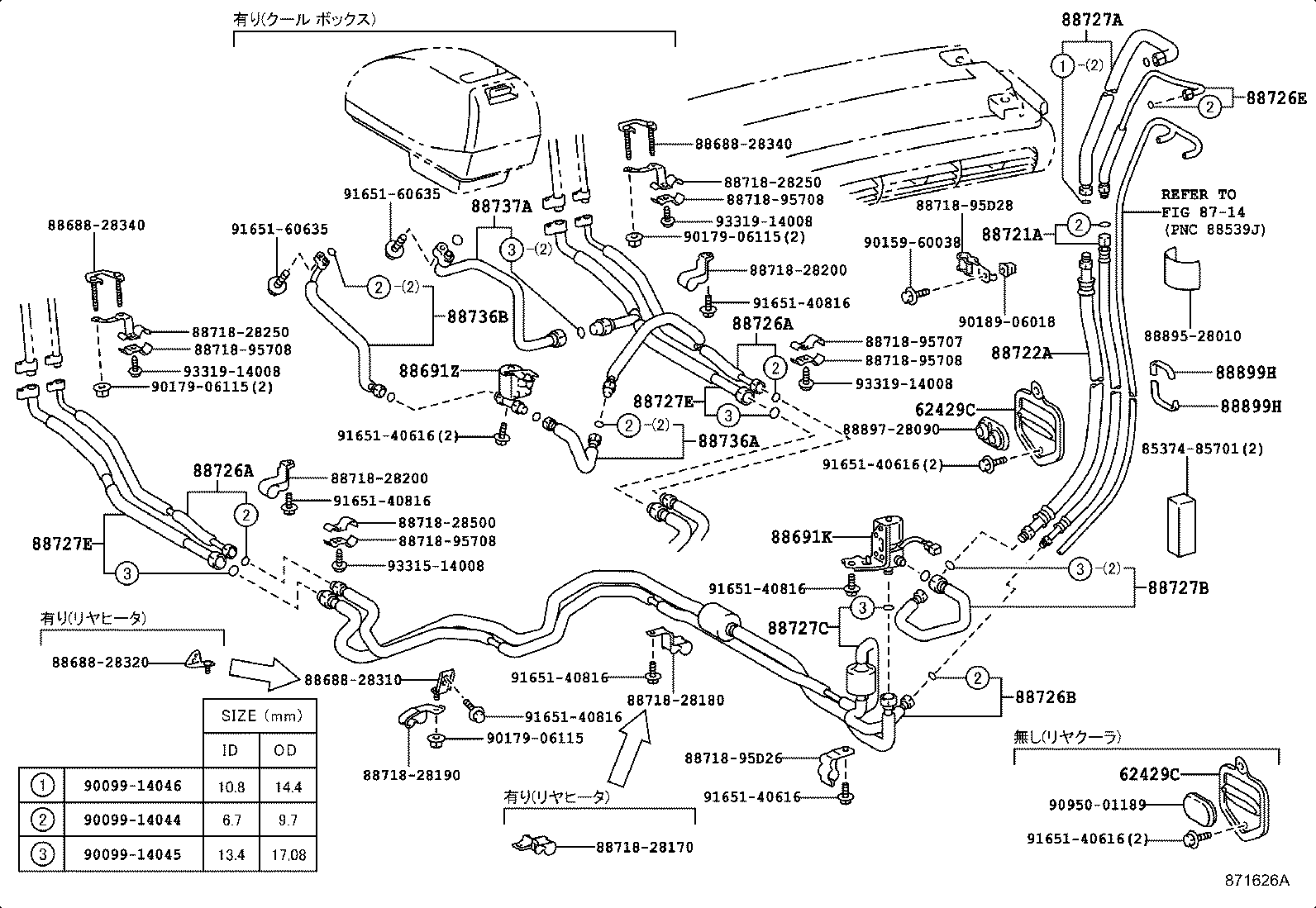

ILLUST NO. 2 OF 2(9201-9308)CXR1#,2#

Click highlighted areas on diagram

REAR

diagram 62429C 62429C 8537485701 8714 8868828310 8868828320 8868828340 8868828340 88691K 88691Z 8871828170 8871828180 8871828190 8871828200 8871828200 8871828250 8871828250 8871828500 8871895707 8871895708 8871895708 8871895708 8871895708 8871895D26 8871895D28 88721A 88722A 88726A 88726A 88726B 88726E 88727A 88727B 88727C 88727E 88727E 88736A 88736B 88737A 8889528010 8889728090 88899H 88899H 9009914044 9009914045 9009914046 9015960038 9017906115 9017906115 9017906115 9018906018 9095001189 9165140616 9165140616 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9165140816 9165160635 9165160635 9331514008 9331914008 9331914008 9331914008
Part # Description Qty Price
62429C - COVER, CENTER PILLAR SERVICE HOLE
62429-28010

CXR1#,2#,TCR1#,2#

 1
62429C - COVER, CENTER PILLAR SERVICE HOLE
62429-28010

CXR1#,2#,TCR1#,2#

 1
88691K - VALVE ASSY, MAGNET
88690-28070

CXR1#,2#,TCR1#,2#

 1
88691Z - VALVE, MAGNET (COOL BOX)
88690-28080

CXR1#,2#..F,G,X

 1
88721A - HOSE, LIQUID, A
88721-28040

CXR1#,2#,TCR1#,2#

 1
88722A - HOSE, SUCTION, A
88712-28050

CXR1#,2#,TCR1#,2#

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28370

CXR1#,2#..F,G,X

ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88716-28360

CXR1#,2#

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28370

CXR1#,2#..F,G,X

ｱﾘ(ﾎﾂﾄ & ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88716-28360

CXR1#,2#

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28380

CXR1#,2#

 1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95D33

CXR1#,2#,TCR1#,2#

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88715-95D13

CXR1#,2#,TCR1#,2#

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-28240

CXR1#,2#,TCR1#,2#

 1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-28280

CXR1#,2#

 1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-28260

CXR1#,2#

 1
88717-28270

CXR1#,2#..F,G,X

ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-28260

CXR1#,2#

 1
88717-28270

CXR1#,2#..F,G,X

ｱﾘ(ﾎﾂﾄ&ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
88736A - TUBE, LIQUID, A(FOR COOL BOX)
88716-28390

CXR1#,2#..F,G,X

 1
88736B - TUBE, LIQUID, B(FOR COOL BOX)
88716-28400

CXR1#,2#..F,G,X

 1
88737A - TUBE, SUCTION, A(FOR COOL BOX)
88717-28290

CXR1#,2#..F,G,X

 1
88899H - MOULDING, PROTECTOR
88899-28120

CXR1#,2#,TCR1#,2#

 2
88899H - MOULDING, PROTECTOR
88899-28120

CXR1#,2#,TCR1#,2#

 2
Common parts
85374-85701
88688-28310
88688-28320
88688-28340
88718-28170
88718-28180
88718-28190
88718-28200
88718-28250
88718-28500
88718-95707
88718-95708
88718-95D26
88718-95D28
88895-28010
88897-28090
90099-14044
90099-14045
90099-14046
90159-60038
90179-06115
90189-06018
90950-01189
91651-40616
91651-40816
91651-60635
93315-14008
93319-14008
Linked diagrams
8714
