Toyota Estima emina/lucida CXR10 HEADLAMP

CXR10G-RRSNX (1992)

Toyota Estima Emina/Lucida

Production Jan 1992 - Aug 1993

Engine 3CT

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

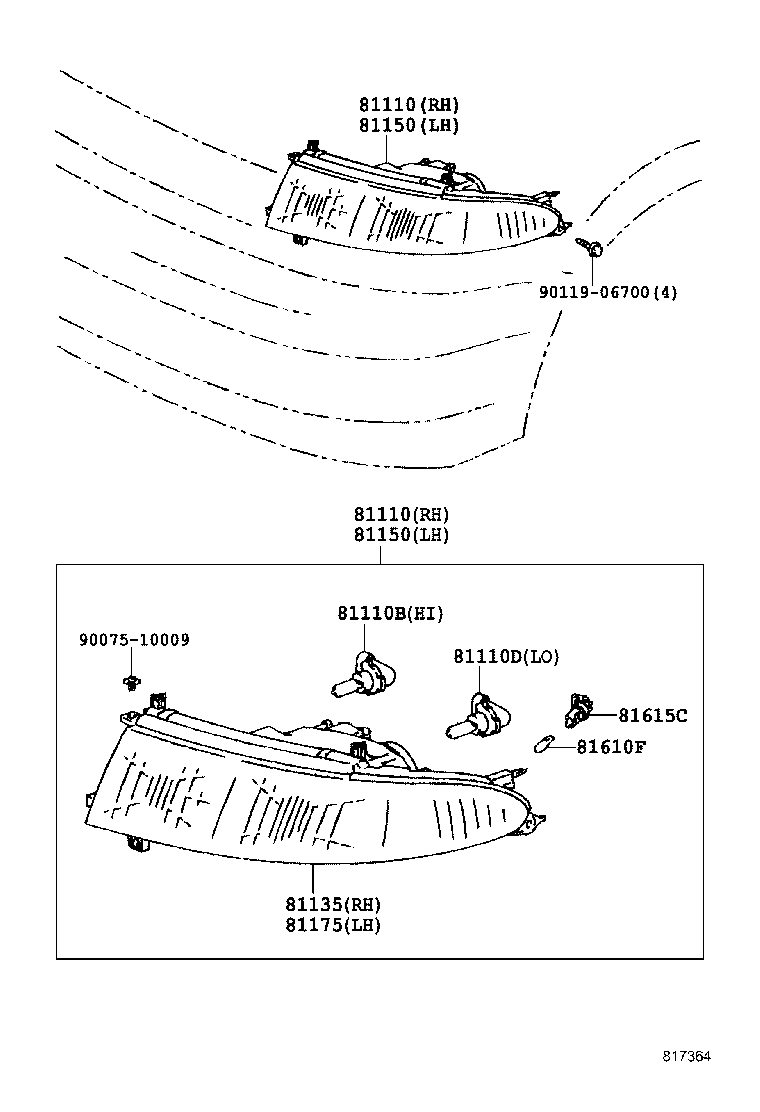

EMINA

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81110-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81110 - HEADLAMP ASSY, RH
81110-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81110-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	CXR1#,2#,TCR1#,2# 12V 60/55W,HAL WH,LUCIDA	01/1992 - 04/1992	2
90981-13046	CXR1#,2#,TCR1#,2# 12V65W(SAE),60W(ECE),EMINA	01/1992 - 01/1995	2
90981-22001	CXR1#,2#,TCR1#,2# 12V 60/55W,HAL WH,LUCIDA	04/1992 - 08/1993	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047	CXR1#,2#,TCR1#,2# 12V 55W,ﾊﾛｹﾞﾝ,EMINA	01/1992 - 01/1995	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81130-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81150 - HEADLAMP ASSY, LH
81150-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81150-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81150 - HEADLAMP ASSY, LH
81150-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81150-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81170-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81610F - BULB(FOR CLEARANCE LAMP)
90981-11038	CXR1#,2#,TCR1#,2# 12V 5W,EMINA	01/1992 - 01/1995	2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-99044	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 01/1995	2
Common parts
90075-10009
90119-06700

Click highlighted areas on diagram

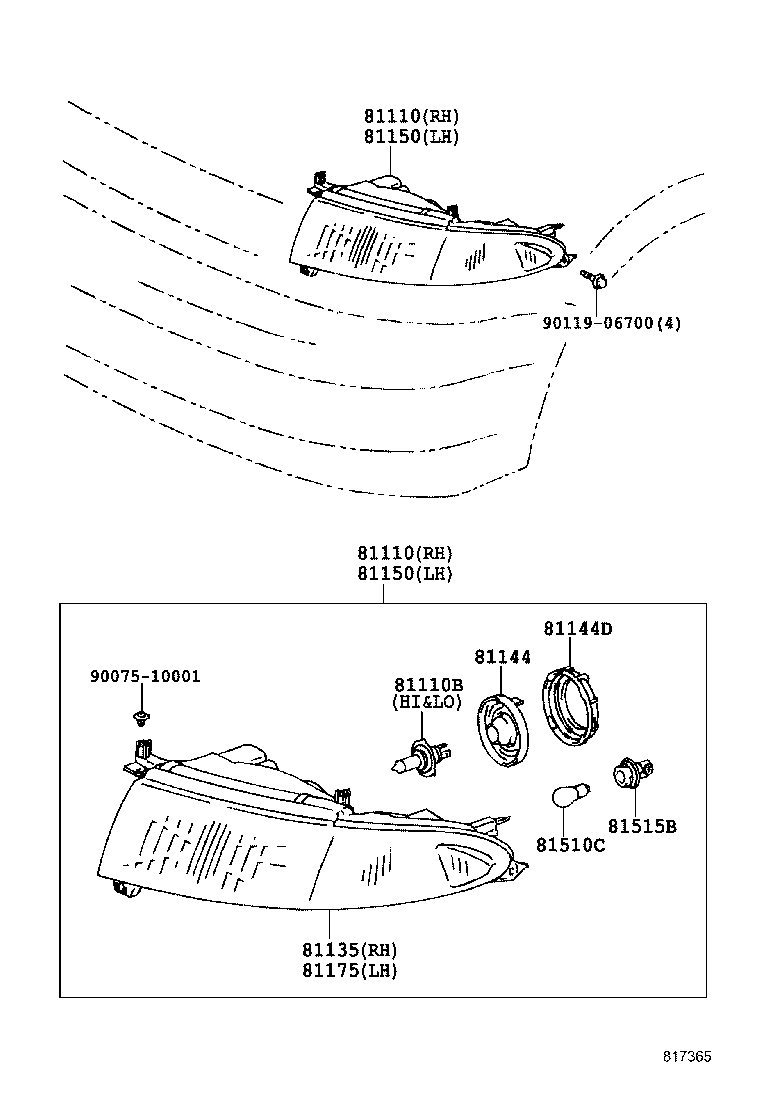

LUCIDA

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81110-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81110 - HEADLAMP ASSY, RH
81110-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81110-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	CXR1#,2#,TCR1#,2# 12V 60/55W,HAL WH,LUCIDA	01/1992 - 04/1992	2
90981-13046	CXR1#,2#,TCR1#,2# 12V65W(SAE),60W(ECE),EMINA	01/1992 - 01/1995	2
90981-22001	CXR1#,2#,TCR1#,2# 12V 60/55W,HAL WH,LUCIDA	04/1992 - 08/1993	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81130-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81144 - COVER, HEADLAMP, NO.1
90075-99084	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	2
81144D - CAP, HEADLAMP LOCKING
90075-99083	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	2
81150 - HEADLAMP ASSY, LH
81150-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81150-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81150 - HEADLAMP ASSY, LH
81150-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81150-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-28090	CXR1#,2#,TCR1#,2# EMINA	01/1992 - 12/1992	1
81170-28080	CXR1#,2#,TCR1#,2# LUCIDA	01/1992 - 01/1995	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	CXR1#,2#,TCR1#,2#	01/1992 - 08/1996	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81615-87705	CXR1#,2#,TCR1#,2#	01/1992 - 08/1996	2
Common parts
90075-10001
90119-06700
