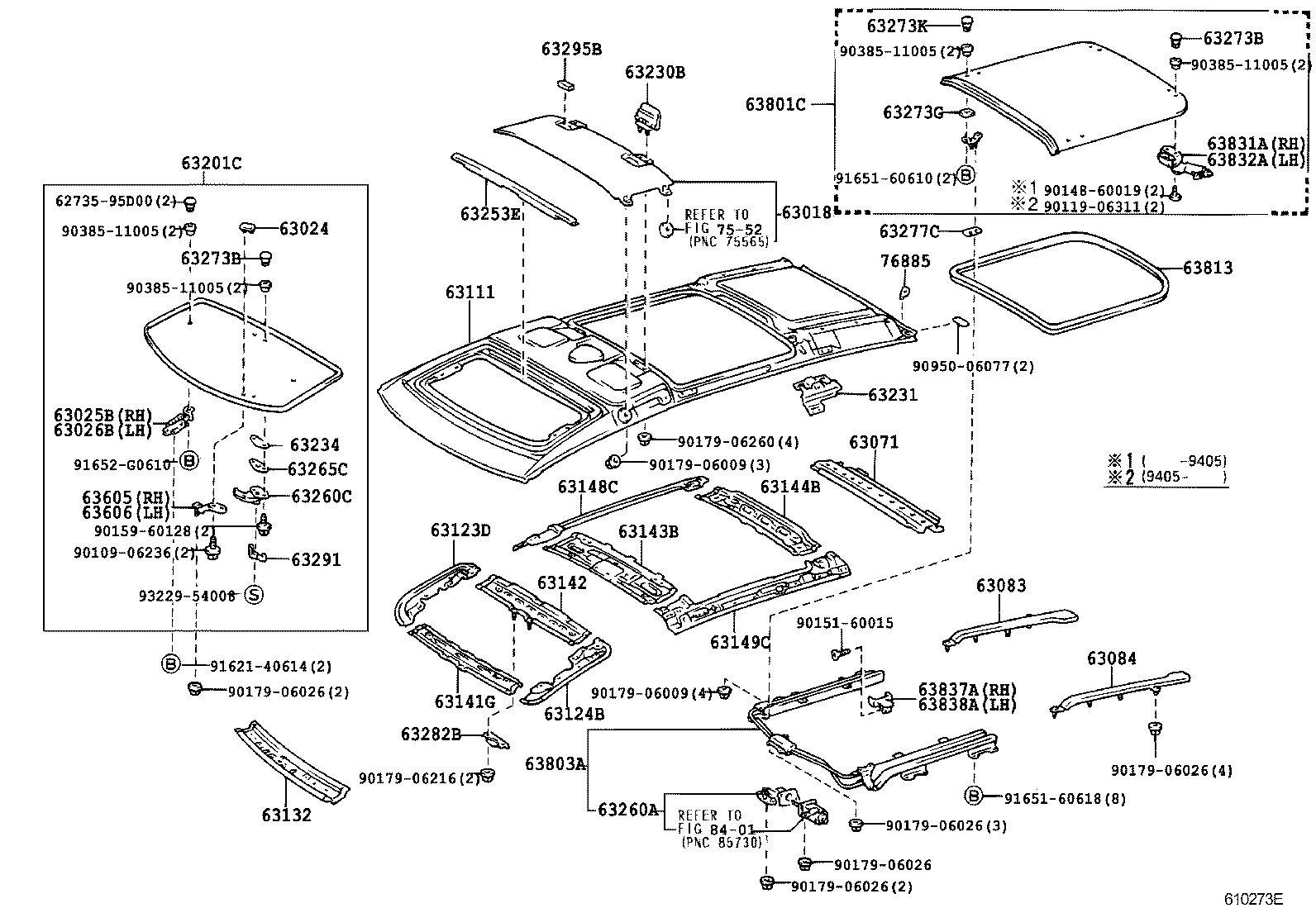

CXR10G-RRSNT (1993)
Toyota Estima Emina/Lucida
(9308- )
ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-28010 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
2 | ||
| 63024-95700 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
10 | ||
| 63024-95700 |
CXR1#,2#,TCR1#,2#..G,S,X TILT ROOF |
4 | ||
| 63024-95700 |
CXR1#,2#,TCR1#,2#..G,S,X RR SLIDE ROOF |
6 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63025-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63025-28020 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28020 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63026-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63026-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63083-95D00 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63083-28010 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63084-95D00 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63084-28010 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28030 |
CXR1#,2#,TCR1#,2#..G,S,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-28040 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63111-28060 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63123D - REINFORCEMENT, ROOF PANEL, FRONT RH | ||||
| 63123-28020 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 63124B - REINFORCEMENT, ROOF PANEL, FRONT LH | ||||
| 63124-28020 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-28090 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63141-28030 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-28020 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63142-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28070 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63143-28020 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63144-28020 |
CXR1#,2#,TCR1#,2#..D,F,G,S,X |
1 | ||
| 63148C - REINFORCEMENT, ROOF PANEL SIDE, RH | ||||
| 63148-28020 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 63149C - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-28020 |
CXR1#,2#,TCR1#,2#..G,X |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28060 |
CXR1#,2#,TCR1#,2#..G,X *TT,厚さ=5.0,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63201-28060 |
CXR1#,2#,TCR1#,2#..G,S,X *TT,厚さ=5.0 |
1 | ||
| 63201-28170 |
CXR1#,2#,TCR1#,2#..G,X *TT,厚さ=5.0,ｸﾘｱ,ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
2 | ||
| 63230-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 63230-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63231 - BRACKET, ROOM LAMP | ||||
| 63231-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63253-28040 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63253-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63253-28021 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-28090 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63260-28030 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63260-28030 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-95D02 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63265C - PLATE, TILT ROOF LOCK | ||||
| 63265-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-,ｽﾗｲﾄﾞﾙ-ﾌ |
4 | ||
| 63273-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63273-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 63273-28020 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-,ﾁﾙﾄﾙ-ﾌ |
2 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-,ｽﾗｲﾄﾞﾙ-ﾌ |
4 | ||
| 63273-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63273-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 63273-28020 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-,ﾁﾙﾄﾙ-ﾌ |
2 | ||
| 63273G - PACKING, SLIDE ROOF | ||||
| 63273-95J00 |
CXR1#,2#,TCR1#,2#..G,X |
4 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-95701 |
CXR1#,2#,TCR1#,2#..G,X 厚さ=1.0 |
1 | ||
| 63277-28030 |
CXR1#,2#,TCR1#,2#..G,X 厚さ=2.0 |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63291 - GARNISH, ROOF WINDOW LOCK, OUTER | ||||
| 63291-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-28020 |
CXR1#,2#,TCR1#,2#..AERAS,ELU,G,GLUX,S,X,XLUX |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-28020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63605-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63605-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63606-28020 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63606-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-28030 |
CXR1#,2#,TCR1#,2#..G,S,X *TT,厚さ=5.0 |
1 | ||
| 63801-28030 |
CXR1#,2#,TCR1#,2#..G,X *TT,厚さ=5.0,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63801-28050 |
CXR1#,2#,TCR1#,2#..G,X *TT,厚さ=5.0,ｸﾘｱ,ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE | ||||
| 63803-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63803-28020 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63803-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63813-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63813-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 60383-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 60383-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-28030 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 60384-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 60384-28010 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-95D00 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63837-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63837-28010 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-28010 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 63838-95D00 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 63838-95D00 |
CXR1#,2#,TCR1#,2#..G,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-28010 |
CXR1#,2#,TCR1#,2#..G,X |
6 | ||
| Common parts | ||||
| 62735-95D00 | ||||
| 90109-06236 | ||||
| 90119-06311 | ||||
| 90148-60019 | ||||
| 90151-60015 | ||||
| 90159-60128 | ||||
| 90179-06009 | ||||
| 90179-06026 | ||||
| 90179-06216 | ||||
| 90179-06260 | ||||
| 90385-11005 | ||||
| 90950-06077 | ||||
| 91621-40614 | ||||
| 91651-60610 | ||||
| 91651-60618 | ||||
| 91652-G0610 | ||||
| 93229-54008 | ||||
| Linked diagrams | ||||
| 7552 | ||||
| 8401 | ||||
