CXR10G-RRSAT (1998)

Toyota Estima Emina/Lucida

Production Jan 1998 - Aug 1999
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )3CT#

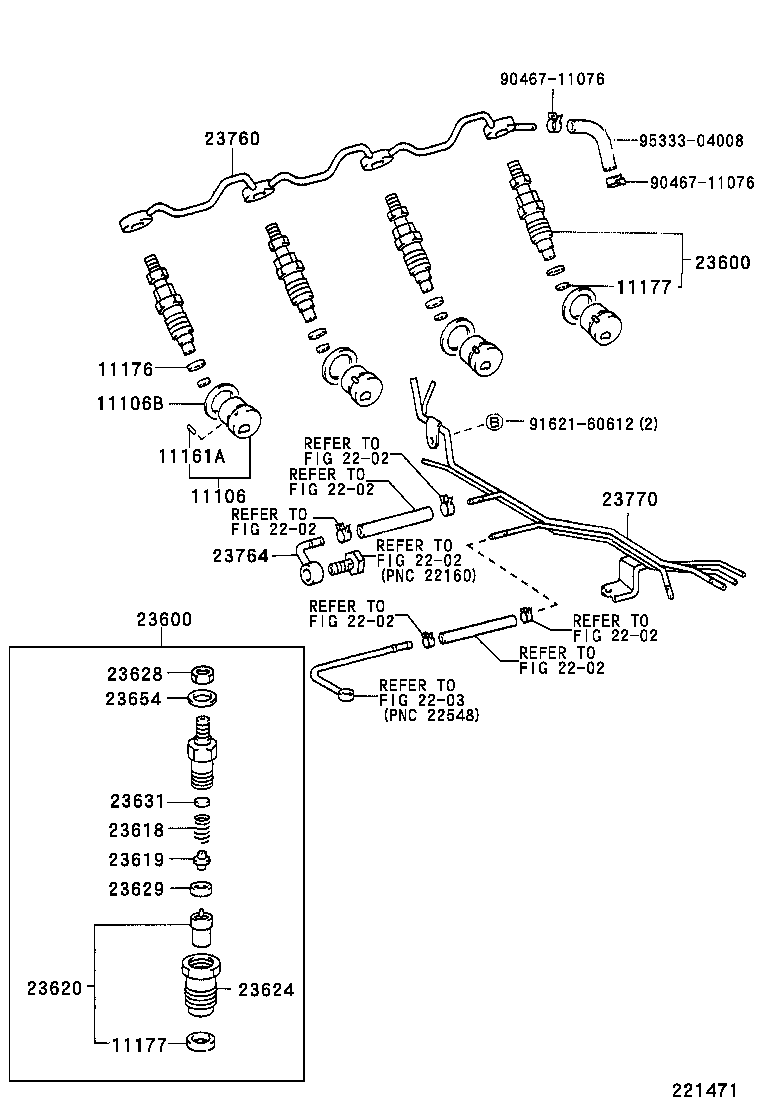

Click highlighted areas on diagram

diagram 11106 11106B 11161A 11176 11177 11177 2202 2202 2202 2202 2202 2202 2202 2203 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23764 23770 9046711076 9046711076 9162160612 9533304008
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-64100

3CT#..CXR1#,2#

 4
11106B - SHIM(FOR COMBUSTION CHAMBER)
11165-64020

3CT#..CXR1#,2#

厚さ=0.05

 1
11166-64020

3CT#..CXR1#,2#

厚さ=0.10

 1
11161A - PIN, STRAIGHT(FOR COMBUSTION CHAMBER)
90250-02046

3CT#..CXR1#,2#

 4
11176 - SEAT, INJECTION NOZZLE
11176-64010

3CT#..CXR1#,2#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

3CT#..CXR1#,2#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-64010

3CT#..CXR1#,2#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-69085

3CT..CXR1#,2#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-69085

3CT..CXR1#,2#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-54730

3CT#..CXR1#,2#

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-64010

3CT#..CXR1#,2#

 4
23620 - NOZZLE ASSY
23620-69045

3CT#..CXR1#,2#

 4
23624 - NUT, NOZZLE RETAINING
23624-64041

3CT#..CXR1#,2#

 4
23628 - NUT(FOR RING PACKING SETTING)
23628-64010

3CT#..CXR1#,2#

 4
23629 - PIECE, DISTANCE(FOR NOZZLE)
23629-54080

3CT#..CXR1#,2#

 4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-64010

3CT#..CXR1#,2#

厚さ=0.900

 4
23631-64012

3CT#..CXR1#,2#

厚さ=0.950

 4
23631-64011

3CT#..CXR1#,2#

厚さ=0.925

 4
23631-64013

3CT#..CXR1#,2#

厚さ=0.975

 4
23632-64011

3CT#..CXR1#,2#

厚さ=1.175

 4
23631-64018

3CT#..CXR1#,2#

厚さ=1.100

 4
23631-64016

3CT#..CXR1#,2#

厚さ=1.050

 4
23631-64015

3CT#..CXR1#,2#

厚さ=1.025

 4
23632-64013

3CT#..CXR1#,2#

厚さ=1.225

 4
23632-64010

3CT#..CXR1#,2#

厚さ=1.150

 4
23632-64014

3CT#..CXR1#,2#

厚さ=1.250

 4
23632-64016

3CT#..CXR1#,2#

厚さ=1.300

 4
23631-64019

3CT#..CXR1#,2#

厚さ=1.125

 4
23631-64014

3CT#..CXR1#,2#

厚さ=1.000

 4
23632-64015

3CT#..CXR1#,2#

厚さ=1.275

 4
23632-64012

3CT#..CXR1#,2#

厚さ=1.200

 4
23633-64010

3CT#..CXR1#,2#

厚さ=1.400

 4
23633-64016

3CT#..CXR1#,2#

厚さ=1.550

 4
23633-64012

3CT#..CXR1#,2#

厚さ=1.450

 4
23632-64019

3CT#..CXR1#,2#

厚さ=1.375

 4
23631-64017

3CT#..CXR1#,2#

厚さ=1.075

 4
23633-64018

3CT#..CXR1#,2#

厚さ=1.600

 4
23632-64018

3CT#..CXR1#,2#

厚さ=1.350

 4
23633-64015

3CT#..CXR1#,2#

厚さ=1.525

 4
23634-64014

3CT#..CXR1#,2#

厚さ=1.750

 4
23632-64017

3CT#..CXR1#,2#

厚さ=1.325

 4
23633-64011

3CT#..CXR1#,2#

厚さ=1.425

 4
23633-64013

3CT#..CXR1#,2#

厚さ=1.475

 4
23634-64010

3CT#..CXR1#,2#

厚さ=1.650

 4
23634-64013

3CT#..CXR1#,2#

厚さ=1.725

 4
23633-64017

3CT#..CXR1#,2#

厚さ=1.575

 4
23634-64016

3CT#..CXR1#,2#

厚さ=1.800

 4
23633-64019

3CT#..CXR1#,2#

厚さ=1.625

 4
23634-64012

3CT#..CXR1#,2#

厚さ=1.700

 4
23633-64014

3CT#..CXR1#,2#

厚さ=1.500

 4
23634-64019

3CT#..CXR1#,2#

厚さ=1.875

 4
23634-64015

3CT#..CXR1#,2#

厚さ=1.775

 4
23635-64011

3CT#..CXR1#,2#

厚さ=1.925

 4
23635-64012

3CT#..CXR1#,2#

厚さ=1.950

 4
23634-64017

3CT#..CXR1#,2#

厚さ=1.825

 4
23634-64018

3CT#..CXR1#,2#

厚さ=1.850

 4
23635-64010

3CT#..CXR1#,2#

厚さ=1.900

 4
23634-64011

3CT#..CXR1#,2#

厚さ=1.675

 4
23654 - WASHER(FOR RING PACKING)
23654-64010

3CT#..CXR1#,2#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-64040

3CT#..CXR1#,2#

 1
23764 - PIPE, NOZZLE LEAKAGE, NO.4
23764-64080

3CT..CXR1#,2#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23762-64020

3CT#..CXR1#,2#

 1
Common parts
90467-11076
91621-60612
95333-04008
Linked diagrams
2202
2203
