CXR10G-RRMNT (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Jan 1995
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

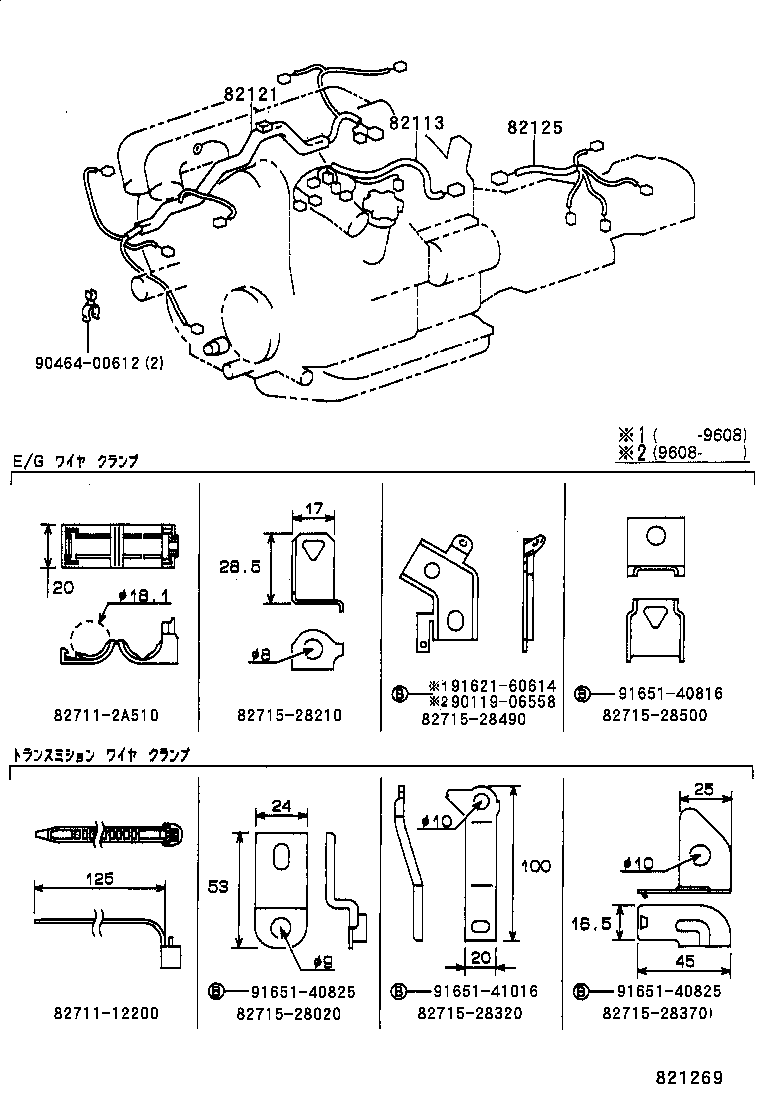

ILLUST NO. 1 OF 9(9308- )CXR1#,2#

Click highlighted areas on diagram

ENGINE WIRE

diagram 82113 82121 82125 8271112200 827112A510 8271528020 8271528210 8271528320 8271528370 8271528490 8271528500 9011906558 9046400612 9162160614 9165140816 9165140825 9165140825 9165141016
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-28251

CXR1#,2#

 1
82121-28101

CXR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82121-28100

CXR1#,2#

 1
82125 - WIRE, TRANSMISSION
82125-28060

CXR1#..MTM

 1
Common parts
82711-12200
82711-2A510
82715-28020
82715-28210
82715-28320
82715-28370
82715-28490
82715-28500
90119-06558
90464-00612
91621-60614
91651-40816
91651-40825
91651-41016
