CXR10G-RRMNT (1993)
Toyota Estima Emina/Lucida
(9308- )
ｼﾞｮｲﾌﾙ ｷｬﾉﾋﾟｰ

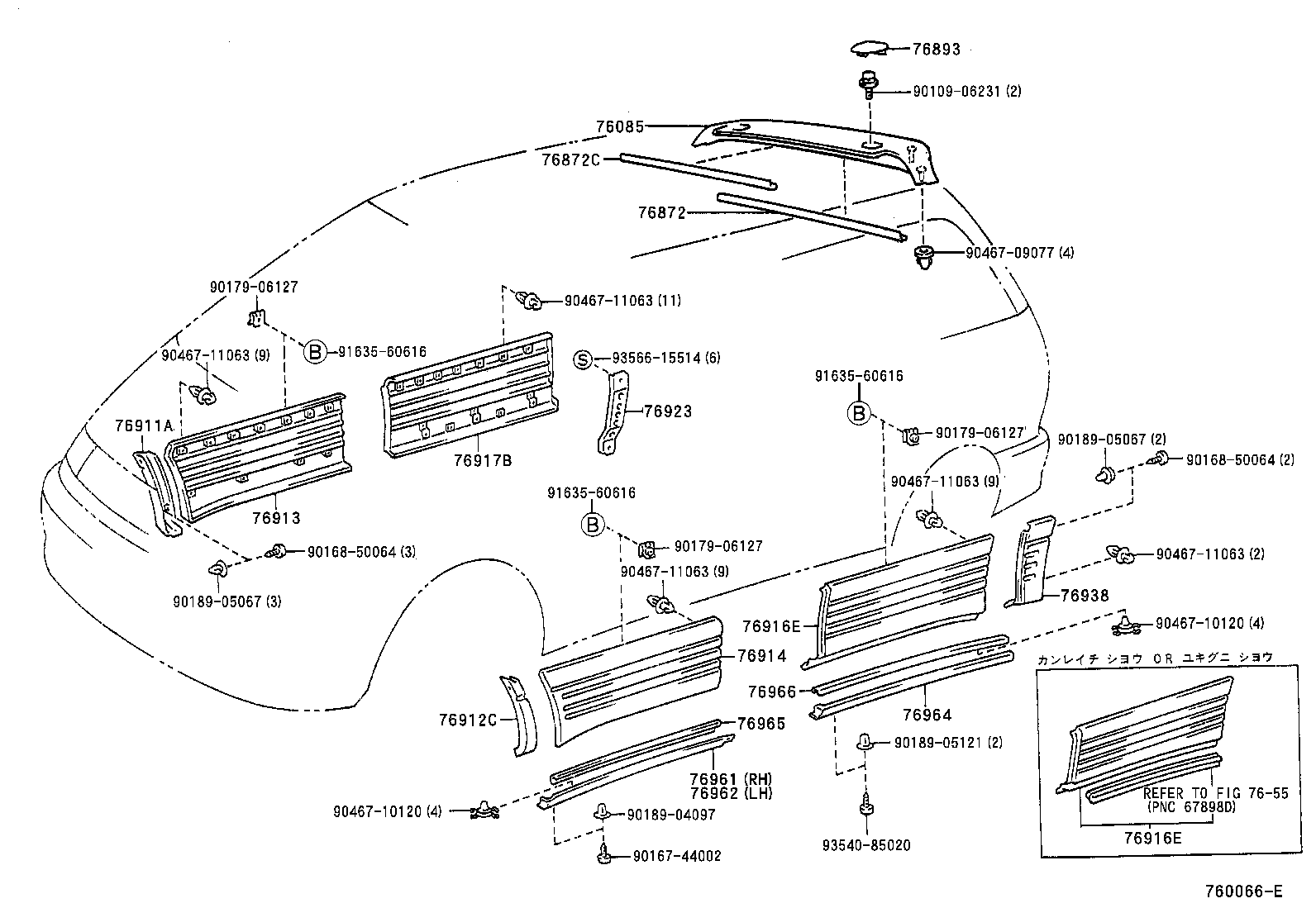

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-28010D0 |
CXR1#,2#,TCR1#,2#..G,S,X DEEP RED MICA,3H8 |
1 | ||
| 76085-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY OPAL,193 |
1 | ||
| 76085-28010A0 |
CXR10,20,TCR10,20..X WHITE,041 |
1 | ||
| 76085-28010J0 |
CXR1#,2#,TCR1#,2#..G,S,X BLUEISH GRAY ME,8H5 |
1 | ||
| 76085-28010H0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT TURQUOISE M.M,750 |
1 | ||
| 76871-28901 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 76085-28010F0 |
CXR1#,2#,TCR1#,2#..G,S,X PALE YELLOW PEARE MI,573 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-28020 |
CXR1#,2#,TCR1#,2#..G,X |
5 | ||
| 76872C - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-28030 |
CXR1#,2#,TCR1#,2#..G,X |
2 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-28020 |
CXR1#,2#,TCR1#,2#..G,X |
2 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76911-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76911-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76911-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76911-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76911-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76911-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76911-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76911-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76912-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76912-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76912-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76912-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76912-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76912-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76912-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76912-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76913 - MUDGUARD, FRONT DOOR, RH | ||||
| 76913-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76913-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76913-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76913-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76913-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76913-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76913-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76913-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914 - MUDGUARD, FRONT DOOR, LH | ||||
| 76914-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76914-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76914-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76914-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76914-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76914-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76916-28901B0 |
CXR10,20..D ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,3H8 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR1#,2#..S,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76916-28901B0 |
CXR10,20..D ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,3H8 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR1#,2#..S,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917B - MUDGUARD, QUARTER PANEL, RH | ||||
| 76917-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76917-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76917-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76917-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76917-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76917-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-95D00 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 76938 - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76938-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76938-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76938-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76938-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76938-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76938-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76938-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76938-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961 - MUDGUARD, FRONT DOOR, LOWER RH | ||||
| 76961-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76961-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76961-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76961-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76961-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76961-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76962 - MUDGUARD, FRONT DOOR, LOWER LH | ||||
| 76962-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76962-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76962-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76962-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76962-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76962-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76962-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76962-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76964 - MUDGUARD, SLIDE DOOR, LOWER LH | ||||
| 76964-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76964-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76964-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76964-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76964-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76964-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76964-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76964-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-28010 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 76966-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90167-44002 | ||||
| 90168-50064 | ||||
| 90179-06127 | ||||
| 90189-04097 | ||||
| 90189-05067 | ||||
| 90189-05121 | ||||
| 90467-09077 | ||||
| 90467-10120 | ||||
| 90467-11063 | ||||
| 91635-60616 | ||||
| 93540-85020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 7655 | ||||
(9201-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955H - RETAINER, REAR SPOILER | ||||
| 67921-95D03 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 62955H - RETAINER, REAR SPOILER | ||||
| 67921-95D03 |
CXR1#,2#,TCR1#,2#..G,S,X |
2 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-28010D0 |
CXR1#,2#,TCR1#,2#..G,S,X DEEP RED MICA,3H8 |
1 | ||
| 76085-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY OPAL,193 |
1 | ||
| 76085-28010A0 |
CXR10,20,TCR10,20..X WHITE,041 |
1 | ||
| 76085-28010J0 |
CXR1#,2#,TCR1#,2#..G,S,X BLUEISH GRAY ME,8H5 |
1 | ||
| 76085-28010H0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT TURQUOISE M.M,750 |
1 | ||
| 76871-28901 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 76085-28010F0 |
CXR1#,2#,TCR1#,2#..G,S,X PALE YELLOW PEARE MI,573 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-28010D0 |
CXR1#,2#,TCR1#,2#..G,S,X DEEP RED MICA,3H8 |
1 | ||
| 76085-28010B0 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY OPAL,193 |
1 | ||
| 76085-28010A0 |
CXR10,20,TCR10,20..X WHITE,041 |
1 | ||
| 76085-28010J0 |
CXR1#,2#,TCR1#,2#..G,S,X BLUEISH GRAY ME,8H5 |
1 | ||
| 76085-28010H0 |
CXR1#,2#,TCR1#,2#..G,S,X LIGHT TURQUOISE M.M,750 |
1 | ||
| 76871-28901 |
CXR1#,2#,TCR1#,2#..G,X ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ- |
1 | ||
| 76085-28010F0 |
CXR1#,2#,TCR1#,2#..G,S,X PALE YELLOW PEARE MI,573 |
1 | ||
| 76872B - PROTECTOR, REAR SPOILER, CENTER | ||||
| 76872-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76872B - PROTECTOR, REAR SPOILER, CENTER | ||||
| 76872-28010 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76874-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76874-28020 |
CXR1#,2#,TCR1#,2#..G,S,X |
1 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76911-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76911-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76911-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76911-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76911-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76911-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76911-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76911-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76912-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76912-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76912-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76912-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76912-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76912-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76912-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76912-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76913 - MUDGUARD, FRONT DOOR, RH | ||||
| 76913-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76913-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76913-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76913-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76913-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76913-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76913-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76913-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914 - MUDGUARD, FRONT DOOR, LH | ||||
| 76914-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76914-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76914-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76914-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76914-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76914-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76914-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76916-28901B0 |
CXR10,20..D ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,3H8 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR1#,2#..S,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76916-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76916-28901B0 |
CXR10,20..D ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 |
1 | ||
| 76916-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,3H8 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-28901B0 |
CXR10,20,TCR10..F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,COOL GRAY,041 ,8H5 |
1 | ||
| 76916-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76916-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76916-28901B1 |
CXR10,20,TCR1#,2#..S,X,XLUX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,WARM GRAY,193 ,3H8 |
1 | ||
| 76916-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917B - MUDGUARD, QUARTER PANEL, RH | ||||
| 76917-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76917-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76917-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76917-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76917-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76917-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76917-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-95D00 |
CXR1#,2#,TCR1#,2# |
3 | ||
| 76938 - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76938-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76938-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76938-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76938-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76938-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76938-95D0013 |
CXR10,20,TCR1#,2#..S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76938-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76938-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961 - MUDGUARD, FRONT DOOR, LOWER RH | ||||
| 76961-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76961-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76961-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76961-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76961-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76961-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76961-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76962 - MUDGUARD, FRONT DOOR, LOWER LH | ||||
| 76962-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76962-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76962-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76962-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76962-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76962-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76962-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76962-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76964 - MUDGUARD, SLIDE DOOR, LOWER LH | ||||
| 76964-95D0013 |
CXR10,20,TCR10..F WARM GRAY,3H8 |
1 | ||
| 76964-95D0003 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,573 ,750 ,8H5 |
1 | ||
| 76964-95D0013 |
CXR1#,2#,TCR1#,2#..G,S,X WARM GRAY,193 ,3H8 |
1 | ||
| 76964-95D0003 |
CXR10,20,TCR10..F COOL GRAY,041 ,8H5 |
1 | ||
| 76964-95D00B0 |
CXR10,20..F COOL GRAY,041 ,8H5 |
1 | ||
| 76964-95D00B1 |
CXR10,20..F WARM GRAY,3H8 |
1 | ||
| 76964-95D00B0 |
CXR10,20,TCR10,20..X COOL GRAY,041 ,750 ,751 ,8H5 |
1 | ||
| 76964-95D0003 |
CXR10,20..D COOL GRAY,041 |
1 | ||
| 76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-95D00 |
CXR1#,2#,TCR1#,2# |
2 | ||
| 76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-28010 |
CXR1#,2#,TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 76966-95D00 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-06225 | ||||
| 90167-44002 | ||||
| 90168-50062 | ||||
| 90179-06026 | ||||
| 90179-06157 | ||||
| 90189-04097 | ||||
| 90189-05067 | ||||
| 90189-05121 | ||||
| 90467-10120 | ||||
| 90467-11063 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 6755 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
