CXR10G-RRMNT (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Jan 1995
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )

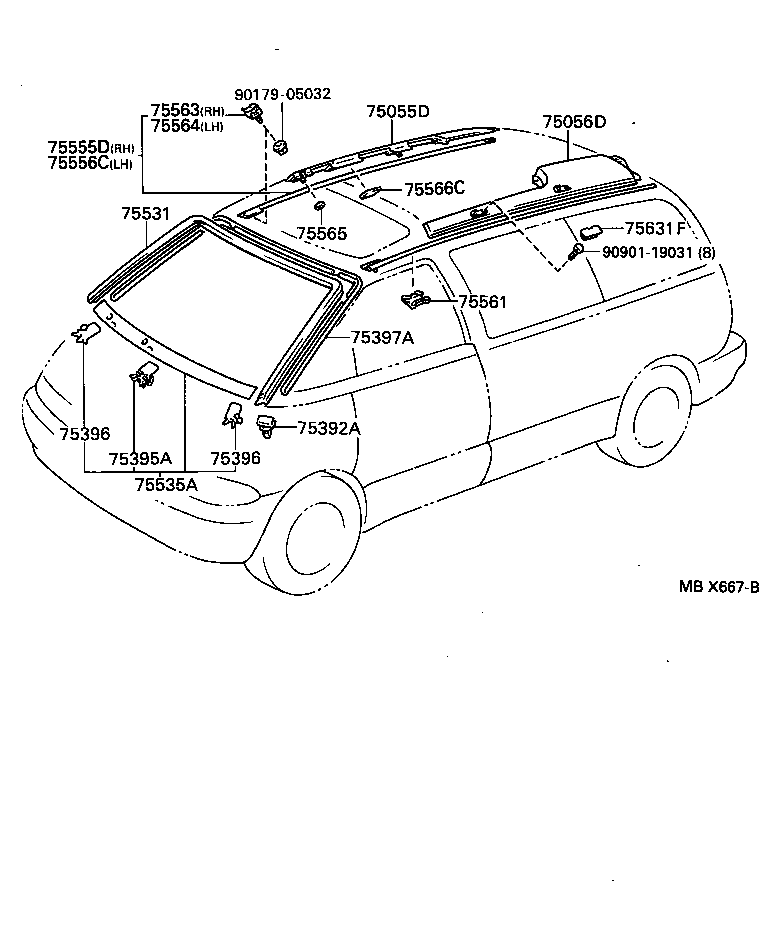

Click highlighted areas on diagram

ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-

diagram 75055D 75056D 75392A 75395A 75396 75396 75397A 75531 75535A 75555D 75556C 75561 75563 75564 75565 75566C 75631F 9017905032 9090119031
Part # Description Qty Price
75055D - GARNISH SUB-ASSY, ROOF SIDE, REAR RH
75055-95D00

CXR1#,2#,TCR1#,2#..G,X

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
75055-95D00

CXR1#,2#,TCR1#,2#..G,S,X

 1
75056D - GARNISH SUB-ASSY, ROOF SIDE, REAR LH
75056-95D00

CXR1#,2#,TCR1#,2#..G,S,X

 1
75056-95D00

CXR1#,2#,TCR1#,2#..G,X

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-95D00

CXR1#,2#,TCR1#,2#

 2
75395A - CLIP, OUTSIDE MOULDING, NO.1
75395-28010

CXR1#,2#,TCR1#,2#

 6
75396 - CLIP, OUTSIDE MOULDING, NO.2
75396-28020

CXR1#,2#,TCR1#,2#

WHITE

 1
75396-28030

CXR1#,2#,TCR1#,2#

ｲｴﾛｰ

 1
75396 - CLIP, OUTSIDE MOULDING, NO.2
75396-28020

CXR1#,2#,TCR1#,2#

WHITE

 1
75396-28030

CXR1#,2#,TCR1#,2#

ｲｴﾛｰ

 1
75397A - CLIP, OUTSIDE MOULDING, NO.3
75397-28010

CXR1#,2#,TCR1#,2#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75503-28030

CXR1#,2#,TCR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
75531-28020

CXR1#,2#,TCR1#,2#

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75504-28030

CXR1#,2#,TCR1#,2#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
75504-28020

CXR1#,2#,TCR1#,2#

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-28010

CXR1#,2#,TCR1#,2#

 1
75555-28040

CXR1#,2#,TCR1#,2#..G,X

ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-28040

CXR1#,2#,TCR1#,2#..G,X

ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-

 1
75556-28010

CXR1#,2#,TCR1#,2#

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-95D01

CXR1#,2#,TCR1#,2#

 24
75561-28030

CXR1#,2#,TCR1#,2#..G,X

ｼﾞﾖｲﾌﾙ ｷﾔﾉﾋﾟ-

 22
Common parts
90179-05032
90901-19031
