CXR10G-RRMNT (1993)
Toyota Estima Emina/Lucida

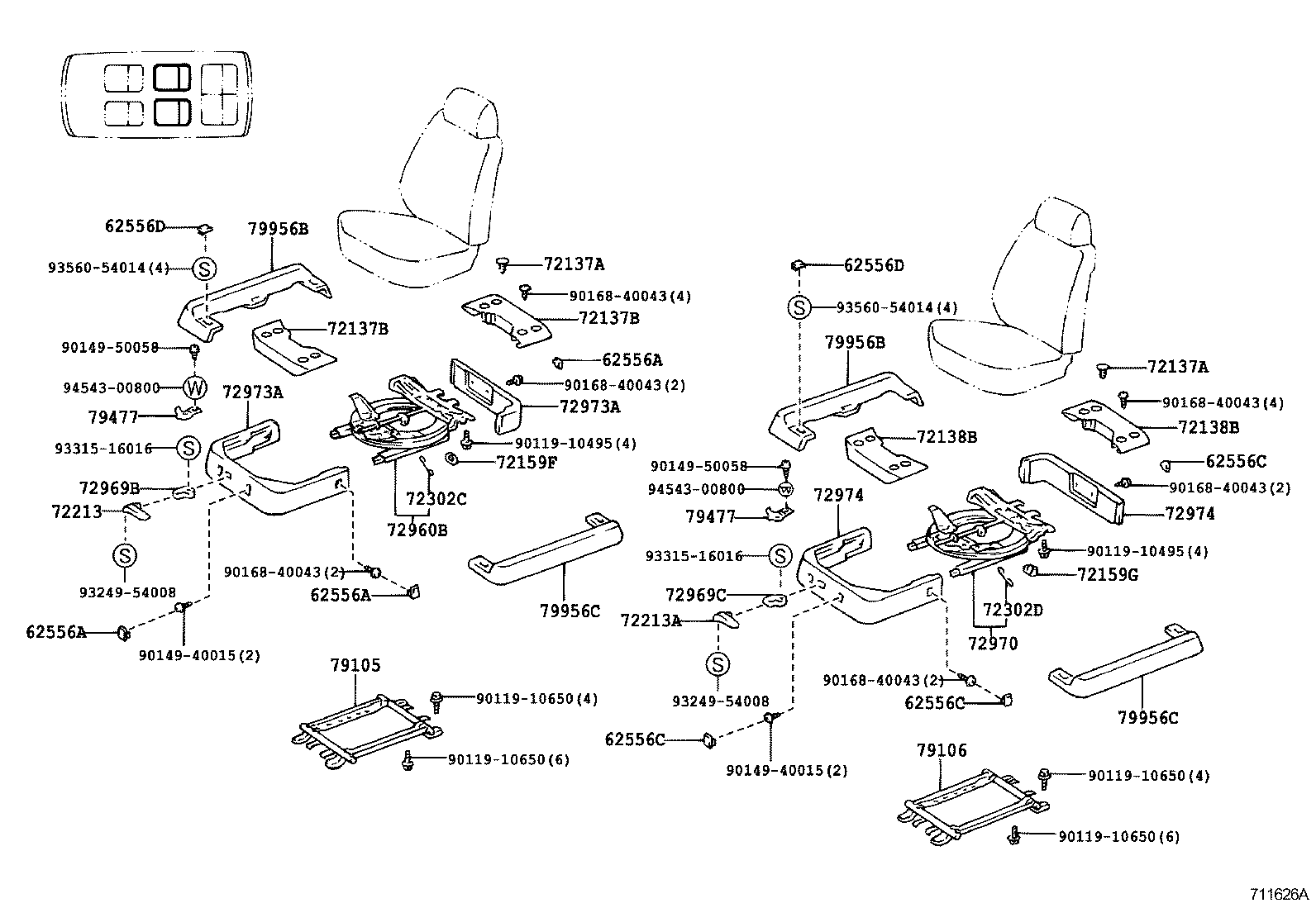

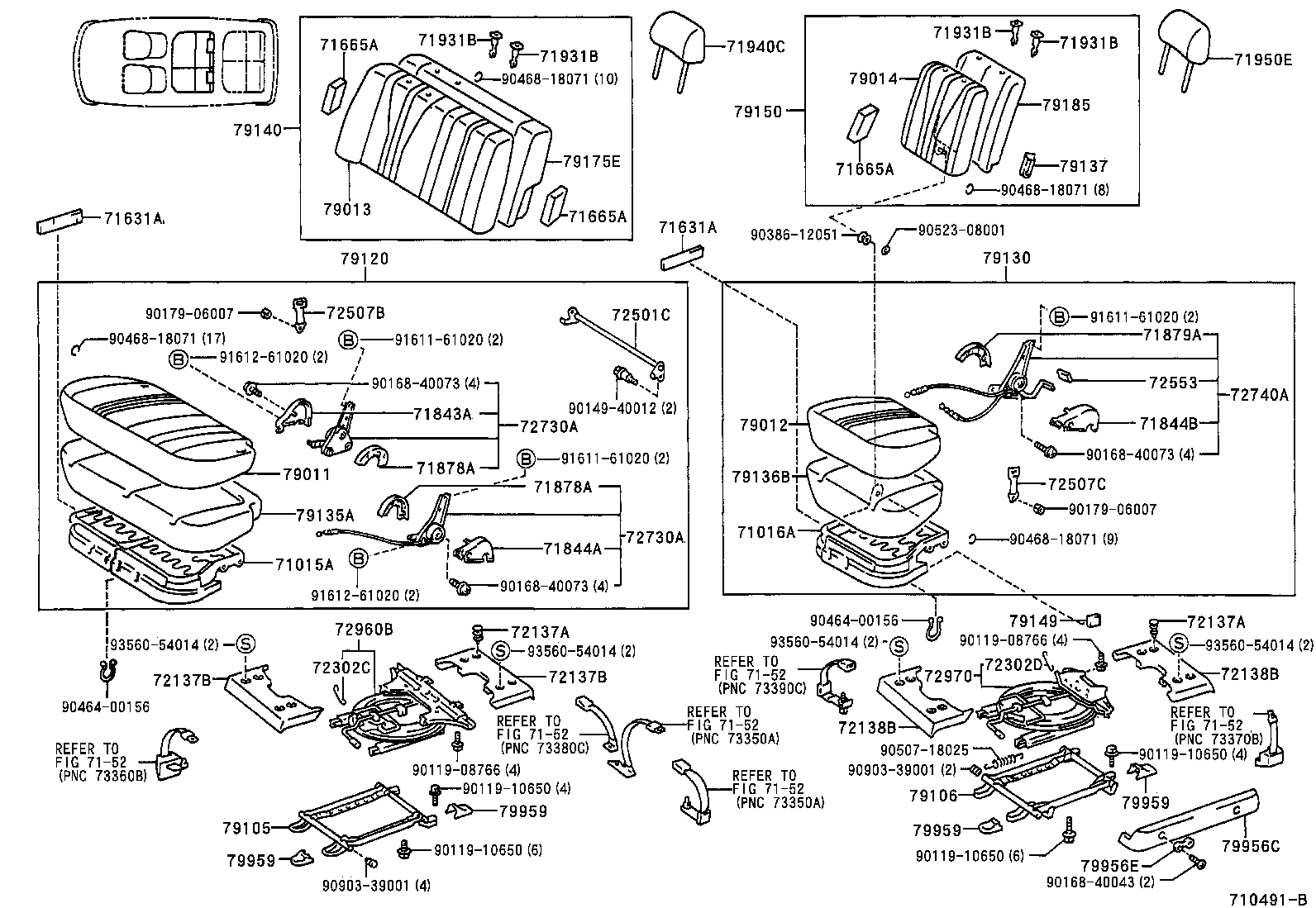

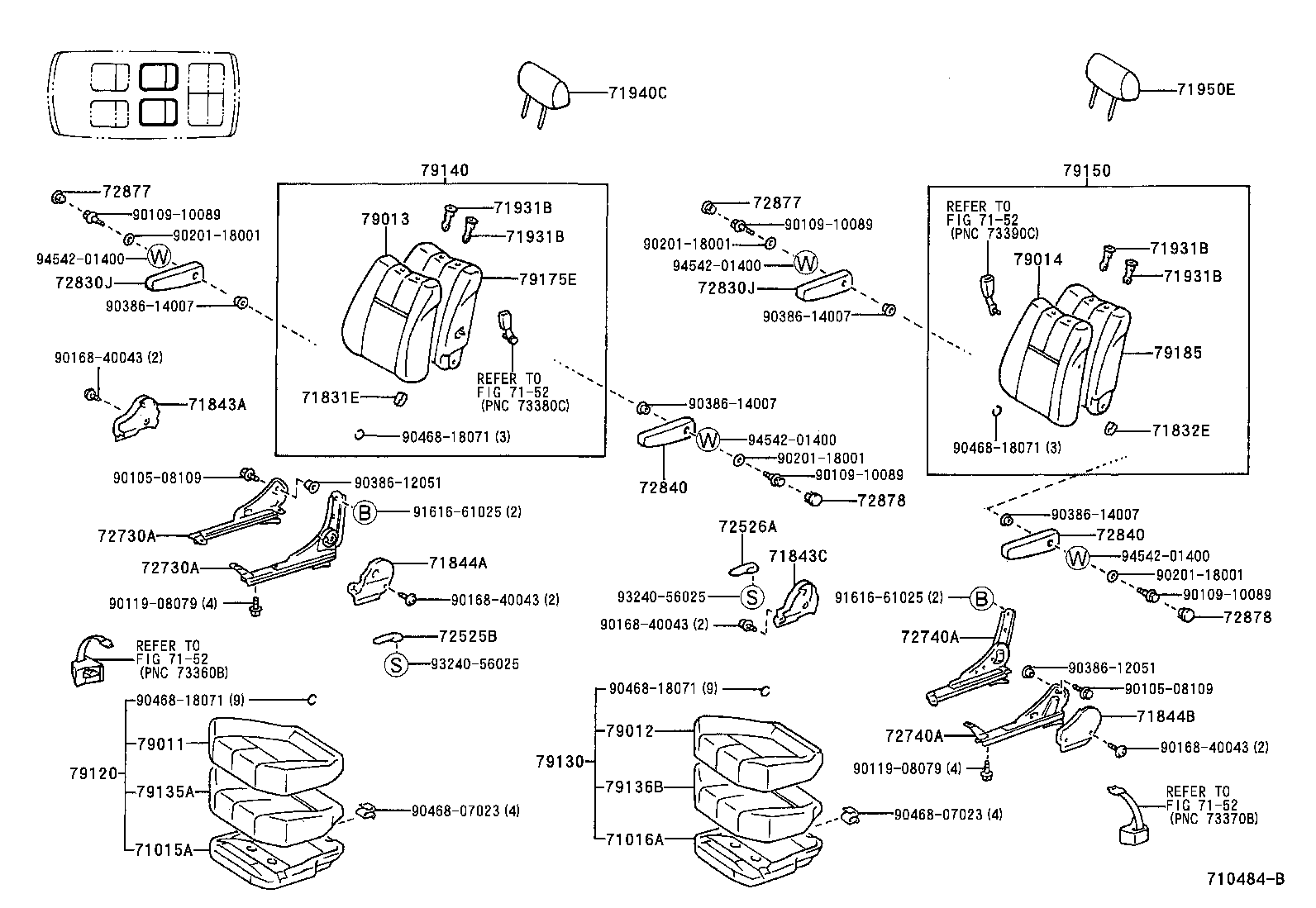

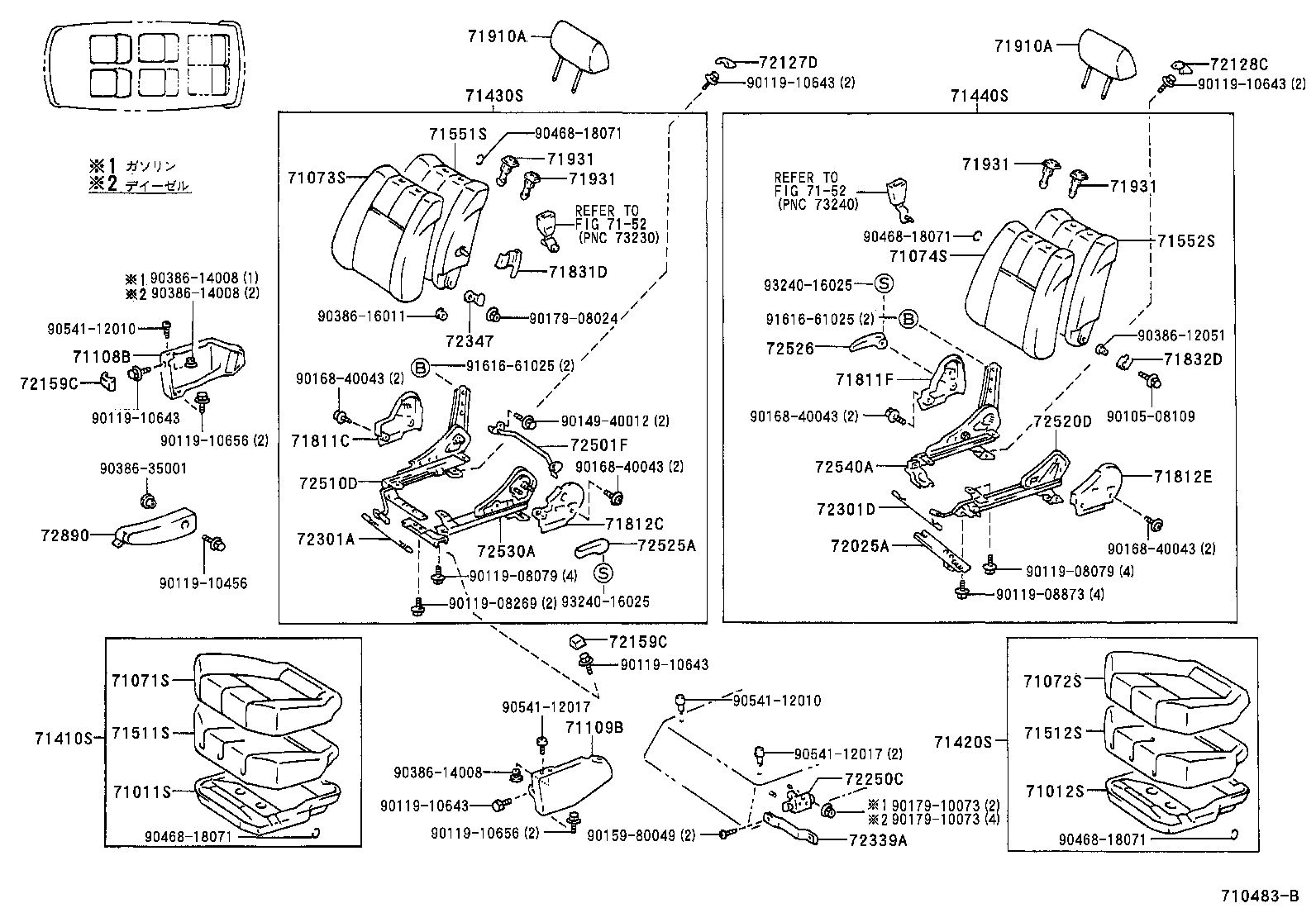

ILLUST NO. 1 OF 4(9201-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28070 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28120B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28130B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28150E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71071-28131B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71071-28150B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71071-28151E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71071-28151B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28120B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28130B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28150B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71072-28151E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71072-28150E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71072-28131B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71072-28151B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28210B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28180B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28211B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28191B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28190B0 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28210E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71073-28211E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28240E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71074-28240B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28200B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28210B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28241B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28211B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28241E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-28010E0 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 71108-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109-28010E0 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28160B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28140B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28130B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28161B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28160E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71410-28141B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28161E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 71410-28161B1 |
CXR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28161E1 |
CXR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28150E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71420-28120B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28130B0 |
CXR10,20,TCR1#,21..F,S ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28150B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28151B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-28151E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 71420-28131B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-28230B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28250B0 |
CXR10,20..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28290B0 |
CXR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28290E0 |
CXR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71430-28251B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-28291E1 |
CXR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 71430-28291B1 |
CXR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-28210B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28220B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28250B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-28251B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-28221B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-28250E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 71440-28251E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28040 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28040 |
CXR10,20,TCR1#,2#..D,F,S,X,XLUX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-28020 |
CXR10,20,TCR1#,2#..D,F,S,X |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28040E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71811-28040B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0305 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 71811-95D0303 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-28040B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812-28040E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0405 |
CXR1#,2#,TCR1#,2#..G,X LIGHT GREIGE,TRIM4# |
1 | ||
| 71812-95D0403 |
CXR1#,2#,TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-28010E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71831-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71832-28010E0 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28080E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
2 | ||
| 71910-28090B1 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28100B2 |
CXR10,20..D LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28081B1 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,右側 |
1 | ||
| 71910-28081E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4#,右側 |
1 | ||
| 71920-28040B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 71910-28091B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28080B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
2 | ||
| 71920-28040E0 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4#,左側 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28080E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
2 | ||
| 71910-28090B1 |
CXR10,20,TCR1#,21..F,S LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28100B2 |
CXR10,20..D LIGHT GRAY,TRIM1# |
2 | ||
| 71910-28081B1 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,右側 |
1 | ||
| 71910-28081E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4#,右側 |
1 | ||
| 71920-28040B0 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1#,左側 |
1 | ||
| 71910-28091B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
2 | ||
| 71910-28080B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
2 | ||
| 71920-28040E0 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4#,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72128-95D0003 |
CXR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0005 |
CXR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D0005 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
CXR1#,2# 左側 |
1 | ||
| 72250-28020 |
CXR1#,2# 右側 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-28030 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72339A - FRAME, FRONT SEAT LEG SUPPORT | ||||
| 72339-28010 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72347 - PLATE, SEAT BACK RETURN SPRING STOPPER | ||||
| 72347-28020 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72506-28060 |
CXR1#,2#,TCR1#,2# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-28010B0 |
CXR1#,2# GRAY,TRIM1# |
1 | ||
| 72510-28010E1 |
CXR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 72510-28011C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-28010E1 |
CXR1#,2#,TCR1#,2#..G,X GREIGE,TRIM4# |
1 | ||
| 72520-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72520-28010C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-28010B0 |
CXR1#,2#,TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-28010E1 |
CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX GREIGE,TRIM4# |
1 | ||
| 72530A - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-28030 |
CXR1#,2# |
1 | ||
| 72540A - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-28040 |
CXR1#,2#,TCR1#,2# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-08269 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10656 | ||||
| 90149-40012 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-08024 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90386-14008 | ||||
| 90386-16011 | ||||
| 90386-35001 | ||||
| 90468-18071 | ||||
| 90541-12010 | ||||
| 90541-12017 | ||||
| 91616-61025 | ||||
| 93240-16025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 4(9201-9511)G,GLUX ; (9501-9511)CXR10,20,TCR10,20..ATM
CXR10,20,TCR10,20(ﾊﾝﾃﾞｲｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 79160-28090 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 79170-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71843-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71843-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-28020E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28101E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71940-28101B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28120B1 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28060B1 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28120B1 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28060E0 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 72740-28180E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 72740-28180B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 72730-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72730-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 72740-28180E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 72740-28180B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 72730-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72730-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72740-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 72740-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72740-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 72740-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28071B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28091B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28071E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28040B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79012-28051B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28041B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28051E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28091B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28071B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28100B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28071E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-28070B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28080B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28051E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79014-28051B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28071B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28110B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28130B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28111E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79120-28111B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28131B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28110E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28061E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79130-28071B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130-28061B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28070B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28170B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28191B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28190B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28170E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79140-28200B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28171E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79140-28171B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28140E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79150-28140B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28170B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28161B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28141B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28141E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79150-28160B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79175-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79185-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90109-10089 | ||||
| 90119-08079 | ||||
| 90168-40043 | ||||
| 90201-18001 | ||||
| 90386-12051 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 90468-18071 | ||||
| 91616-61025 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 4(9201-9511)F,X,XLUX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 79160-28090 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 79170-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-28030 |
CXR10,20,TCR10,20..F,X,XLUX |
3 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-28030 |
CXR10,20,TCR10,20..F,X,XLUX |
3 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-28030 |
CXR10,20,TCR10,20..F,X,XLUX |
3 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71843-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71843-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71844-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-28020E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71844-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71879-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 71878-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71879-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 71878-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 71878-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71879-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 71878-95D0303 |
CXR10,20,TCR11,21..D,S LIGHT GRAY,TRIM1# |
1 | ||
| 71879-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 71878-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 71878-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 71879-28010E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ無,GREIGE,TRIM4# |
2 | ||
| 71930-28020E0 |
CXR1#,2#,TCR1#,2#..G,X ﾛｯｸ付,GREIGE,TRIM4# |
2 | ||
| 71931-28020B0 |
CXR1#,2#,TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28101E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 71940-28101B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28120B1 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28100E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28120B0 |
CXR10,20,TCR1#,21..D,F,S GRAY,TRIM1# |
1 | ||
| 71940-28100B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28060B1 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28120B1 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28060E0 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05017B0 |
CXR1#,2#,TCR1#,2#..F,G,X GRAY,TRIM1# |
4 | ||
| 90467-05017E2 |
CXR1#,2#,TCR1#,2#..F,G,X GREIGE,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05017B0 |
CXR1#,2#,TCR1#,2#..F,G,X GRAY,TRIM1# |
4 | ||
| 90467-05017E2 |
CXR1#,2#,TCR1#,2#..F,G,X GREIGE,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-28080 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 72501-28020 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-28010E1 |
CXR10,20,TCR10,20..X GREIGE,TRIM4# |
1 | ||
| 72507-28010B0 |
CXR10,20,TCR10,20..F,X GRAY,TRIM1# |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-28010E1 |
CXR10,20,TCR10,20..X GREIGE,TRIM4# |
1 | ||
| 72507-28010B0 |
CXR10,20,TCR10,20..F,X GRAY,TRIM1# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 72740-28180E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 72740-28180B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 72730-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72730-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,外側 |
1 | ||
| 72740-28180E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,内側 |
1 | ||
| 72740-28180B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,内側 |
1 | ||
| 72730-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72730-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,外側 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-95D08 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 72740-28190B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 72740-28190E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28051C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 72960-28050 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28060 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970-28061C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28071B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28091B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28071E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28040B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79012-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79012-28051B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28041B0 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79012-28051E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28070E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28070B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28091B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28090B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28071B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28100B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28071E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28050B0 |
CXR10,20,TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28050E0 |
CXR10,20,TCR10,20..X LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-28070B0 |
CXR10,20,TCR10..F LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28080B1 |
CXR10,20..D LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28051E1 |
CXR10,20,TCR10,20..X MI. GREIGE,TRIM4# |
1 | ||
| 79014-28051B2 |
CXR10,20,TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28071B2 |
CXR10,20..F BLUISH GRAY,TRIM1# |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28050 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-28110B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28130B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28111E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79120-28111B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28131B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28110E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-28061E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79130-28071B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28060B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79130-28060E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79130-28061B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79130-28070B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J0013 |
CXR10,20,TCR10,20..F,X GRAY,TRIM1# |
1 | ||
| 79137-95J00E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28170B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28191B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-28190B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28170E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79140-28200B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28171E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79140-28171B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28140E0 |
CXR10,20,TCR10,20..X ***,LIGHT GREIGE,TRIM4# |
1 | ||
| 79150-28140B0 |
CXR10,20,TCR10,20..X ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28170B1 |
CXR10,20..D ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28161B1 |
CXR10,20..F ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28141B1 |
CXR10,20,TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28141E1 |
CXR10,20,TCR10,20..X ***,MI.GREIGE,TRIM4# |
1 | ||
| 79150-28160B0 |
CXR10,20,TCR10..F ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79175-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-28020 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 79185-28010 |
CXR10,20,TCR11,21..D,S |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-13002E0 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 90339-13002B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-28010B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,FRONT |
4 | ||
| 79959-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1#,REAR |
4 | ||
| 79959-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,REAR |
4 | ||
| 79959-28010E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4#,FRONT |
4 | ||
| Common parts | ||||
| 90119-08766 | ||||
| 90119-10650 | ||||
| 90149-40012 | ||||
| 90168-40043 | ||||
| 90168-40073 | ||||
| 90179-06007 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-18071 | ||||
| 90507-18025 | ||||
| 90523-08001 | ||||
| 90903-39001 | ||||
| 91611-61020 | ||||
| 91612-61020 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 4(9201-9511)G,GLUX ; (9501-9511)CXR10,20,TCR10,20..ATM
CXR10,20,TCR10,20(ﾊﾝﾃﾞｲｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05017B0 |
CXR1#,2#,TCR1#,2#..F,G,X GRAY,TRIM1# |
4 | ||
| 90467-05017E2 |
CXR1#,2#,TCR1#,2#..F,G,X GREIGE,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05017B0 |
CXR1#,2#,TCR1#,2#..F,G,X GRAY,TRIM1# |
4 | ||
| 90467-05017E2 |
CXR1#,2#,TCR1#,2#..F,G,X GREIGE,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-28020E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
2 | ||
| 72137-28020B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
2 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-28020 |
CXR1#,2#,TCR1#,2#..F,G,GLUX,X,XLUX |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-28051C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 72960-28050 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-28060 |
CXR10,20,TCR10,20..F,X |
1 | ||
| 72970-28061C0 |
CXR10,20..F BLACK,TRIM1# |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28050 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-28040 |
CXR10,20,TCR10,20..F,X,XLUX |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-28050B0 |
CXR10,20,TCR10,20..F,X,XLUX GRAY,TRIM1# |
1 | ||
| 79956-28050E1 |
CXR10,20,TCR10,20..X,XLUX GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10495 | ||||
| 90119-10650 | ||||
| 90149-40015 | ||||
| 90149-50058 | ||||
| 90168-40043 | ||||
| 93249-54008 | ||||
| 93315-16016 | ||||
| 93560-54014 | ||||
| 94543-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
