CXR10G-RRMNT (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Jan 1995
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201-9608)

Click highlighted areas on diagram

diagram 45100 45105 45112 45130 45180 45201P 9015940208 9015950310 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28090E1

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GREIGE,TRIM4#

 1
45100-28090B0

CXR1#,2#,TCR1#,2#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#

 1
45100-28070E1

CXR1#,2#,TCR1#,2#..G,X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),GREIGE,TRIM4#

 1
45100-28070B0

CXR1#,2#,TCR1#,2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-28040

CXR1#,2#,TCR1#,2#

 1
45112 - PAD, STEERING WHEEL
45112-28070B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45112-28070E0

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

GREIGE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-28170B0

CXR1#,2#,TCR1#,2#

ｱﾘ(*80),GRAY,TRIM1#

 1
45130-28180E1

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

GREIGE,TRIM4#

 1
45130-28180B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45130-28170E1

CXR1#,2#,TCR1#,2#..G,X

ｱﾘ(*80),GREIGE,TRIM4#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-28040E0

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

GREIGE,TRIM4#

 1
45180-28040B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CXR1#,2#,TCR1#,2#

 1
Common parts
90159-40208
90159-50310
93510-13010

(9308- )

Click highlighted areas on diagram

ｱﾘ(*80)

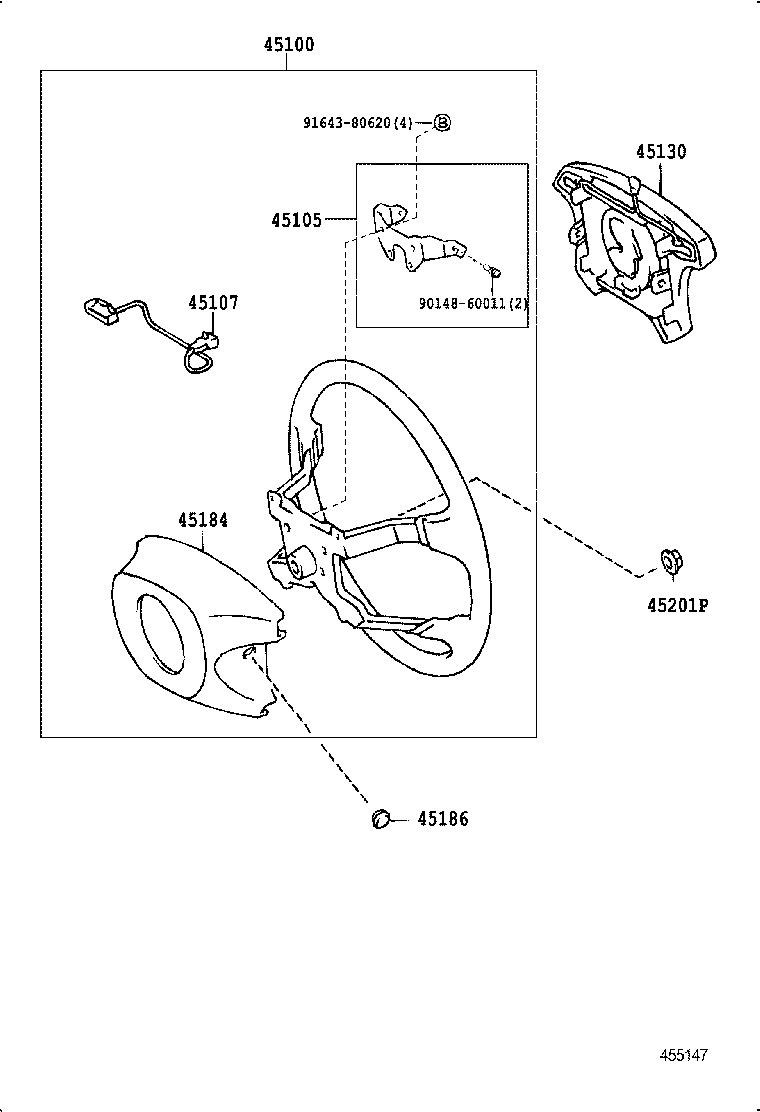

diagram 45100 45105 45107 45130 45184 45186 45201P 9014860011 9164380620
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28090E1

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GREIGE,TRIM4#

 1
45100-28090B0

CXR1#,2#,TCR1#,2#

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1#

 1
45100-28070E1

CXR1#,2#,TCR1#,2#..G,X

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),GREIGE,TRIM4#

 1
45100-28070B0

CXR1#,2#,TCR1#,2#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-28040

CXR1#,2#,TCR1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-28170B0

CXR1#,2#,TCR1#,2#

ｱﾘ(*80),GRAY,TRIM1#

 1
45130-28180E1

CXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX

GREIGE,TRIM4#

 1
45130-28180B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45130-28170E1

CXR1#,2#,TCR1#,2#..G,X

ｱﾘ(*80),GREIGE,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-28050B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45184-28050E0

CXR1#,2#,TCR1#,2#..G,X

GREIGE,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28010B0

CXR1#,2#,TCR1#,2#

GRAY,TRIM1#

 1
45186-28010E0

CXR1#,2#,TCR1#,2#..G,X

GREIGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CXR1#,2#,TCR1#,2#

 1
Common parts
90148-60011
91643-80620
