CXR10G-RRMNT (1993)
Toyota Estima Emina/Lucida
Production
Aug 1993
-
Jan 1995
Engine
3CTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9201-9908)CXR1#,2#..MTM

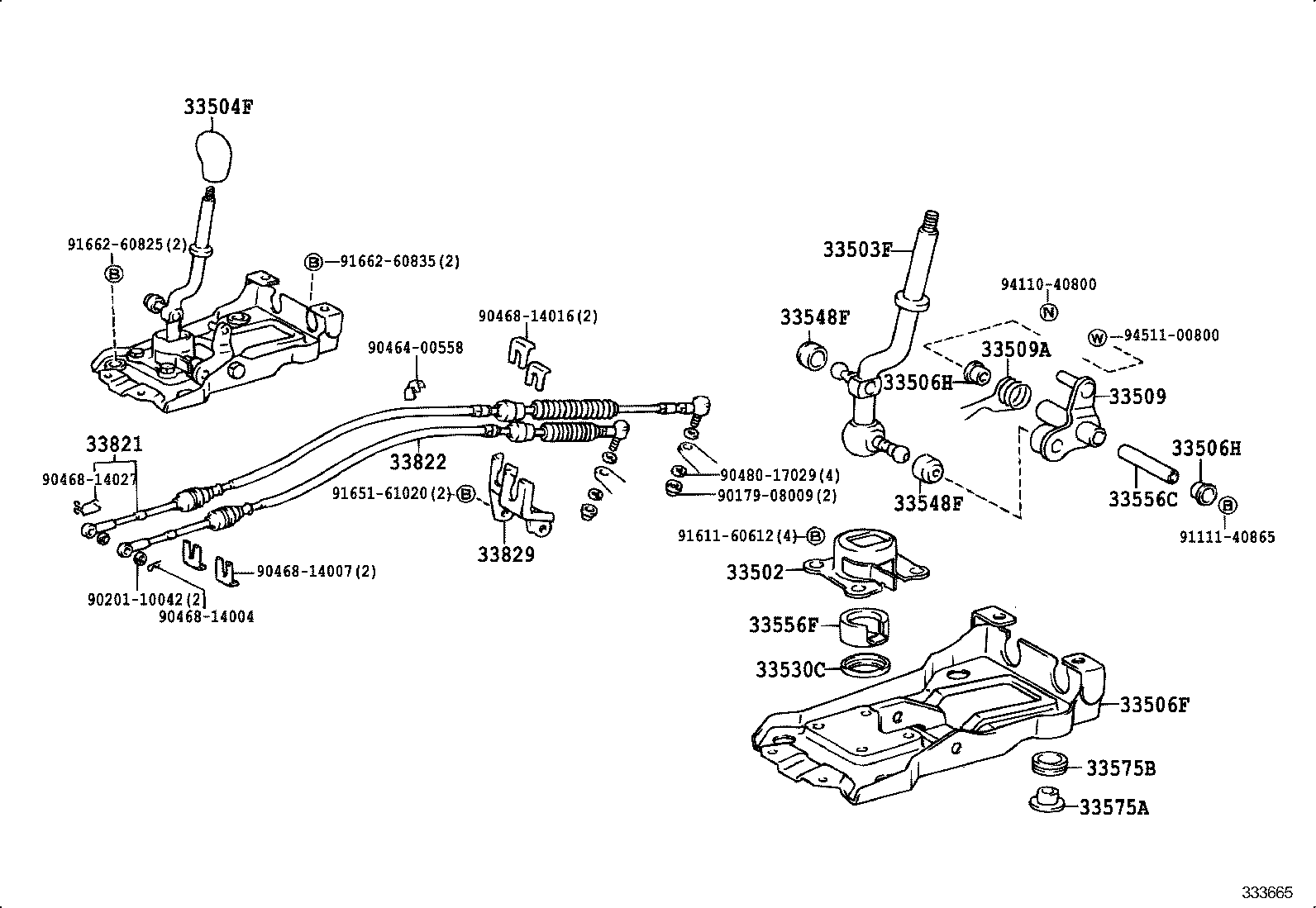

Click highlighted areas on diagram
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-28130 |
CXR1#,2#..MTM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-28120 |
CXR1#,2#..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180B1 |
CXR1#,2#,TCR10,2#..MTM..(EFI,TD) GRAY,TRIM1# |
1 | ||
| 33504-12180E2 |
CXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD) GREIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-28170 |
CXR1#,2#..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12013 |
CXR1#,2#..MTM |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12013 |
CXR1#,2#..MTM |
2 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-28020 |
CXR1#,2#..MTM |
1 | ||
| 33509A - SPRING, TORSION (FOR SELECTING BELL CRANK) | ||||
| 90949-03001 |
CXR1#,2#..MTM |
1 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 90385-24001 |
CXR1#,2#..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CXR1#,2#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CXR1#,2#..MTM |
2 | ||
| 33556C - COLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90387-08129 |
CXR1#,2#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-27020 |
CXR1#,2#..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08082 |
CXR1#,2#..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90385-09006 |
CXR1#,2#..MTM |
4 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-28110 |
CXR1#,2#..MTM |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-28110 |
CXR1#,2#..MTM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-28040 |
CXR1#,2#..MTM |
1 | ||
| Common parts | ||||
| 90179-08009 | ||||
| 90201-10042 | ||||
| 90464-00558 | ||||
| 90468-14004 | ||||
| 90468-14007 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90480-17029 | ||||
| 91111-40865 | ||||
| 91611-60612 | ||||
| 91651-61020 | ||||
| 91662-60825 | ||||
| 91662-60835 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
