CXR10G-RRMNT (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Jan 1995
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201-9608)MTM

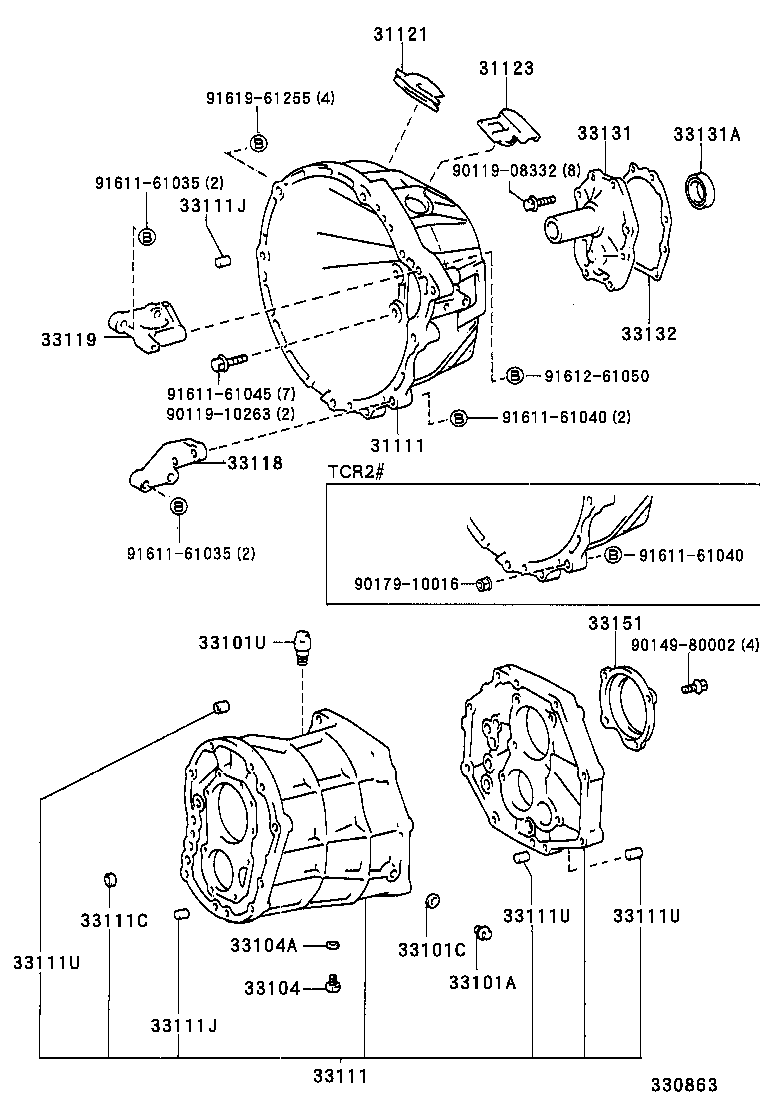

Click highlighted areas on diagram

G53

diagram 31111 31121 31123 33101A 33101C 33101U 33104 33104A 33111 33111C 33111J 33111J 33111U 33111U 33111U 33118 33119 33131 33131A 33132 33151 9011908332 9011910263 9014980002 9017910016 9161161035 9161161035 9161161040 9161161040 9161161045 9161261050 9161961255
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-28050

CXR1#,2#..MTM

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-30040

CXR1#,2#..MTM

NO.1

 1
31121-28030

CXR1#,2#..MTM

NO.2

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18002

CXR1#,2#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

CXR1#,2#,TCR10,2#..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03085

CXR1#,2#,TCR10,2#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CXR1#,2#,TCR10,2#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

CXR1#,2#,TCR10,2#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-28030

CXR1#,2#..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800

CXR1#,2#..MTM

外径=18

 2
90331-14004

CXR1#,2#..MTM

外径=14

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CXR1#,2#..MTM

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CXR1#,2#..MTM

長さ=16,外径=12

 6
33118 - PLATE, STIFFENER, RH(MTM)
33118-28040

CXR1#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-28040

CXR1#,2#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30080

CXR1#,2#..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

CXR1#,2#,TCR10,2#..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-30020

CXR1#,2#..MTM

 1
Common parts
90119-08332
90119-10263
90149-80002
90179-10016
91611-61035
91611-61040
91611-61045
91612-61050
91619-61255
