CXR10G-RRMNT (1993)

Toyota Estima Emina/Lucida

Production Aug 1993 - Jan 1995
Engine 3CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )3CTE

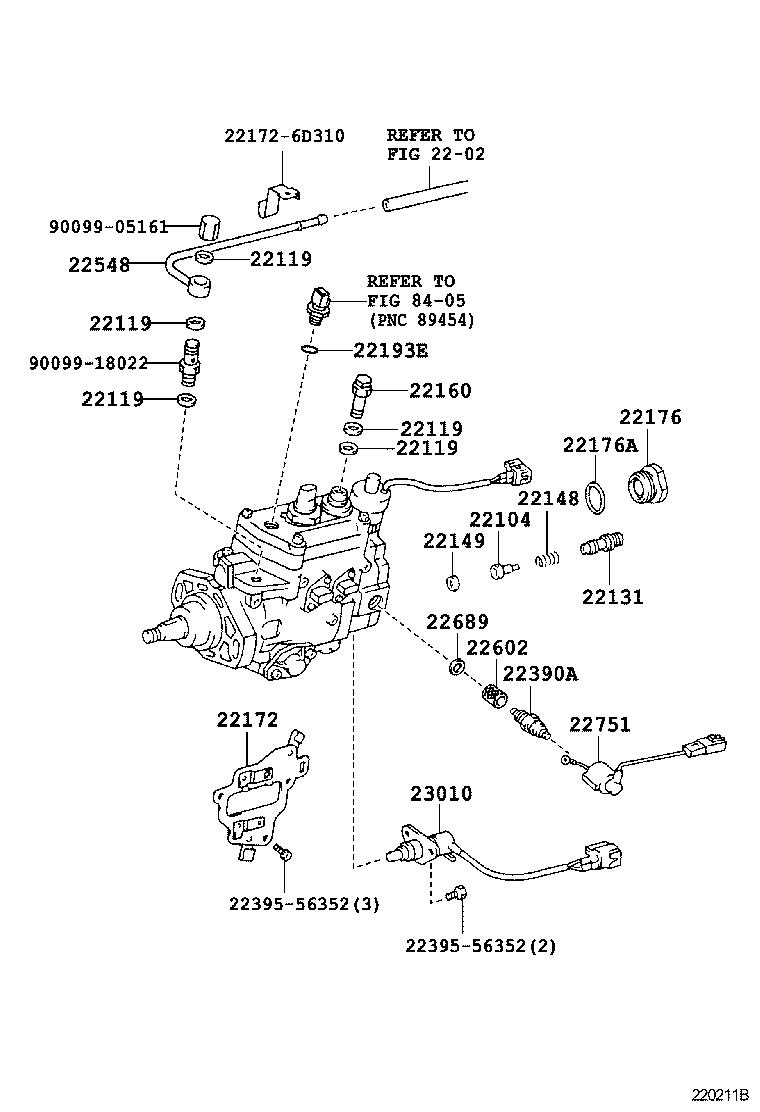

Click highlighted areas on diagram

diagram 2202 22104 22119 22119 22119 22119 22119 22131 22148 22149 22160 22172 221726D310 22176 22176A 22193E 22390A 2239556352 2239556352 22548 22602 22689 22751 23010 8405 9009905161 9009918022
Part # Description Qty Price
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-6D310

3CT..CXR1#,2#

 4
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CXR1#,2#..MTM

 8
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CXR1#,2#..MTM

 8
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CXR1#,2#..MTM

 8
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CXR1#,2#..MTM

 8
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CXR1#,2#..MTM

 8
22131 - HOLDER, DELIVERY VALVE
22190-6A680

3CT#..CXR1#,2#

 4
22148 - SPRING, DELIVERY VALVE
22148-54010

3CT#..CXR1#,2#

 4
22149 - GASKET, DELIVERY VALVE
22149-56351

3CT#..CXR1#,2#

 4
22160 - SCREW SUB-ASSY, OVERFLOW
22160-64010

3CT..CXR1#,2#

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54020

3CT..CXR1#,2#

 1
22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG)
90099-14052

3CT#..CXR1#,2#

 1
22390A - SOLENOID ASSY, FUEL CUT
22019-6A510

3CT..CXR1#,2#

 1
22548 - NIPPLE, SWIVEL
22548-6D310

3CT#..CXR1#,2#

 1
22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP
22602-56350

3CT#..CXR1#,2#

 1
22689 - WASHER(FOR SWIVEL NIPPLE)
22689-56350

3CT#..CXR1#,2#

 1
22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID
22751-6D310

3CT..CXR1#,2#

 1
Common parts
22172-6D310
22395-56352
90099-05161
90099-18022
Linked diagrams
2202
8405
