TCR21W-RFSGV (1994)
Toyota Estima

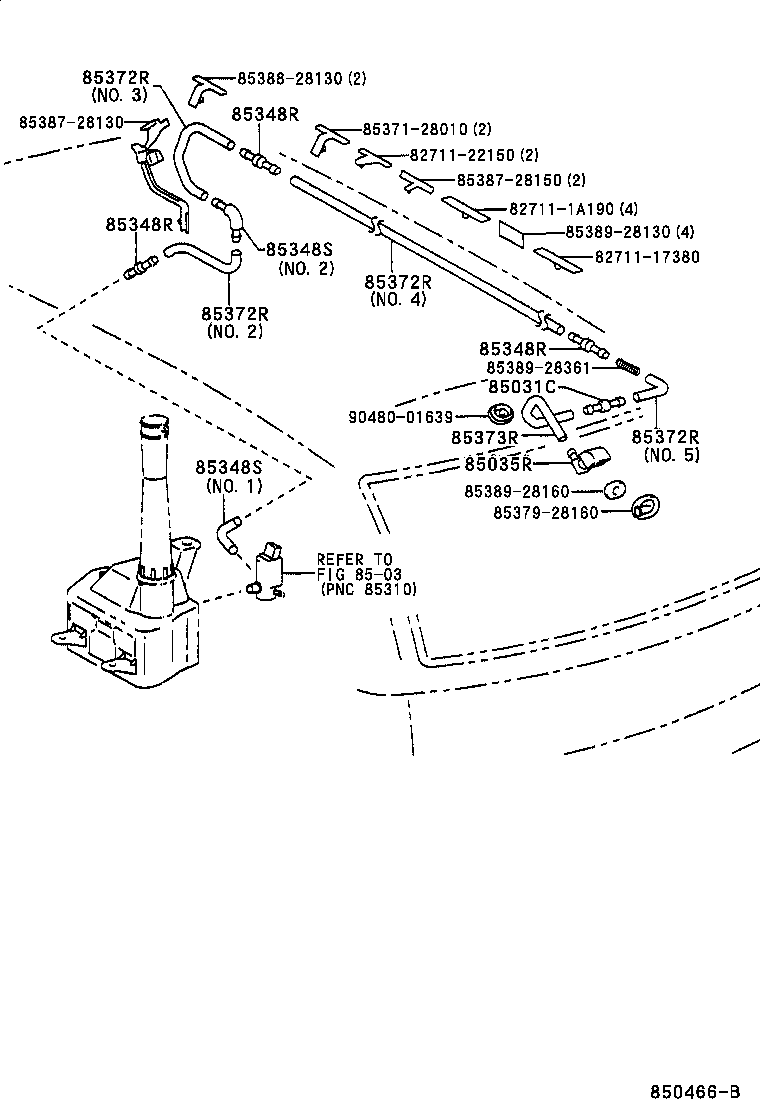

(9005-9801)SPC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR1#,2# |
2 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-95D01 |
TCR1#,2# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
TCR1#,2# NO.2 |
1 | ||
| 85355-14481 |
TCR1#,2#..SPC NO.1 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
TCR1#,2# NO.2 |
1 | ||
| 85355-14481 |
TCR1#,2#..SPC NO.1 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
TCR1#,2# *H,L=250 |
1 | ||
| Common parts | ||||
| 82711-1A190 | ||||
| 82711-22150 | ||||
| 85371-28010 | ||||
| 85387-28130 | ||||
| 85387-28150 | ||||
| 85388-28130 | ||||
| 90480-01639 | ||||
| Linked diagrams | ||||
| 8503 | ||||

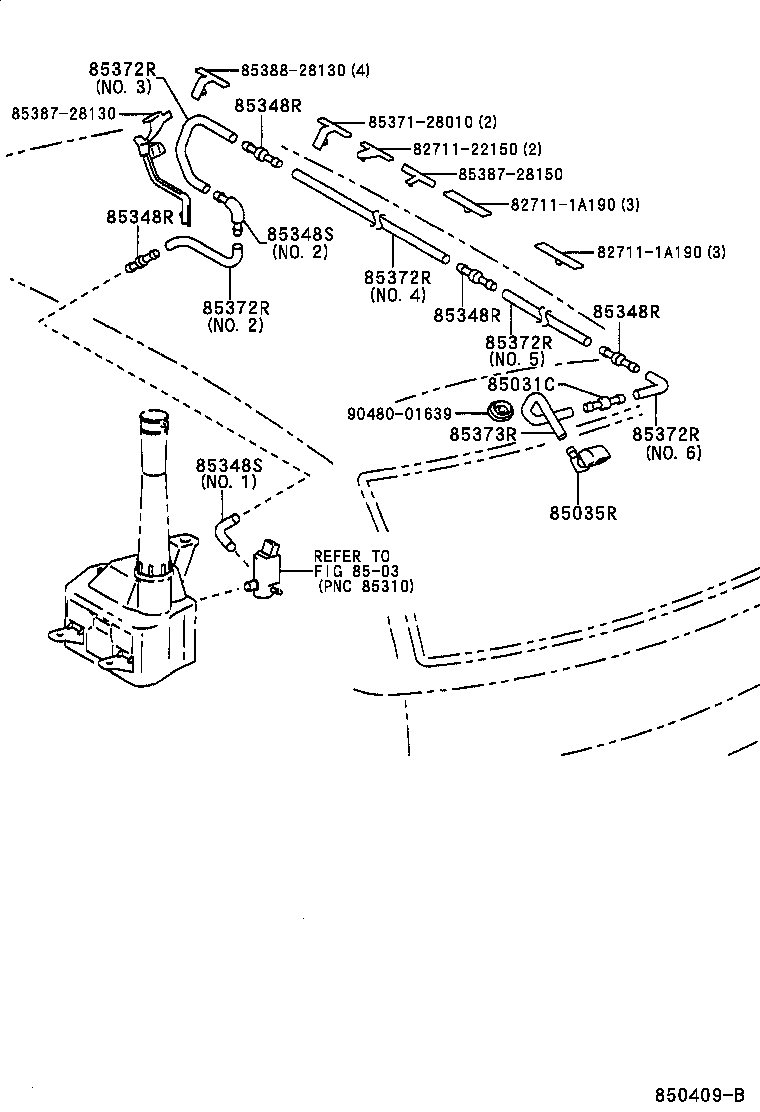

(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-12250 |
TCR1#,2# |
2 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-95D01 |
TCR1#,2# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
TCR1#,2# |
5 | ||
| 85349-89122 |
TCR11,21 ｱﾘ(*WDL) |
4 | ||
| 85349-89122 |
TCR1#,2# |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
TCR1#,2# NO.2 |
1 | ||
| 85355-14481 |
TCR1#,2#..SPC NO.1 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
TCR1#,2# NO.2 |
1 | ||
| 85355-14481 |
TCR1#,2#..SPC NO.1 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59019 |
TCR1#,2# 長さ=2120,NO.6 |
1 | ||
| 90446-07001 |
TCR1#,2# *H,L=340,NO.1,NO.4 |
1 | ||
| 90099-33108 |
TCR1#,2# 長さ=150,NO.5 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=250,NO.3 |
1 | ||
| 90099-33080 |
TCR1#,2# *H,L=200,NO.7,NO.2 |
1 | ||
| 90099-33299 |
TCR11,21 *H,L=230,NO.5 |
1 | ||
| 90099-59169 |
TCR11,21 長さ=2840,NO.4 |
1 | ||
| 90099-59116 |
TCR11,21 長さ=3000 |
1 | ||
| 90099-33197 |
TCR11,21 *H,L=820 |
1 | ||
| 90099-33080 |
TCR11,21 *H,L=90 |
1 | ||
| 90099-33299 |
TCR1#,2# *H,L=100,NO.2 |
1 | ||
| 90099-59116 |
TCR1#,2#..AERAS,G 長さ=3000,NO.4 |
1 | ||
| 90099-33080 |
TCR1#,2#..SPC *H,L=1140 |
1 | ||
| 90099-33299 |
TCR1#,2#..AERAS,G *H,L=100,NO.2 |
1 | ||
| 90099-33080 |
TCR1#,2#..AERAS,G *H,L=250,NO.3,NO.5 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
TCR1#,2# *H,L=250 |
1 | ||
| Common parts | ||||
| 82711-17380 | ||||
| 82711-1A190 | ||||
| 82711-22150 | ||||
| 85371-28010 | ||||
| 85379-28160 | ||||
| 85387-28130 | ||||
| 85387-28150 | ||||
| 85388-28130 | ||||
| 85389-28130 | ||||
| 85389-28160 | ||||
| 85389-28361 | ||||
| 90480-01639 | ||||
| Linked diagrams | ||||
| 8503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
