TCR21W-RFSGV (1994)

Toyota Estima

Production Aug 1994 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(9408- )SPC

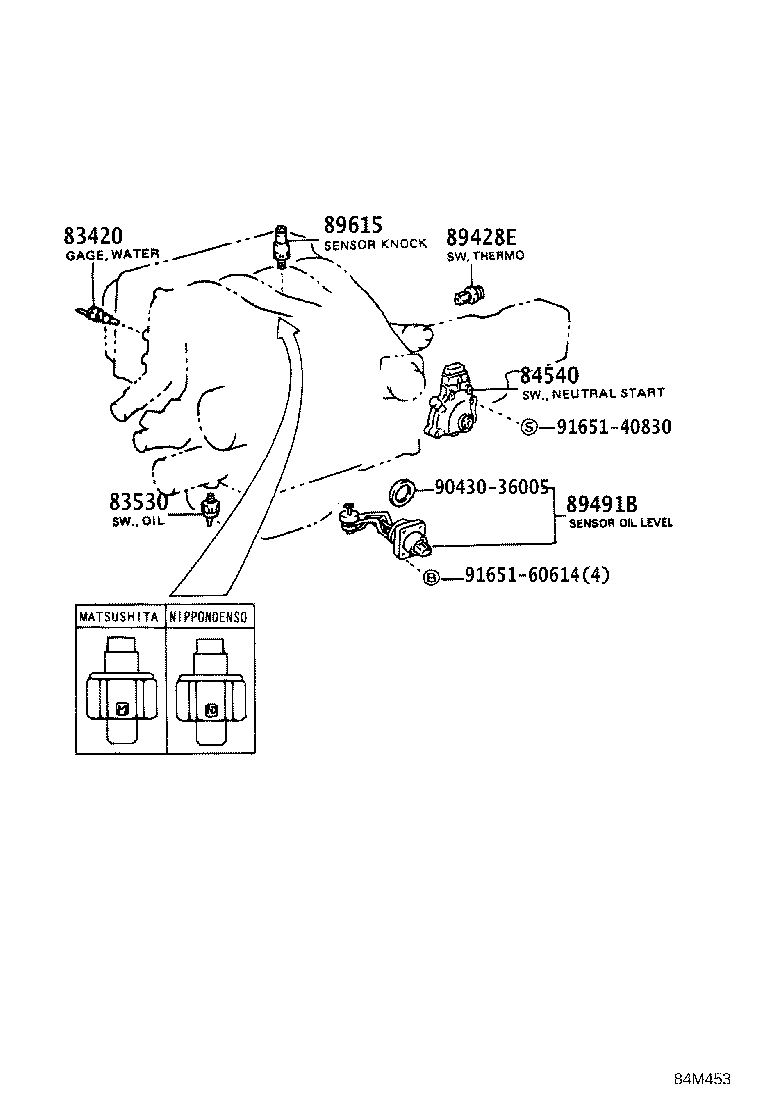

Click highlighted areas on diagram

ENGINE & TRANSMISSION 2/2

diagram 83420 83530 84540 89428E 89491B 89615 9043036005 9165140830 9165160614
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

TCR11,21

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30080

TCR11,21

 1
83530-28020

TCR1#,2#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-28020

TCR11,21

東海理化

 1
84540-30270

TCR1#,2#..G,V

東海理化

 1
89428E - SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)
89428-26030

TCR2#

 1
89491B - SENSOR, ENGINE OIL LEVEL(FOR AUTO FEEDER)
89491-28030

TCR1#,2#

 1
89491-28050

TCR1#,2#

 1
89615 - SENSOR, KNOCK CONTROL
89615-12020

TCR11,21

 1
Common parts
90430-36005
91651-40830
91651-60614
