TCR21W-RFSGV (1994)
Toyota Estima

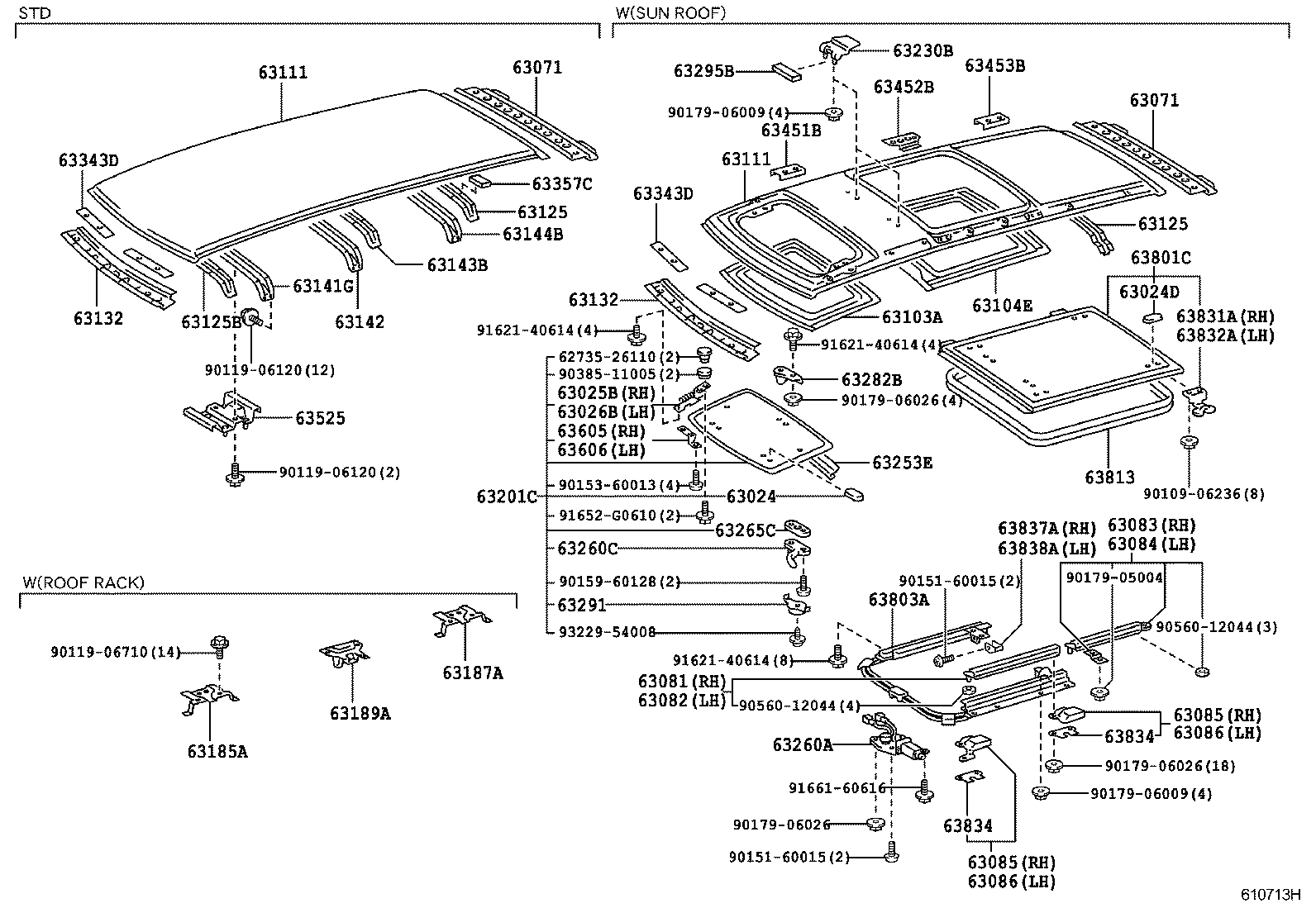

ILLUST NO. 1 OF 2(9005-9801)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-95D00 |
TCR1#,2# |
1 | ||
| 63025-28040 |
TCR1#,2# |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28040 |
TCR1#,2# |
1 | ||
| 63026-95D00 |
TCR1#,2# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95D00 |
TCR1#,2# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95D00 |
TCR1#,2# |
1 | ||
| 63081 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH | ||||
| 63081-95D00 |
TCR1#,2# |
1 | ||
| 63081-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63081-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63082 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH | ||||
| 63082-95D00 |
TCR1#,2# |
1 | ||
| 63082-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63082-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63083-95D00 |
TCR1#,2# |
1 | ||
| 63083-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63084-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63084-95D00 |
TCR1#,2# |
1 | ||
| 63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH | ||||
| 63085-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63085-95D01 |
TCR1#,2# REAR |
1 | ||
| 63085-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63085-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63085-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH | ||||
| 63085-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63085-95D01 |
TCR1#,2# REAR |
1 | ||
| 63085-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63085-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63085-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH | ||||
| 63086-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# REAR |
1 | ||
| 63086-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63086-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH | ||||
| 63086-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# REAR |
1 | ||
| 63086-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63086-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-95D00 |
TCR1#,2# |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-28030 |
TCR1#,2# |
1 | ||
| 63104-95D00 |
TCR1#,2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95D02 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-95D01 |
TCR11,21 |
1 | ||
| 63111-28081 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28051 |
TCR1#,2# |
1 | ||
| 63111-28150 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28130 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28161 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95D02 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-95D01 |
TCR11,21 |
1 | ||
| 63111-28081 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28051 |
TCR1#,2# |
1 | ||
| 63111-28150 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28130 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28161 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-95D00 |
TCR1#,2# |
1 | ||
| 63125-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-95D00 |
TCR1#,2# |
1 | ||
| 63125-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63125B - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-95D00 |
TCR1#,2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28060 |
TCR1#,2# |
1 | ||
| 63132-95D01 |
TCR1#,2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28060 |
TCR1#,2# |
1 | ||
| 63132-95D01 |
TCR1#,2# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95D01 |
TCR1#,2# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95D00 |
TCR1#,2# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-95D00 |
TCR1#,2# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-95D00 |
TCR1#,2# |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-28010 |
TCR1#,2# |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-28010 |
TCR1#,2# |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-28010 |
TCR1#,2# |
2 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28040 |
TCR11,21 *TL,厚さ=4.7,ｸﾞﾚｰ |
1 | ||
| 63201-28050 |
TCR11,21 *TL,厚さ=4.7,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-28290 |
TCR1#,2# *LAM,厚さ=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 63201-28300 |
TCR1#,2# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-28010 |
TCR1#,2# |
2 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63253-28010 |
TCR1#,2# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-28080 |
TCR1#,2# |
1 | ||
| 63260-95D00 |
TCR11,21 |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-95D02 |
TCR1#,2# |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95D00 |
TCR1#,2# |
1 | ||
| 63291 - GARNISH, ROOF WINDOW LOCK, OUTER | ||||
| 63291-95D00 |
TCR1#,2# |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-28020 |
TCR1#,2# |
2 | ||
| 63343D - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95D00 |
TCR1#,2# |
2 | ||
| 63343D - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95D00 |
TCR1#,2# |
2 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-28020 |
TCR1#,2# |
2 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63452-28010 |
TCR1#,2# |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63453-28010 |
TCR1#,2# |
2 | ||
| 63453-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
2 | ||
| 63453-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95D00 |
TCR1#,2# |
1 | ||
| 63605-28060 |
TCR1#,2# |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28060 |
TCR1#,2# |
1 | ||
| 63606-95D00 |
TCR1#,2# |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-28010 |
TCR11,21 *TL,厚さ=4.7,ｸﾞﾚｰ |
1 | ||
| 63801-28090 |
TCR1#,2# *LAM,厚さ=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 63801-28100 |
TCR1#,2# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63801-28020 |
TCR11,21 *TL,厚さ=4.7,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE | ||||
| 63803-28040 |
TCR1#,2# |
1 | ||
| 63803-95D00 |
TCR1#,2# |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-28050 |
TCR1#,2# |
1 | ||
| 63813-95D00 |
TCR11,21 |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-28020 |
TCR1#,2# |
2 | ||
| 60383-28010 |
TCR1#,2# |
2 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-28020 |
TCR1#,2# |
2 | ||
| 60384-28010 |
TCR1#,2# |
2 | ||
| 63834 - PACKING, REAR SLIDE ROOF GUIDE | ||||
| 63834-95D00 |
TCR1#,2# |
4 | ||
| 63834-95D00 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63834-28010 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ);ｱﾘ(ｻﾝﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
2 | ||
| 63834 - PACKING, REAR SLIDE ROOF GUIDE | ||||
| 63834-95D00 |
TCR1#,2# |
4 | ||
| 63834-95D00 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63834-28010 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ);ｱﾘ(ｻﾝﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
2 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-95D00 |
TCR1#,2# |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-95D00 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 62735-26110 | ||||
| 90119-06120 | ||||
| 90119-06710 | ||||
| 90151-60015 | ||||
| 90179-05004 | ||||
| 90179-06009 | ||||
| 90179-06058 | ||||
| 90179-06164 | ||||
| 90179-06216 | ||||
| 90560-12044 | ||||
| 91651-60614 | ||||
| 91655-40616 | ||||
| 91666-40618 | ||||
| 93229-54008 | ||||
| 94185-60600 | ||||

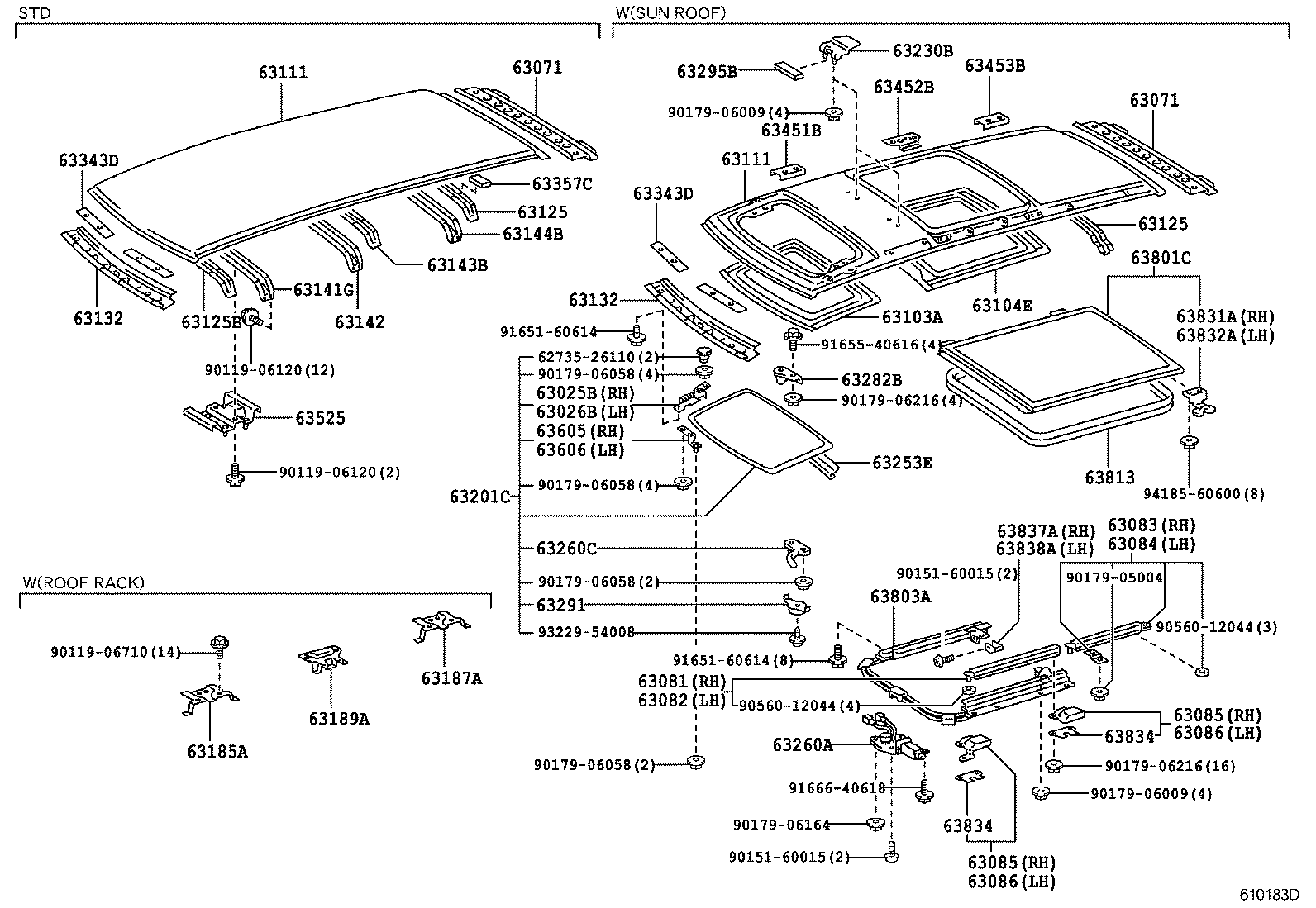

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-28030 |
TCR1#,2# |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-28020 |
TCR1#,2# |
1 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63439-21010 |
TCR1#,2# |
1 | ||
| 63438D - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-28020 |
TCR1#,2# |
1 | ||
| 63439A - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63438-21010 |
TCR1#,2# |
1 | ||
| 63439B - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63439-28020 |
TCR1#,2# |
1 | ||
| 63447B - BAR, ROOF CARRIER, RH | ||||
| 63447-28900 |
TCR1#,2# |
1 | ||
| 63448B - BAR, ROOF CARRIER, LH | ||||
| 63448-28900 |
TCR1#,2# |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-28020 |
TCR1#,2# |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-28020 |
TCR1#,2# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-28020 |
TCR1#,2# |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-28020 |
TCR1#,2# |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-28020 |
TCR1#,2# |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-28020 |
TCR1#,2# |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-28030 |
TCR1#,2# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63486-28030 |
TCR1#,2# |
1 | ||
| 75505B - GARNISH SUB-ASSY, ROOF SIDE, FRONT RH | ||||
| 75505-28900 |
TCR1#,2# |
1 | ||
| 75506B - GARNISH SUB-ASSY, ROOF SIDE, FRONT LH | ||||
| 75506-28900 |
TCR1#,2# |
1 | ||
| 75553B - GARNISH, ROOF SIDE, REAR RH | ||||
| 75553-28900 |
TCR1#,2# |
1 | ||
| 75554B - GARNISH, ROOF SIDE, REAR LH | ||||
| 75554-28900 |
TCR1#,2# |
1 | ||
| 75557D - COVER, ROOF SIDE GARNISH END, RH | ||||
| 75557-28900 |
TCR1#,2# |
1 | ||
| 75558D - COVER, ROOF SIDE GARNISH END, LH | ||||
| 75558-28900 |
TCR1#,2# |
1 | ||
| 75561C - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-28040 |
TCR1#,2# |
6 | ||
| 75565B - PROTECTOR, ROOF SIDE GARNISH, FRONT RH | ||||
| 75565-28040 |
TCR1#,2# |
1 | ||
| 75566D - PROTECTOR, ROOF SIDE GARNISH, FRONT LH | ||||
| 75566-28030 |
TCR1#,2# |
1 | ||
| 75567B - PROTECTOR, ROOF SIDE GARNISH, REAR RH | ||||
| 75567-28030 |
TCR1#,2# |
1 | ||
| 75568B - PROTECTOR, ROOF SIDE GARNISH, REAR RH | ||||
| 75567-28030 |
TCR1#,2# |
1 | ||
| 75577D - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-28010 |
TCR1#,2# |
2 | ||
| 75597C - CLIP, ROOF SIDE GARNISH | ||||
| 75597-28010 |
TCR1#,2# |
12 | ||
| 75598B - PACKING, ROOF SIDE GARNISH | ||||
| 75598-95D00 |
TCR1#,2# |
4 | ||
| 75598C - PACKING, ROOF SIDE GARNISH | ||||
| 75598-28010 |
TCR1#,2# |
2 | ||
| 75599B - BOLT, ROOF SIDE GARNISH | ||||
| 75599-28010 |
TCR1#,2# |
2 | ||
| 75599C - BOLT, ROOF SIDE GARNISH | ||||
| 75599-95D00 |
TCR1#,2# |
4 | ||
| 75631G - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75631-28900 |
TCR1#,2# |
1 | ||
| 75631K - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75631-28900 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90119-06710 | ||||
| 90119-06804 | ||||
| 90119-06825 | ||||
| 90119-06826 | ||||
| 90154-50009 | ||||
| 90159-60562 | ||||
| 90159-60563 | ||||
| 90179-06127 | ||||
| 90179-06216 | ||||
| 90179-06220 | ||||
| 90430-10018 | ||||
| 93239-85010 | ||||
| 93239-A5010 | ||||
ILLUST NO. 1 OF 2(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-28010 |
TCR1#,2# |
2 | ||
| 63024D - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-28010 |
TCR1#,2# |
6 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-95D00 |
TCR1#,2# |
1 | ||
| 63025-28040 |
TCR1#,2# |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28040 |
TCR1#,2# |
1 | ||
| 63026-95D00 |
TCR1#,2# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95D00 |
TCR1#,2# |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-95D00 |
TCR1#,2# |
1 | ||
| 63081 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH | ||||
| 63081-95D00 |
TCR1#,2# |
1 | ||
| 63081-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63081-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63082 - RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH | ||||
| 63082-95D00 |
TCR1#,2# |
1 | ||
| 63082-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63082-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63083 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH | ||||
| 63083-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63083-95D00 |
TCR1#,2# |
1 | ||
| 63083-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63084 - RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH | ||||
| 63084-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63084-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
1 | ||
| 63084-95D00 |
TCR1#,2# |
1 | ||
| 63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH | ||||
| 63085-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63085-95D01 |
TCR1#,2# REAR |
1 | ||
| 63085-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63085-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63085-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63085 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH | ||||
| 63085-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63085-95D01 |
TCR1#,2# REAR |
1 | ||
| 63085-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63085-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63085-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH | ||||
| 63086-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# REAR |
1 | ||
| 63086-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63086-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63086 - GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH | ||||
| 63086-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ),FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# REAR |
1 | ||
| 63086-95D00 |
TCR1#,2# FRONT |
1 | ||
| 63086-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),REAR |
1 | ||
| 63086-28020 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ),FRONT |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-95D00 |
TCR1#,2# |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-28030 |
TCR1#,2# |
1 | ||
| 63104-95D00 |
TCR1#,2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95D02 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-95D01 |
TCR11,21 |
1 | ||
| 63111-28081 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28051 |
TCR1#,2# |
1 | ||
| 63111-28150 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28130 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28161 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95D02 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-95D01 |
TCR11,21 |
1 | ||
| 63111-28081 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28051 |
TCR1#,2# |
1 | ||
| 63111-28150 |
TCR1#,2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-28130 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63111-28161 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-95D00 |
TCR1#,2# |
1 | ||
| 63125-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-95D00 |
TCR1#,2# |
1 | ||
| 63125-95D01 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63125B - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-95D00 |
TCR1#,2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28060 |
TCR1#,2# |
1 | ||
| 63132-95D01 |
TCR1#,2# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28060 |
TCR1#,2# |
1 | ||
| 63132-95D01 |
TCR1#,2# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-95D01 |
TCR1#,2# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95D00 |
TCR1#,2# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-95D00 |
TCR1#,2# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-95D00 |
TCR1#,2# |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-28010 |
TCR1#,2# |
2 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-28010 |
TCR1#,2# |
2 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-28010 |
TCR1#,2# |
2 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28040 |
TCR11,21 *TL,厚さ=4.7,ｸﾞﾚｰ |
1 | ||
| 63201-28050 |
TCR11,21 *TL,厚さ=4.7,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-28290 |
TCR1#,2# *LAM,厚さ=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 63201-28300 |
TCR1#,2# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-28010 |
TCR1#,2# |
2 | ||
| 63253E - DAM, ROOF WINDOW, NO.3 | ||||
| 63253-28010 |
TCR1#,2# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-28080 |
TCR1#,2# |
1 | ||
| 63260-95D00 |
TCR11,21 |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-95D02 |
TCR1#,2# |
1 | ||
| 63265C - PLATE, TILT ROOF LOCK | ||||
| 63265-28030 |
TCR1#,2# |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-95D00 |
TCR1#,2# |
1 | ||
| 63291 - GARNISH, ROOF WINDOW LOCK, OUTER | ||||
| 63291-95D00 |
TCR1#,2# |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-28020 |
TCR1#,2# |
2 | ||
| 63343D - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95D00 |
TCR1#,2# |
2 | ||
| 63343D - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-95D00 |
TCR1#,2# |
2 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-28020 |
TCR1#,2# |
2 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63452-28010 |
TCR1#,2# |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63453-28010 |
TCR1#,2# |
2 | ||
| 63453-28010 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ) |
2 | ||
| 63453-28030 |
TCR1#,2# ｱﾘ(ﾂｲﾝ ｻﾝﾙ-ﾌ & ﾙ-ﾌﾚ-ﾙ) |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-95D00 |
TCR1#,2# |
1 | ||
| 63605-28060 |
TCR1#,2# |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28060 |
TCR1#,2# |
1 | ||
| 63606-95D00 |
TCR1#,2# |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-28010 |
TCR11,21 *TL,厚さ=4.7,ｸﾞﾚｰ |
1 | ||
| 63801-28090 |
TCR1#,2# *LAM,厚さ=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 63801-28100 |
TCR1#,2# *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63801-28020 |
TCR11,21 *TL,厚さ=4.7,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63803A - CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE | ||||
| 63803-28040 |
TCR1#,2# |
1 | ||
| 63803-95D00 |
TCR1#,2# |
1 | ||
| 63813 - WEATHERSTRIP, REAR SLIDE ROOF | ||||
| 63813-28050 |
TCR1#,2# |
1 | ||
| 63813-95D00 |
TCR11,21 |
1 | ||
| 63831A - SHOE, REAR SLIDE ROOF, RH | ||||
| 60383-28020 |
TCR1#,2# |
2 | ||
| 60383-28010 |
TCR1#,2# |
2 | ||
| 63832A - SHOE, REAR SLIDE ROOF, LH | ||||
| 60384-28020 |
TCR1#,2# |
2 | ||
| 60384-28010 |
TCR1#,2# |
2 | ||
| 63834 - PACKING, REAR SLIDE ROOF GUIDE | ||||
| 63834-95D00 |
TCR1#,2# |
4 | ||
| 63834-95D00 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63834-28010 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ);ｱﾘ(ｻﾝﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
2 | ||
| 63834 - PACKING, REAR SLIDE ROOF GUIDE | ||||
| 63834-95D00 |
TCR1#,2# |
4 | ||
| 63834-95D00 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 63834-28010 |
TCR1#,2# ｱﾘ(ｻﾝﾙ-ﾌ);ｱﾘ(ｻﾝﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
2 | ||
| 63837A - GARNISH, REAR SLIDE ROOF, RH | ||||
| 63837-95D00 |
TCR1#,2# |
1 | ||
| 63838A - GARNISH, REAR SLIDE ROOF, LH | ||||
| 63838-95D00 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 62735-26110 | ||||
| 90109-06236 | ||||
| 90119-06120 | ||||
| 90119-06710 | ||||
| 90151-60015 | ||||
| 90153-60013 | ||||
| 90159-60128 | ||||
| 90179-05004 | ||||
| 90179-06009 | ||||
| 90179-06026 | ||||
| 90385-11005 | ||||
| 90560-12044 | ||||
| 91621-40614 | ||||
| 91652-G0610 | ||||
| 91661-60616 | ||||
| 93229-54008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
