TCR21W-RFSGV (1994)

Toyota Estima

Production Aug 1994 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9906)

Click highlighted areas on diagram

diagram 04562 55215A 55701 56111 56114A 56114A 56116 56116 56116 56116 56117A 56118B 56119 56119 56119 56119 56119 9033330002
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-28020

TCR1#,2#

 1
55701 - PANEL SUB-ASSY, COWL
55701-95D03

TCR1#,2#

 1
56111 - GLASS, WINDSHIELD
56111-28060

TCR11,21

*SERL,T=5.3,ｸﾞﾚｰ

 1
56111-95D10

TCR11,21

*LAM,T=5.3,ｸﾞﾚｰ

 1
56111-28050

TCR11,21

*SERL,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-95D04

TCR11,21

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-95D04

TCR11,21

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-28290

TCR11,21

*LAM,T=5.3,ｸﾞﾘｰﾝ

 1
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

TCR1#,2#

 2
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

TCR1#,2#

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-28110

TCR1#,2#

 1
04562-28020

TCR1#,2#

 1
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-28010

TCR1#,2#

 1
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
Common parts
90333-30002

(9906- )

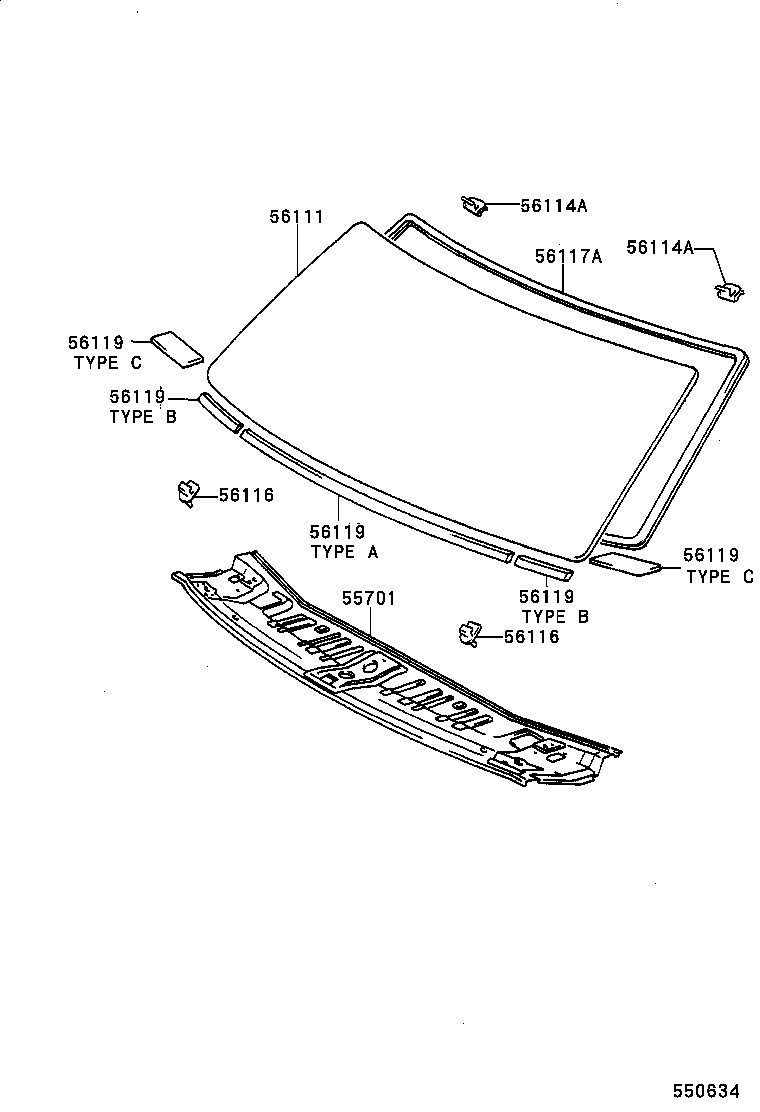

Click highlighted areas on diagram

diagram 55701 56111 56114A 56114A 56116 56116 56117A 56119 56119 56119 56119 56119
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55701-95D03

TCR1#,2#

 1
56111 - GLASS, WINDSHIELD
56111-28060

TCR11,21

*SERL,T=5.3,ｸﾞﾚｰ

 1
56111-95D10

TCR11,21

*LAM,T=5.3,ｸﾞﾚｰ

 1
56111-28050

TCR11,21

*SERL,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-95D04

TCR11,21

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-95D04

TCR11,21

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56111-28290

TCR11,21

*LAM,T=5.3,ｸﾞﾘｰﾝ

 1
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

TCR1#,2#

 2
56114A - RETAINER, BACK WINDOW GLASS
56114-20040

TCR1#,2#

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116 - SPACER, WINDSHIELD GLASS
56115-28020

TCR1#,2#

ﾌﾞﾗﾂｸ

 2
56116-20080

TCR11,21

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56116-28030

TCR1#,2#

ﾌﾞﾙ-

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-28110

TCR1#,2#

 1
04562-28020

TCR1#,2#

 1
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28010

TCR1#,2#

ﾀｲﾌﾟ A

 1
56119-28020

TCR1#,2#

ﾀｲﾌﾟ B

 2
56119-28030

TCR1#,2#

ﾀｲﾌﾟ C

 2
