TCR21W-RFSGV (1994)

Toyota Estima

Production Aug 1994 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

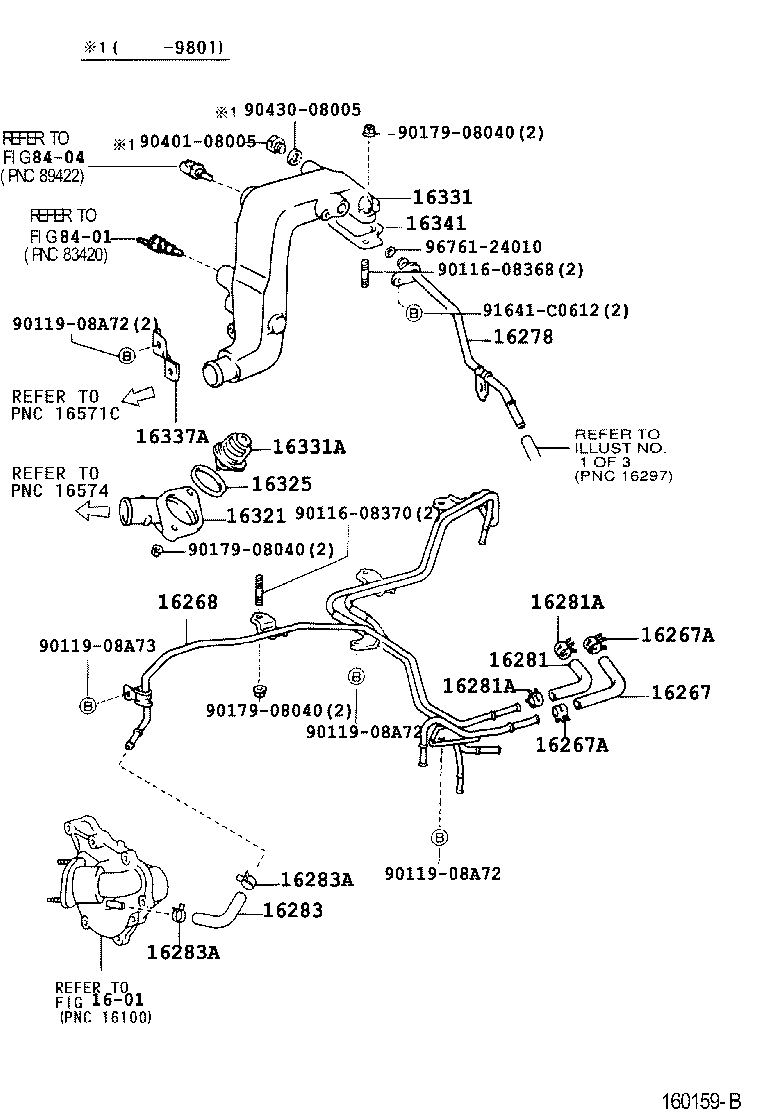

ILLUST NO. 2 OF 3(9408- )2TZFZE

Click highlighted areas on diagram

diagram 1601 16267 16267A 16267A 16268 16278 16281 16281A 16281A 16283 16283A 16283A 16321 16325 16331 16331A 16337A 16341 8401 8404 9011608368 9011608370 9011908A72 9011908A72 9011908A72 9011908A73 9017908040 9017908040 9017908040 9040108005 9043008005 91641C0612 9676124010
Part # Description Qty Price
16267 - HOSE, WATER BY-PASS, NO.3
16267-76010

2TZ#..TCR1#,2#

 1
16267-76010

2TZFZE..TCR1#,2#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-41300

2TZ#..TCR1#,2#

 2
96135-41300

2TZFZE..TCR1#,2#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96135-41300

2TZ#..TCR1#,2#

 2
96135-41300

2TZFZE..TCR1#,2#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-76050

2TZFZE..TCR1#,2#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-76010

2TZ#..TCR1#,2#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-76010

2TZ#..TCR1#,2#

 1
16281-76010

2TZFZE..TCR1#,2#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96135-41300

2TZFZE..TCR1#,2#

 2
96135-41300

2TZ#..TCR1#,2#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96135-41300

2TZFZE..TCR1#,2#

 2
96135-41300

2TZ#..TCR1#,2#

 2
16283 - HOSE, WATER BY-PASS, NO.6
99555-10100

2TZFZE..TCR1#,2#

長さ=100

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96135-41300

2TZFZE..TCR1#,2#

 2
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
96135-41300

2TZFZE..TCR1#,2#

 2
16321 - INLET, WATER
16321-76010

2TZ#..TCR1#,2#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

2TZ#..TCR1#,2#

 1
16325-76010

2TZ#..TCR1#,2#

 1
16331 - OUTLET, WATER
16331-76050

2TZFZE..TCR1#,2#

 1
16331-76070

2TZFZE..TCR1#,2#

 1
16331A - THERMOSTAT
90916-03120

2TZ#..TCR1#,2#

*WAX 82−95

 1
16337A - STAY, WATER OUTLET
16337-76010

2TZ#..TCR1#,2#

 1
16341 - GASKET, WATER OUTLET
16341-76010

2TZ#..TCR1#,2#

 1
Common parts
90116-08368
90116-08370
90119-08A72
90119-08A73
90179-08040
90401-08005
90430-08005
91641-C0612
96761-24010
Linked diagrams
1601
8401
8404

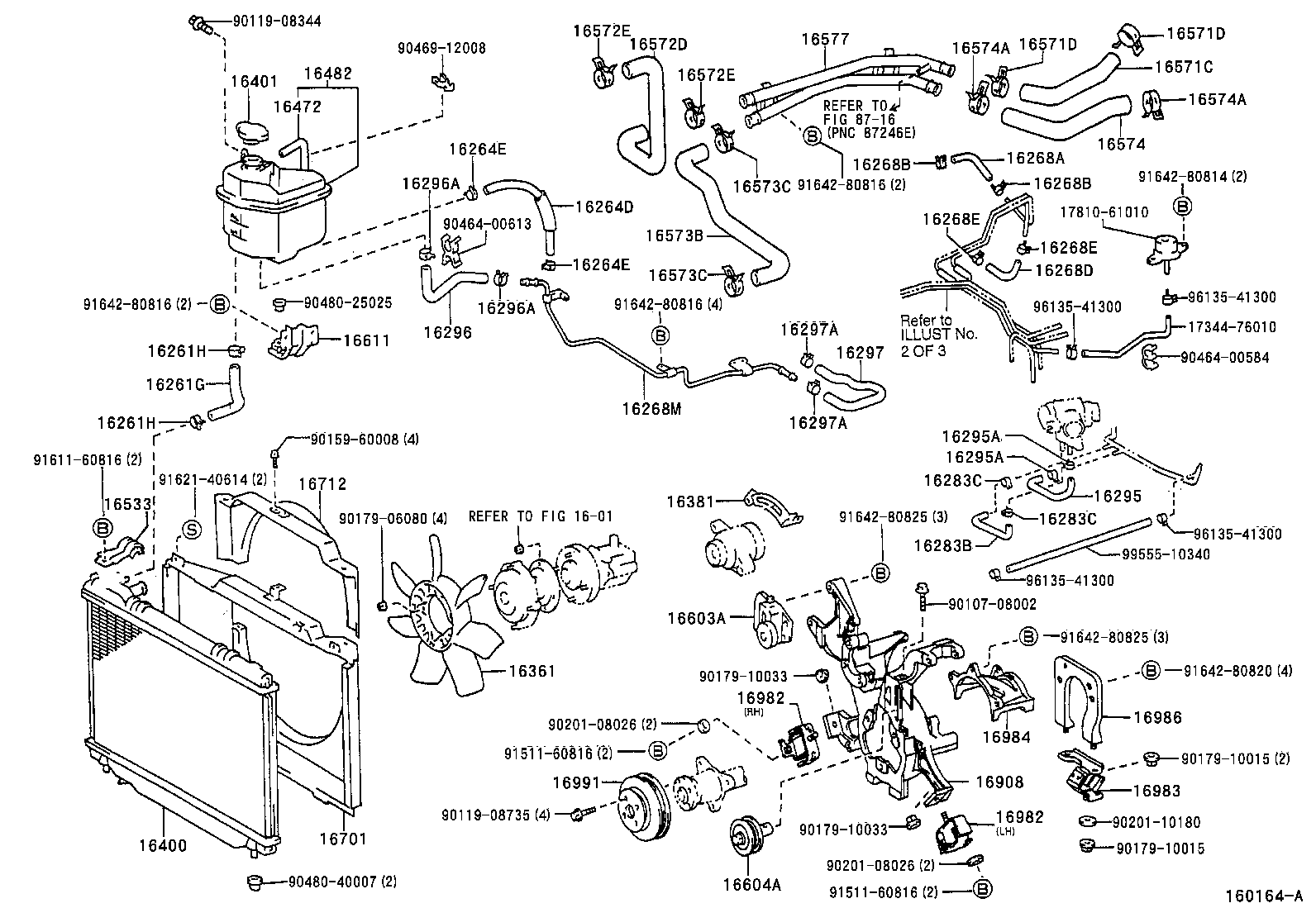

ILLUST NO. 1 OF 3(9408-9601)2TZFZE

Click highlighted areas on diagram

diagram 1601 16261G 16261H 16261H 16264D 16264E 16264E 16268A 16268B 16268B 16268D 16268E 16268E 16268M 16283B 16283C 16283C 16295 16295A 16295A 16296 16296A 16296A 16297 16297A 16297A 16361 16381 16400 16401 16472 16482 16533 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16574 16574A 16574A 16577 16603A 16604A 16611 16701 16712 16908 16982 16982 16983 16984 16986 16991 1734476010 1781061010 8716 9010708002 9011908344 9011908735 9015960008 9017906080 9017910015 9017910015 9017910033 9017910033 9020108026 9020108026 9020110180 9046400584 9046400613 9046912008 9048025025 9048040007 9151160816 9151160816 9161160816 9162140614 9164280814 9164280816 9164280816 9164280816 9164280820 9164280825 9164280825 9613541300 9613541300 9613541300 9613541300 9955510340
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-76040

2TZ#..TCR1#,2#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-15022

2TZ#..TCR1#,2#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-15022

2TZ#..TCR1#,2#

 2
16264D - HOSE, WATER BY-PASS, NO.2
90445-16048

2TZFZE..TCR1#,2#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2TZ#..TCR1#,2#

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2TZ#..TCR1#,2#

 2
16268A - HOSE(FOR WATER BY-PASS PIPE)
17342-76010

2TZ#..TCR1#,2#

高さ=120

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41100

2TZ#..TCR1#,2#

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41100

2TZ#..TCR1#,2#

 2
16268D - HOSE(FOR WATER BY-PASS PIPE)
17343-76010

2TZ#..TCR1#,2#

 1
16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2TZ#..TCR1#,2#

 2
16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2TZ#..TCR1#,2#

 2
16268M - PIPE, WATER BY-PASS, NO.3
16268-76060

2TZFZE..TCR1#,2#

 1
16268-76061

2TZFZE..TCR1#,2#

 1
16283B - HOSE, WATER BY-PASS
16283-76010

2TZFZE..TCR1#,2#

 1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96135-41300

2TZFZE..TCR1#,2#

 2
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96135-41300

2TZFZE..TCR1#,2#

 2
16295 - HOSE, WATER BY-PASS, NO.7
16295-76010

2TZFZE..TCR1#,2#

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96135-41300

2TZFZE..TCR1#,2#

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96135-41300

2TZFZE..TCR1#,2#

 2
16296 - HOSE, WATER BY-PASS, NO.8
16296-76010

2TZFZE..TCR1#,2#

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96135-41400

2TZFZE..TCR11,21

 2
90467-15022

2TZFZE..TCR1#,2#

 2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96135-41400

2TZFZE..TCR11,21

 2
90467-15022

2TZFZE..TCR1#,2#

 2
16297 - HOSE, WATER BY-PASS, NO.9
16297-76010

2TZFZE..TCR1#,2#

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90467-15022

2TZFZE..TCR1#,2#

 2
96135-41400

2TZFZE..TCR11,21

 2
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90467-15022

2TZFZE..TCR1#,2#

 2
96135-41400

2TZFZE..TCR11,21

 2
16400 - RADIATOR ASSY
16400-76141

2TZFZE..TCR1#,2#

 1
16400-76140

2TZFZE..TCR11,21

 1
16400-76142

2TZFZE..TCR1#,2#

 1
16472 - HOSE, BREATHER
85338-76020

2TZ#..TCR1#,2#

 1
90445-12078

2TZ#..TCR1#,2#

*H,L=150

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-76012

2TZ#..TCR1#,2#

 1
16480-76011

2TZ#..TCR1#,2#

 1
16480-76013

2TZFZE..TCR1#,2#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41009

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-42001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41009

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-42001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16573B - HOSE, RADIATOR, NO.3
16573-76022

2TZ#..TCR1#,2#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-41007

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-41007

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
16577 - PIPE, RADIATOR, NO.7
16577-76070

2TZ#..TCR1#,2#

 1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-76010

2TZFZE..TCR1#,2#

 1
16604A - SPRING(FOR IDLER PULLEY TENSION)
16604-76010

2TZFZE..TCR1#,2#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-76010

2TZ#..TCR1#,2#

 1
16611-76011

2TZ#..TCR1#,2#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-76100

2TZFZE..TCR1#,2#

 1
16711-76101

2TZFZE..TCR1#,2#

 1
16712 - SHROUD, FAN, NO.2
16712-76050

2TZFZE..TCR1#,2#

 1
16712-76051

2TZFZE..TCR1#,2#

 1
16908 - HOUSING SUB-ASSY, EQUIPMENT DRIVE
16908-76020

2TZFZE..TCR1#,2#

 1
16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16982-76031

2TZFZE..TCR1#,2#

右側

 1
16982-76041

2TZFZE..TCR1#,2#

左側

 1
16982-76040

2TZFZE..TCR11,21

左側

 1
16982-76030

2TZFZE..TCR11,21

右側

 1
16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16982-76031

2TZFZE..TCR1#,2#

右側

 1
16982-76041

2TZFZE..TCR1#,2#

左側

 1
16982-76040

2TZFZE..TCR11,21

左側

 1
16982-76030

2TZFZE..TCR11,21

右側

 1
16983 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2
16983-76020

2TZFZE..TCR1#,2#

 1
16984 - STAY, EQUIPMENT DRIVE HOUSING, NO.1
16984-76020

2TZFZE..TCR1#,2#

 1
16986 - STAY, EQUIPMENT DRIVE HOUSING, NO.3
16986-76040

2TZFZE..TCR1#,2#

 1
16991 - PULLEY, EQUIPMENT DRIVE
16991-76030

2TZFZE..TCR1#,2#

 1
16991-76031

2TZFZE..TCR1#,2#

 1
Common parts
17344-76010
17810-61010
90107-08002
90119-08344
90119-08735
90159-60008
90179-06080
90179-10015
90179-10033
90201-08026
90201-10180
90464-00584
90464-00613
90469-12008
90480-25025
90480-40007
91511-60816
91611-60816
91621-40614
91642-80814
91642-80816
91642-80820
91642-80825
96135-41300
99555-10340
Linked diagrams
1601
8716

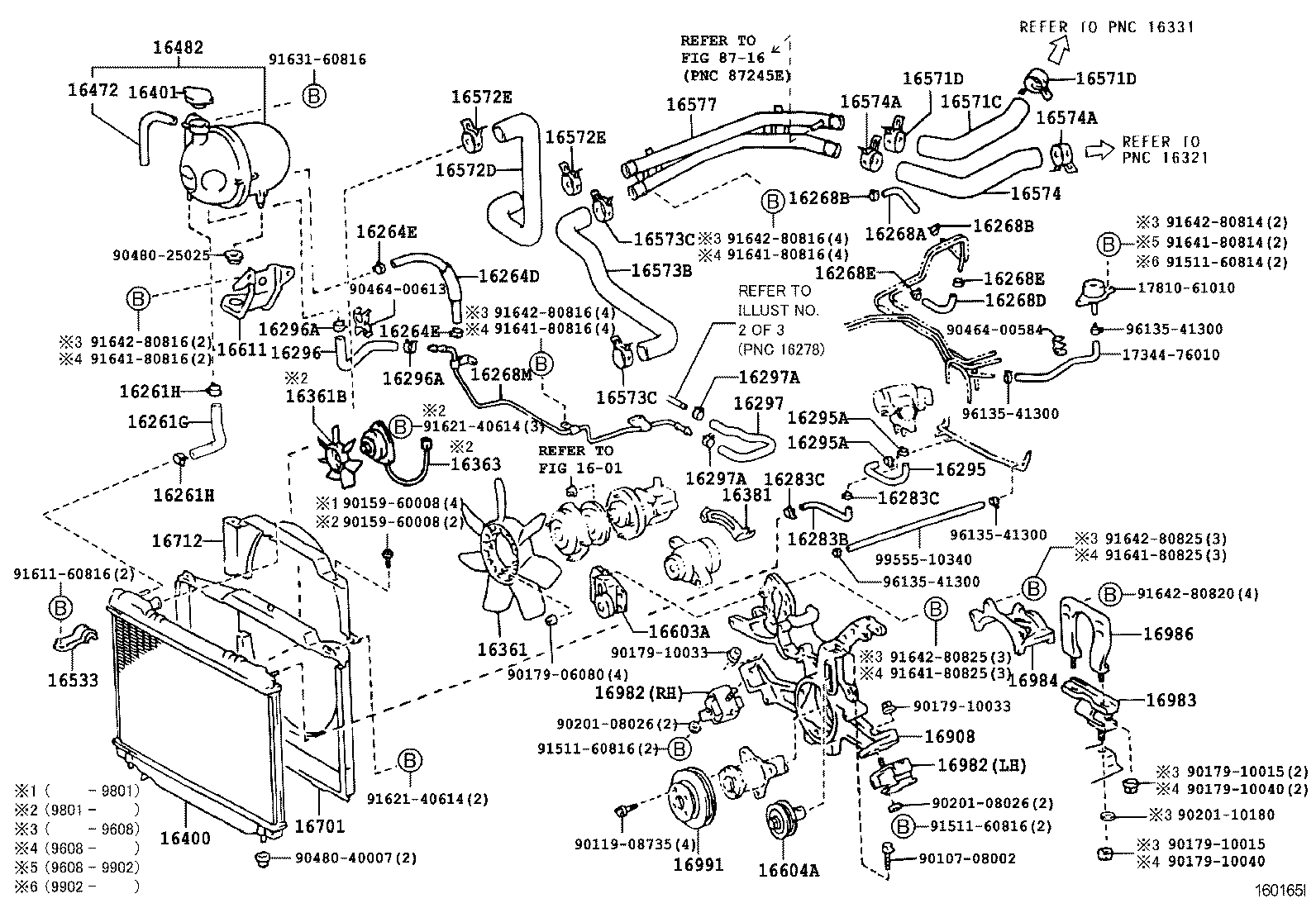

ILLUST NO. 1 OF 3(9601- )2TZFZE

Click highlighted areas on diagram

diagram 1601 16261G 16261H 16261H 16264D 16264E 16264E 16268A 16268B 16268B 16268D 16268E 16268E 16268M 16283B 16283C 16283C 16295 16295A 16295A 16296 16296A 16296A 16297 16297A 16297A 16361 16361B 16363 16381 16400 16401 16472 16482 16533 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16574 16574A 16574A 16577 16603A 16604A 16611 16701 16712 16908 16982 16982 16983 16984 16986 16991 1734476010 1781061010 8716 9010708002 9011908735 9015960008 9015960008 9017906080 9017910015 9017910015 9017910033 9017910033 9017910040 9017910040 9020108026 9020108026 9020110180 9046400584 9046400613 9048025025 9048040007 9151160814 9151160816 9151160816 9161160816 9162140614 9162140614 9163160816 9164180814 9164180816 9164180816 9164180816 9164180825 9164180825 9164280814 9164280816 9164280816 9164280816 9164280820 9164280825 9164280825 9613541300 9613541300 9613541300 9613541300 9955510340
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-76040

2TZ#..TCR1#,2#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-15022

2TZ#..TCR1#,2#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90467-15022

2TZ#..TCR1#,2#

 2
16264D - HOSE, WATER BY-PASS, NO.2
90445-16048

2TZFZE..TCR1#,2#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2TZ#..TCR1#,2#

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2TZ#..TCR1#,2#

 2
16268A - HOSE(FOR WATER BY-PASS PIPE)
17342-76010

2TZ#..TCR1#,2#

高さ=120

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41100

2TZ#..TCR1#,2#

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
96135-41100

2TZ#..TCR1#,2#

 2
16268D - HOSE(FOR WATER BY-PASS PIPE)
17343-76010

2TZ#..TCR1#,2#

 1
16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2TZ#..TCR1#,2#

 2
16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE)
96135-41300

2TZ#..TCR1#,2#

 2
16268M - PIPE, WATER BY-PASS, NO.3
16268-76060

2TZFZE..TCR1#,2#

 1
16268-76061

2TZFZE..TCR1#,2#

 1
16283B - HOSE, WATER BY-PASS
16283-76010

2TZFZE..TCR1#,2#

 1
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96135-41300

2TZFZE..TCR1#,2#

 2
16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
96135-41300

2TZFZE..TCR1#,2#

 2
16295 - HOSE, WATER BY-PASS, NO.7
16295-76010

2TZFZE..TCR1#,2#

 1
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96135-41300

2TZFZE..TCR1#,2#

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96135-41300

2TZFZE..TCR1#,2#

 2
16296 - HOSE, WATER BY-PASS, NO.8
16296-76010

2TZFZE..TCR1#,2#

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96135-41400

2TZFZE..TCR11,21

 2
90467-15022

2TZFZE..TCR1#,2#

 2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96135-41400

2TZFZE..TCR11,21

 2
90467-15022

2TZFZE..TCR1#,2#

 2
16297 - HOSE, WATER BY-PASS, NO.9
16297-76010

2TZFZE..TCR1#,2#

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90467-15022

2TZFZE..TCR1#,2#

 2
96135-41400

2TZFZE..TCR11,21

 2
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90467-15022

2TZFZE..TCR1#,2#

 2
96135-41400

2TZFZE..TCR11,21

 2
16361B - FAN, NO.2
16361-46070

2TZFZE..TCR1#,2#

 1
16363 - MOTOR, COOLING FAN
16363-50021

2TZFZE..TCR1#,2#

 1
16400 - RADIATOR ASSY
16400-76141

2TZFZE..TCR1#,2#

 1
16400-76140

2TZFZE..TCR11,21

 1
16400-76142

2TZFZE..TCR1#,2#

 1
16472 - HOSE, BREATHER
85338-76020

2TZ#..TCR1#,2#

 1
90445-12078

2TZ#..TCR1#,2#

*H,L=150

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-76012

2TZ#..TCR1#,2#

 1
16480-76011

2TZ#..TCR1#,2#

 1
16480-76013

2TZFZE..TCR1#,2#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41009

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-42001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41009

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-42001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16573B - HOSE, RADIATOR, NO.3
16573-76022

2TZ#..TCR1#,2#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-41007

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-41007

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
90466-41001

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
90467-41009

2TZ#..TCR1#,2#

ﾗｼﾞｪｰﾀ側

 1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-41001

2TZ#..TCR1#,2#

ｴﾝｼﾞﾝ側

 1
90467-41002

2TZ#..TCR1#,2#

ﾊﾟｲﾌﾟ側

 1
16577 - PIPE, RADIATOR, NO.7
16577-76070

2TZ#..TCR1#,2#

 1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-76010

2TZFZE..TCR1#,2#

 1
16604A - SPRING(FOR IDLER PULLEY TENSION)
16604-76010

2TZFZE..TCR1#,2#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-76010

2TZ#..TCR1#,2#

 1
16611-76011

2TZ#..TCR1#,2#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-76100

2TZFZE..TCR1#,2#

 1
16711-76101

2TZFZE..TCR1#,2#

 1
16712 - SHROUD, FAN, NO.2
16712-76050

2TZFZE..TCR1#,2#

 1
16712-76051

2TZFZE..TCR1#,2#

 1
16908 - HOUSING SUB-ASSY, EQUIPMENT DRIVE
16908-76020

2TZFZE..TCR1#,2#

 1
16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16982-76031

2TZFZE..TCR1#,2#

右側

 1
16982-76041

2TZFZE..TCR1#,2#

左側

 1
16982-76040

2TZFZE..TCR11,21

左側

 1
16982-76030

2TZFZE..TCR11,21

右側

 1
16982 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1
16982-76031

2TZFZE..TCR1#,2#

右側

 1
16982-76041

2TZFZE..TCR1#,2#

左側

 1
16982-76040

2TZFZE..TCR11,21

左側

 1
16982-76030

2TZFZE..TCR11,21

右側

 1
16983 - INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2
16983-76020

2TZFZE..TCR1#,2#

 1
16984 - STAY, EQUIPMENT DRIVE HOUSING, NO.1
16984-76020

2TZFZE..TCR1#,2#

 1
16986 - STAY, EQUIPMENT DRIVE HOUSING, NO.3
16986-76040

2TZFZE..TCR1#,2#

 1
16991 - PULLEY, EQUIPMENT DRIVE
16991-76030

2TZFZE..TCR1#,2#

 1
16991-76031

2TZFZE..TCR1#,2#

 1
Common parts
17344-76010
17810-61010
90107-08002
90119-08735
90159-60008
90179-06080
90179-10015
90179-10033
90179-10040
90201-08026
90201-10180
90464-00584
90464-00613
90480-25025
90480-40007
91511-60814
91511-60816
91611-60816
91621-40614
91631-60816
91641-80814
91641-80816
91641-80825
91642-80814
91642-80816
91642-80820
91642-80825
96135-41300
99555-10340
Linked diagrams
1601
8716

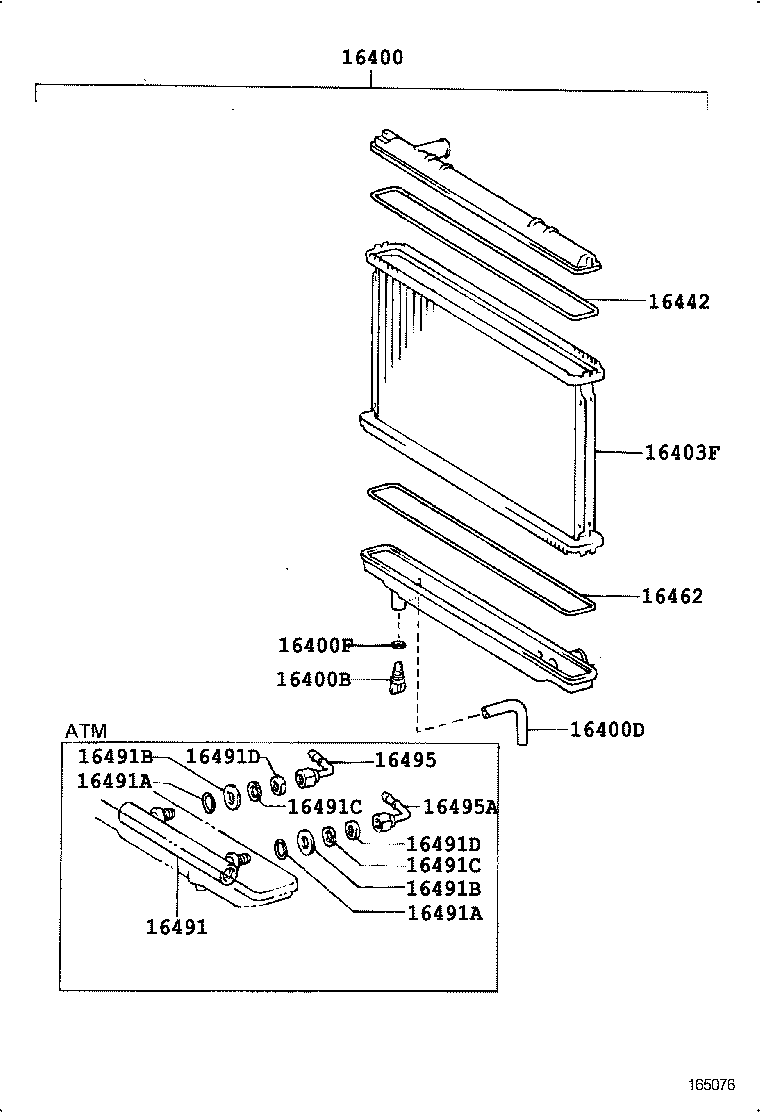

ILLUST NO. 3 OF 3(9408- )2TZFZE

Click highlighted areas on diagram

diagram 16400 16400B 16400D 16400F 16403F 16442 16462 16491 16491A 16491A 16491B 16491B 16491C 16491C 16491D 16491D 16495 16495A
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-76141

2TZFZE..TCR1#,2#

 1
16400-76140

2TZFZE..TCR11,21

 1
16400-76142

2TZFZE..TCR1#,2#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

2TZFZE..TCR1#,2#

 1
16400D - HOSE(FOR RADIATOR DRAIN COCK)
16419-76130

2TZFZE..TCR1#,2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

2TZFZE..TCR1#,2#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-76142

2TZFZE..TCR1#,2#

 1
16403-76140

2TZFZE..TCR11,21

 1
16403-76141

2TZFZE..TCR1#,2#

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-64680

2TZFZE..TCR1#,2#

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-64680

2TZFZE..TCR1#,2#

 1
16491 - COOLER, OIL(FOR ATM)
16491-64690

2TZFZE..TCR11,21

 1
16491-76131

2TZFZE..TCR1#,2#

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-64690

2TZFZE..TCR1#,2#

 2
16491A - RING, O(FOR ATM OIL COOLER)
16492-64690

2TZFZE..TCR1#,2#

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-61170

2TZFZE..TCR1#,2#

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-61170

2TZFZE..TCR1#,2#

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-61170

2TZFZE..TCR1#,2#

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-61170

2TZFZE..TCR1#,2#

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-15580

2TZFZE..TCR1#,2#

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-15580

2TZFZE..TCR1#,2#

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-76130

2TZFZE..TCR1#,2#

 1
16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER)
16495-17030

2TZFZE..TCR11,21

 1
16497-17030

2TZFZE..TCR1#,2#

 1
