TCR20W-RRSVV (1998)

Toyota Estima

Production Jan 1998 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9801- )

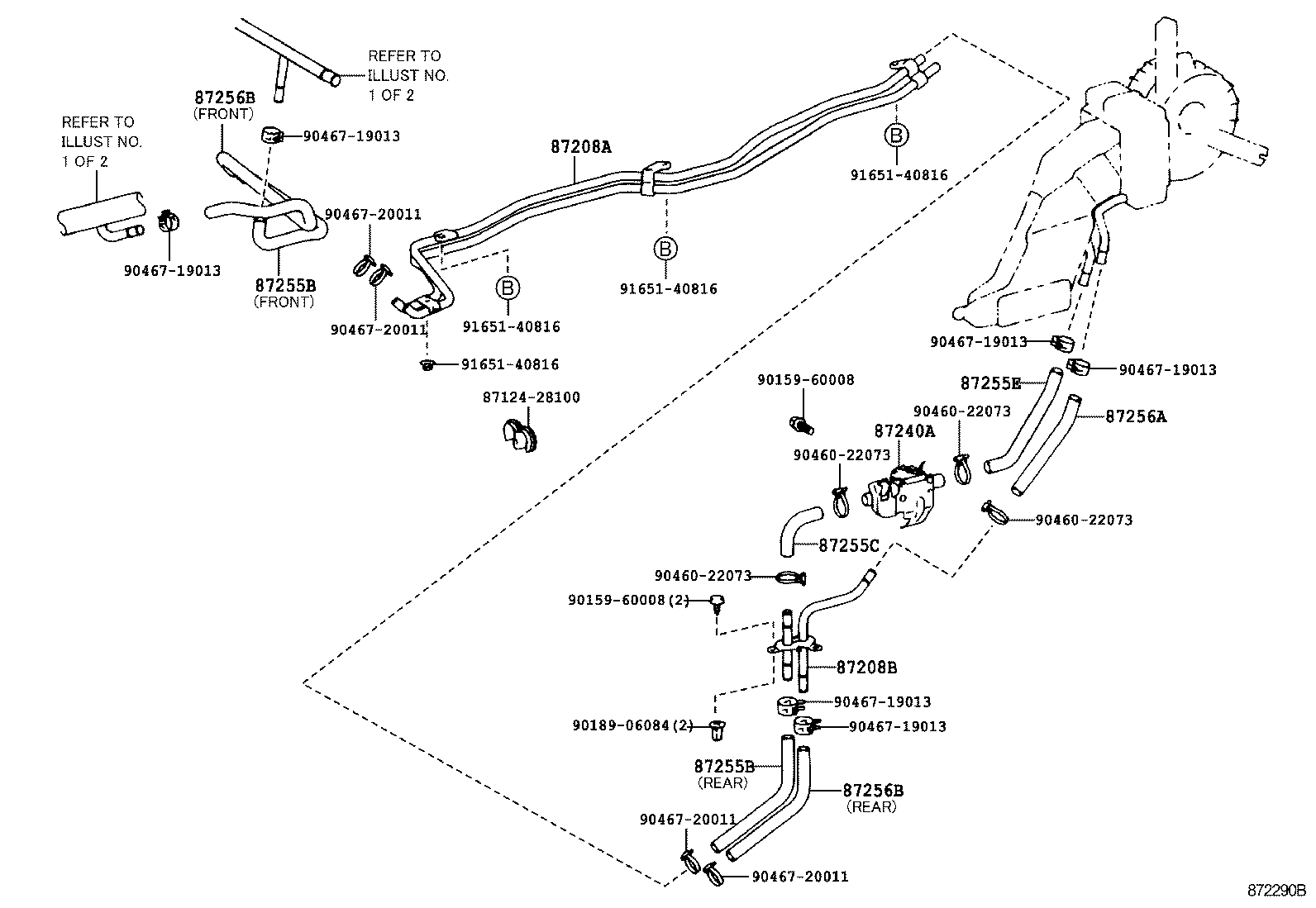

Click highlighted areas on diagram

ﾘﾔ ﾊﾟｲﾋﾟﾝｸﾞ

diagram 8712428100 87208A 87208B 87240A 87255B 87255B 87255C 87255E 87256A 87256B 87256B 9015960008 9015960008 9018906084 9046022073 9046022073 9046022073 9046022073 9046719013 9046719013 9046719013 9046719013 9046719013 9046719013 9046720011 9046720011 9046720011 9046720011 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28660

TCR1#,2#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-28230

TCR1#,2#

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-28050

TCR1#,2#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-28150

TCR1#,2#

ﾘﾔ

 1
99556-20200

TCR1#,2#

*H,L=160,ﾌﾛﾝﾄ

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-28150

TCR1#,2#

ﾘﾔ

 1
99556-20200

TCR1#,2#

*H,L=160,ﾌﾛﾝﾄ

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-28140

TCR1#,2#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-28890

TCR1#,2#

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

TCR1#,2#

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-28860

TCR1#,2#

ﾌﾛﾝﾄ

 1
99556-20490

TCR1#,2#

*H,L=490,ﾘﾔ

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-28860

TCR1#,2#

ﾌﾛﾝﾄ

 1
99556-20490

TCR1#,2#

*H,L=490,ﾘﾔ

 1
Common parts
87124-28100
90159-60008
90189-06084
90460-22073
90467-19013
90467-20011
91651-40816
