TCR20W-RRSVV (1998)

Toyota Estima

Production Jan 1998 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

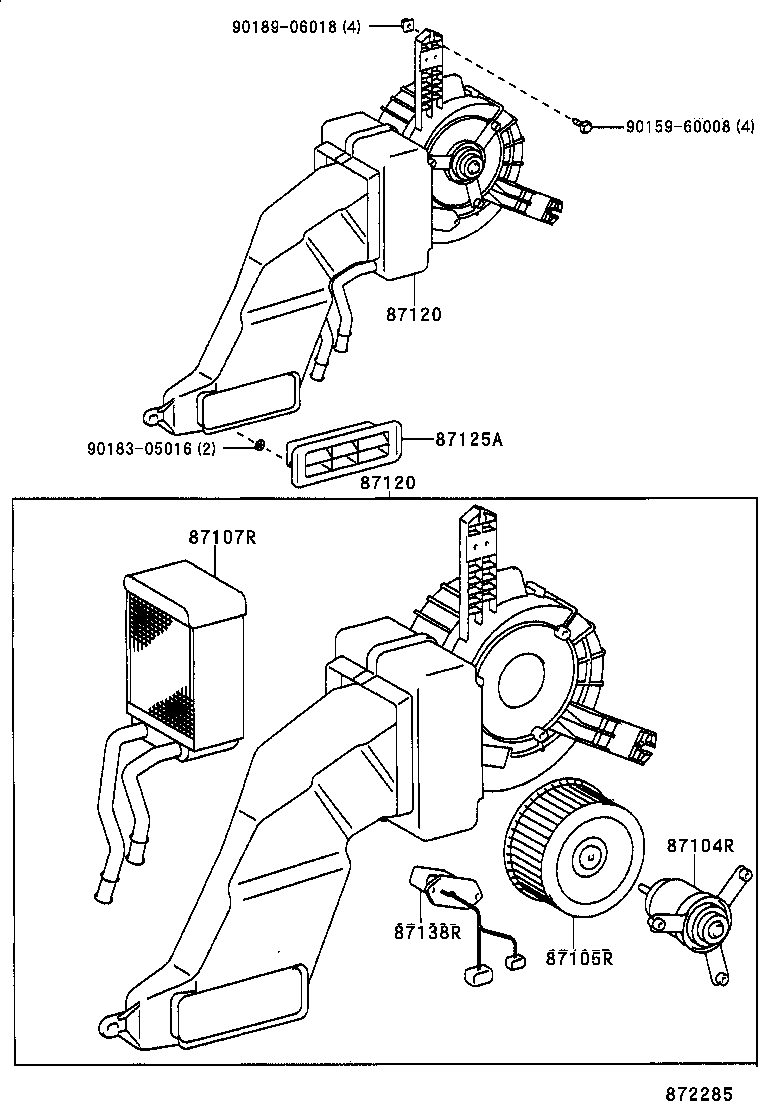

ILLUST NO. 2 OF 2(9801- )

Click highlighted areas on diagram

REAR

diagram 87104R 87105R 87107R 87120 87120 87125A 87138R 9015960008 9018305016 9018906018
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-28050

TCR1#,2#

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-28030

TCR1#,2#

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-28190

TCR1#,2#

 1
87120 - HEATER ASSY, REAR
87110-28030

TCR1#,2#

 1
87120 - HEATER ASSY, REAR
87110-28030

TCR1#,2#

 1
87125A - GRILLE, AIR OUTLET
87125-28010B0

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
87138R - RESISTOR, REAR HEATER BLOWER
88635-28020

TCR1#,2#

 1
Common parts
90159-60008
90183-05016
90189-06018
